Product Overview
DS18 SLC12S 12" Select Car Subwoofer 500 Watts 4-Ohm SVC
| The Select Series Subwoofers come in 8", 10", and 12" in black steel baskets. DS18 understands the demands of many inexperienced car audiophiles and fiscally responsible deal-finders. These subwoofers' success relies in their ability to deliver better quality and RMS power than all other entry level offerings of their competition. |
Highlights
- Loud booming bass with an amazing price point that will shake the ground around you.
- High Quality ferrite motor with aluminum coils for very high power to DB efficiency and loudness.
- Great DS18 design that never let's you down and gives you loud bass on demand.
Technical Details
| Model: | SLC-12S |
| Type: | Subwoofer |
| Size: | 12" |
| RMS Power: | 250W |
| MAX Power: | 500W |
| Impedance: | 4 ohms |
| Voice Coil Size: | 2"/50.8mm |
| Magnet: | Ferrite |
| Magnet Weight: | 45 oz |
| Frequency Response: | 25Hz - 4.2KHz |
| Materials | |
| Frame: | Steel Basket |
| Cone: | Paper with Glass Fiber |
| Surround: | Foam Edge |
| Voice Coil Former Material: | Black Aluminum |
| Measurements | |

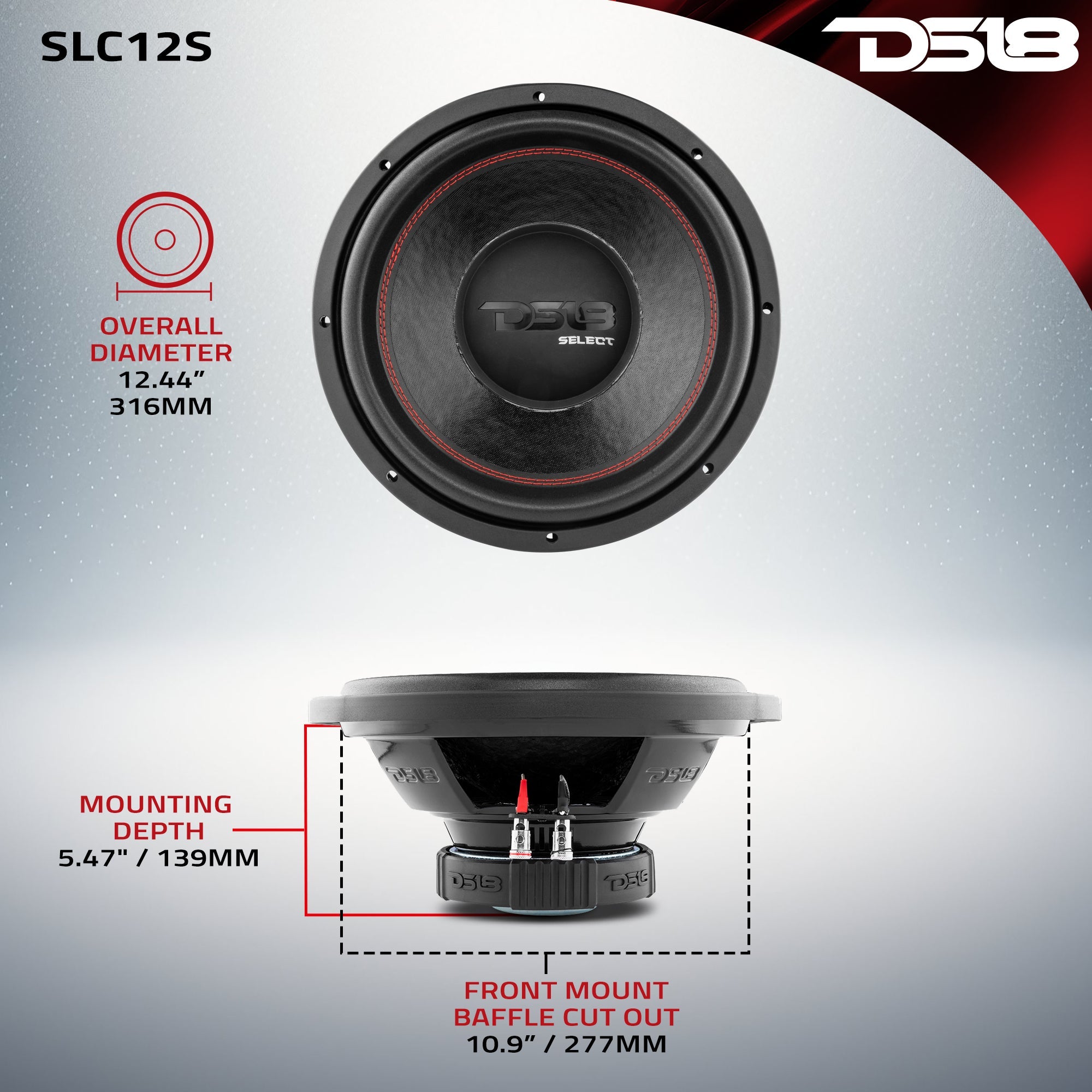

| Mounting Cut-Out: | 10.90"/277mm |
| Mounting Depth: | 5.47" /139mm |
| Overall Diameter: | 12.44" /316mm |
| Overall Depth: | 6.42"/163mm |
Key Features
- 12" Subwoofer
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm 2" SVC
- Ferrite Magnet
- 90dB
Specifications
| SKU | SLC-12S |
|---|---|
| Nominal Diameter | 12" / 305mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 250 W |
| Maximum Power Handling | 500 W |
| Sensitivity (1w/1m) | 90 dB |
| Frequency Response | 25Hz-4.2KHz |
| Recommended Lo Pass Crossover | 90Hz |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Foam |
| Basket Material | Steel |
| Basket Color/Finish | Gloss black |
| Magnet Material | Ferrite |
| Magnet Weight | 45 Oz |
| Equivalent Volume Vas | 32.8L / 1.15ft3 |
| Free Air Resonance Fs | 41 Hz |
| Mechanical Factor Qms | 4.611 |
| Electrical Factor Qes | 1.116 |
| Total Factor Qts | 0.898 |
| Moving Mass Mms | 174.993 g |
| Compliance Cms | 0.049 mm/H |
| Bl Factor Bl | 12.946 |
| Voice Coil Inductance Le | 1.018 mH |
| Diaphragm Area Sd | 530.93 cm2 |
| DC Resistance Re | 3.4 ohms |
| Efficiency Bandwidth Product EBP | 36.73 |
| Sealed Internal Volume | 21.2L / 0.75ft3 |
| Sealed Box Output Response F3 | 42Hz |
| Ported Internal Volume | 39.6L / 1.4ft3 |
| Port Size *Square (W x H x Long) | 1.26" x 12.28" x 24.35" / 32.1 x 312 x 618.4mm |
| Port Tuning Frequency FB | 32Hz |
| Ported Box Output Response F3 | 26Hz |
| Overall Diameter | 12.44" / 316mm |
| Overall Depth | 6.42" / 163mm |
| Front Mount Baffle Cutout | 10.9" / 277mm |
| Mounting Depth | 5.47" / 139mm |
| Motor Diameter | 5.94" / 151mm |
| Gross Single Unit Weight (lb) | 10 |
| Dimensions W x L x H (Inches) | 13.25 x 13.25 x 7.25 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 42.5 |
| Master Carton Dimensions W x L x H (Inches) | 27.25 x 14 x 15.25 |
