Product Overview

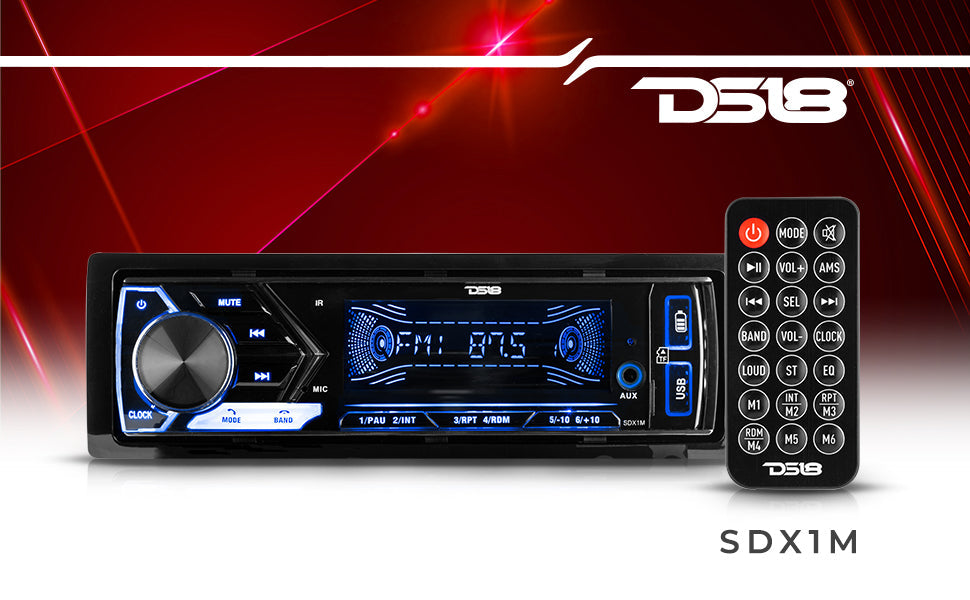

DS18 SDX1 Single Din Digital Media Receiver Mech-Less Player, Bluetooth, Dual USB ,7 Volt Preouts

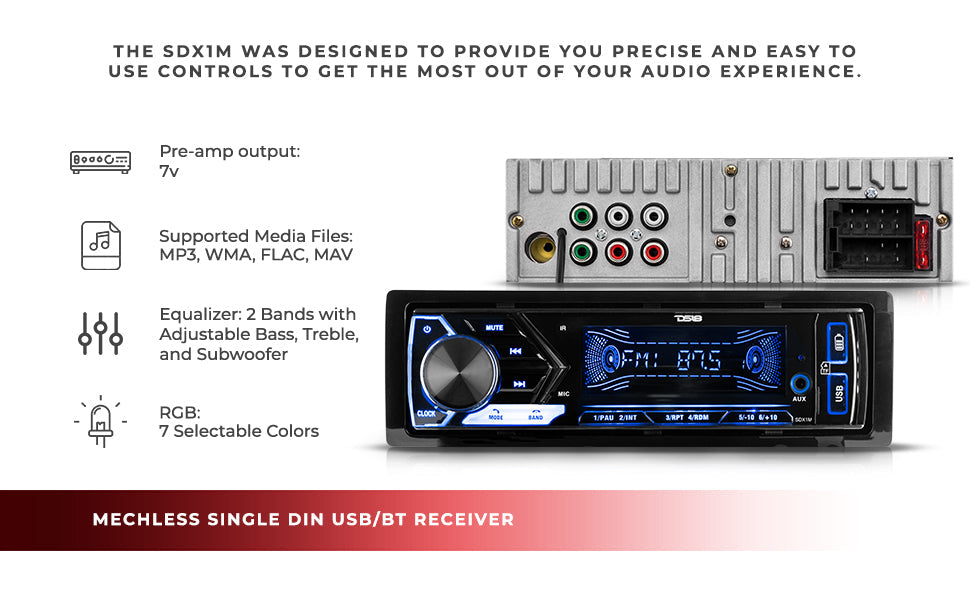

Your radio is the driving source of all your music and feeds your amplifiers a clean signal that ensures long life and amazing sound quality out of your sound system. The SDX1 was designed to do just that, along with providing you precise and easy to use controls to get the most out of your audio experience.
This mech-less single din, perfect fit unit pushes out 50 watts max for all 4 channels while the pre-amp output is adjustable up to 7v, which is very important for maximizing the most out of your amplifiers and getting the cleanest sound while maintaining high volume levels. Mech-less means this unit has no CD/DVD player. However, there is a USB, SD, and BT reader that are used for the main file sources that stream and read up to 64GB drives. Radio stations will come in strong and clear and can be set on any of the 18 memory locations.

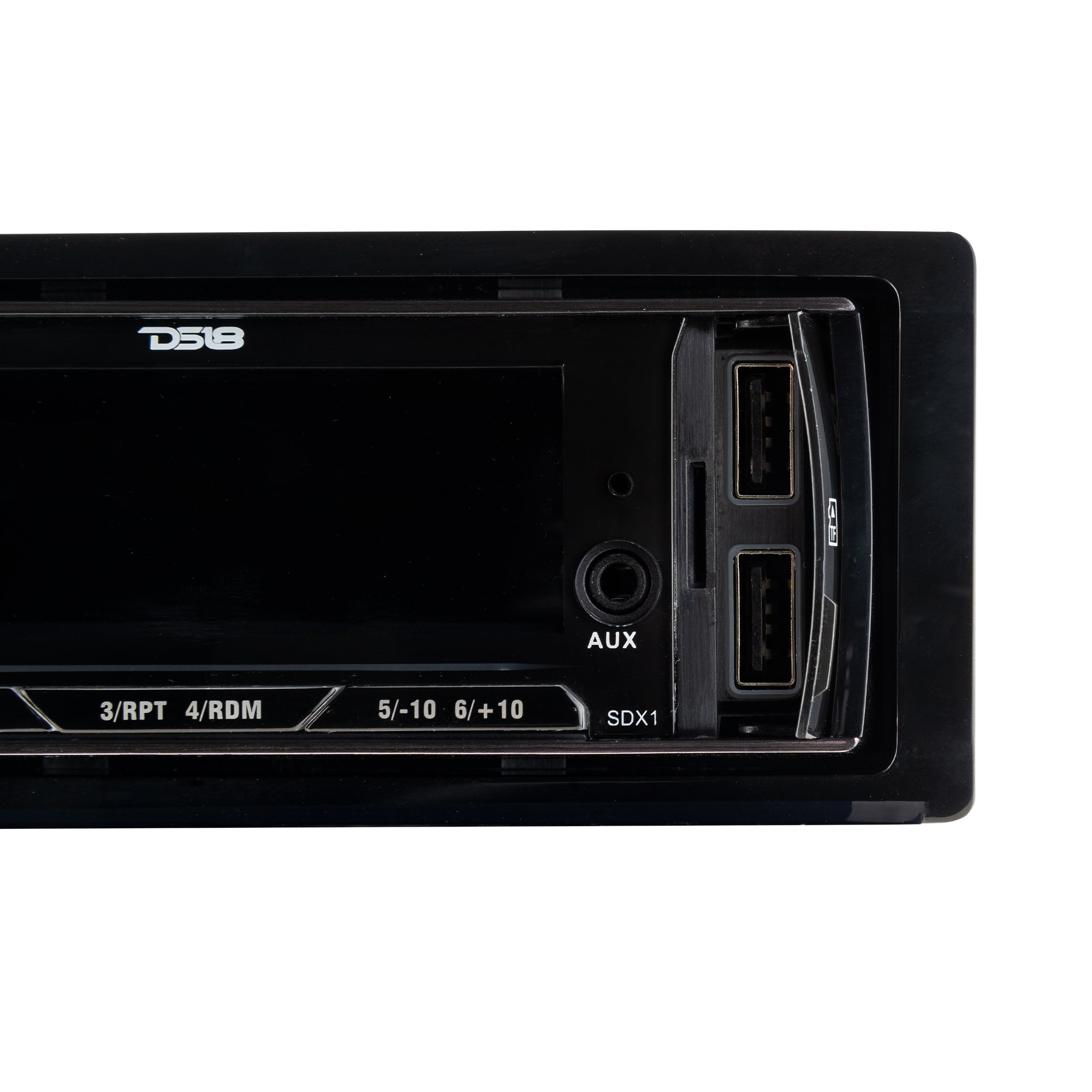

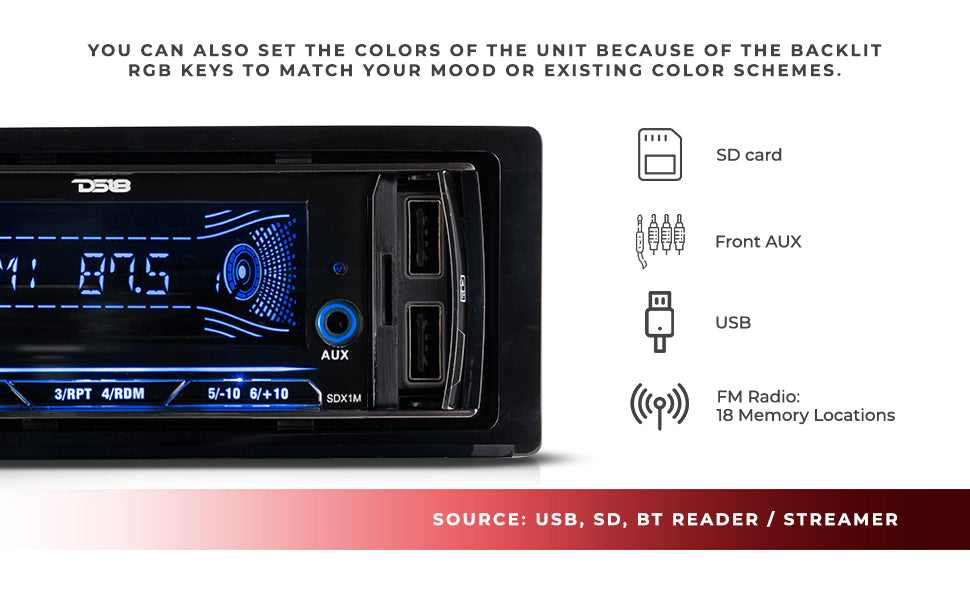

You can also set the colors of the unit because of the backlit RGB keys to match your mood or existing color schemes, while the easy to read 3 inch VA white display remains bright and clear. You can tune your sound easily with the 2 band equalizer which also allows you to adjust vital functions like level, bass, treble, balance, fade, and subwoofer controls precisely and with ease. Connect to your USB easily with two front USB ports which both have charging functionality with an added front AUX input jack.
The SDX1 is sure to be the best starting decision you can make if you are looking for a single din, high powered head unit, with high pre-amp voltage and tons of additional options to start your audio build.

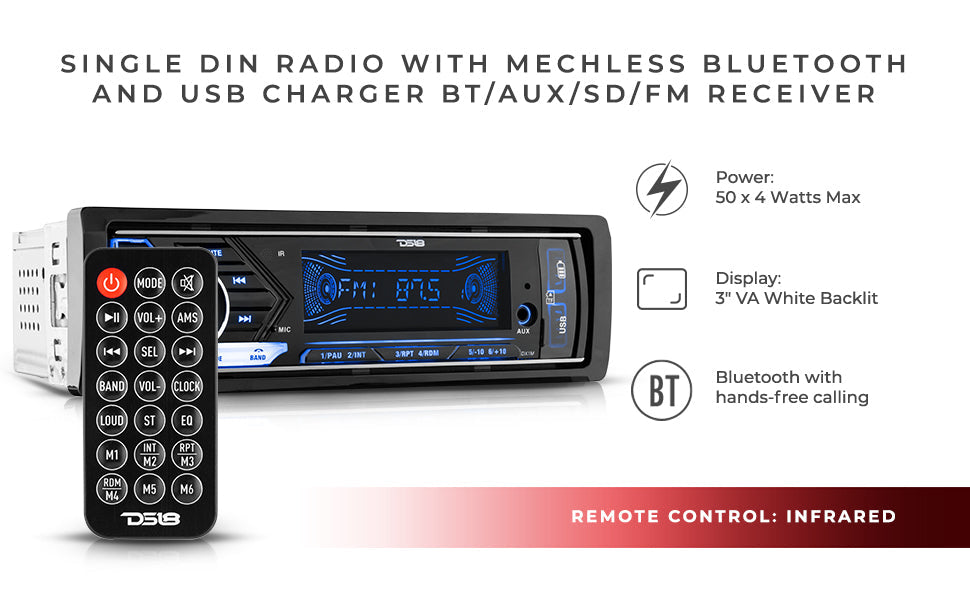

Highlights
- Mech-less Single Din USB/BT Receiver

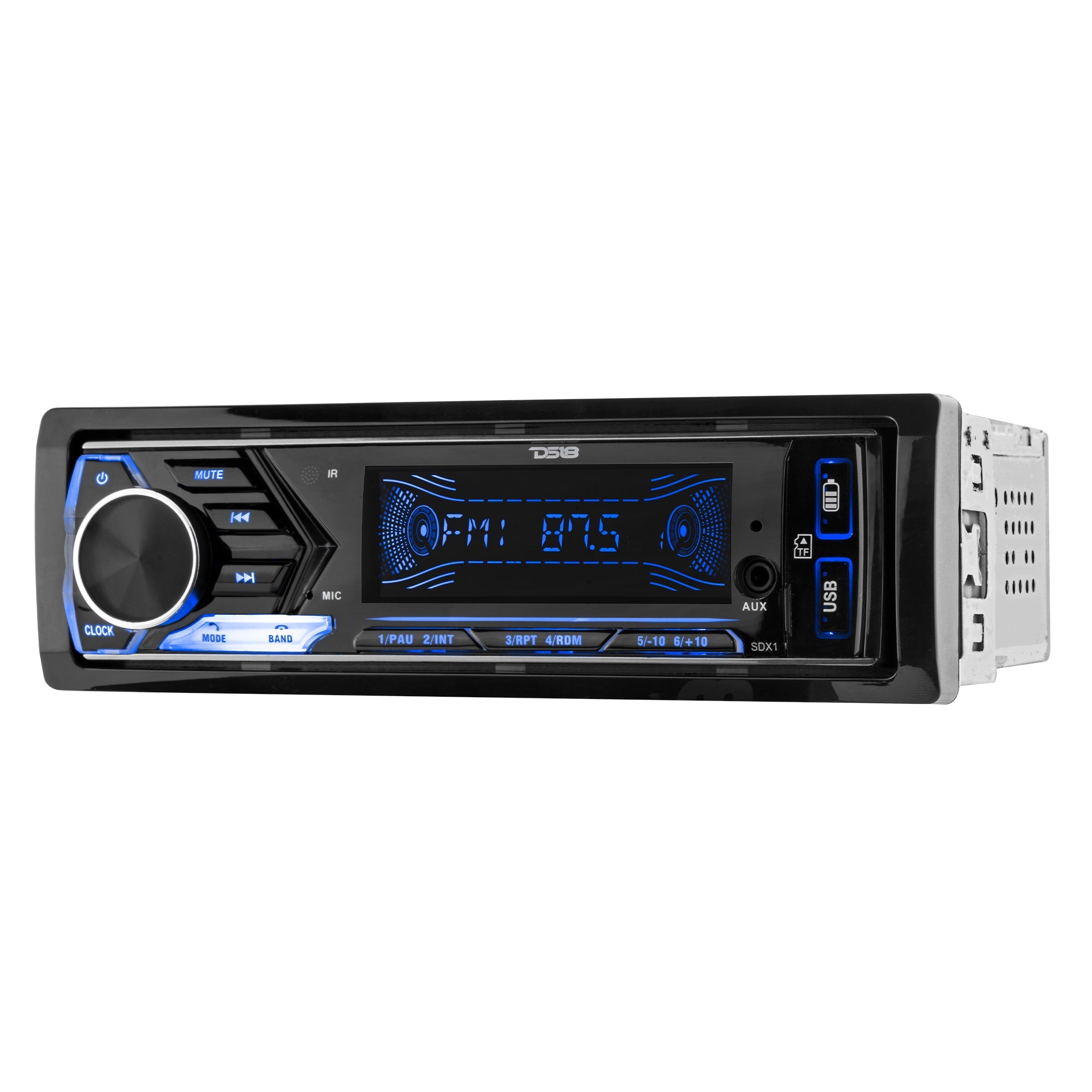

- Single Din Perfect Fit Mounting
- FM Radio: 18 Memory Locations
- Source: USB, SD, BT Reader / Streamer
- Supported Media Files: MP3, WMA, FLAC, MAV
- Remote control: Infrared
- RGB: 7 Selectable Colors
- Display: 3" VA White Backlit
- Power: 50 x 4 Watts Max
- Equalizer: 2 Bands with Adjustable Bass, Treble, and Subwoofer
- Pre-amp output: 7v
- Inputs: USB, SD, BT, Front AUX
Good for:
- Car Audio
- DIY Projects
Technical Details
| GENERAL | |
| Rated power source | 14.4V DC (11V to 16V operation) |
| Maximum Current Consumption | 10 Amp |
| Dimensions (W x H x DI: Chassis | 178mm x 50mm x 150mm |
| Bezel frame | 188mm x 58mm x 30mm |
| Weight | 15.9 Oz / 452 grams |
| DISPLAY | |
| Screen Size | 3” / 75 x 25mm |
| Display Type | VA LCD |
| Temperature Operation | -20°C to +60°C (14°F to 140°F) |
| AUDIO | |
| Maximum Power Output | 50W X 4 Ch @ 4 ohm (14.4v) |
| Continuos Power Output | 17W x 4 Ch @ 4 ohm (14.4v) |
| Pre-output Level | 7 Volts (14.4V) |
| Equalizer | 2 bands (Bass: 60Hz, Treble: 10KHz) |
| Gain | +/- 7dB |
| Preset EQ | Jazz / Rock / Pop / Classic |
| Audio Control | Volume / Balance / Fader / Loudness / Bass / Treble |
| Subwoofer Control | Vol (0-20) / Cut (80/120/160 Hz) |
| Signal to Noise Ratio | >60dB |
| THD | <0.3% |
| Frequency Response | 20Hz – 20Khz |
| TUNER | |
| Frequency Range | FM: 87.5 ~ 107.9 KHz |
| Presets Memory | 18 Stations |
| Region | North America “USA” |
| Sensitivity Adjustment | LOC / DX & ST / Mono |
| Sensitivity | <20dB |
| Stereo Separation | >25dB |
| USB / SD PLAYER | |
| Type/Class | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
| Format Files Supported | MP3, WMA, FLAC, MAV |
| Info Display Format | ID3 Tag |
| Memory Size Reader | up to 64 Gb |
| Max Current Supply | 1.5 Amp (Charging USB port) |
| Number of USB Ports | 2 x Front (1 for Audio / 1 for Charging) |
| SD Slot | 1 x Front Micro SD |
| CONNECTIVITTY | |
| Bluetooth Version / Services | V4.1 / Audio Streaming / Hands Free calls |
| Audio Protoco | A2DP v1.2 Sink (SNK) |
| Aux input | Front 3.5mm Jack Stereo Audio |
| Microphone | Built-In Microphone on faceplate |
| Remote Control | Frontal IR Receptor |
Key Features
- Digital Media Single Din Receiver
- Mech-Less
- BT ~ SD ~ USB ~ AUX ~ AM/FM
- 7 Selectable Colors
- Remote Control
- EQ and Subwoofer Control
Specifications
| SKU | SDX1 |
|---|---|
| Rated power source | 14.4V DC (11V to 16V operation) |
| Maximum Current Consumption | 10 Amp |
| Dimensions (W x H x D) | Chassis: 178mm x 50mm x 150mm Bezel frame: 188mm x 58mm x 30mm |
| Weight | 15.9 Oz / 452 grams |
| Screen Size | 3" / 75 x 25mm |
| Display Type | VA LCD |
| Temperature Operation | -20C to +60C (14F to 140F) |
| Maximum Power Output | 50W X 4 Ch @ 4 ohm (14.4v) |
| Continuos Power Output | 17W x 4 Ch @ 4 ohm (14.4v) |
| Pre-output Level | 7 Volts (14.4V) |
| Equalizer | 2 bands (Bass: 60Hz, Treble: 10KHz) |
| Gain | +/- 7dB |
| Preset EQ | Jazz / Rock / Pop / Classic |
| Audio Control | Volume / Balance / Fader / Loudness / Bass / Treble |
| Subwoofer Control | Vol (0-20) / Cut (80/120/160 Hz) |
| Signal to Noise Ratio | >60dB |
| THD | <0.3% |
| Frequency Response | 20Hz - 20Khz |
| Frequency Range | FM: 87.5 ~ 107.9 KHz |
| Presets Memory | 18 Stations |
| Region | North America |
| Sensitivity Adjustment | LOC / DX & ST / Mono |
| Sensitivity | <20dB |
| Stereo Separation | >25dB |
| Type/Class | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
| Format Files Supported | MP3, WMA, FLAC, MAV |
| Info Display Format | ID3 Tag |
| Memory Size Reader | up to 64 Gb |
| Max Current Supply | 1.5 Amp (Charging USB port) |
| Number of USB Ports | 2 x Front (1 for Audio / 1 for Charging) |
| SD Slot | 1 x Front Micro SD |
| Bluetooth Version / Services | V4.1 / Audio Streaming / Hands Free calls |
| Audio Protoco | A2DP v1.2 Sink (SNK) |
| Aux input | Front 3.5mm Jack Stereo Audio |
| Microphone | Built-In Microphone on faceplate |
| Remote Control | Frontal IR Receptor |
