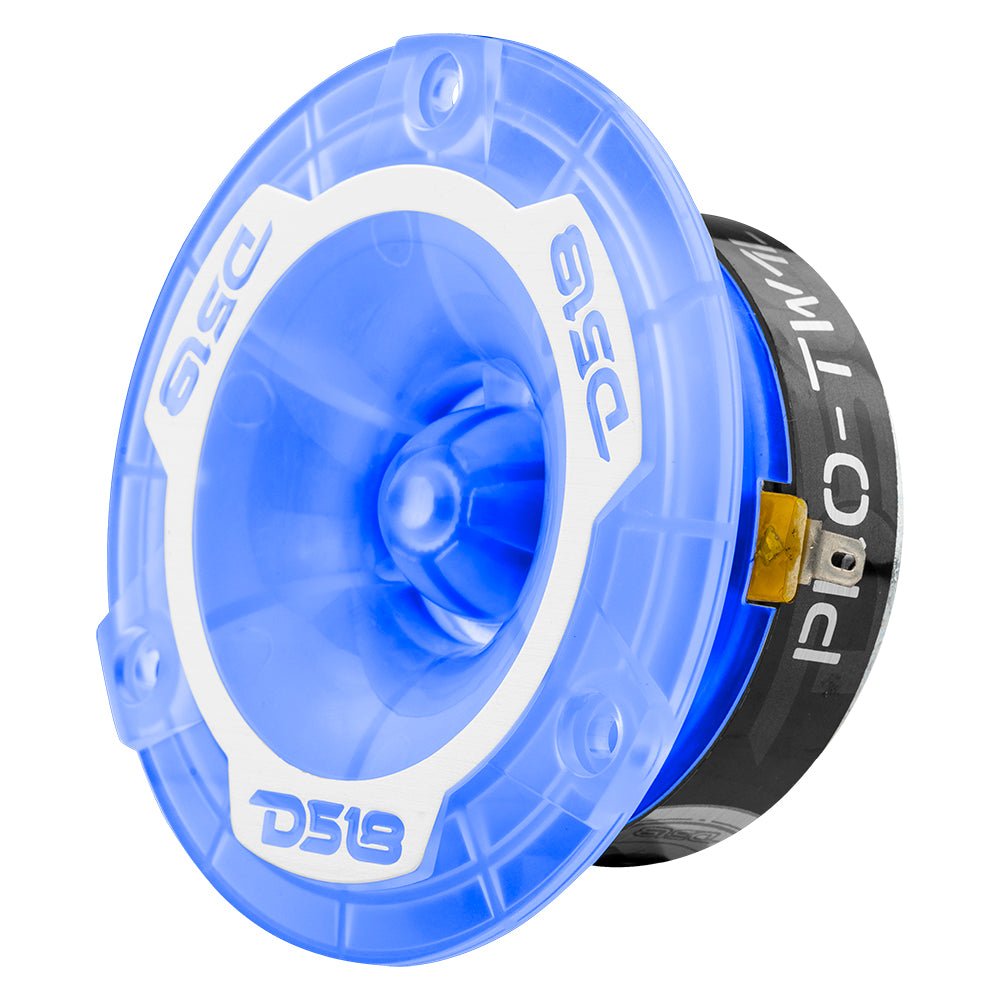

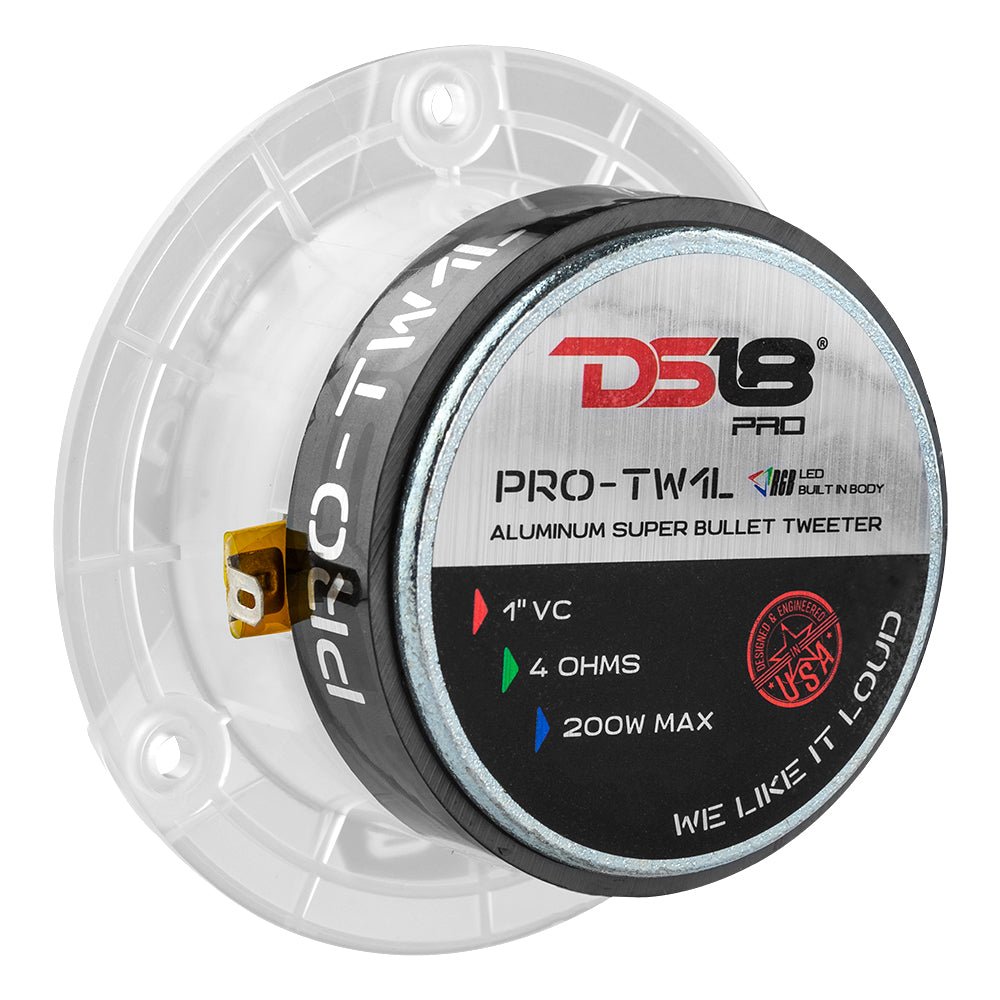

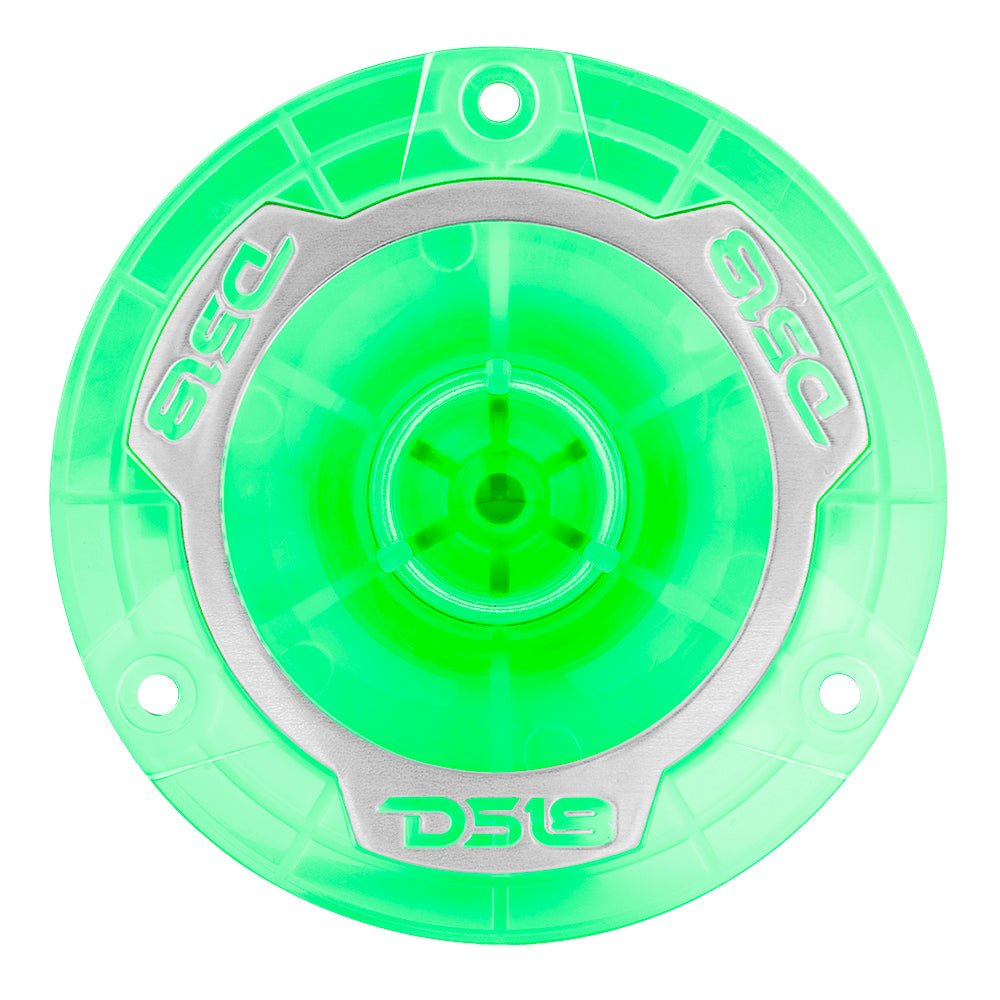

3.8" Super Bullet Tweeter with 1" Aluminum Voice Coil with RGB LED Lights
3.8" Super Bullet Tweeter with 1" Aluminum Voice Coil with RGB LED Lights
Product Overview
DS18 PRO-TW1L 3.8" Super Bullet Tweeter with RGB LED Lights 200 Watts 1" Aluminum 4-Ohm Vc
|
Engineered and Designed in the US, the DS18 RGB PRO Tweeters are the top of the line in the Pro Audio/Voceteo market. These bad boys deliver so much power that you'd think with one tweeter your whole sound system is ready to deploy for a major concert, the new RGB lights will give you the show you are looking for. Simply put, there are no tweeters that can compare to the sophistication, beauty, and precision of these tweeters, especially in the Pro Audio/Voceteo World. Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share with you the product of hard-work and "non-stop innovating attitude." We are sure that you will love your new PRO Tweeters as much as we do. Warning: Extremely Loud. |
Highlights
- Highly popular small tweeter design that handles big power.
- Huge sound for such a small tweeter and the size makes it highly versatile.
- Easily repaired in just a few minutes anywhere in the low chance you need to swap the voice coil out for a new one.

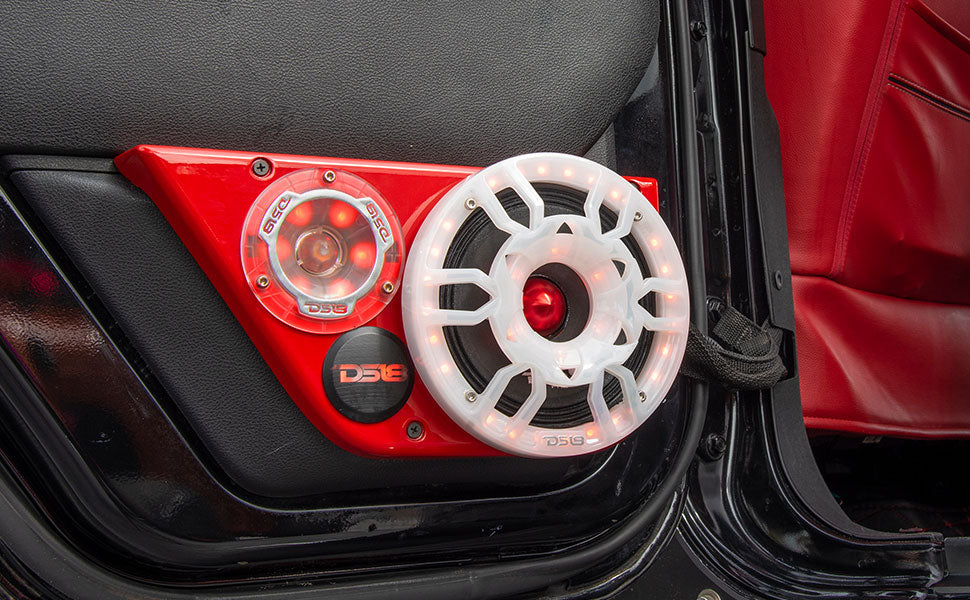

- RGB LED connections so you can get any color you want to match your vehicles theme.




Technical Details
| Model: | PRO-TW1L |
| Type: | RGB Super Bullet Tweeter |
| RMS Power: | 120 Watts |
| MAX Power: | 240 Watts |
| Diaphragm Material: | Aluminum |
| Sensitivity: | 103dB |
| Impedance: | 4 Ohms |
| Frequency Response: | 3.5KHz - 20KHz |
| Package Quantity: | 2 |
| Replacement Diaphragm: | PRO-TW1VC |


Key Features
- 3.8" Super Bullet Tweeter
- RMS Power: 120 Watts(240 Watts Peak)
- Impedance: 4 Ohm ~ 103dB

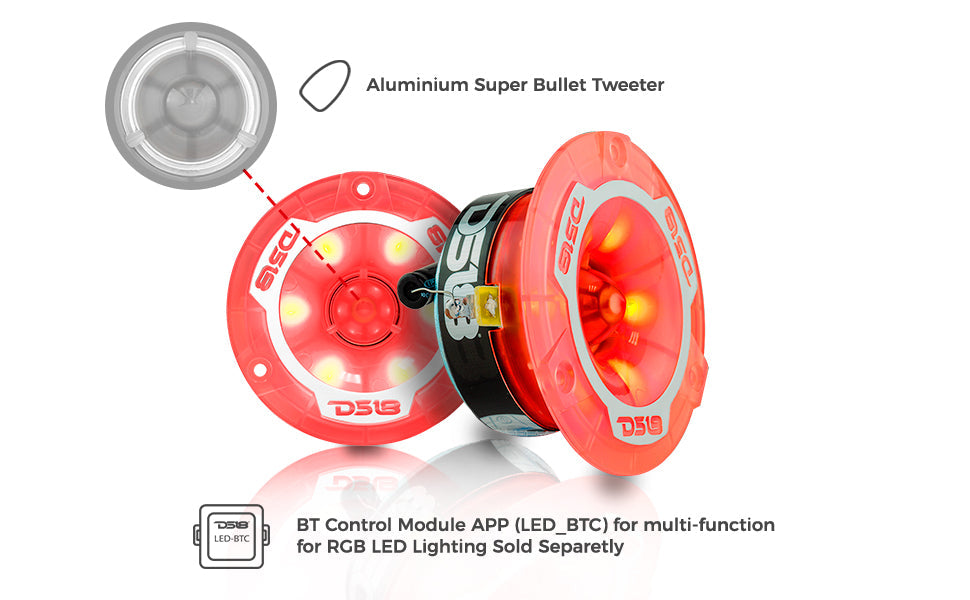

- RGB LED Lights
- Pair
- Easily Repaired With The PRO-TW1.8VC (8-Ohm) or PRO-TW1VC (4-Ohm)
Specifications
| SKU | PRO-TW1L |
|---|---|
| Nominal Diameter | 3.8" / 96.5mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sensitivity (1w/1m) | 103 dB |

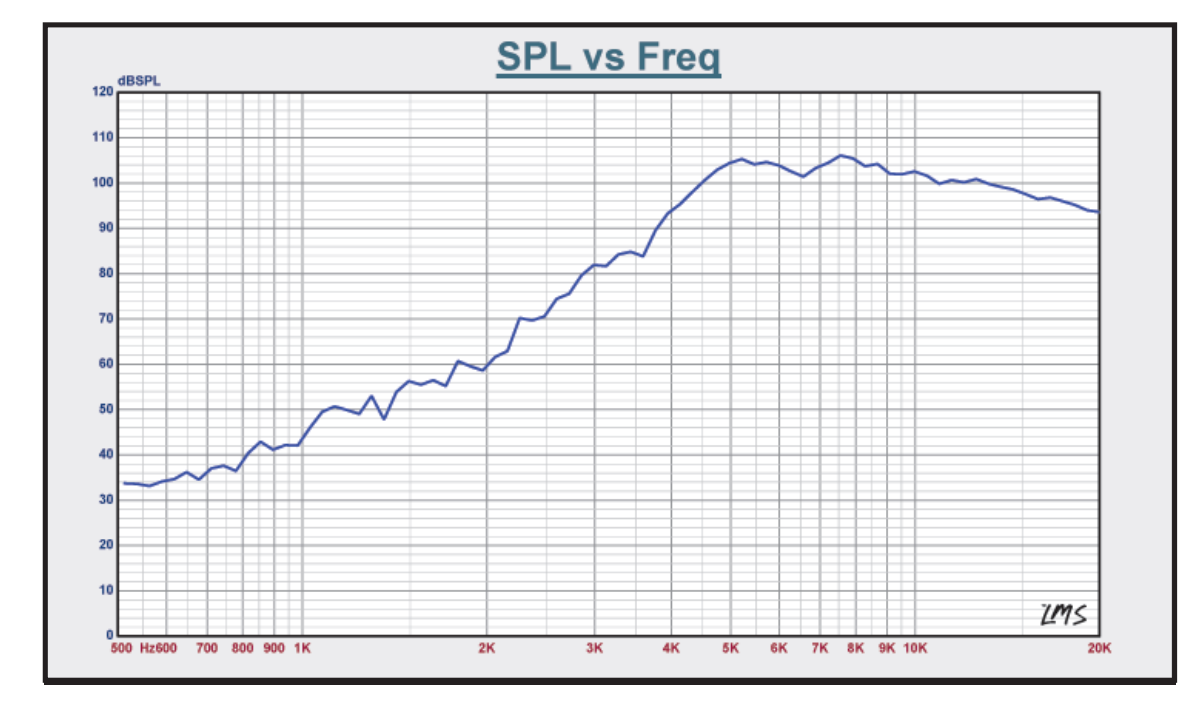

| Frequency Response | 3.5K - 20KHz |
| Recommended Hi Pass Crossover | 4KHz |
| Pair or Single | Pair |
| Body Material | Transparent Polycarbonate |
| Body Color / Finish | Translucid RGB Illuminated |
| Bullet Material | Transparent Polycarbonate |
| RGB LED | YES with 3.2ft input Wire |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite Y30 |
| Magnet Weight | 8 Oz |

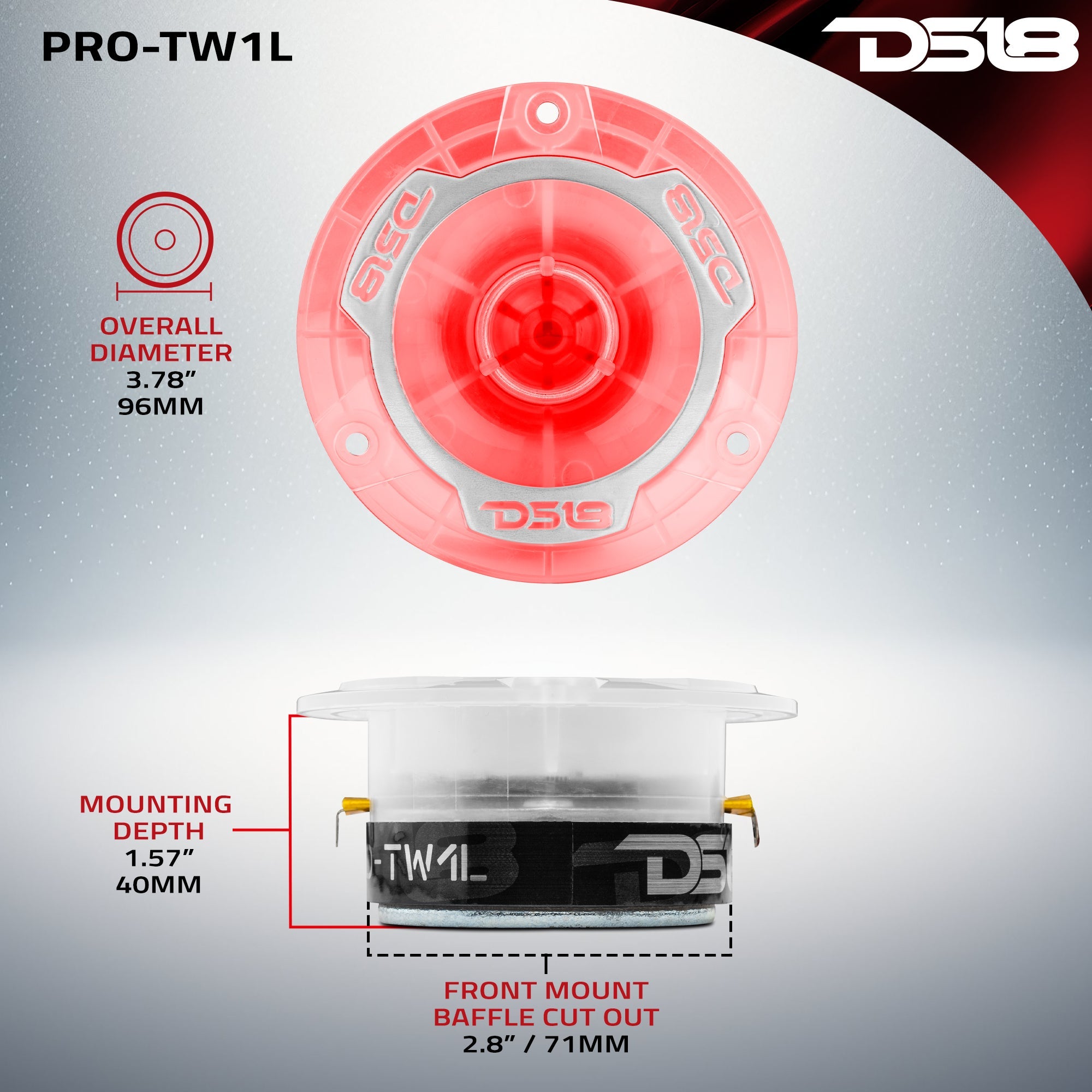

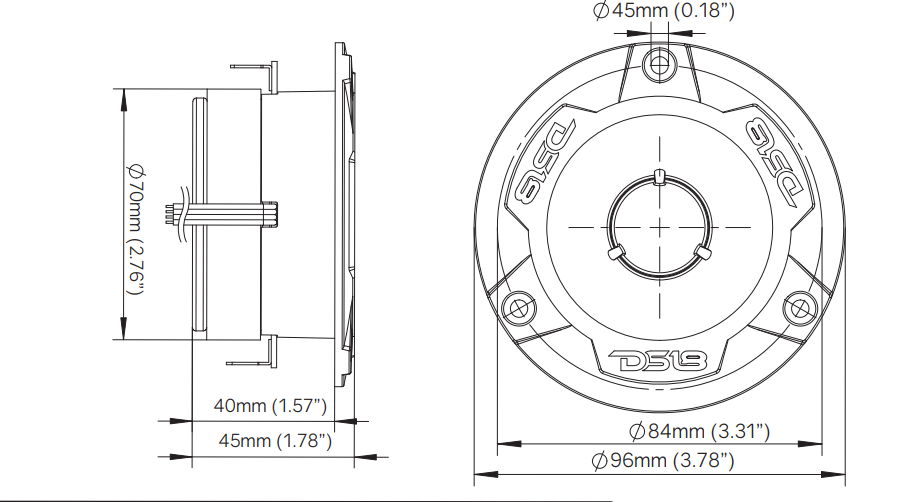

| Overall Diameter | 3.78" / 96mm |
| Overall Depth | 1.78" / 45mm |
| Front Mount Baffle Cutout | 2.8" / 72mm |
| Mounting Depth | 1.57" / 40mm |
| Magnet Diameter | 2.76" / 70mm |
| Gross Single Unit Weight (lb) | 2.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 8.25 x 4.25 x 2 |
| Quantity of Units in Master Carton | 12 |
| Gross Master Carton Weight (lb) | 30.5 |
| Master Carton Dimensions W x L x H (Inches) | 17.25 x 9.25 x 7.25 |
