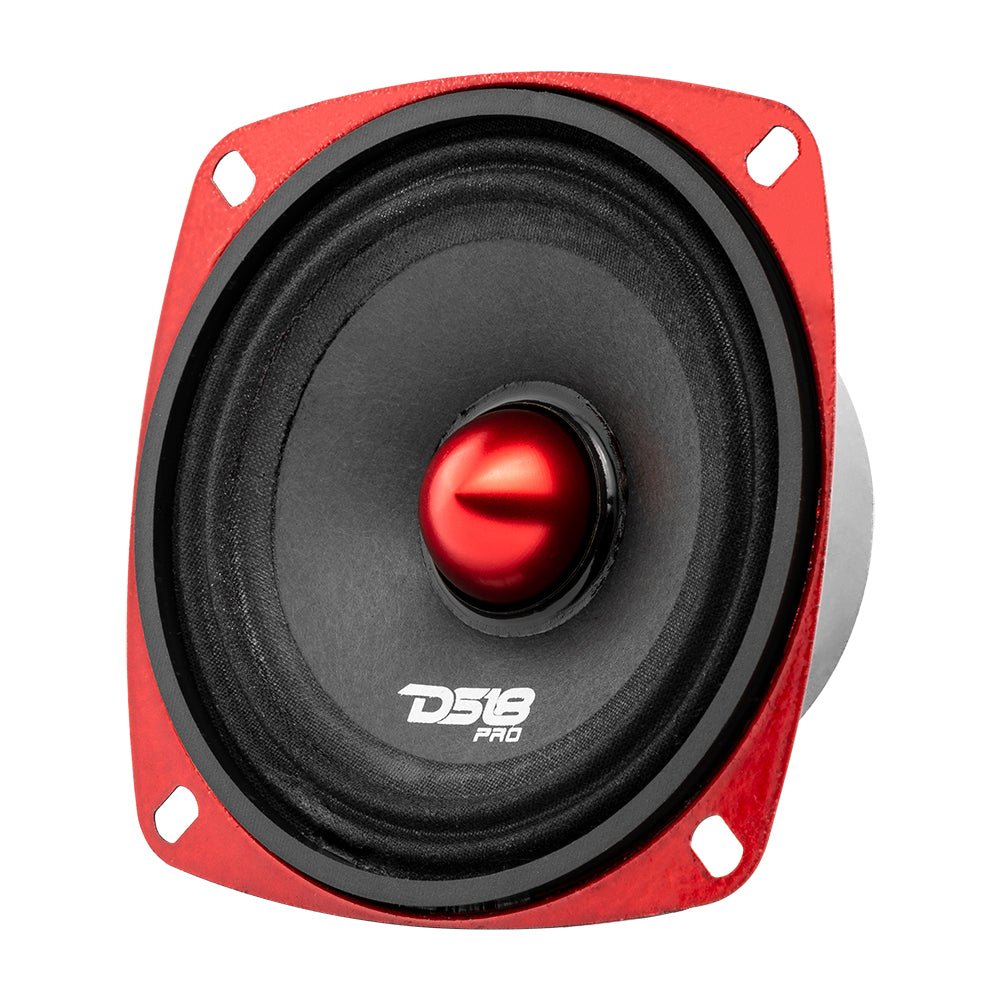

PRO-X 4" Shallow Mid-Range Bullet Loudspeaker | 100W RMS 4-Ohm
Product Overview DS18 PRO-X4.4BMSL PRO-X 4" Slim Mid-Range Loudspeaker with Bullet 200 Watts 4-Ohm The PRO-X4.4BM is...
Vendor:
DS18
Manufacturer SKU
PRO-X4.4BMSL
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $39.95
- $39.95
- Unit price
- per
Subtotal:
$39.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

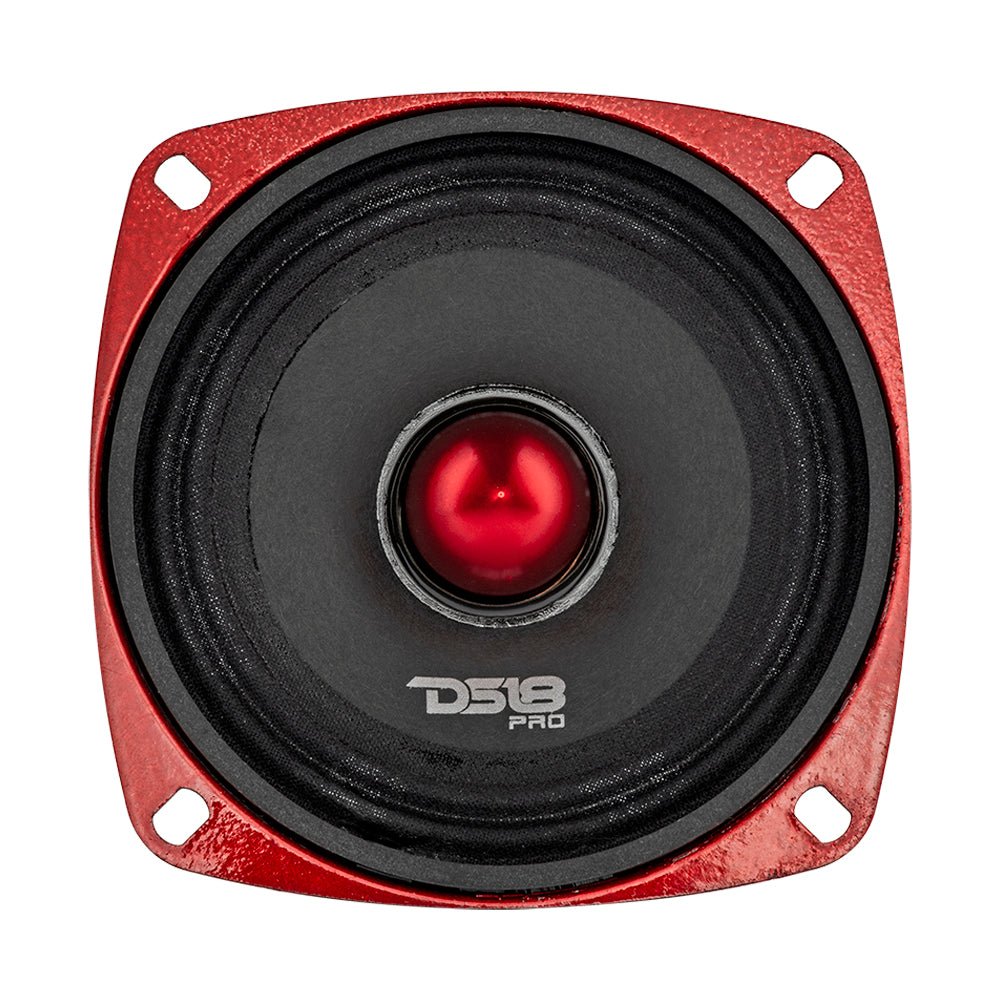

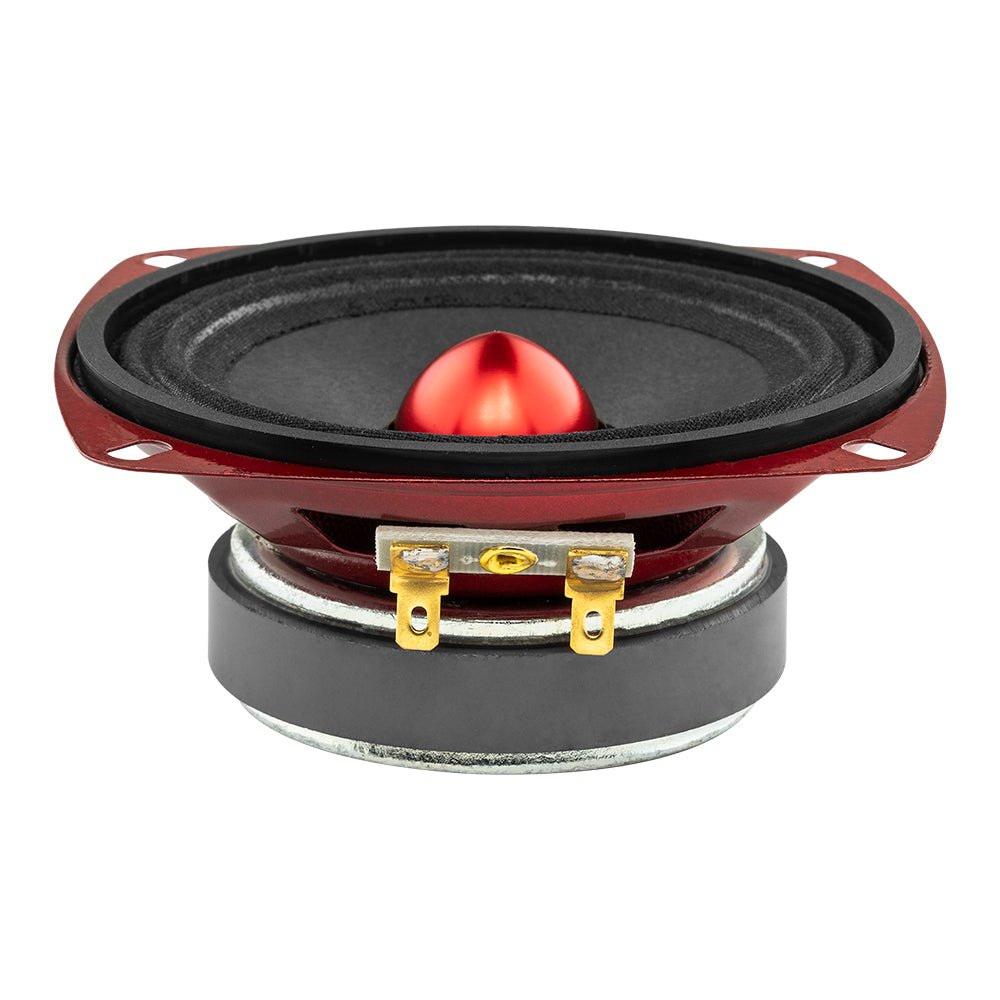

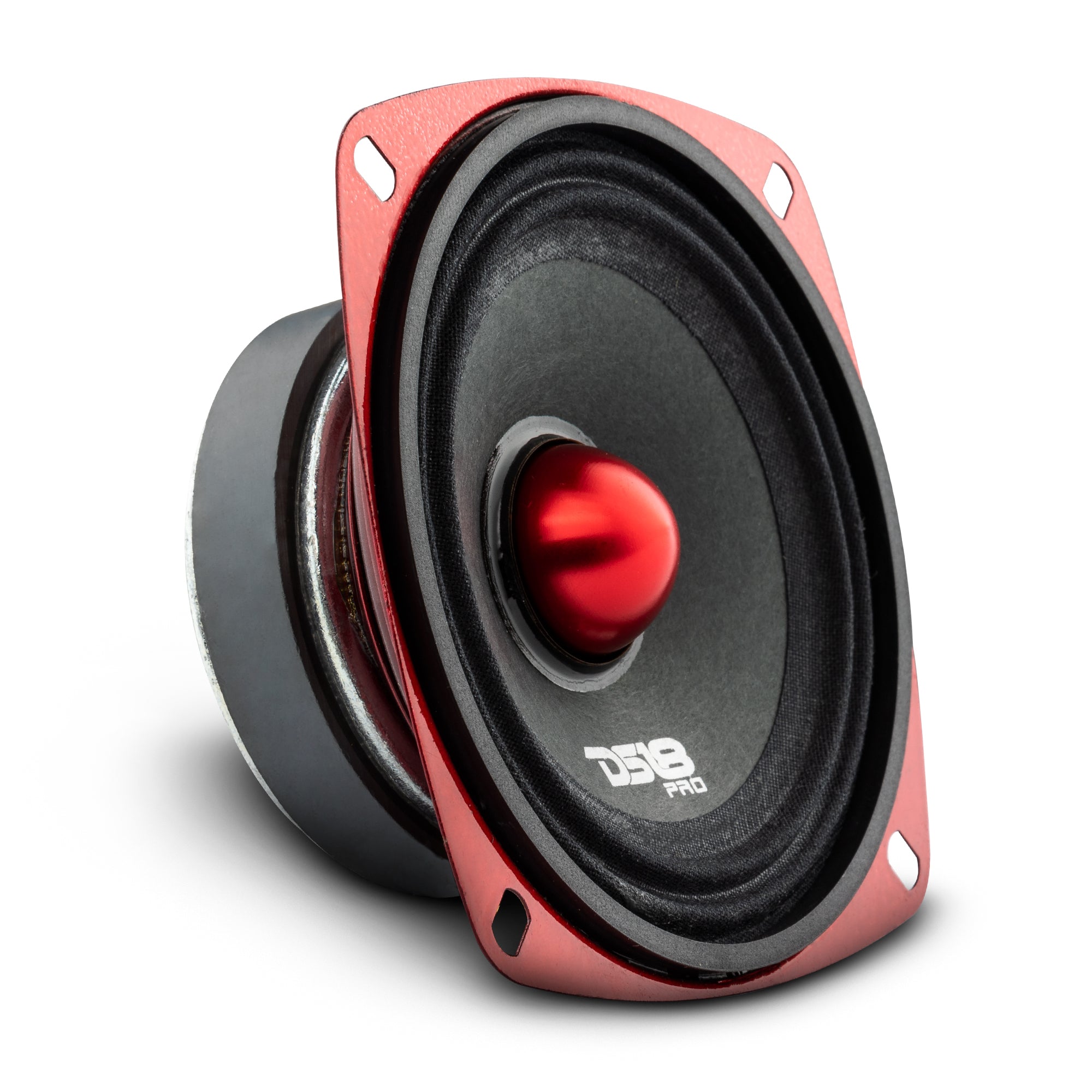

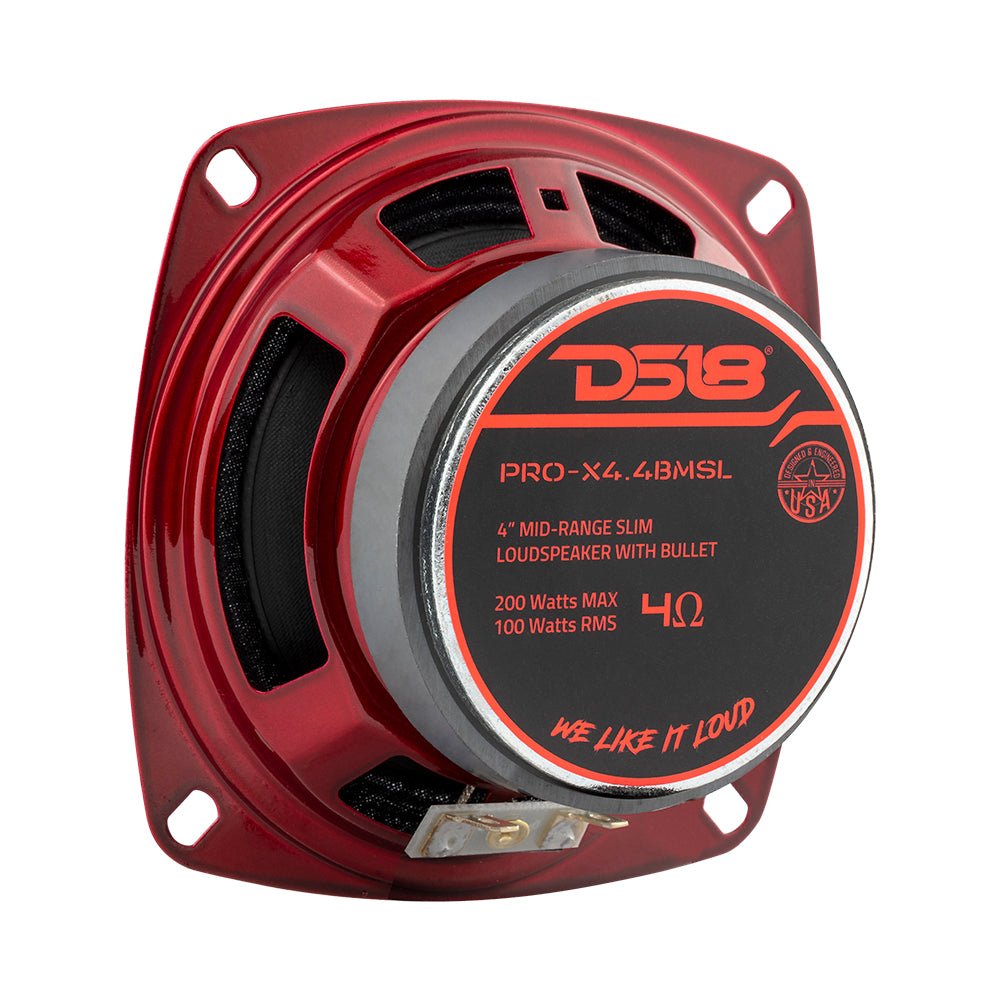

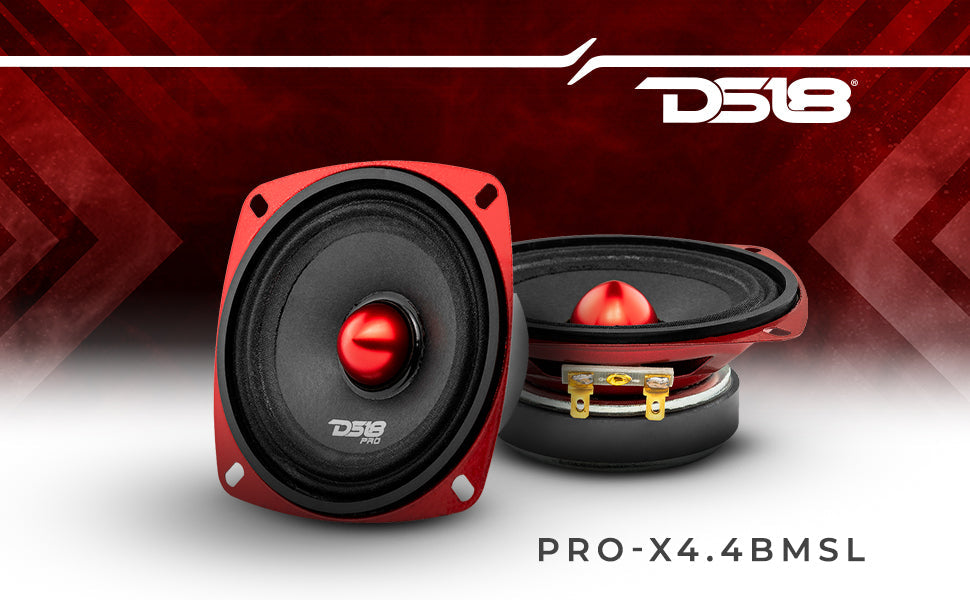

DS18 PRO-X4.4BMSL PRO-X 4" Slim Mid-Range Loudspeaker with Bullet 200 Watts 4-Ohm
The PRO-X4.4BM is back with a sleek new design to boost your sound system’s volume to EXTREME levels. The PRO-X4.4BMSL has everything you love about the original but has been sized down for versatile application in any concert-quality build.
Play this speaker as long as you want, the 1” Kapton Voice Coil this speaker comes equipped with handles high temperatures throughout the longest of jam sessions.
Turn this speaker to it’s MAX to get the most out of its 89 dB sensitivity! Without distortion it’s easy to notice the richness and accuracy of the tones reproduced by this speaker.
This speaker’s reduced mounting depth and RMS Power Rating of 100 W making it easily applicable into any build. The PRO-X4.4BMSL also has a MAX Power Rating of 200 W allowing it the freedom of heavy consistent usage.
Add this speaker to your build for crystal clear clarity at the most extreme volume levels!
Highlights
- Experience frequencies as low as 260Hz and as high as 11.5KHz with this speakers Bullet Resonator
- MAX Power Handling: 200 W
- RMS Power Handling: 100 W
- The high 89 dB sensitivity helps this speaker deliver the most accurate tones at extreme volumes
Great For
- Car Audio
- Pro Audio
- Motorcycle Audio
Technical Details
Download PRO-X4.4BMSL Product Manual
| SPECIFICATIONS | |
| Nominal Diameter | 4" / 101.6mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 100W |
| MAX Power Handling | 200W |
| Sensitivity (1w/1m) | 89dB |
| Frequency Response | 260Hz - 11.5KHz |
| Recommended HI Pass Crossover | 280Hz |
| Sold in Pair/Single | Single |
| MOTOR | |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | Aluminum |
| Bullet Color/Finish | Gloss Red |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Finish / Color | Red / Gloss |
| Magnet Material | Ferrite |
| Magnet Weight | 6 Oz |
| Displacement Volume | 0.524L / 0.0185ft3 |
| MEASUREMENT | |

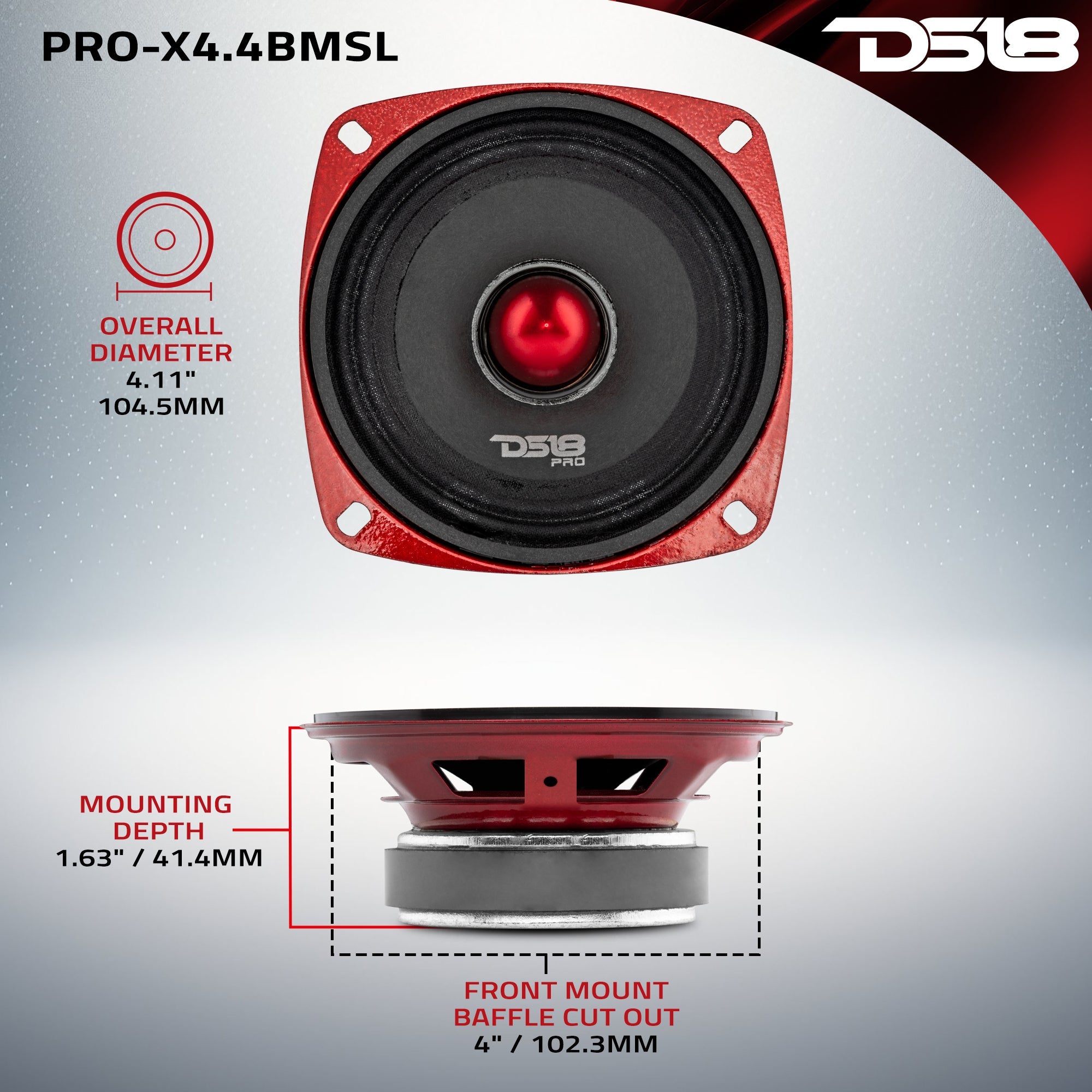

| Overall Diameter | 4.11" / 104.5mm |
| Overall Depth | 1.74" / 44.3mm |
| Front Mount Baffle Cutout | 4" / 102.3mm |

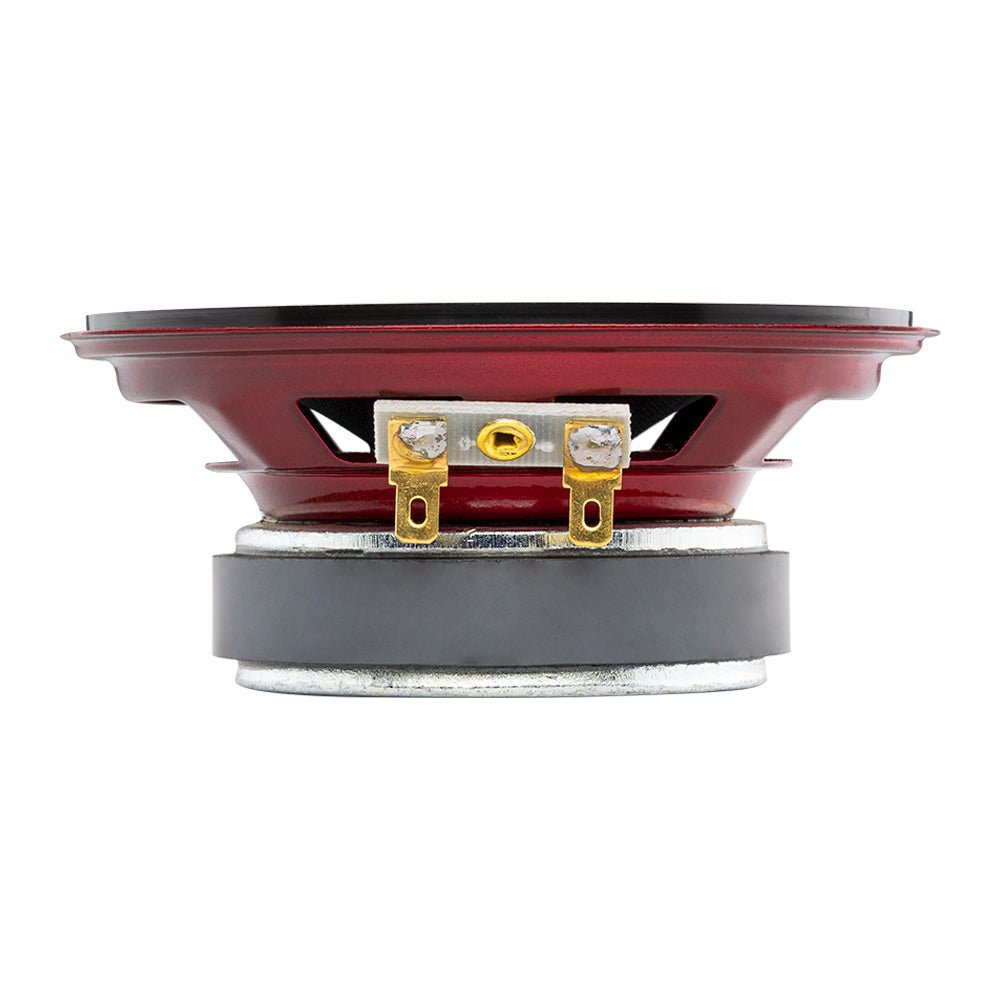

| Mounting Depth | 1.63" / 41.4mm |
| Motor Diameter | 2.75" / 70mm |
Key Features
- 4" Shallow Mid-Range w/Bullet
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 89dB
Specifications
| SKU | PRO-X4.4BMSL |
|---|---|
| Nominal Diameter | 4" / 101.6mm |
| Nominal Impedance | 4 OHMS |
| RMS Power Handing | 100 Watts |
| Maximum Power Handing | 200 Watts |
| Sensitivity (1w/1m) | 89dB |
| Frequency Response | 260Hz -11.5KHz |
| Recommended Hi Pass Crossover | 280Hz |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 6 Oz |
| Vas | 0.567L / 0.02ft3 |
| Xmax | 5.8mm |
| Fs | 251Hz |
| Qms | 3.307 |
| Qes | 3.044 |
| Qts | 1.585 |
| Re | 3.2ohms |
| Overall Diameter | 4.11" / 104.5mm |
| Front Mount Baffle Cutout | 4" / 102.3mm |
| Mounting Depth | 1.63" / 41.4mm |
| Overall Depth | 1.74" / 44.3mm |
| Product Weight | 1 lbs |
| Product Dimensions | 4.5 x 4.5 x 2.25 |
| M/C Weight | 29 lbs |
| M/C Dimensions | 14.5 x 10 x 9.5 |
| M/C QTY | 24 |
| Sold In | Single |
