4" Super Bullet Tweeter 250 Watts 1.5" Titanium 4-Ohm Vc
Product Overview DS18 PRO-TWX3 4" Super Bullet Tweeter 480 Watts 1.5" Aluminum 4-Ohm Voice Coil - Sold...
- $50.95
- $50.95
- Unit price
- per
Subtotal:
$50.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

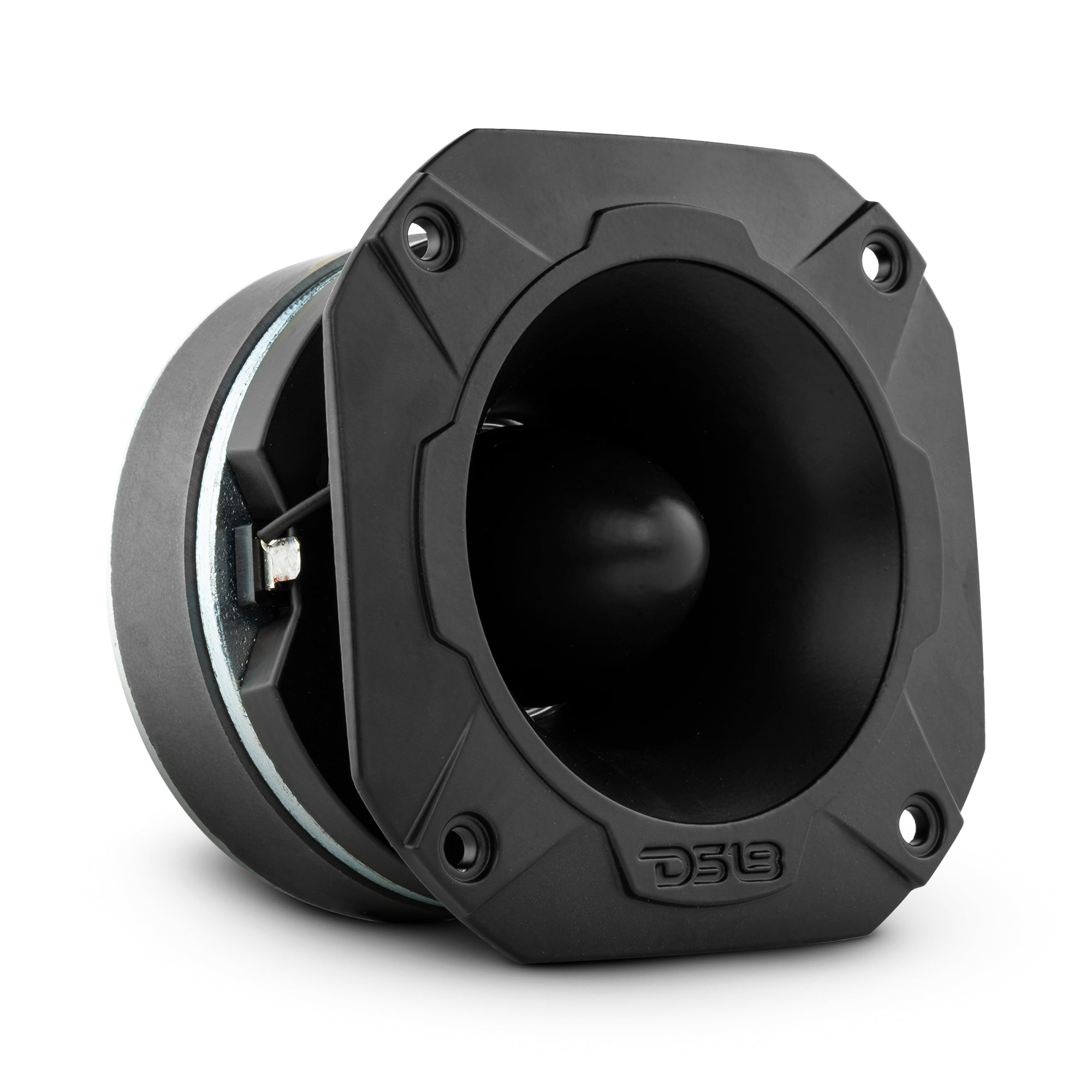

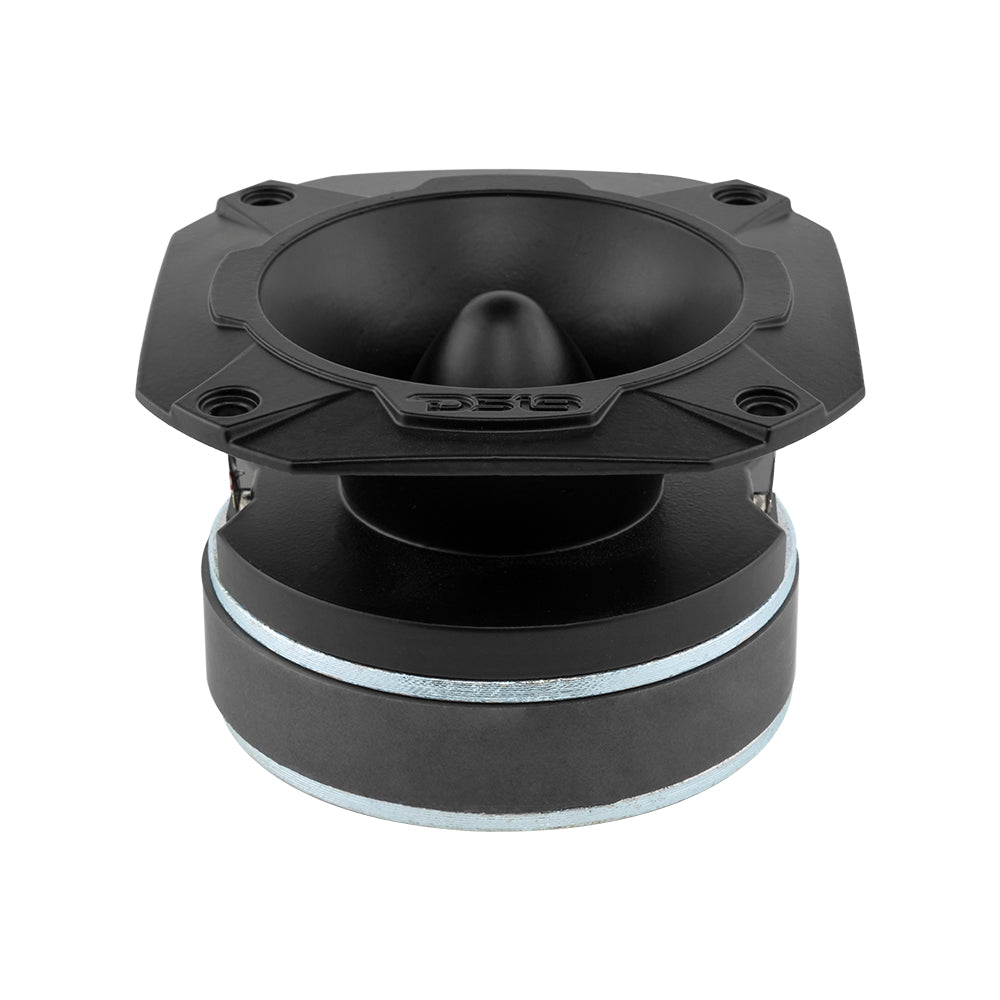

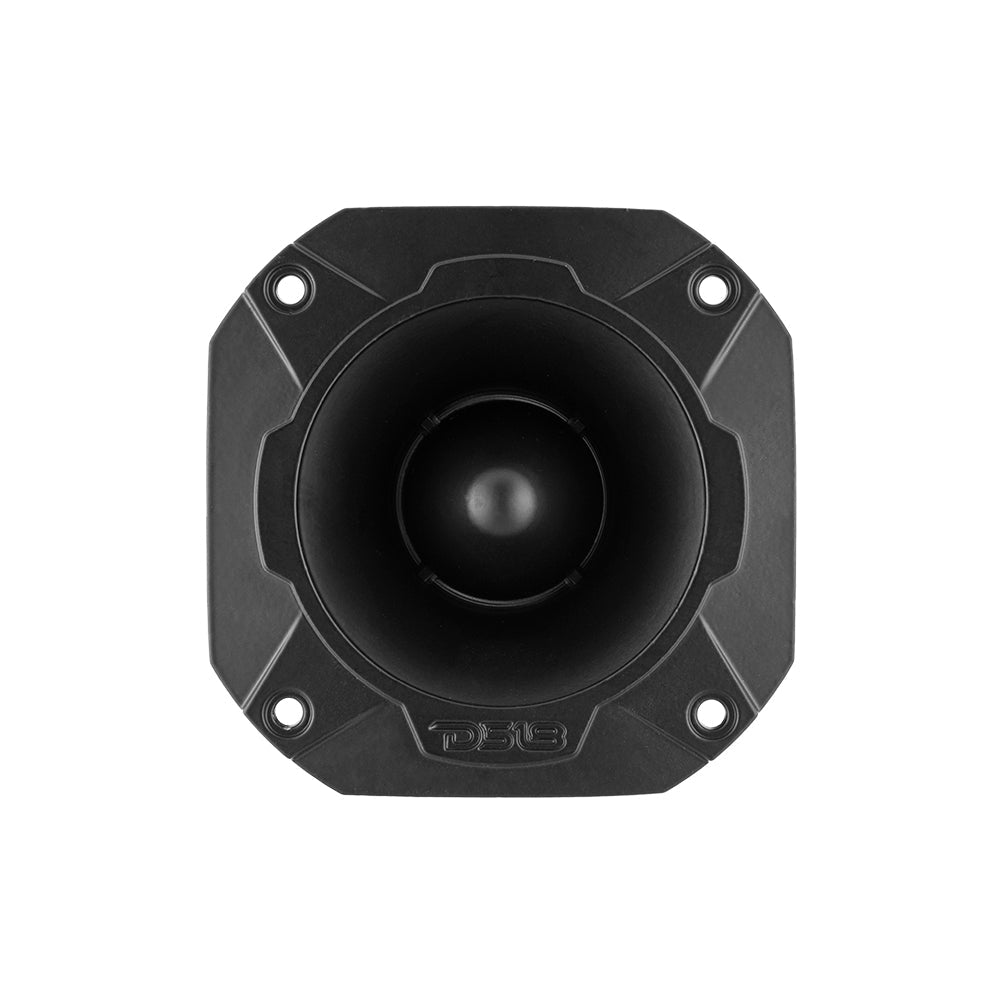

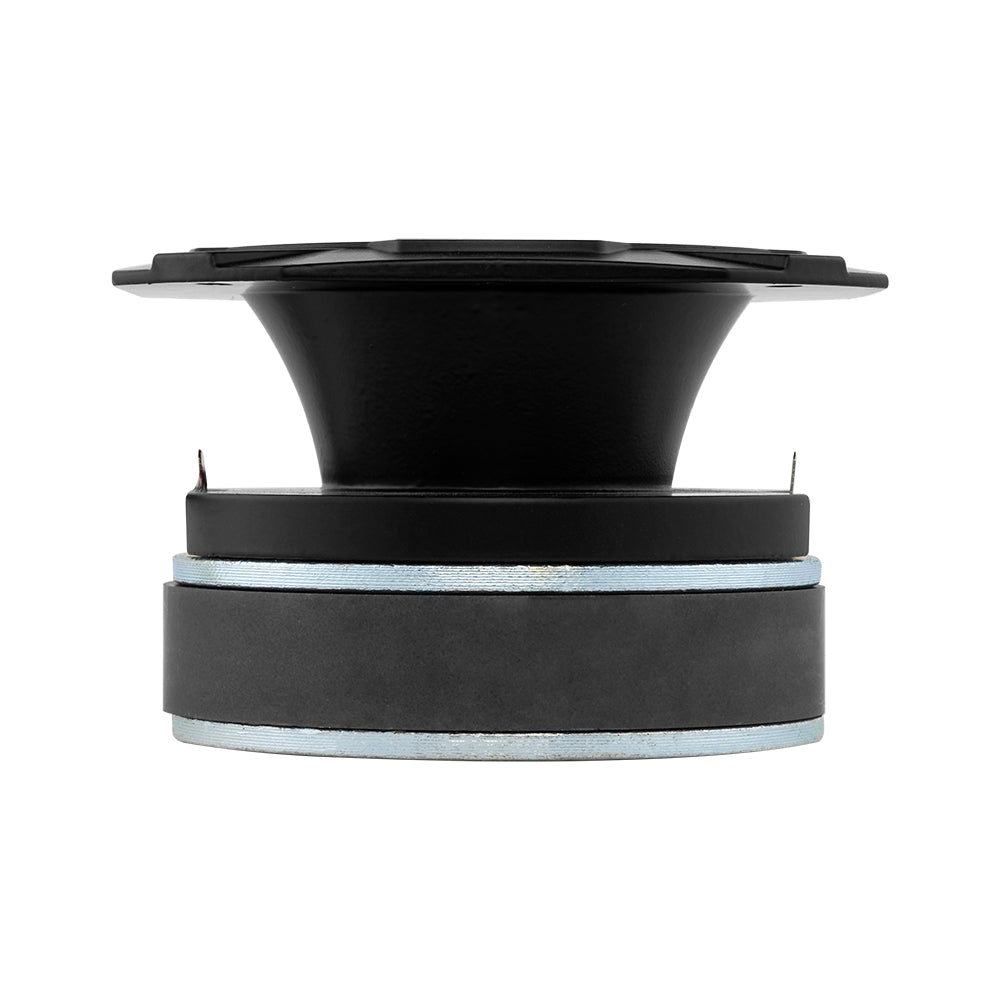

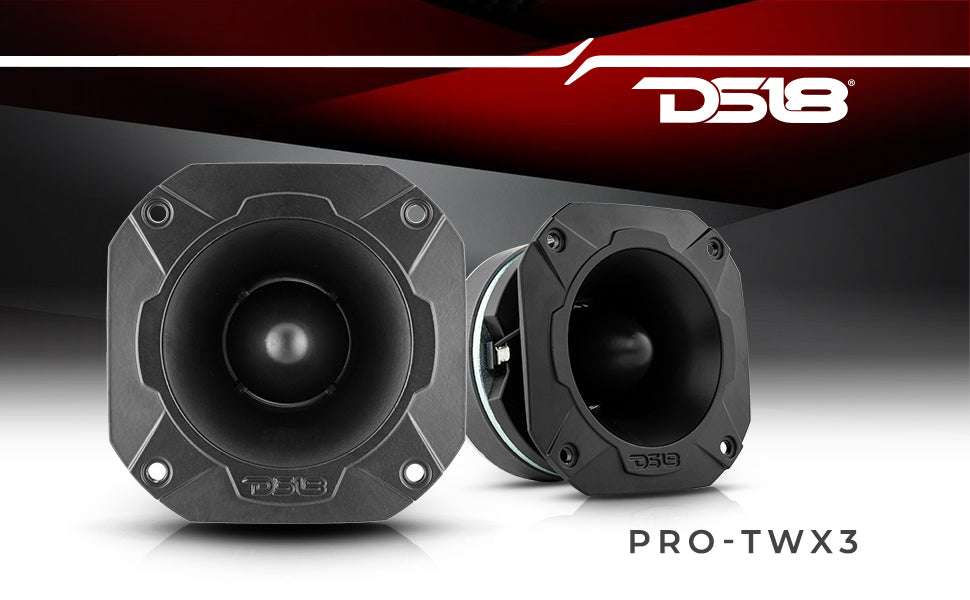

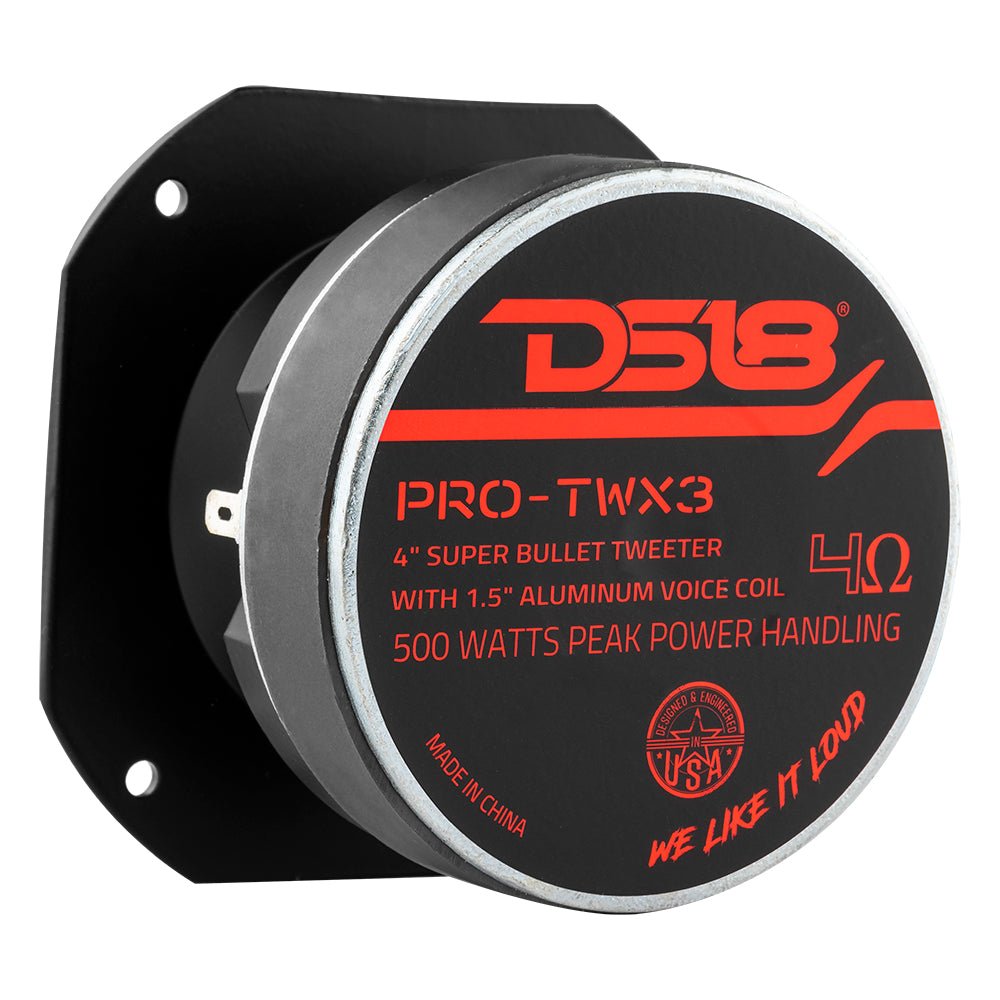

DS18 PRO-TWX3 4" Super Bullet Tweeter 480 Watts 1.5" Aluminum 4-Ohm Voice Coil - Sold as Single
The Pro TW series brings pro audio to a bright new level of elegance, clarity, and loudness.
These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time. The PRO-TWX3 has a beautiful black face with strong black on black frame.
This 4-ohm Super tweeter handles an enormous 125 watts AES handling and 250 Program watts, ensuring screaming loud mid and high range frequencies be acute and clear.
Highlights
- 4" Nominal diameter Bullet black on black Pro-Audio Super tweeter.

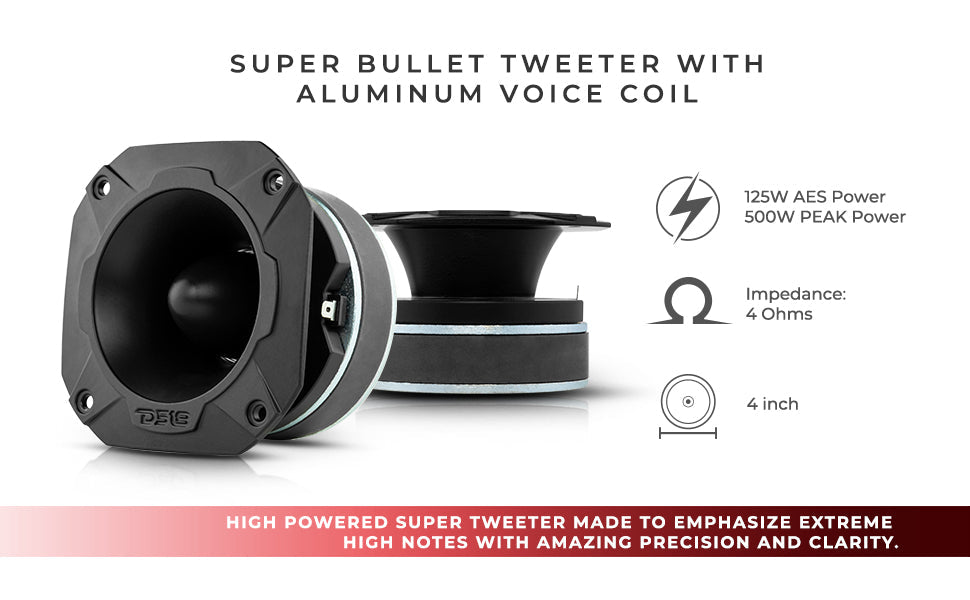

- AES Power Handling 125W
- Program Power Handling 250W
- Peak Power Handling 500W
- Frequency Response: 3Khz- 20Khz

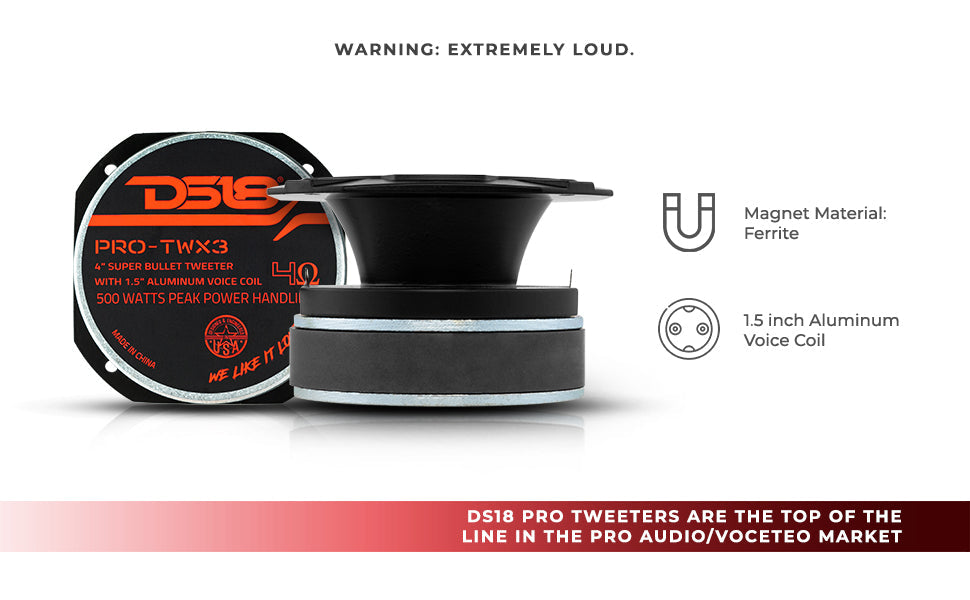

- Voice Coil Diameter: 1.5"
- Voice Coil Material: Aluminum
- Impedance: 4-Ohm
-
Sensitivity: 98Db
- Magnet Weight: 14Oz
- Magnet Material: Ferrite
- Mounting Depth: 2.36"
- Recommended High Pass: 3Khz
Great For:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studio
- Hi-Fi Installation
- Surround Sound
- Bookshelf Speakers
- Stunt Walls
- DIY Projects
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 4” / 102 mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 125W |
| Program Power Handling | 250W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m) | 106 dB |
| Frequency Response | 3K-20KHz |
| Recommended Hi Pass Crossover |
3KHz |
| Replacement Diaphragm: |
PRO-TW3VC |
| BODY / FEATURES | |
|
Pair or Single |
Single |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Bullet Material | Aluminum |
| MOTOR | |
| Voice Coil Diameter | 1.5” / 38 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 14 Oz |
| MEASUREMENT | |

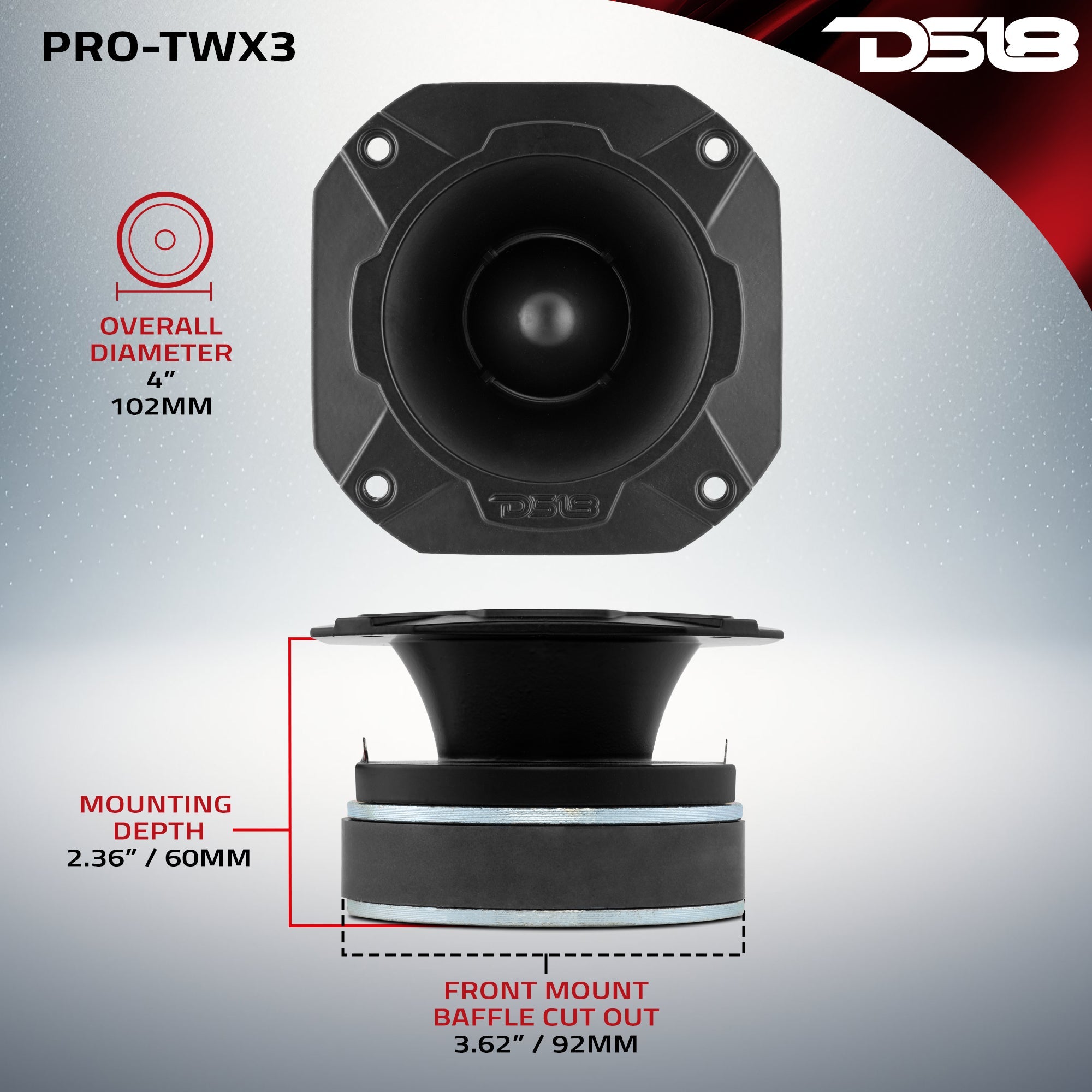

| Overall Diameter | 4”/ 102 mm |
| Overall Depth | 2.58”/ 65.5 mm |
| Front Mount Baffle Cutout | 3.62” / 92 mm |
| Mounting Depth | 2.36” / 60 mm |
| Motor Diameter | 3.5" / 90mm |
Technologies
Wiring Wizard
test info
Key Features
- 4" Super Bullet Tweeter
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4 Ohm ~ 106dB
- Ferrite Magnet

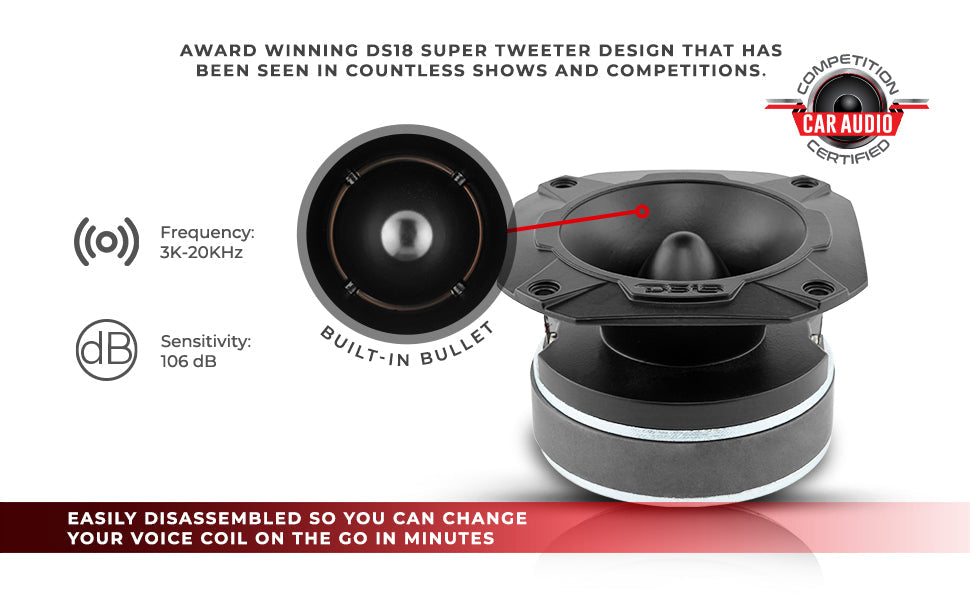

- Easily Repaired With The PRO-TW3.8VC (8-Ohm) or PRO-TW3VC (4-Ohm)
Specifications
| SKU | PRO-TWX3 |
|---|---|
| Nominal Diameter | 4" / 102mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 125W |
| Program Power Handling | 250W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m) | 106 dB |
| Frequency Response | 3K-20KHz |
| Recommended Hi Pass Crossover | 3KHz |
| Sold In Pair or Single | Single |
| Filter (Bass Blocker) | N/A |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black / Machined |
| Bullet Material | Aluminum |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 14 Oz |
| Overall Diameter | 4" / 102mm |
| Overall Depth | 2.58" / 65.5mm |
| Front Mount Baffle Cutout | 3.62" / 92mm |
| Mounting Depth | 2.36" / 60mm |
| Motor Diameter | 3.5" / 90mm |
| Gross Single Unit Weight (lb) | 2.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 4.75 x 4.25 x 2.75 |
| Quantity of Units in Master Carton | 12 |
| Gross Master Carton Weight (lb) | 32.5 |
| Master Carton Dimensions W x L x H (Inches) | 9.5 x 10.25 x 9.25 |
