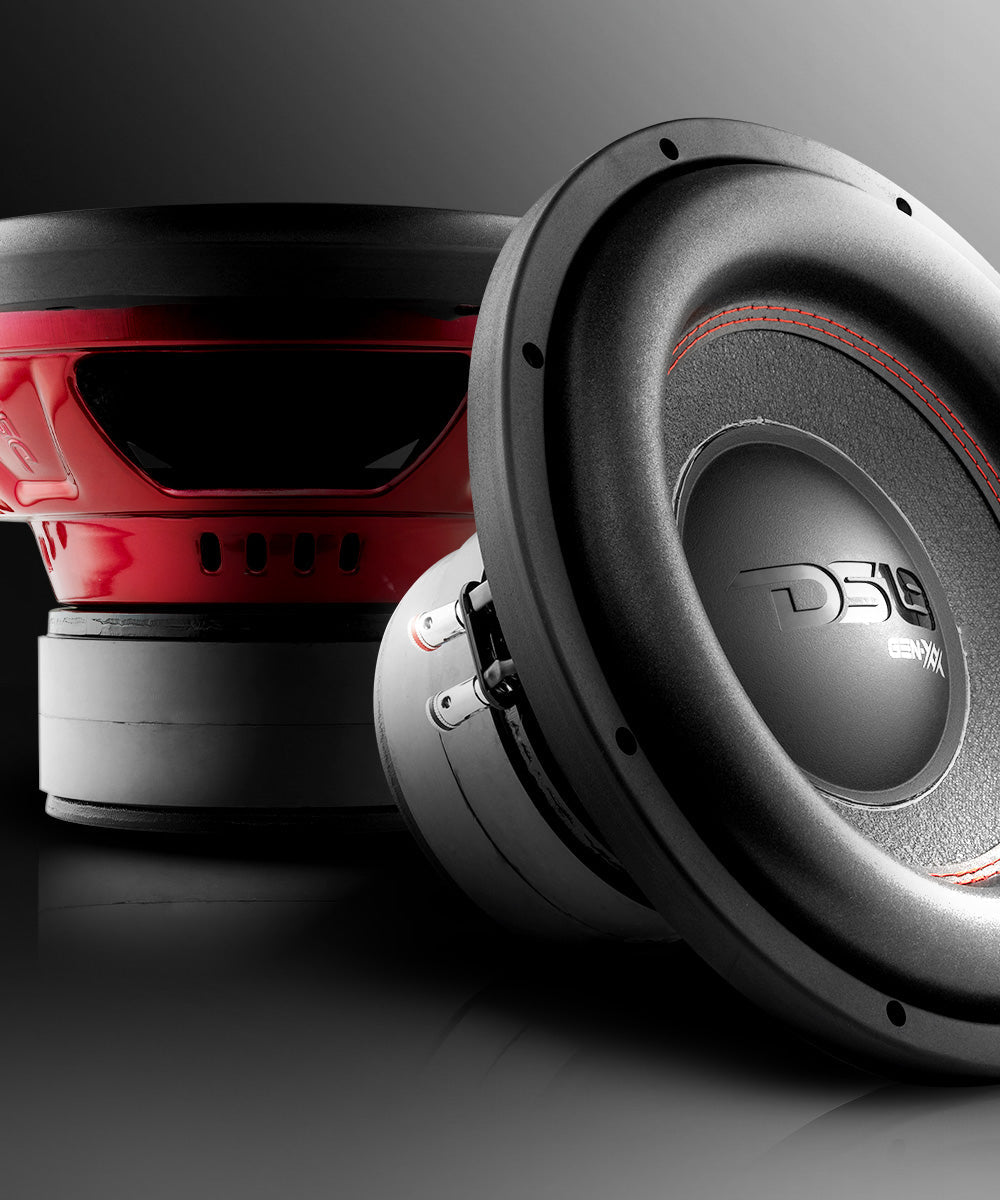

GEN-XX 12" High Excursion Subwoofer Double Stacked Magnets 600 Watts Rms DVC 4-Ohm
Product Overview DS18 GEN-XX12.4DHE 12" High Excursion Car Subwoofer 1200 Watts 4-Ohm DVC Double Magnet High excursion...
- $179.95
- $179.95
- Unit price
- per
Subtotal:
$179.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

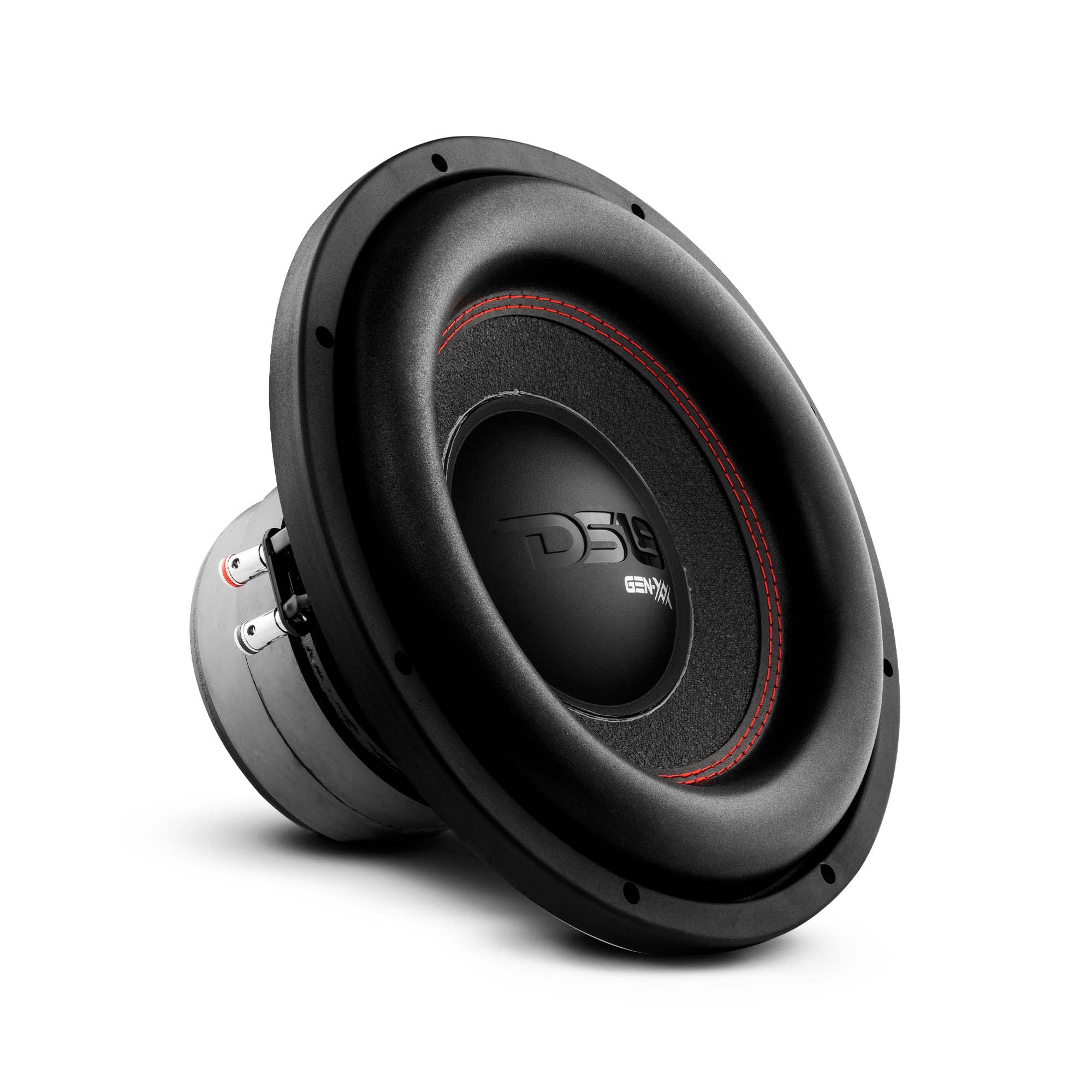

DS18 GEN-XX12.4DHE 12" High Excursion Car Subwoofer 1200 Watts 4-Ohm DVC Double Magnet

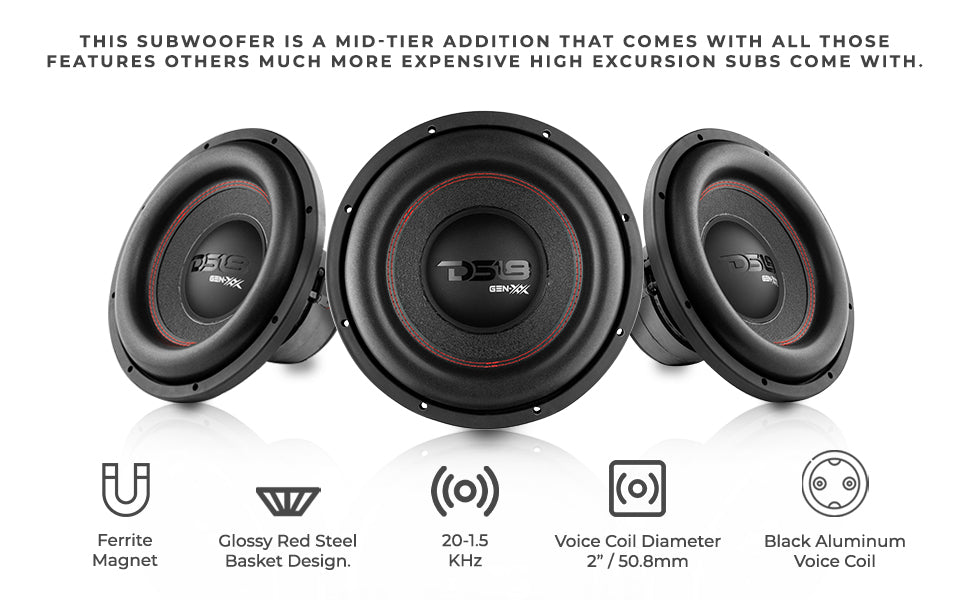

High excursion is now the mainstream and usually this feature is very expensive. Enthusiasts sometimes miss out on amazing bass because of the large cost. We want to bring the experience of low frequency bass to even the entry level user. The GEN-XX12.4DHE is the answer to that issue. This Subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.

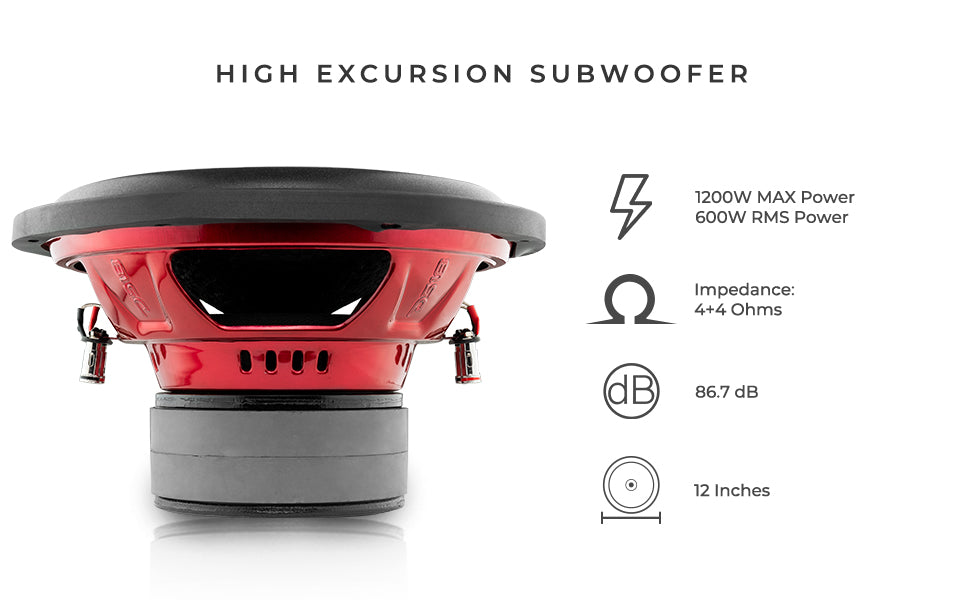

Highlights
- High Excursion surround for a very high amount of XMAX.
- Great power handling of 600w RMS and 1200w Max.
- Long three voice coil and extended magnet to accommodate the xmax increase.
- FS of 30 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned correctly.
Technical Details
| Nominal Diameter | 12 |
| Nominal Impedance | 4 + 4 Ohms |
| RMS Power Handling | 600W |
| MAX Power Handling | 1200W |
| Sensitivity (1w/1m) | 86.7 dB |
| Frequency Response | 20Hz - 1.5KHz |
| Recommended Lo Pass Crossover | 80 Hz |
| Motor: | |
| VC Diameter | 2 |
| VC Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 136 Oz |
| Displacement Volume | 1.69L |
| Thiele & Small Parameters | |
| Equivilant Vol | Vas 56.436L |
| Excursion (one way) | Xmax 25 mm |
| Free Air Resonance | Fs 30.5 Hz |
| Mechanical Factor | Qms 3.991 |
| Electrical Factor | Qes 0.532 |
| Total Factor | Qts 0.469 |
| Moving Mass | Mms 154.38g |
| Compliance | Cms 0.175mm/N |
| Bl Factor | BL 19.173N/A |
| VC Inductance | Le 0.6741mH |
| Diaphragm Area | Sd 475.29cm2 |
| Dc Resistance | Re 3.2+3.2 ohms |
| Efficiency Bandwidth Product | EBP 57.3 |
| Measurements | |

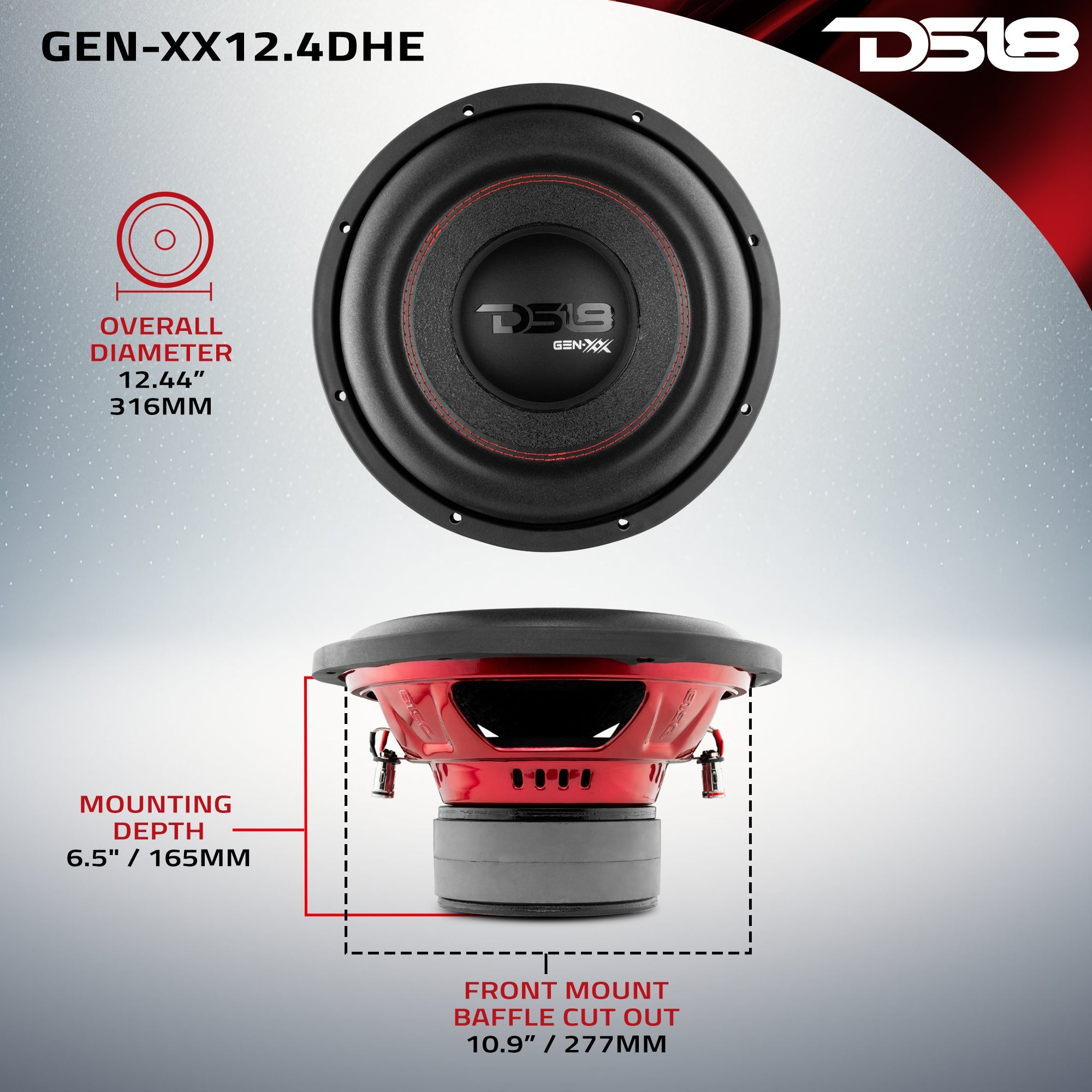

| Overall Diameter | 12.44 / 316mm |
| Overall Depth | 7.6" / 193mm |
| Front Mount Baffle Cutout | 10.9 / 277mm |
| Mounting Depth | 6.5" / 165mm |
| Motor Diameter |
6.14/ 156 mm |

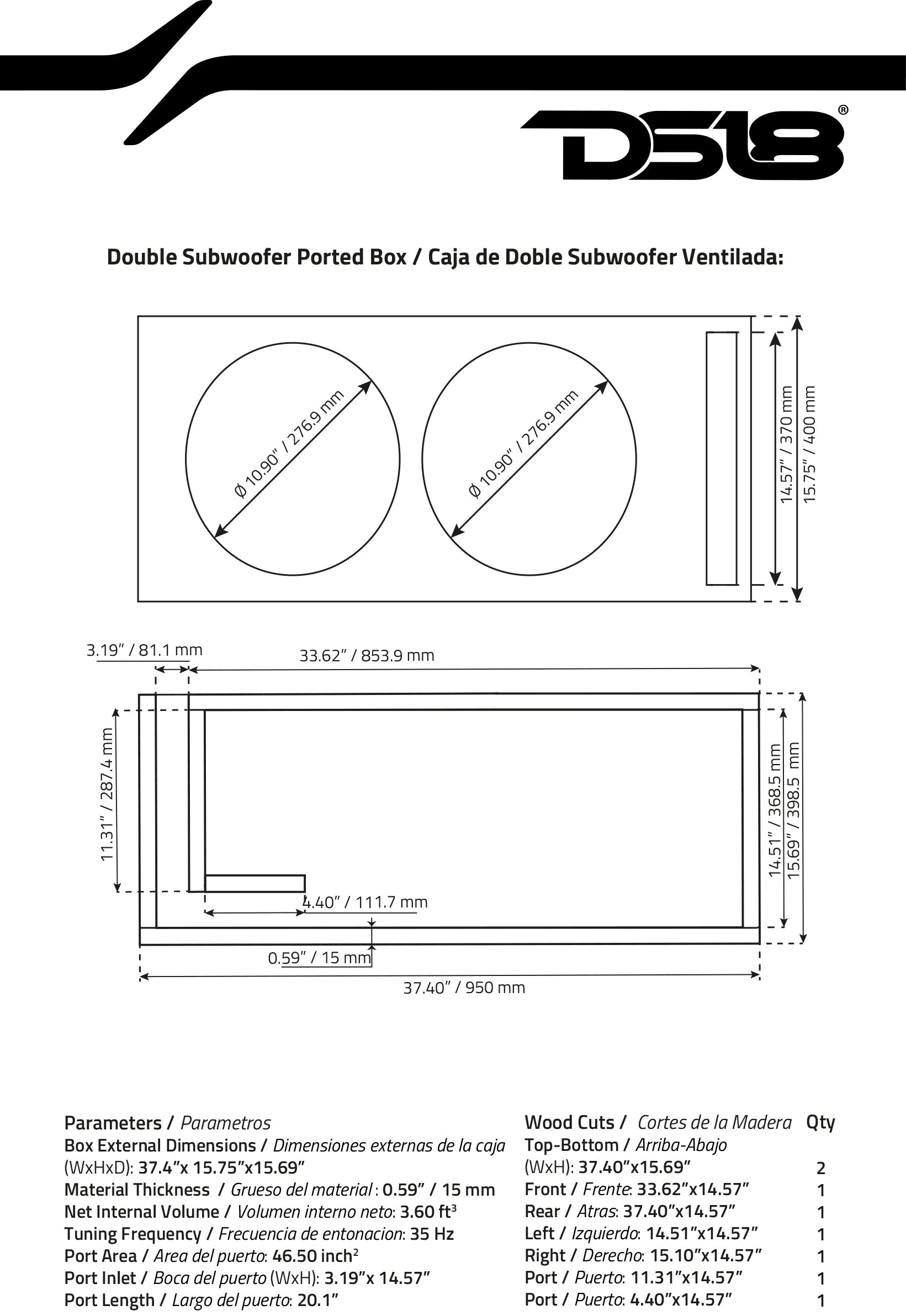

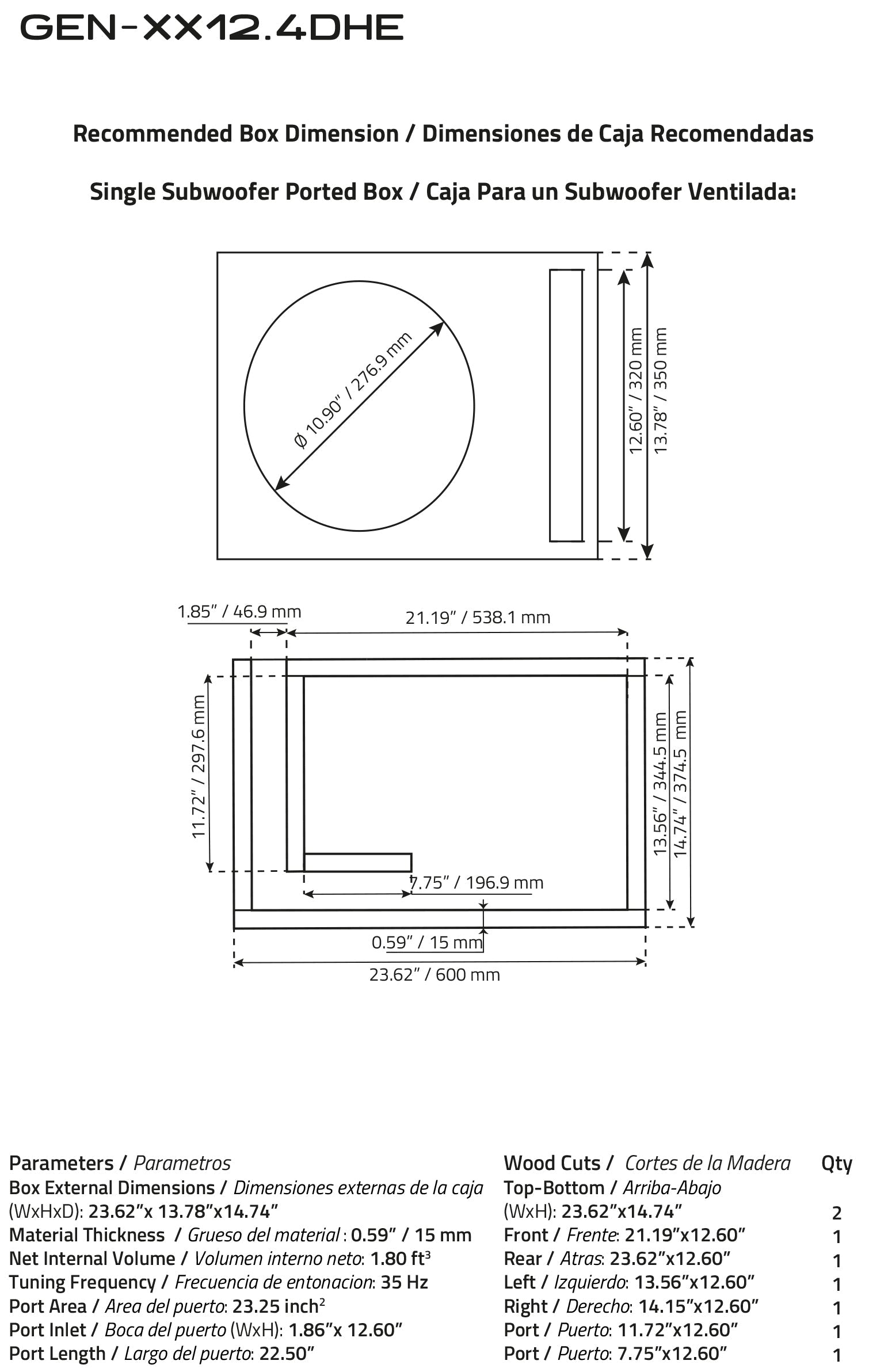

Box Info
Key Features
- 12" High Excursion Subwoofer
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm 2" DVC
- Ferrite Magnet
- 86.7dB
Specifications
| SKU | GEN-XX12.4DHE |
|---|---|
| Nominal Diameter | 12" |
| Nominal Impedance | 4+4 Ohm |
| RMS Power Handling | 600W |
| Maximum Power Handling | 1200W |
| Sensitivity (1w/1m) | 86.7 dB |
| Frequency Response | 20Hz - 1.5Khz |
| Recommended Lo Pass Crossover | 80Hz |
| Voice Coil Diameter | 2" / 50.8 mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel Bakset |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 136 oz |
| Displacement Volume | 1.69L |
| Equivalent Volume Vas | 56.436 L |
| Free Air Resonance Fs | 30.5 Hz |
| Mechanical Factor Qms | 3.991 |
| Electrical Factor Qes | 0.532 |
| Total Factor Qts | 0.469 |
| Moving Mass Mms | 154.38g |
| Compliance Cms | 0.175mm/N |
| Bl Factor BI | 19.173N/A |
| Voice Coil Inductance Le | 0.6741mH |
| Diaphragm Area Sd | 475.29cm2 |
| DC Resistance Re | 3.2+3.2 ohms |
| Efficiency Bandwidth Product EBP | 57.3 |

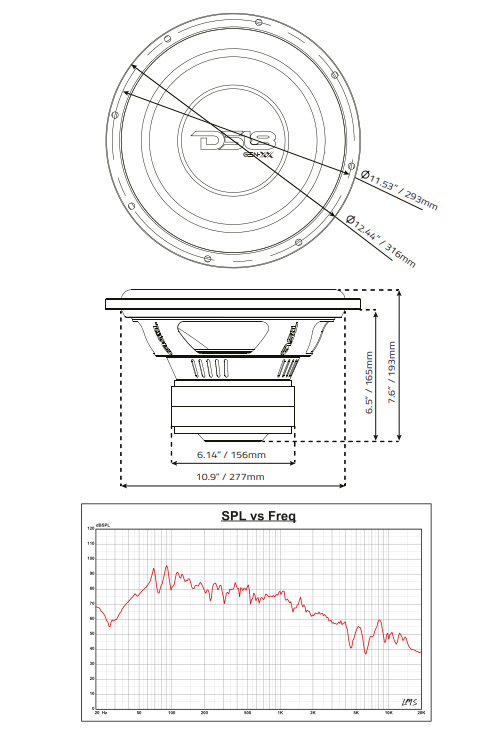

| Overall Diameter | 12.44" / 316mm |
| Overall Depth | 7.6" / 193mm |
| Front Mount Baffle Cutout | 10.9" / 277mm |
| Mounting Depth | 6.5" / 165mm |
| Motor Diameter | 6.14"/ 156 mm |
| Gross Single Unit Weight (lb) | 19.5 |
| Dimensions W x L x H (Inches) | 13.5 x 13.5 x 9 |
| Quantity of Units in Master Carton | 2 |
| Gross Master Carton Weight (lb) | 41.5 |
| M/C Dimensions W x L x H (Inches) | 14.25 x 14.25 x 19 |
