Model: |
GEN-X124D |
|
Type: |
Subwoofer |
|
Size: |
12" |
|
RMS Power: |
450W |
|
MAX Power: |
900W |
|
Impedance: |
4 + 4 Ohms |
|
Voice Coil Size: |
2" |
|
Magnet: |
Ferrite |
|
Magnet Weight: |
70 oz. |
|
Frequency Response: |
20Hz - 250Hz |
|
Materials |
|
|
Frame: |
Steel Basket |
|
Cone: |
Paper with Glass Fiber |
|
Surround: |
Foam Edge |
|
Voice Coil Former Material: |
Black Aluminum |
|
Measurements |
|
|
Mounting Cut-Out: |
10.9" (277mm) |
|
Mounting Depth: |
5.75" (137mm) |
|
Overall Diameter: |
12.44" (316mm) |
|
Net Weight: |
6.3kg |
GEN-X 12" Subwoofer 450 Watts Rms DVC 4-Ohm
Product Overview DS18 GEN-X124D 12" Car Subwoofer 900 Watts 4-Ohm DVC Introducing the GEN-X subwoofers at 4...
- $145.95
- $145.95
- Unit price
- per
Subtotal:
$145.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

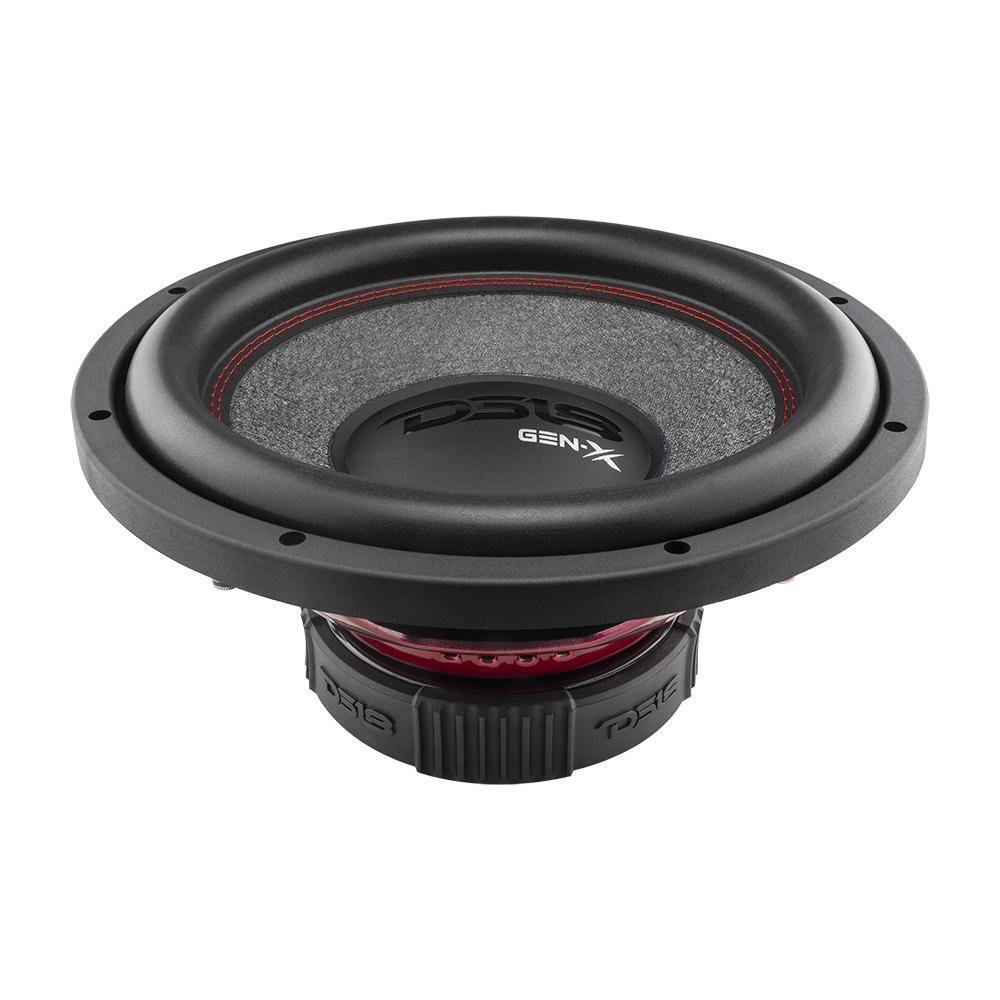

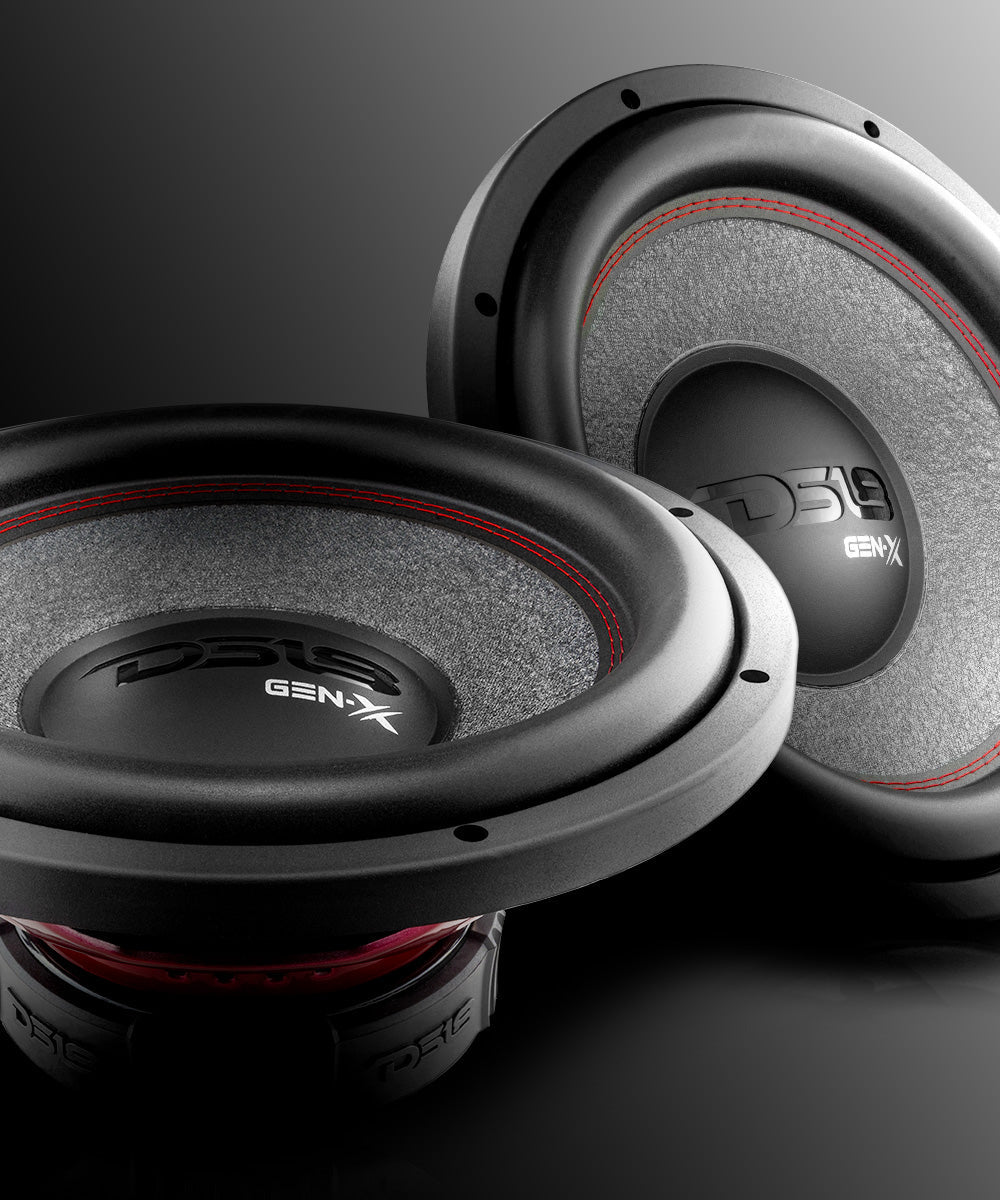

DS18 GEN-X124D 12" Car Subwoofer 900 Watts 4-Ohm DVC
| Introducing the GEN-X subwoofers at 4 ohm configurations in 10", 12", and 15". With powers ranging from 400-500 watts RMS, these subwoofers will provide high-quality, provoking resonation for anyone seeking a powerful bass. |
Highlights
- Loud booming bass with an amazing price point that will shake the ground around you.
- High Quality ferrite motor with aluminum coils for very high power to dB efficiency and loudness.
- Great DS18 design that never let's you down and gives you loud bass on demand.
Technical Details
Box Info
Key Features
- 12" Subwoofer
- MAX Power: 900 Watts
- RMS Power: 450 Watts
- Impedance: 4-Ohm 2" DVC
- Ferrite Magnet
- 87.5dB
Specifications
| PRODUCT NAME | GEN-X124D |
|---|---|
| Nominal Diameter | 12" / 304.8mm |
| Nominal Impedance | 4+4 ohms |
| RMS Power Handling | 450w |
| Maximum Power Handling | 900w |
| Sensitivity (1w/1m) | 87.5 db |
| Frequency Response | 20 - 250Hz |
| Recommended Lo Pass Crossover | 120 Hz |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel Basket |
| Basket Color/Finish | Glossy Red |
| Frame Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 70 oz |
| Equivalent Volume Vas | 23.4L / 0.82ft3 |
| Free Air Resonance Fs | 43 Hz |
| Mechanical Factor Qms | 6.305 |
| Electrical Factor Qes | 0.748 |
| Total Factor Qts | 0.69 |
| Moving Mass Mms | 189.648g |
| Compliance Cms | 0.069mm/N |
| Bl Factor Bl | 21.65 |
| Voice Coil Inductance Le | 32.18 mH |
| Diaphragm Area Sd | 490.87 cm2 |
| DC Resistance Re | 3.2 + 3.2ohms |
| Efficiency Bandwidth Product EBP | 57.4 |

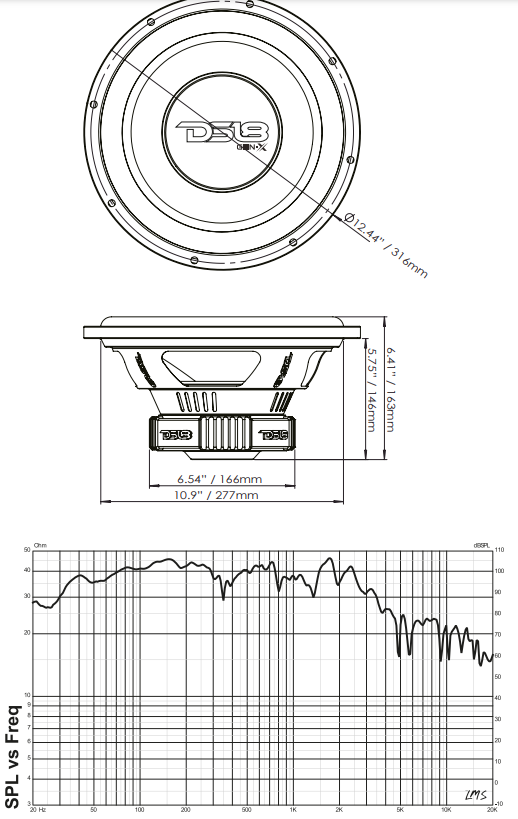

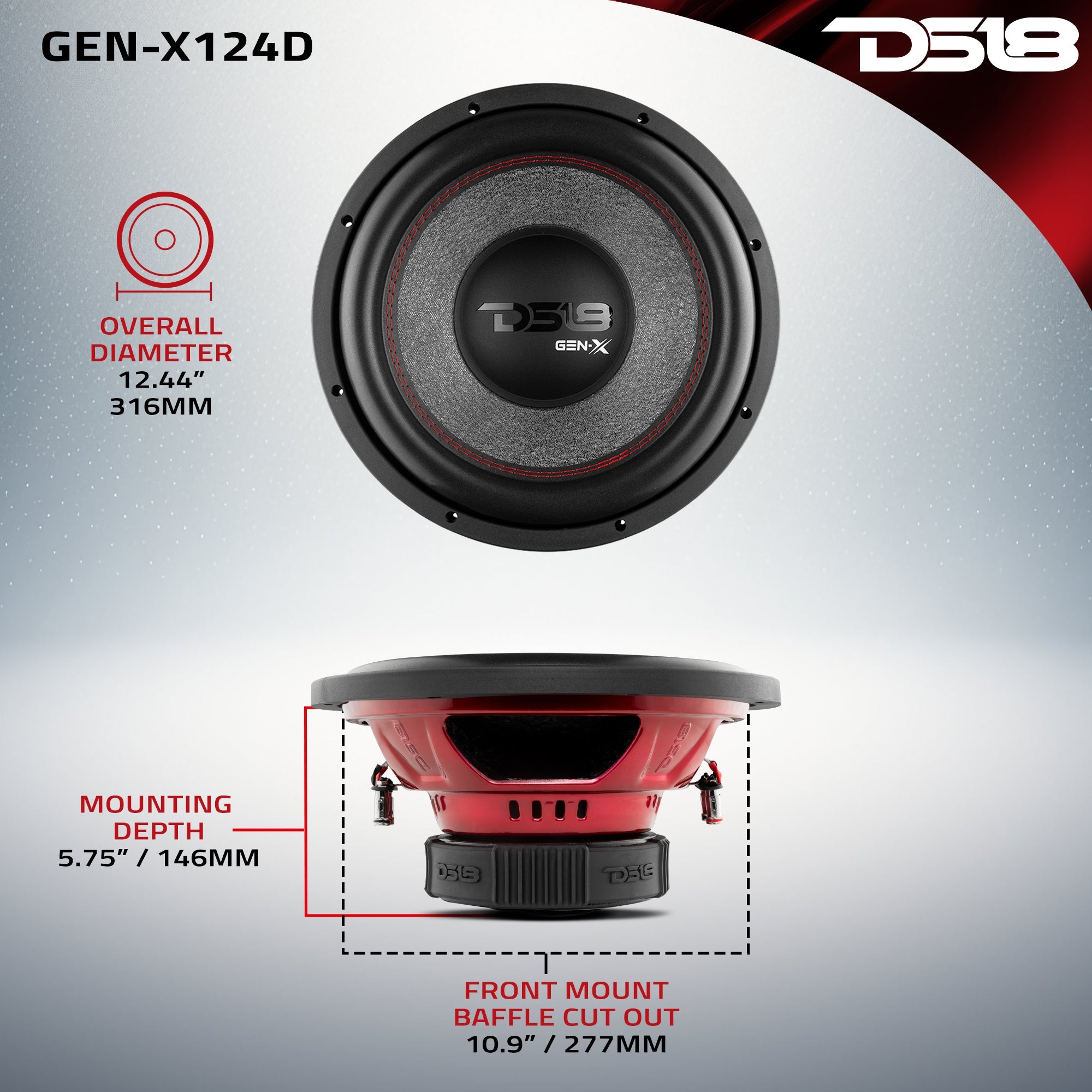

| Overall Diameter | 12.44" / 316mm |
| Overall Depth | 6.41" / 163mm |
| Front Mount Baffle Cutout | 10.9" / 277mm |
| Mounting Depth | 5.75" / 146mm |
| Motor Diameter | 6.54" / 166mm |
| Gross Single Unit Weight (lb) | 14.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 13.25 x 13.25 x 7.5 |
| Quantity of Units in Master Carton | 2 |
| Gross Master Carton Weight (lb) | 31 |
| Master Carton Dimensions W x L x H (Inches) | 14.25 x 14.25 x 16 |
