12" Loaded Subwoofer Ported Enclosure With GEN-X124D 450 Watts RMS
Product Overview DS18 GEN-X112LD Bass Package GEN-X124D 12" Subwoofer In a Ported Box 900 Watts If you...
Vendor:
DS18
Manufacturer SKU
GEN-X112LD
Availability:
In Stock
Product Type:
Speaker Enclosures & Pods
- $239.95
- $239.95
- Unit price
- per
Subtotal:
$239.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

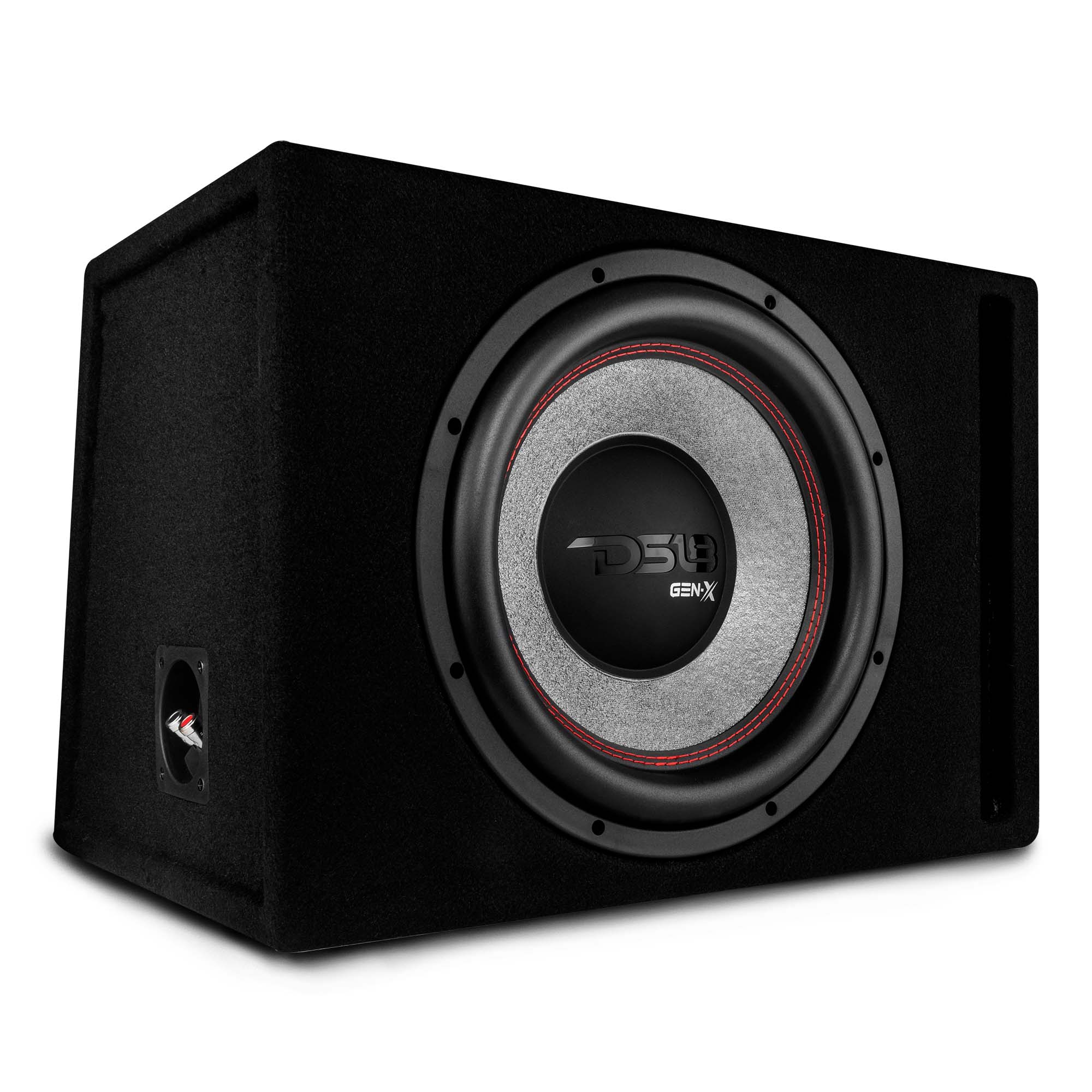

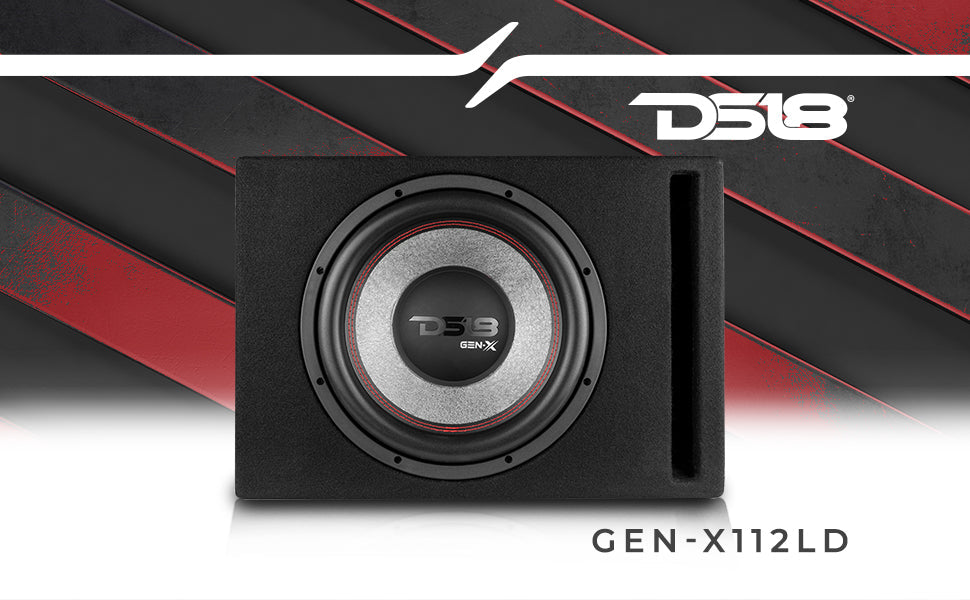

DS18 GEN-X112LD Bass Package GEN-X124D 12" Subwoofer In a Ported Box 900 Watts
If you are looking for a lot of thumping bass and a very clean prefab box, we here at DS18 have developed a very strong combo to fit one of our bestselling speakers that we have to offer in a complete box! Now you don have to worry about building a box by yourself to spec for your new subwoofer purchase because you can buy them together with 1 easy click of the mouse.

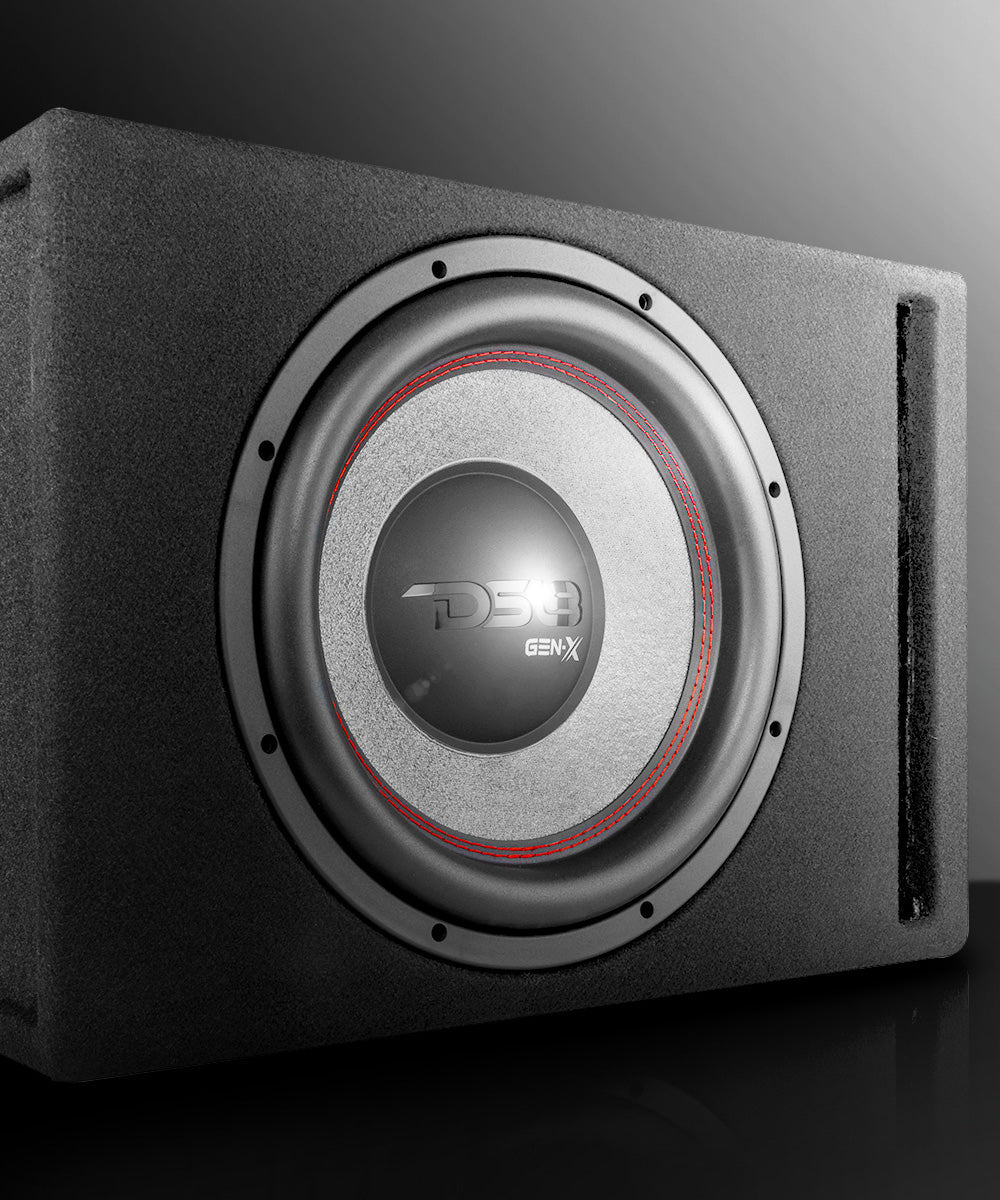

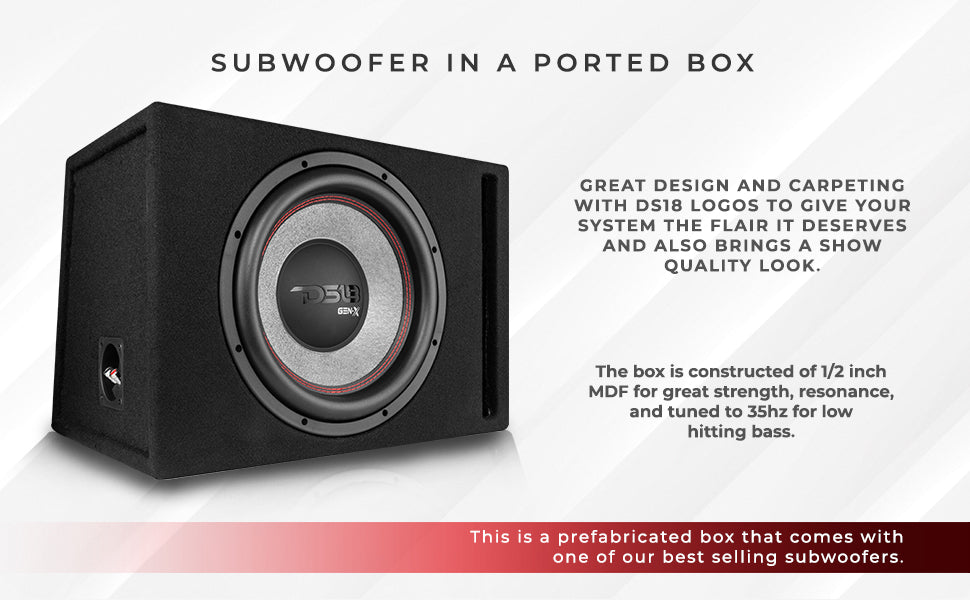

This beautiful ported box is tuned to 35Hz and has an internal volume of 1.5 cubic feet for the. The ½ inch thick treated MDF ensures the box will be tough enough to withstand very strong vibrations along with giving very accurate acoustical resonances for the perfect bass response. Inside the box is one of our best-selling subs, the GEN- X12D subwoofer.

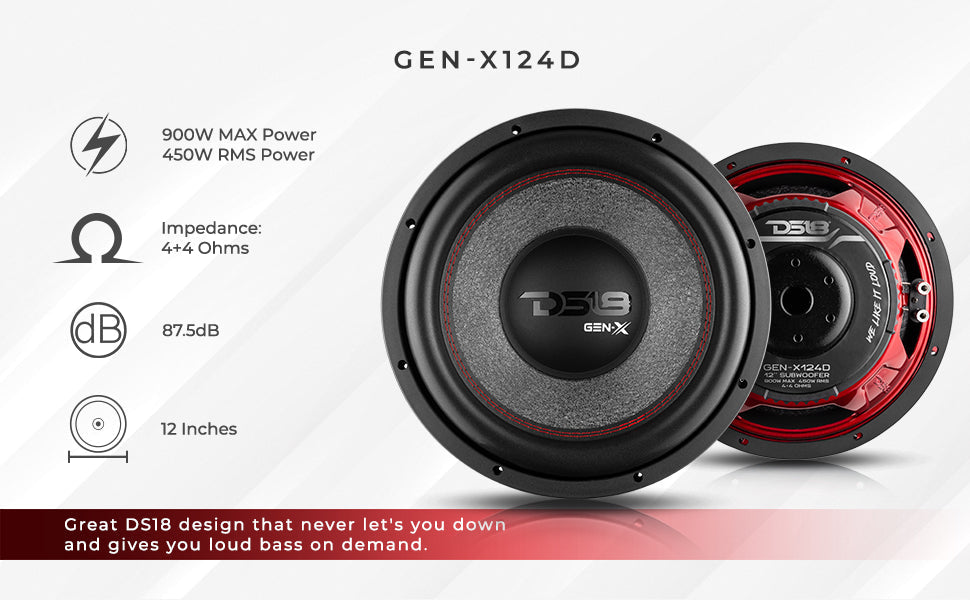

This high excursion sub has a 67 oz ferrite magnet and can take up to 450 watts RMS each and 900w maximum power! With a 4+4 configuration on the 2 inch 4-layer voice coil, you will have no problem making power out of your amplifier because in parallel the final load will be optimal and with a sensitivity of 87.5db. With this you won miss out on any of the wide range of frequencies this sub and box combo can produce! The only thing you will need is the amplifier to drive them and you are ready to go!
Highlights
- Best selling GEN -X12.4D sub giving you amazing low bass and great wattage handling.

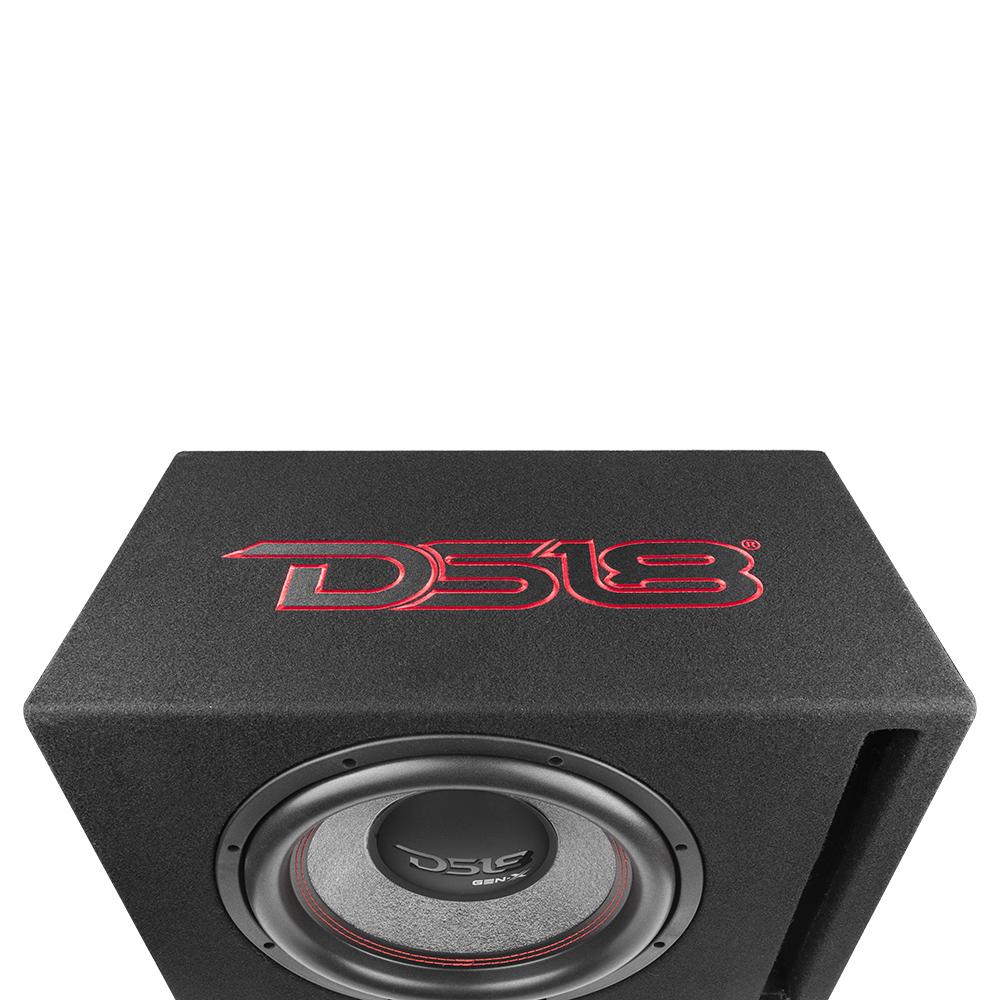

- High Quality prefabricated DS18 subwoofer box that not only looks great but brings out low and loud bass easily.
- Ported design with an internal volume of 3.2 CD plus port volume which is tuned to 35hz.
Technical Details
| General | |
| Total Impedance | 2 Ohms |
| Total RMS Power Handling | 450W |
| Total MAX Power Handling | 900W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 29 - 250Hz |
| Recommended Lo Pass Crossover | 120Hz |
| Speaker Specifications | |
| 1 x 12" GEN-X124D Subwoofer | |
| Voice Coil Diameter | 2" |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper & Fiber Glass |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 70 Oz |
| Box Specifications | |
| Internal Volume | 45.3L |
| Port Tune | 35Hz |
| Load Configuration | Parallel |
| Box Type | Front Ported |
| Box Material | 1/2" MDF |
| Finish Material | Vinyl |
| -3dB Dropping Point | 29Hz |
| Measurement | |
| Height | 13.78” / 350mm |
| Width | 19.68” / 500mm |
| Depth 1 | 11” / 280mm |
| Depth 2 | 14” / 356mm |
Key Features
- Gen-X Subwoofer Enclosure
- 1 X 12" GEN-X124D
- RMS Power: 450 Watts(900 Watts Peak)
- Impedance: 2 Ohm ~ 91dB
- 1/2" MDF with Black Carpet
- 35 HZ Ported Box
Specifications
| SKU | GEN-X112LD |
|---|---|
| Speaker Type / Size | Single 12" Subwoofer (GEN-X124D) |
| Total Impedance | 2 Ohm |
| Total RMS Power Handling | 450W |
| Total MAX Power Handling | 900W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 25 - 250Hz |
| Recommended Lo Pass Crossover | 120Hz |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper & Fiber Glass |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 70 Oz |
| Internal Volume | 45.3L / 1.6ft3 |
| Port Tune (Fb) | 35Hz |
| Load Configuration | Parallel |
| Box Type | Front Ported |
| Box Material | 1/2" / 15mm MDF |
| Finish Material | Black Carpet |
| -3Db Dropping Point (F3) | 29Hz |

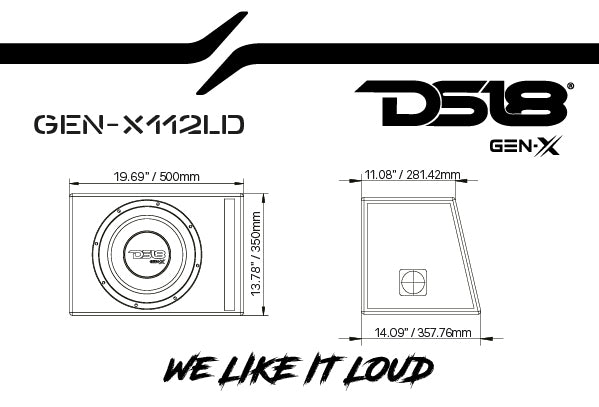

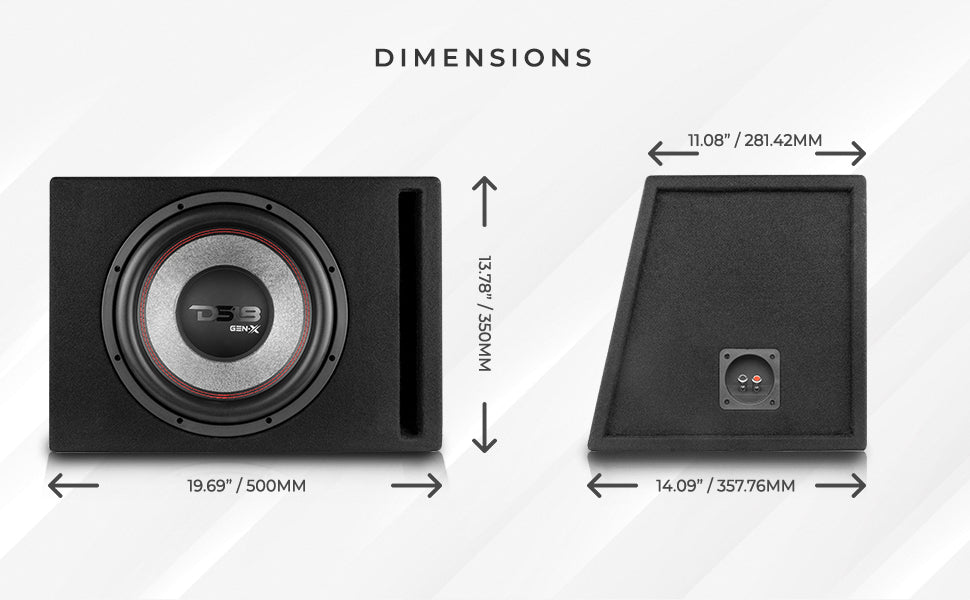

| Height | 13.78" / 350mm |
| Width | 19.68" / 500mm |
| Depth 1 | 11" / 280mm |
| Depth 2 | 14" / 356mm |
| Gross Single Unit Weight (lb) | 40 |
| Single Unit Box Dimensions W x L x H (Inches) | 21.25 x 15.75 x 15.5 |
| Quantity of Units in Master Carton | 1 |
| Gross Master Carton Weight (lb) | 40 |
| Master Carton Dimensions W x L x H (Inches) | 21.25 x 15.75 x 15.5 |
