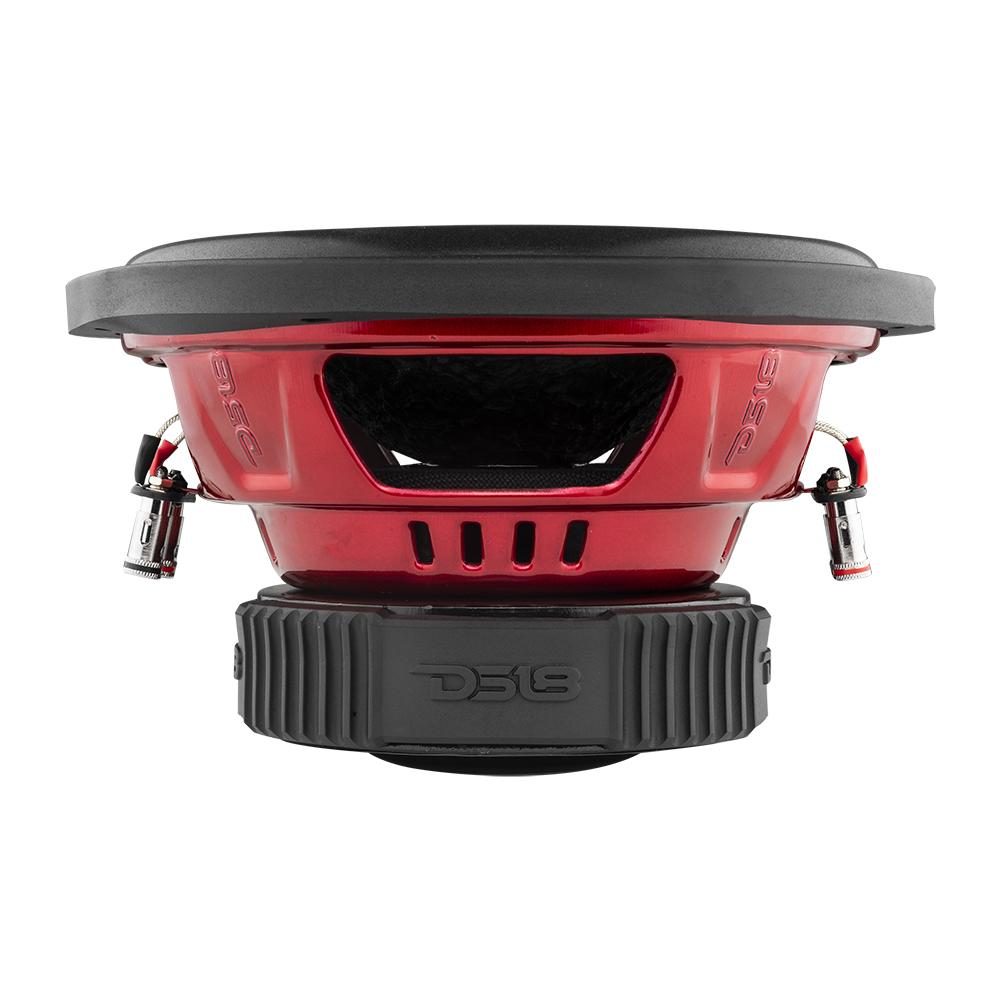

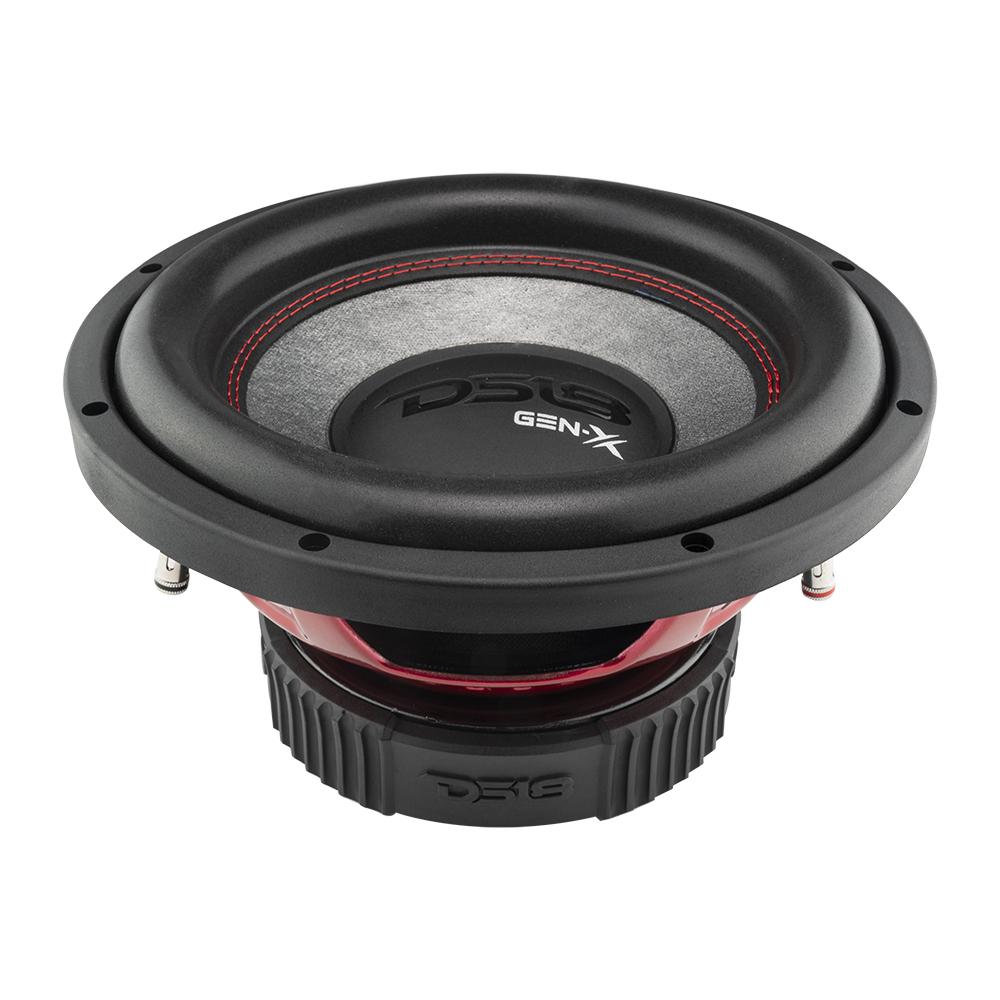

GEN-X 10" Subwoofer 400 Watts Rms DVC 4-Ohm
Product Overview DS18 GEN-X104D 10" Car Subwoofer 800 Watts 4-Ohm DVC Introducing the GEN-X subwoofers at 4...
- $137.95
- $137.95
- Unit price
- per
Subtotal:
$137.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 GEN-X104D 10" Car Subwoofer 800 Watts 4-Ohm DVC
| Introducing the GEN-X subwoofers at 4 ohm configurations in 10", 12", and 15". With powers ranging from 400-500 watts RMS, these subwoofers will provide high-quality, provoking resonation for anyone seeking a powerful bass. |
Highlights
- Loud booming bass with an amazing price point that will shake the ground around you.
- High Quality ferrite motor with aluminum coils for very high power to DB efficiency and loudness.
- Great DS18 design that never let's you down and gives you loud bass on demand.
Technical Details
| Model: | GEN-X104D |
| Type: | Subwoofer |
| Size: | 10" |
| RMS Power: | 400W |
| MAX Power: | 800W |
| Impedance: | 4 + 4 Ohms |
| Voice Coil Size: | 2" |
| Magnet: | Ferrite |
| Magnet Size: | 66 oz. |
| Frequency Response: | 25Hz - 300Hz |
| Materials | |
| Frame: | Steel Basket |
| Cone: | Paper with Glass Fiber |
| Surround: | Foam Edge |
| Voice Coil Former Material: | Black Aluminum |

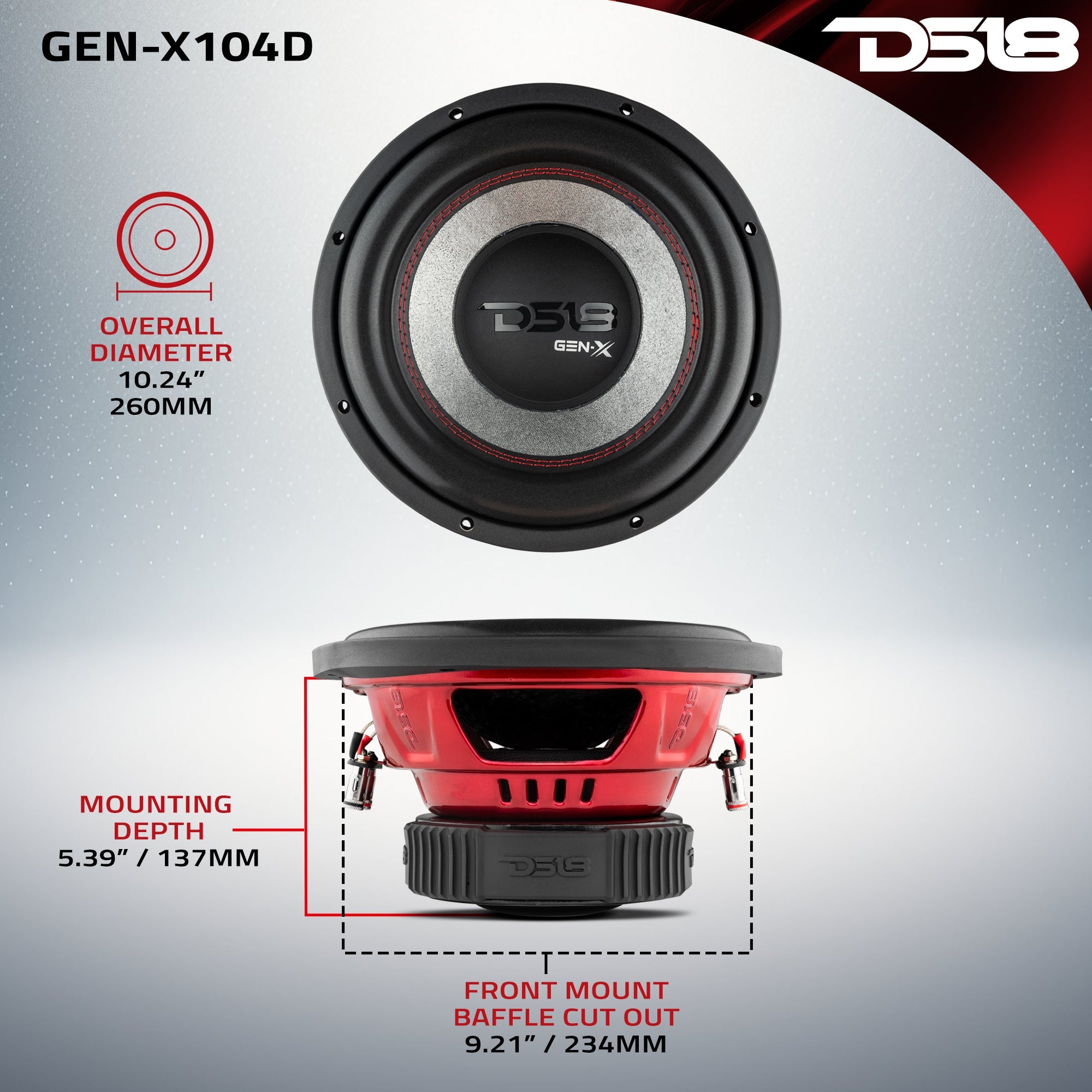

| Measurements | |
| Mounting Cut-Out: | 9.21" (234mm) |
| Mounting Depth: | 5.39" (137mm) |
| Overall Diameter: | 10.24" (260mm) |
| Net Weight: | 6kg |

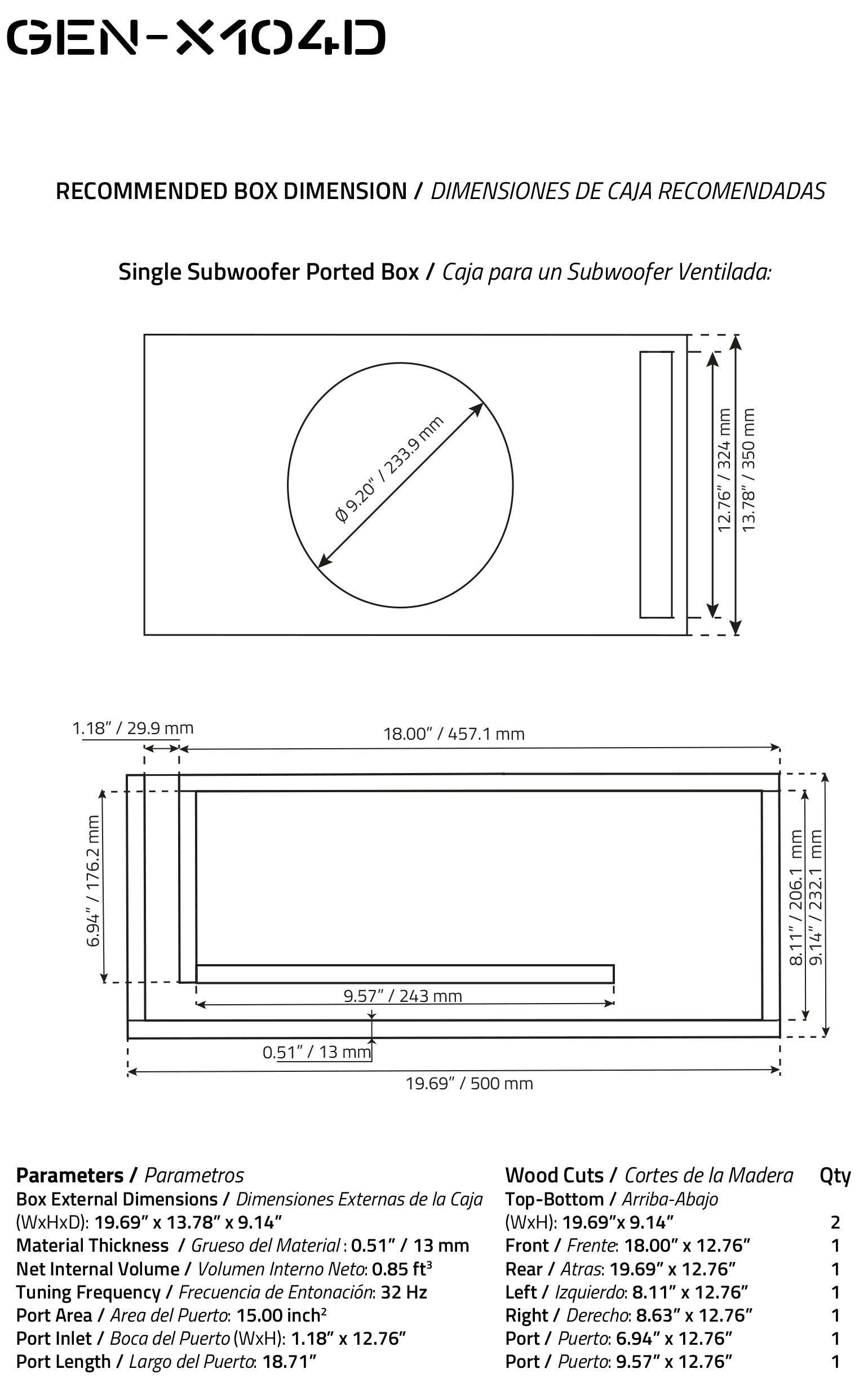

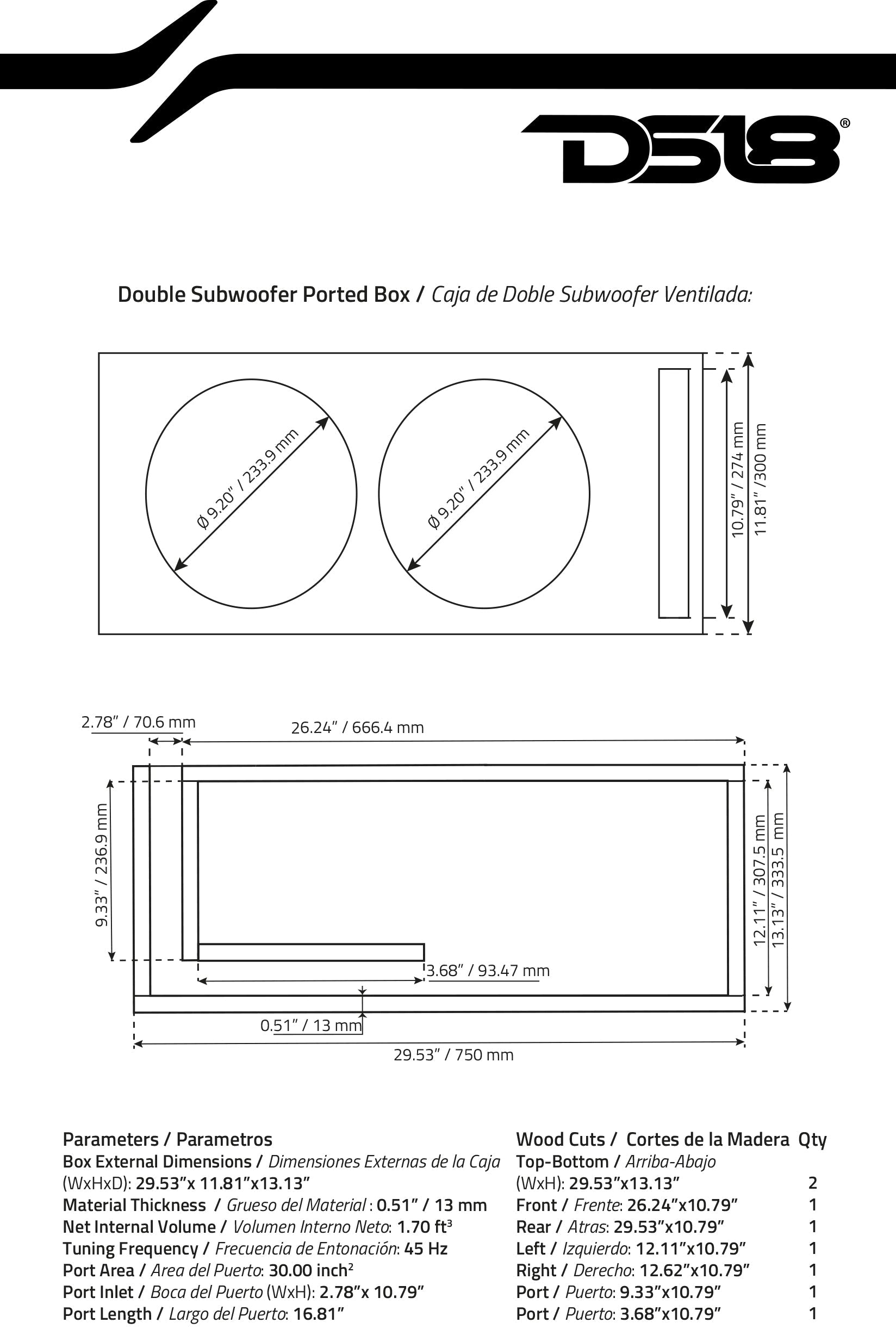

Box Info
Key Features
- 10" Subwoofer
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 4-Ohm 2" DVC
- Ferrite Magnet
- 87dB
Specifications
| PRODUCT NAME | GEN-X104D |
|---|---|
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 4+4 ohms |
| RMS Power Handling | 400w |
| Maximum Power Handling | 800w |
| Sensitivity (1w/1m) | 87 db |
| Frequency Response | 25 - 300Hz |
| Recommended Lo Pass Crossover | 120 Hz |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel Basket |
| Basket Color/Finish | Glossy Red |
| Frame Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 66 oz |
| Equivalent Volume Vas | 10.6L / 0.37ft3 |
| Free Air Resonance Fs | 54.6Hz |
| Mechanical Factor Qms | 5.191 |
| Electrical Factor Qes | 0.616 |
| Total Factor Qts | 0.551 |
| Moving Mass Mms | 123.04g |
| Compliance Cms | 0.069mm/N |
| Bl Factor Bl | 10.905 |
| Voice Coil Inductance Le | 8.22mH |
| Diaphragm Area Sd | 330.06cm2 |
| DC Resistance Re | 3.2 + 3.2ohms |
| Efficiency Bandwidth Product EBP | 88.6 |

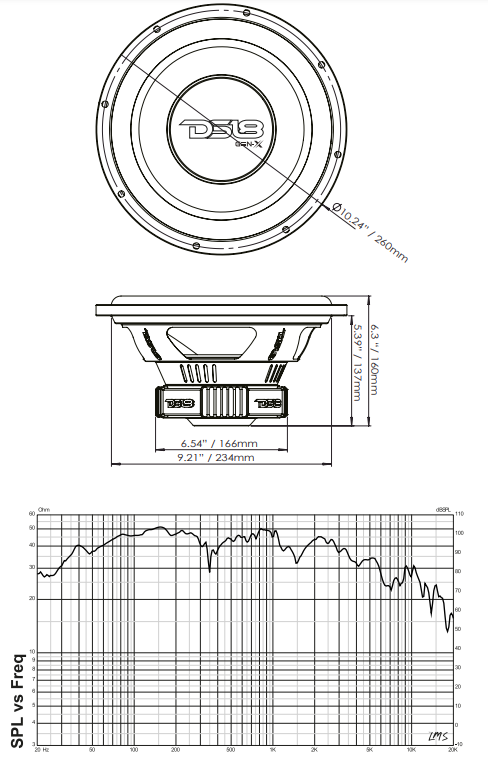

| Overall Diameter | 10.24" / 260mm |
| Overall Depth | 6.3" / 160mm |
| Front Mount Baffle Cutout | 9.21" / 234mm |
| Mounting Depth | 5.39" / 137mm |
| Motor Diameter | 6.54" / 166mm |
| Gross Single Unit Weight (lb) | 13.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 11.25 x 11.25 x 7.25 |
| Quantity of Units in Master Carton | 2 |
| Gross Master Carton Weight (lb) | 28.5 |
| Master Carton Dimensions W x L x H (Inches) | 12 x 12 x 15.5 |
