G6.5XC GEN-X 6.5" 2-Way Component Set Speaker System 150 Watts 4-Ohm
Product Overview DS18 G6.5XC GEN-X 6.5" 2-Way Component Set Speaker System 150 Watts 4-Ohm The GEN-X Coaxial...
- $113.95
- $113.95
- Unit price
- per
Subtotal:
$113.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

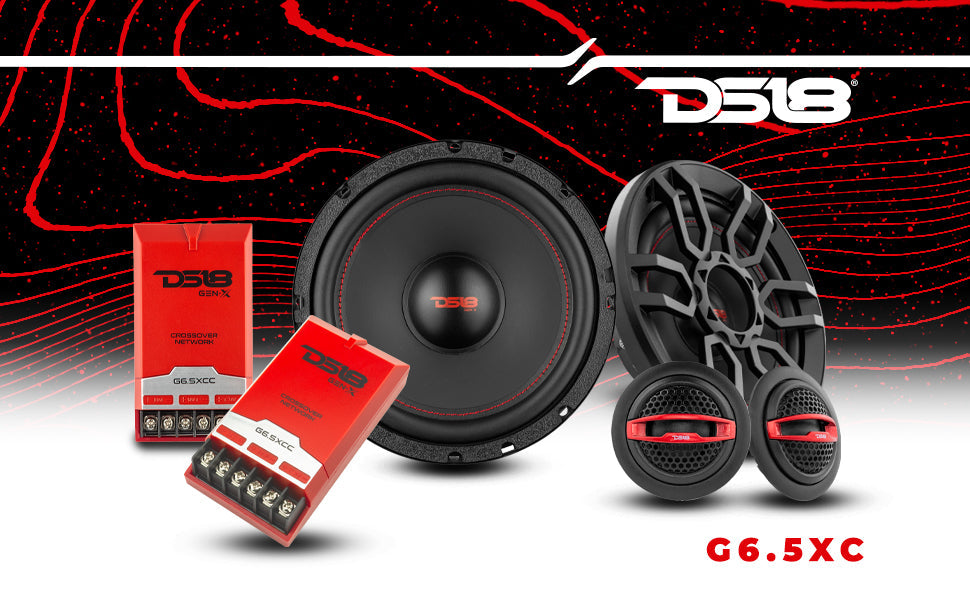

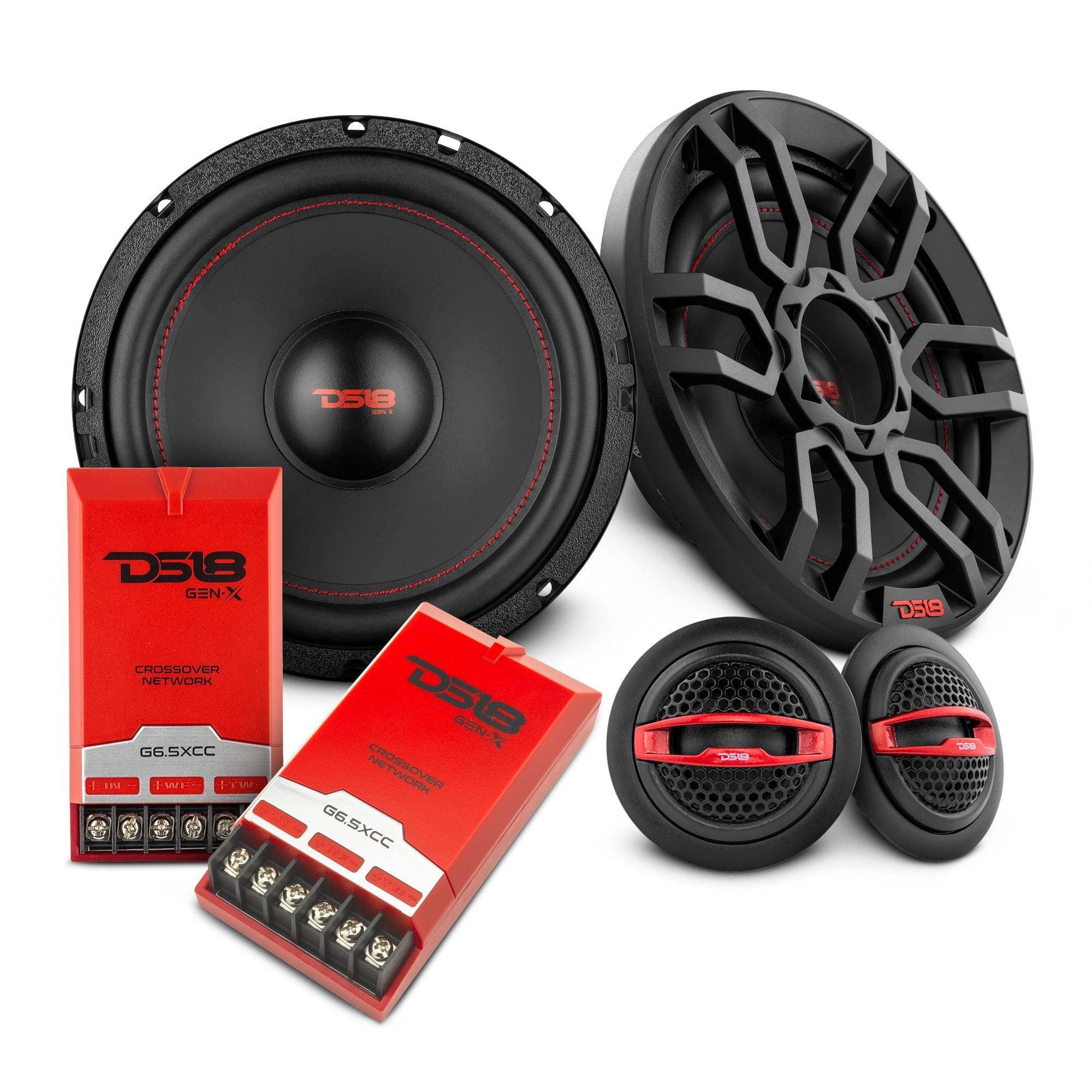

DS18 G6.5XC GEN-X 6.5" 2-Way Component Set Speaker System
150 Watts 4-Ohm
The GEN-X Coaxial Series is back!
The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in an extremely durable steel basket protected by a (PC-ABS) Grill for a speaker that will outlast any vehicle its installed in.
The G6.5Xi was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
The 2-way design on these speakers bring a full range of frequencies with great response without the need for a large power requirement.
The extremely loud design of the component speaker set with included tweeter and passive crossover will bring a full range of frequencies all listeners are sure to notice. The GEN-X series is one of the best choices among casual everyday listeners and the most enthusiastic of audiophiles
These speakers get loud extremely easily with a MAX Power Handling of 150W and RMS Power Handling of 50W.
Order the G6.5Xi for your system to expand your soundstage today!
Highlights
- 2-Way Design implemented for full range quality on every listen
- Rubber surrounds with treated paper cones for great volume and sensitivity to power ratio

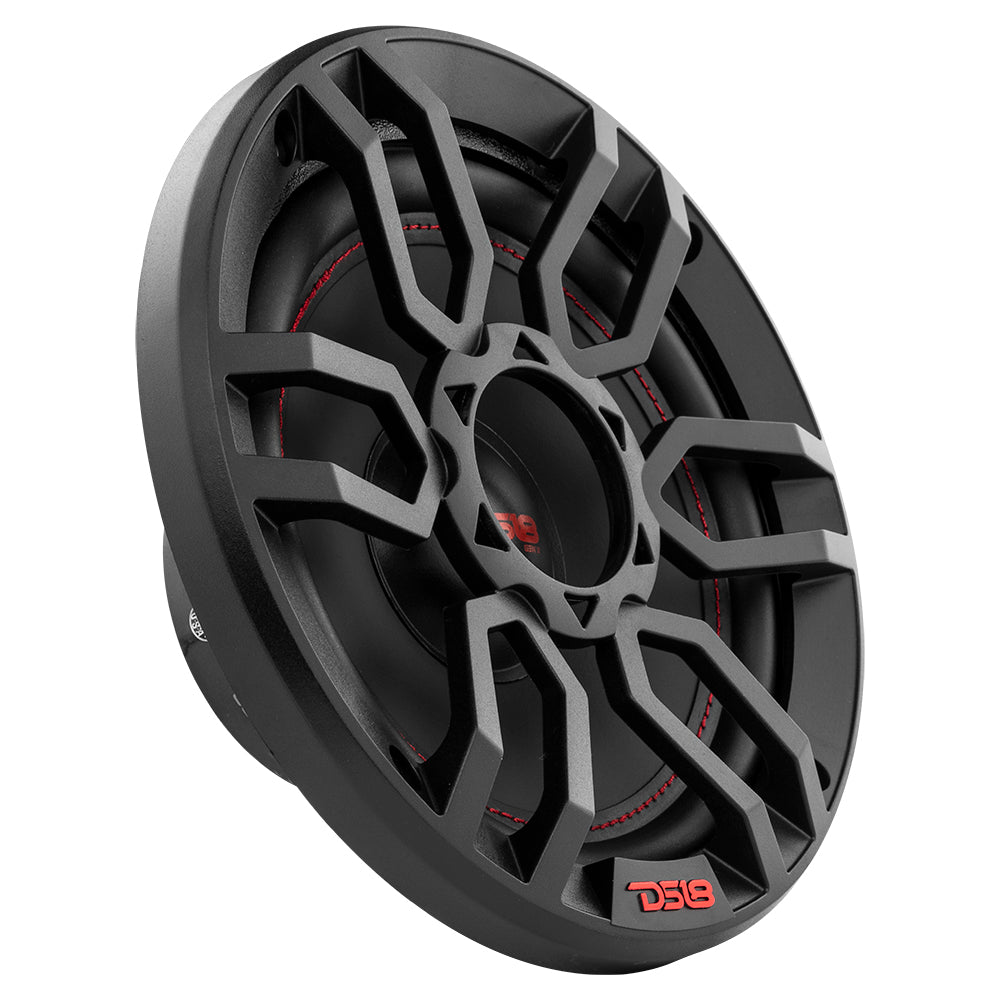

- Included Grills to protect your speakers as well as great looks to blend in to any vehicle
- 2 Speakers included
- Passive Crossover Included
- Tweeter Included
Great For
- Home studios
- Bookshelf
- Satellite
- Surround Sound Speaker
- Hi-Fi installation
- Car audio
- DIY Projects
Technical Details
| GENERAL SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 50W |
| MAX Power Handling | 150W |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 35Hz-20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Number of ways | 2 |
| Pair or Single | Pair |
| Grill Included | Yes |

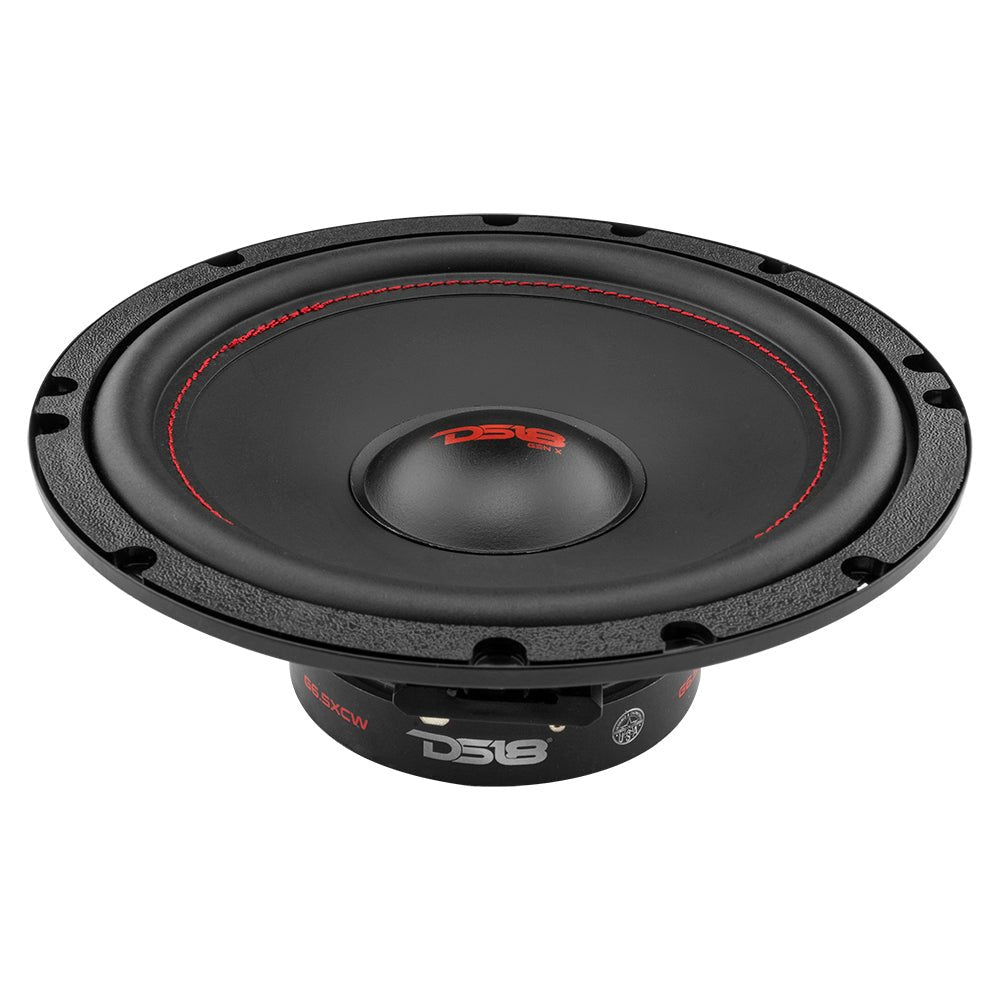

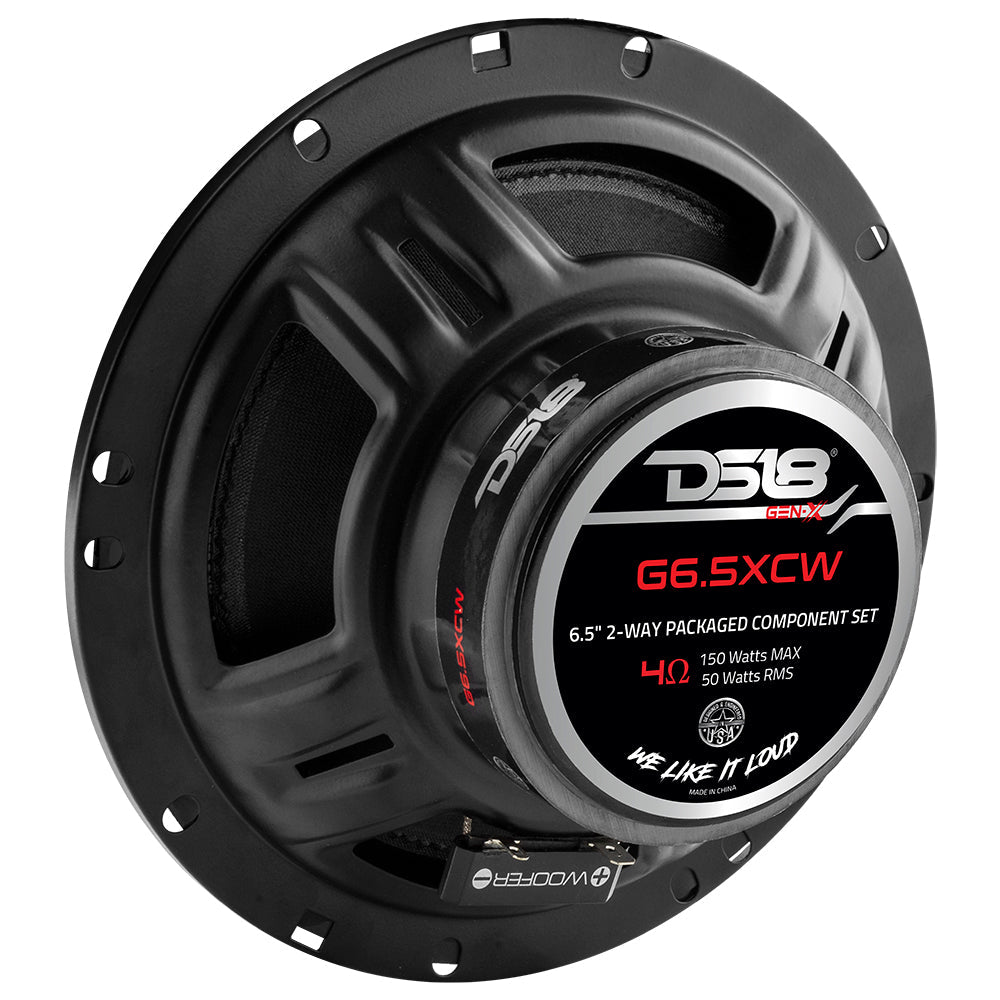

| WOOFER SPECIFICATIONS | |
| Voice Coil Diameter | 1" / 25.5mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 9.87oz / 280g |

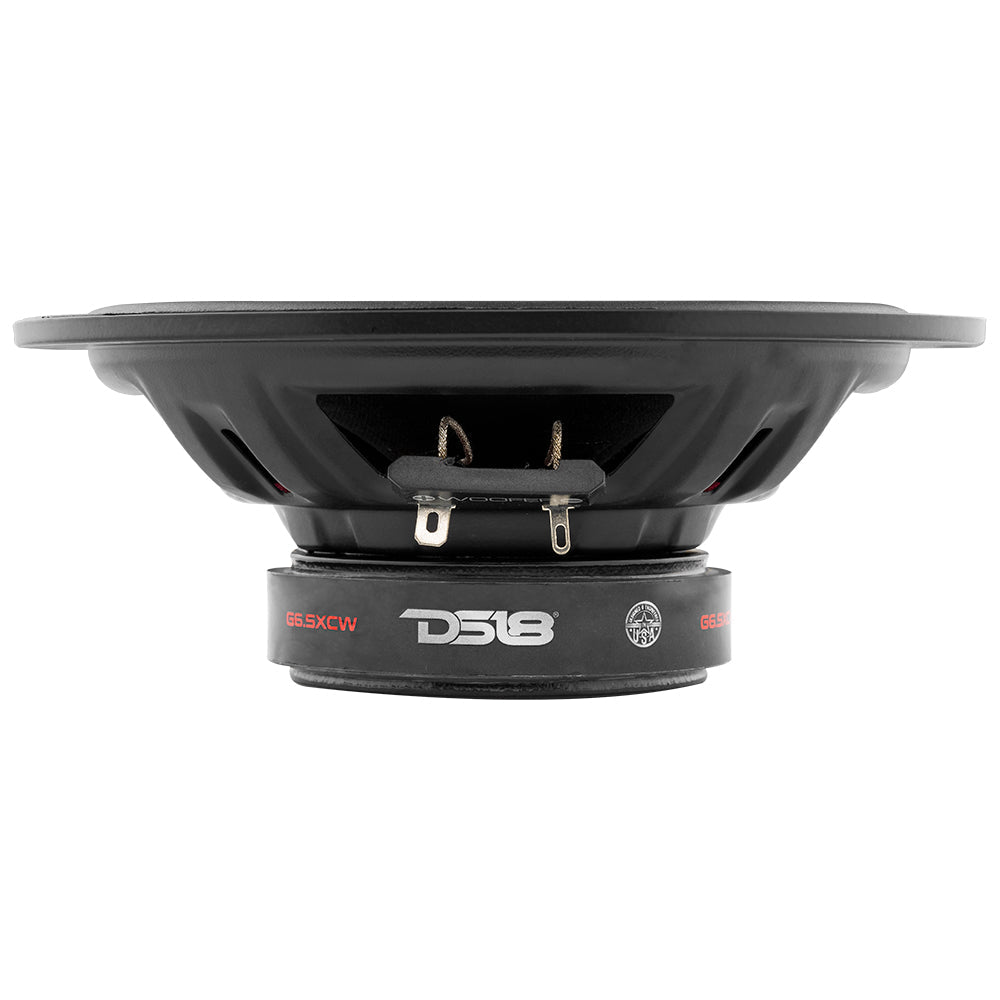

| WOOFER MEASUREMENT | |
| Overall Diameter | 6.5" / 165.5mm |
| Overall Depth | 2.52" / 64mm |
| Overall Diameter (With Grill) | 7" / 179mm |
| Overall Depth (With Grill) | 3" / 76mm |
| Front Mount Baffle Cutout | 5.6" / 142mm |
| Mounting Depth | 2.24" / 57mm |
| Motor Diameter | 3.15" / 80mm |

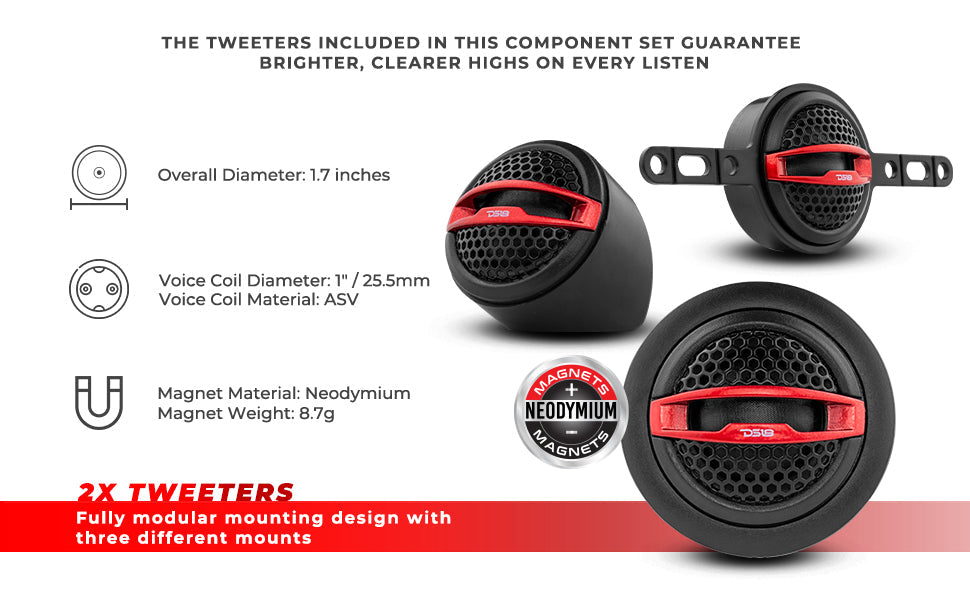

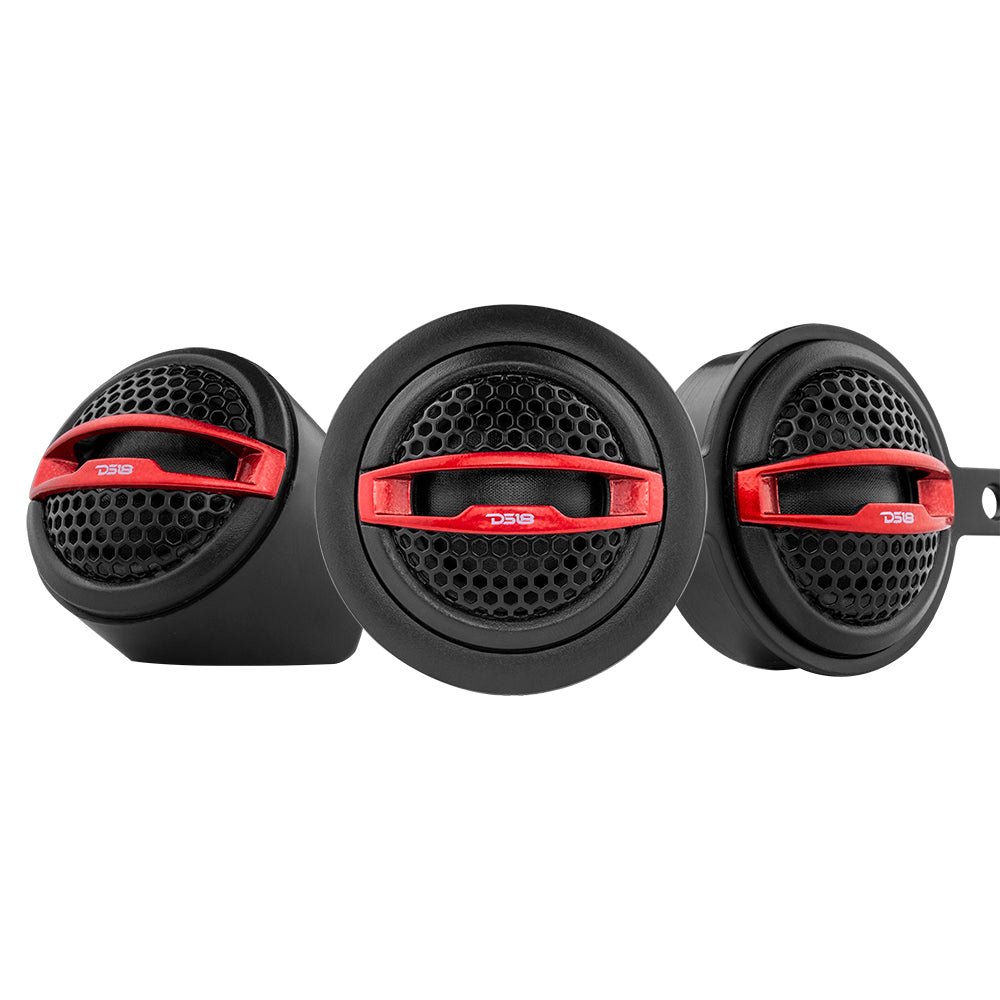

| TWEETER SPECIFICATIONS | |
| Voice Coil Diameter | 1" / 25.5mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISVM |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
| Magnet Weight | 8.7g |
| TWEETER MEASUREMENT | |
| Overall Diameter | 1.7" / 43.5mm |
| Overall Depth | 1" / 27mm |
| Front Mount Baffle Cutout | 1.6" / 40.8mm |
| Mounting Depth | 0.57" / 14.5mm |

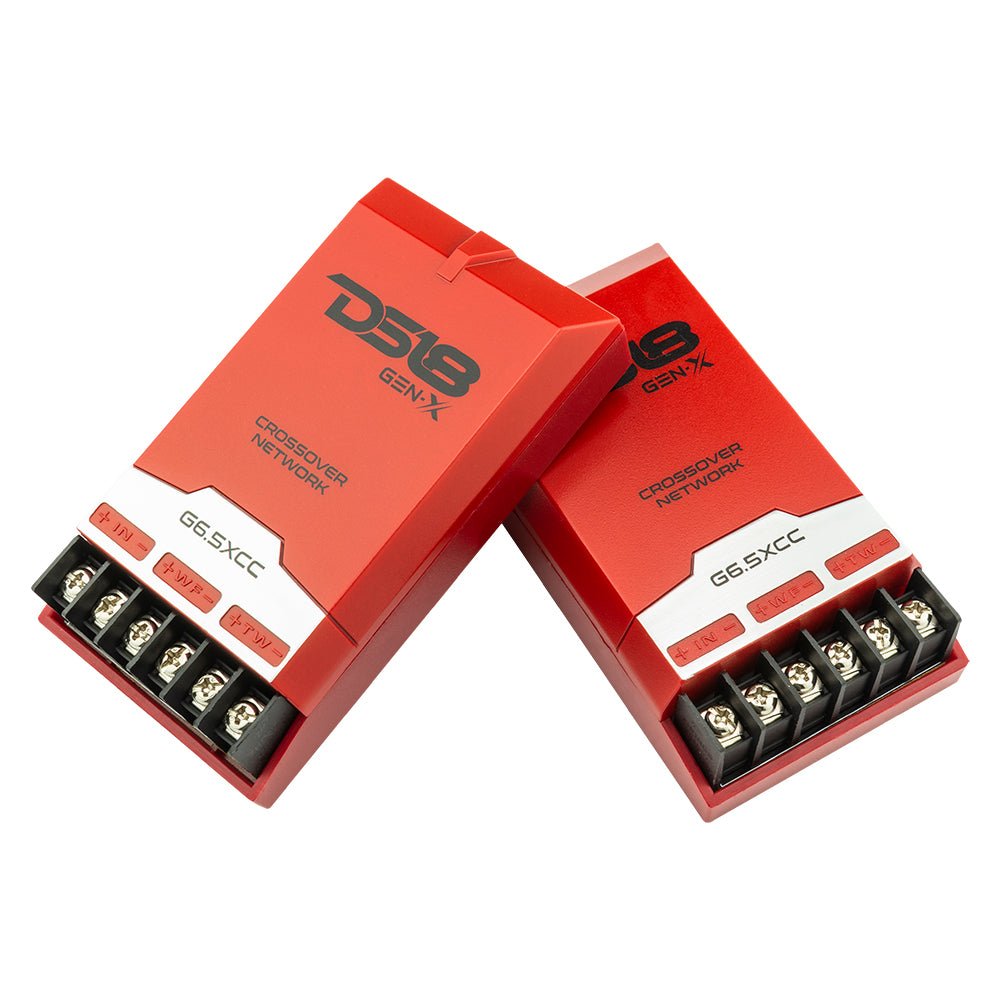

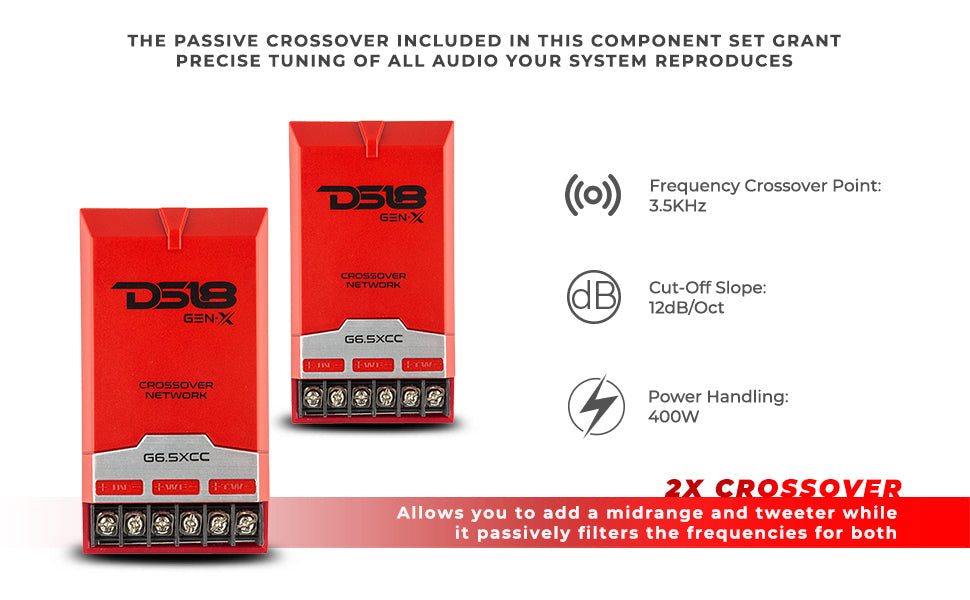

| CROSSOVER SPECIFICATIONS | |
| Passive Crossover Ways | 2 (Woofer / Tweeter) |
| Frequency Crossover point | 3.5KHz |
| Power Handling | 400W |
| Cut-Off Slope | 12dB/Oct |
| Tweeter Attenuation | N/A |
| CROSSOVER MEASUREMENT | |
| Overall Length | 2.55" / 65mm |
| Overall Depth | 4.7" / 120mm |
| Overall Height | 1" / 27.5mm |
Key Features

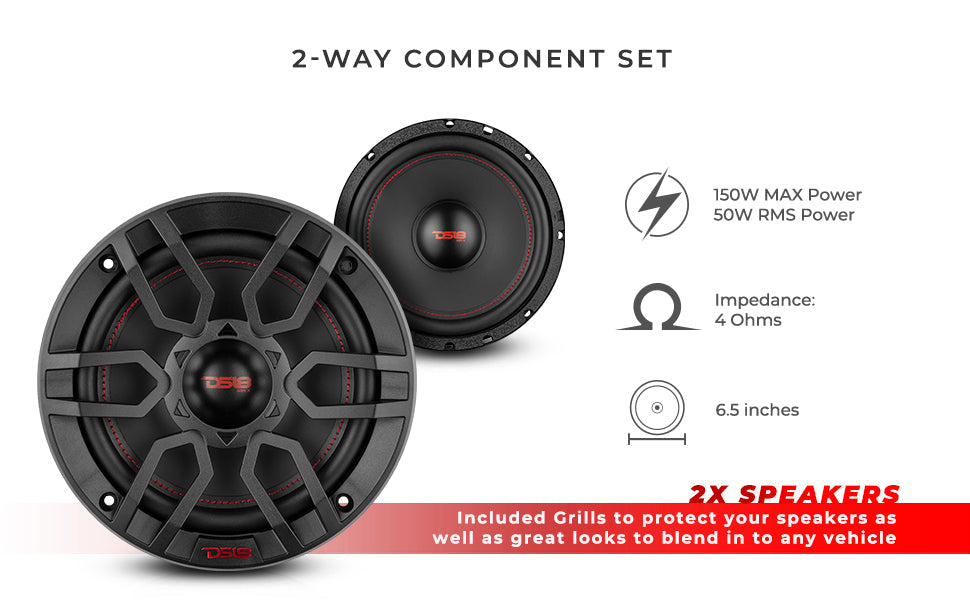

- 6.5" 2-Way Component
- MAX Power: 150 Watts
- RMS Power: 50 Watts
- Impedance: 4 Ohm ~ 86db
- Barium Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
Specifications
| SKU | G6.5XC |
|---|---|
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 50Watts |
| MAX Power Handling | 150Watts |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 35Hz-20KHz |
| Recommended Hi Pass Crossover | 60HZ |
| Number of Ways | 2 |
| Pair or Single | Pair |
| Grill Included | Yes |
| Voice Coil Diameter | 1" / 25.5mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV / EISVM |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color | Black Matte |
| Magnet Material | Barium Ferrite / Neodymium |
| Magnet Weight | 9.87oz / 280g / 8.7g |
| VC Former Material | ASV |
| Diaphragm Material | Silk |
| Vas | 9.47L / 0.33ft3 |
| Xmax | 2.7mm |
| Fs | 72Hz |
| Qms | 4.5 |
| Qes | 1.47 |
| Qts | 1.1 |
| Mms | 13.8g |
| Cms | 345mm/N |
| BL | 4 |
| Le | 172uH |
| Sd | 136.8cm2 |
| Re | 3.7 Ohms |
| Mmd | 12g |
| Passive Crossover Ways | 2 (Woofer / Tweeter) |
| Frequency Crossover Point | 3.5KHz |
| Power Handling | 400W |
| Cut-Off Slope | 12dB/Oct |
| Capacitor Type | Metal Film |
| Coil Type | Inductor |
| Terminal Type | Screw |
| Housing Material | ABS |
