Product Overview

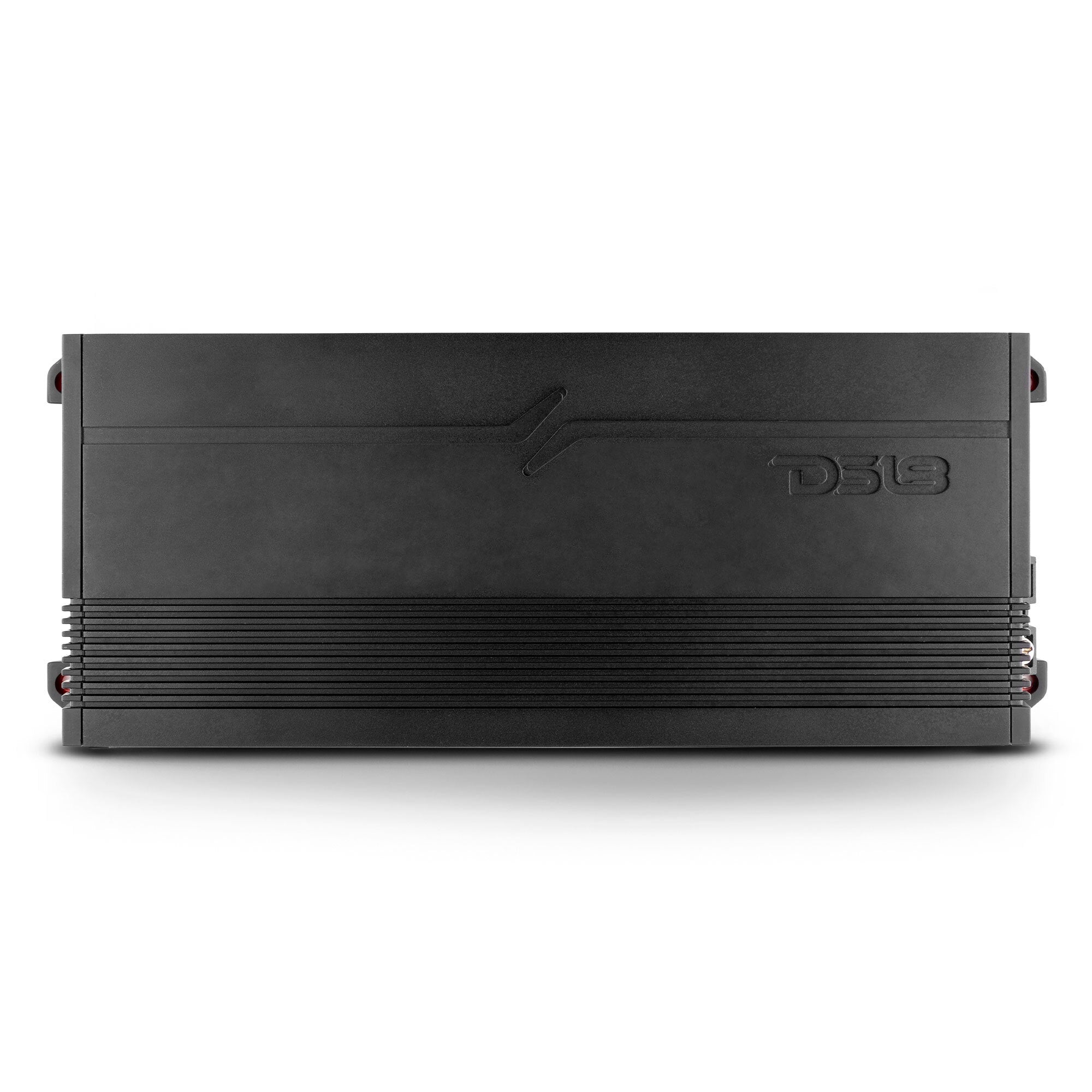

DS18 G3600.4D Full-Range Class D 4-Channel Car Audio Amplifier 3600 Watts
The Gen-X series has always been a DS18 staple with the public and been in countless system builds over the many years it was released.
We have completely redesigned the GEN-X series from the ground up to meet and audio enthusiasts high standards and complete their goals for the system of their dreams with great power, reliability, and efficiency.
The G3600.4D has a power rating of 4 x 300 watts RMS at 4 ohms 4 x 420 RMS at 2 ohms, 2 x 740 at 4 ohm bridge, and 3600 MAX at the two load it was designed for, giving you pure and clean power on demand.

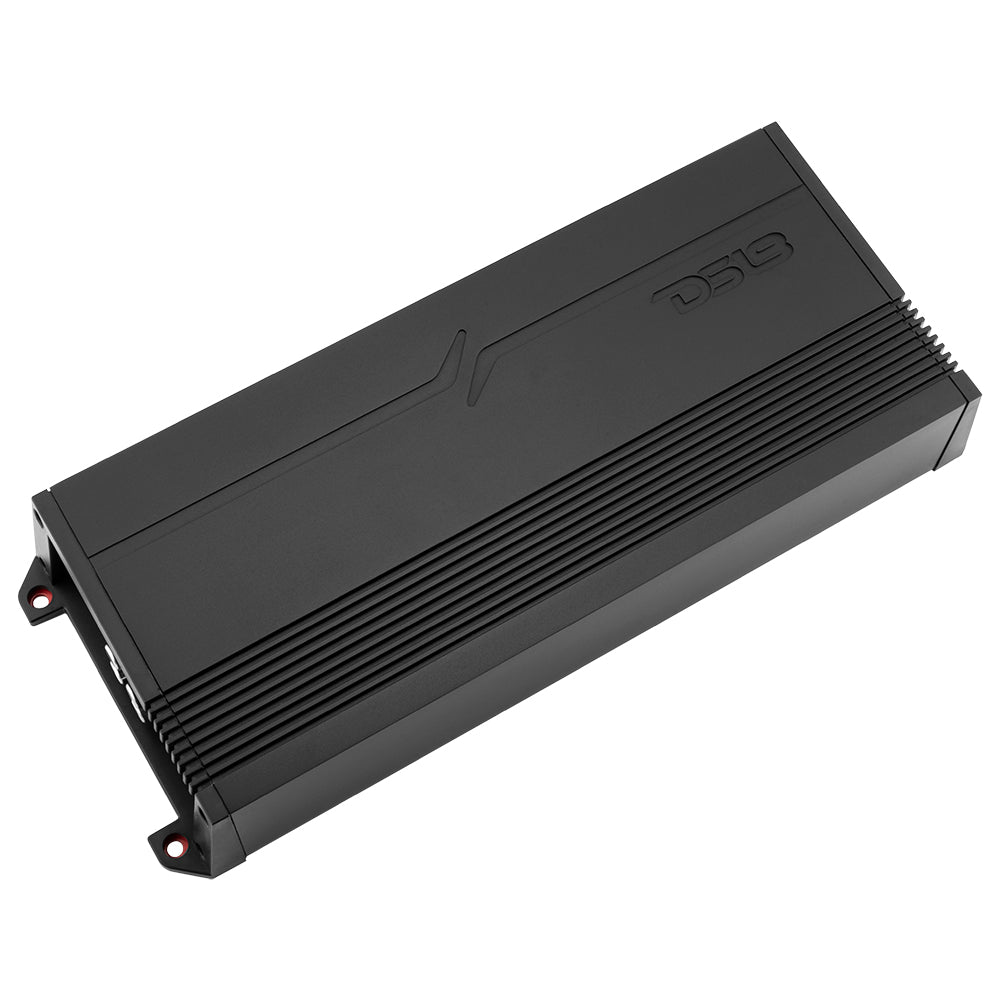

This amp has the power to drive your speakers but also not take up much space because of the new compact design and technology that will keep your amp playing cool and loud.
Highlights

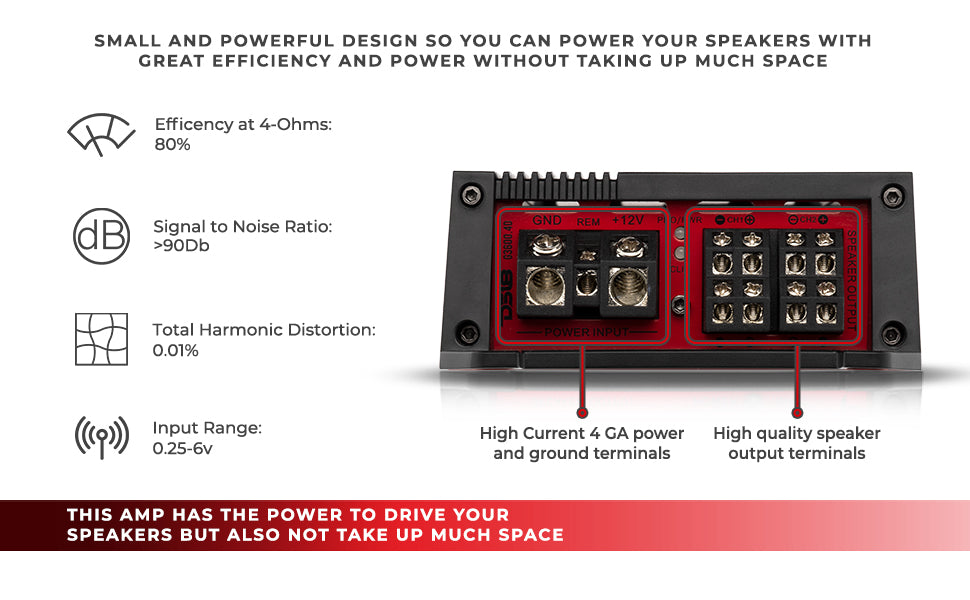

- Small and powerful design so you can power your subs with great efficiency and power without taking up much space

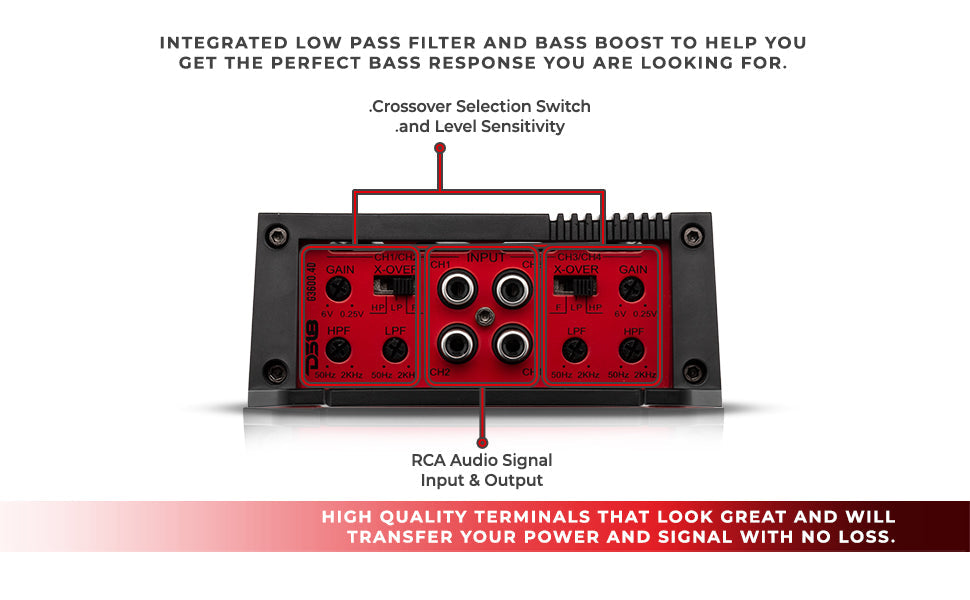

- Integrated low pass and high pass filter to help you get the perfect response you are looking for.

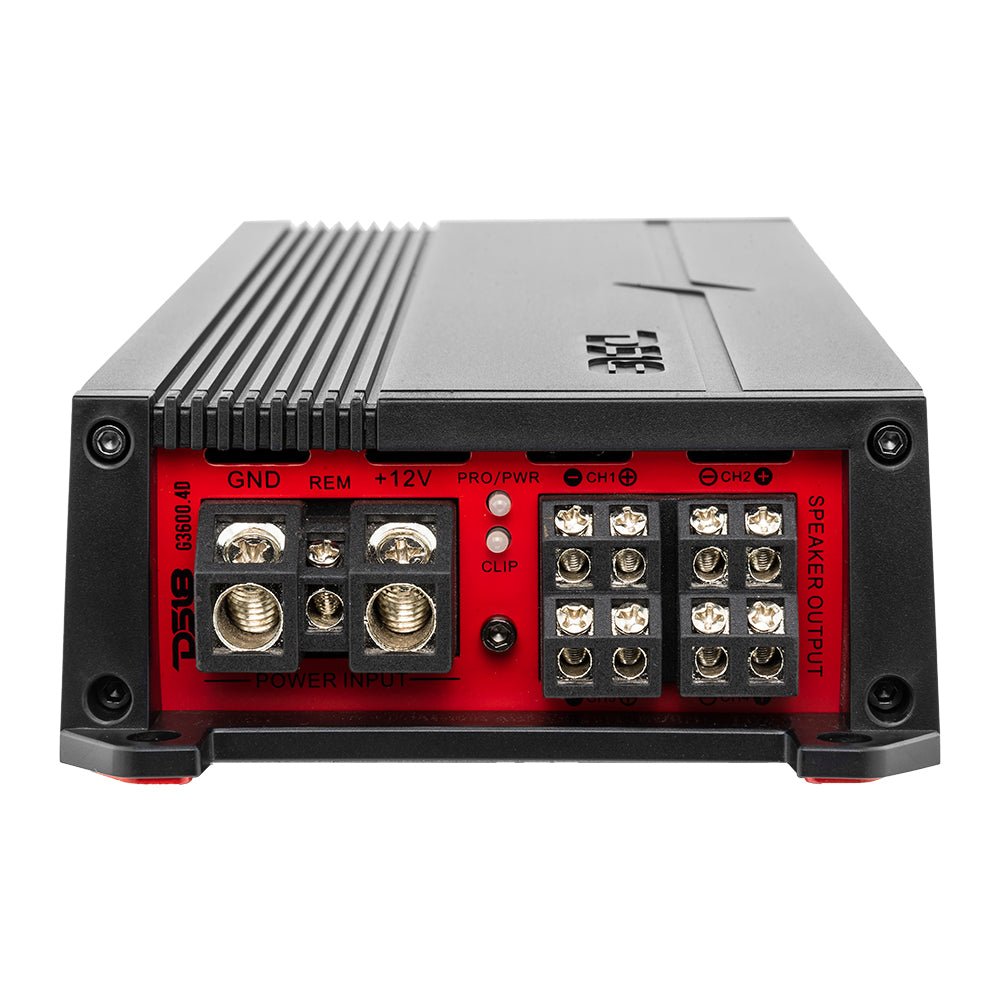

- High quality terminals that look great and will transfer your power and signal with no loss.
Key Features

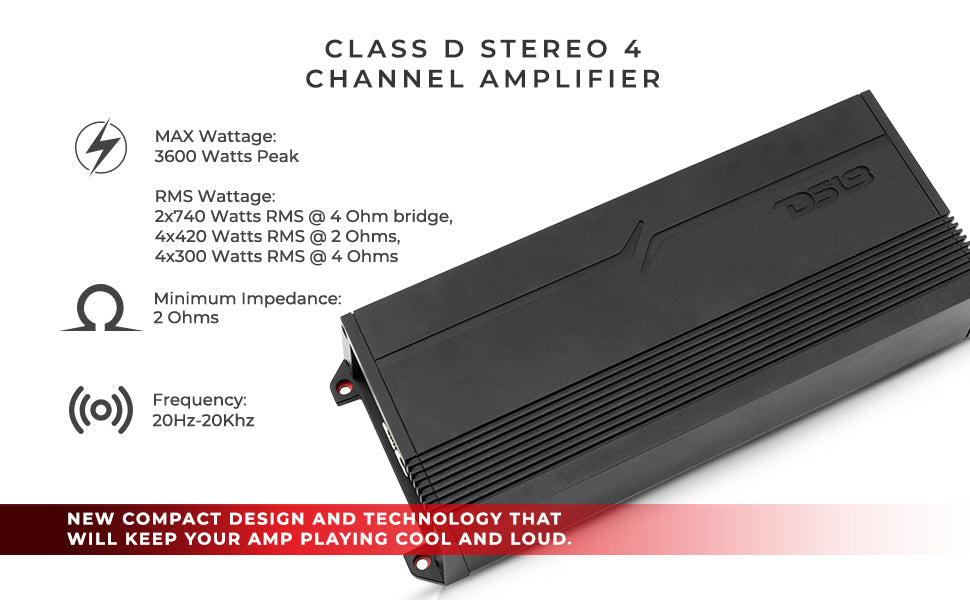

- Digital Class D 4 Channel Amplifier
- MAX Wattage: 3600w Peak
- RMS Wattage: 2 x 740 Watts RMS @ 4 ohm bridge, 4 x 420 Watts RMS @ 2 ohms, 4 x 300 Watts RMS @ 4 ohms
- Frequency Response: 20Hz-20KHz
- Signal to Noise Ratio: >93dB
- Efficiency at 4 ohms: 90%
- Total Harmonic Distortion: 0.01%
- Input Range: .25-6v
- Selectable X-over: LPF, HPF. Flat
- Phase: 0-180
- Power and Ground Terminal: 4 GA
- Minimum Impedance: 2 ohm
Great For:
- Car Audio
- Pro Audio
- Motorcycles
- Hi-Fi installation
- Off-Road
- DIY Projects
Technical Details
|
SPECIFICATIONS |
|
| POWER | |
| Total Watts (Peak) | 3600W |
| RMS Power @ 4 ohm | 4 x 300W |
| RMS Power @ 2 ohm | 4 x 420W |
| RMS Power @ 4 ohm Bridge | 2 x 740W |
| AUDIO | |
| Frequency Response | 20Hz-20KHz |
| Signal to Noise Ratio | >93dB |
| Efficiency @ 4ohm | 80% |
| Damping Factor | 78 |
| Input Impedance | 22K |
| Channel Separation | 70dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.25-6V |
| High Level Input | NO |
| Selectable X-Over | LPF/FLAT/HPF |
| X-Over Filter Range | 50 - 250Hz |
| Bass Boost Range | N/A |
| Bass Boost Frequency | N/A |
| Infrasonic Filter | N/A |
| Phase Selector | NO |
| FEATURES | |
| Amplifier Class | Digital (D) |
| Amplifier Type | 4CH Full Range |
| Number of Channels | 4CH |
| Minimum Impedance | 2 ohm St / 4 ohm Bridge |
| Led Indicator | Power / Protection / Clip |
| Power Input Terminal Size | 4ga |
| Fuse Size | 3 x 40A |
| Remote Level Control | NO |
| Cooling Fan | NO |
| Voltmeter | NO |
| Thermal Protection | YES |
| Over-Load Protection | YES |
| DC Output Protection | YES |
| Short Circuit Output Protection | YES |
| Voltage Input Protection | YES |
| Clipping Protection | YES |
| Body Color / Finish | Matte black |
| MEASUREMENT | |
| Overall Length | 12" / 305mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 1.96" / 50mm |
| Heatsink Length | 10.15" / 258mm |
| Gross Single Unit Weight | 1.9KG |
Key Features
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Specifications
| SKU | G3600.4D |
|---|---|
| Class | Digital (D) |
| Amplifier Type | 4 CH Full Range |
| Channels | 4 CH |
| Peak Power | 3600W |
| RMS Power @ 4 Ohm/14.4V | 4 x 300W |
| RMS Power @ 2 Ohm/14.4V | 4 x 420W |
| RMS Power @ 4 Ohm/14.4V Bridged | 2 x 740W |
| Minimum Impedance | 2 Ohm St / 4 Ohm Bridge |
| Operation Voltage | 9 - 15V |
| Frequency Response | 20Hz-20KHz |
| Signal/Noise Ratio | >90dB |
| Low Pass Filter | 50Hz - 250Hz |
| High Pass Filter | 50Hz - 250Hz |
| Subsonic | NO |
| Subsonic Frequency | N/A |
| Efficiency @ 4 Ohm | 80% |
| Damping Factor | 78 |
| THD % | 0.01 |
| Input Sensitivity | 0.25V - 6V |
| X-Over Filter Range | 50 - 250Hz |
| Bass Boost Range | N/A |
| Bass Boost Frequency | N/A |
| Phase Selector | NO |
| High Level Input | NO |
| Selectable X-Over | LPF/FLAT/HPF |
| Led Indicator | Power / Protection / Clip |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Thermal Protection | Yes |
| Cooling Fan | No |
| Speaker Output Size | 12GA |
| Power Input Size | 4GA |
| Fuse Rating | 120A |
| Remote Level Control | No |
| Body Color / Finish | Matte black |
| Product Weight (lb) | 4.5 |
| Product Dimensions L x W x H (Inches) | 13.75 x 6.25 x 3.25 |
| M/C Weight (lb) | 29.5 |
| M/C Dimensions L x W x H (Inches) | 14 x 13 x 10.5 |
| M/C Qty | 6 |
| Sold In | Single |
