Product Overview

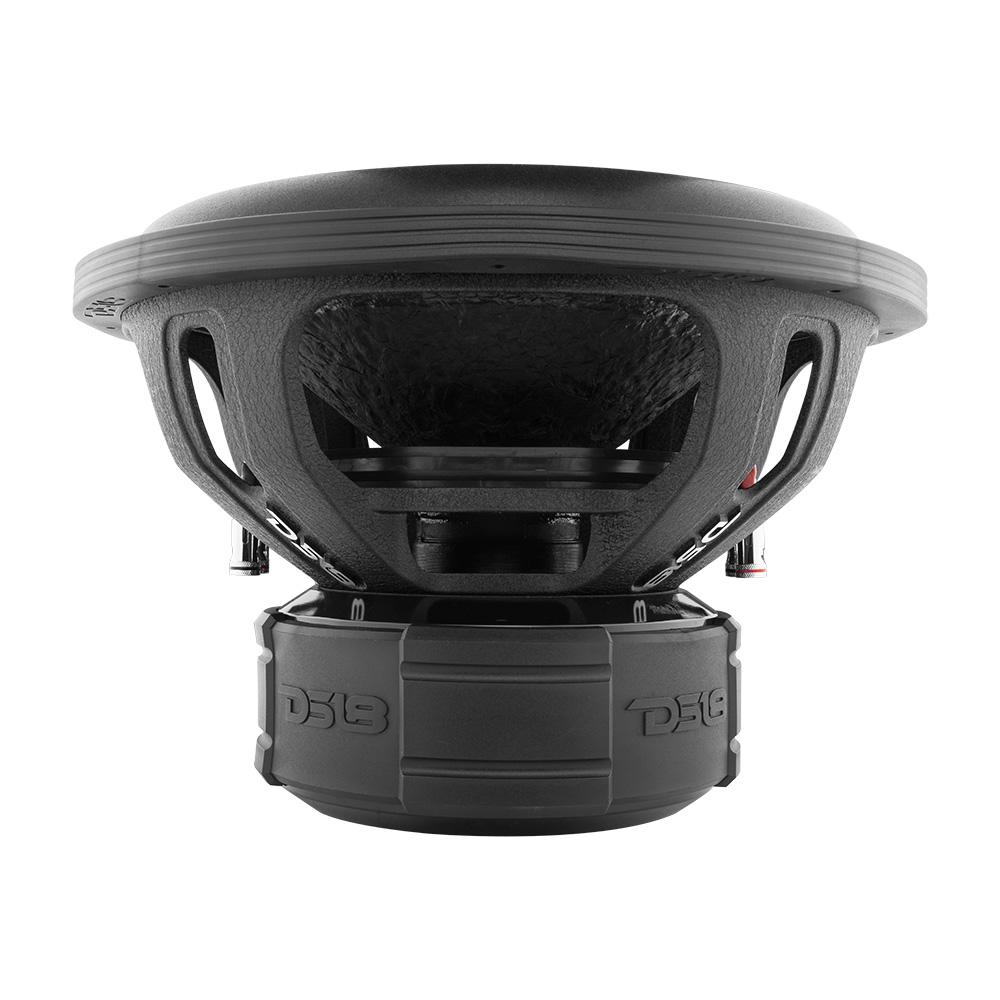

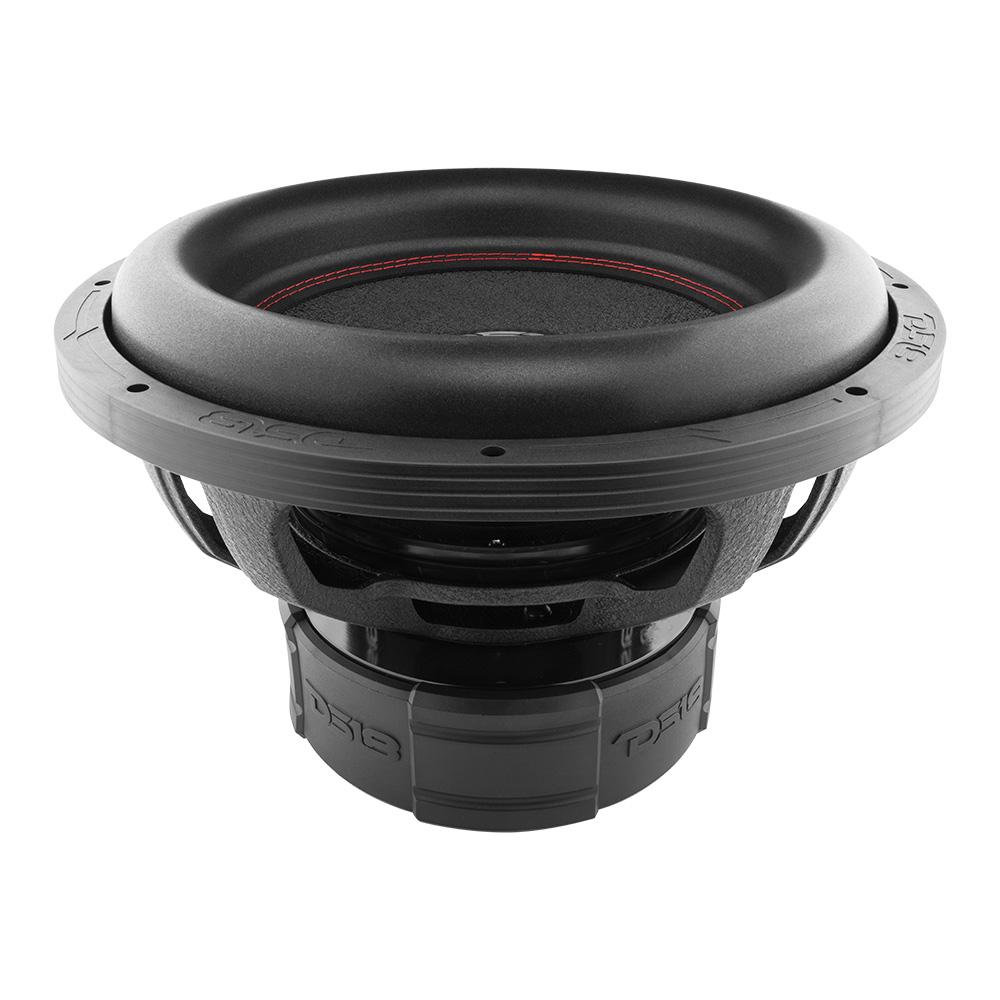

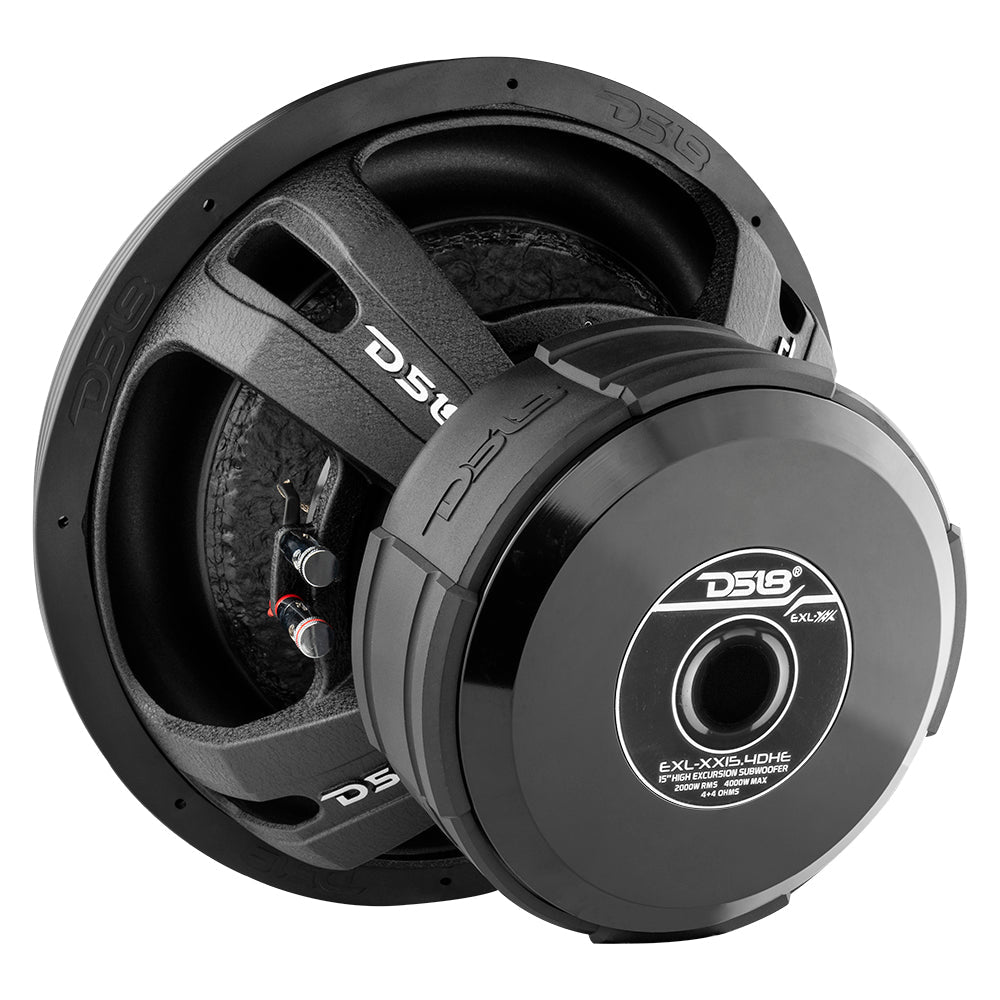

DS18 EXL-XX15.4DHE 15" High Excursion Car Subwoofer 4000 Watts Max 4-Ohm DVC
High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX15.4DHE is the answer to that. This subwoofer is a high addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.

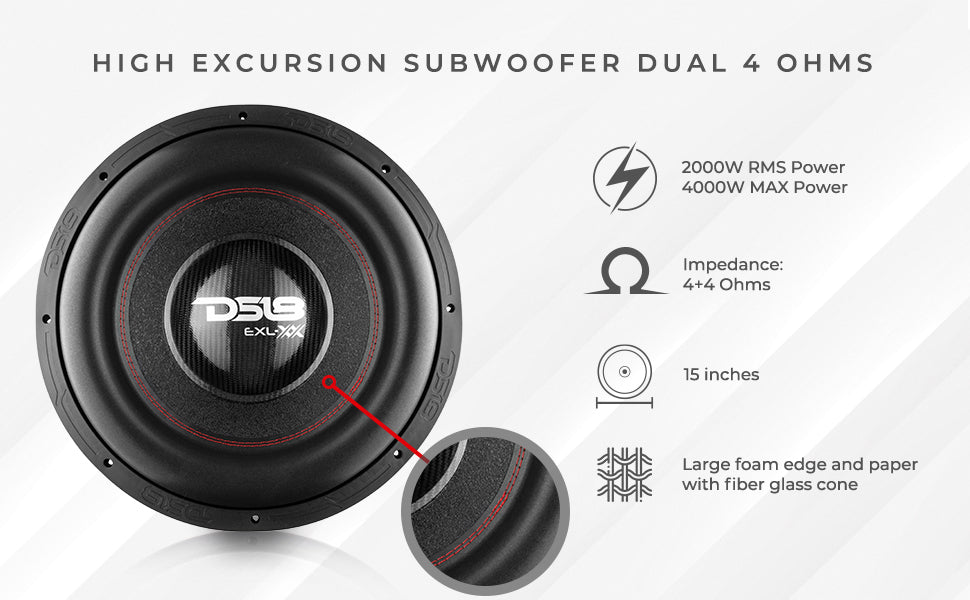

Highlights
- High Excursion surround for a very high amount of XMAX.
- Great power handling of 2000w RMS and 4000w Max.
- Three inch black aluminum voice coil for high power handling and great efficiency.
- FS of 35 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.
Technical Details
| Specifications | |
| Nominal Diameter | 15 |
| Nominal Impedance | 4 + 4 Ohms |
| RMS Power Handling | 2000W |
| MAX Power Handling | 4000W |
| Sensitivity (1w/1m) | 88 dB |
| Frequency Response | 20Hz - 1.5KHz |
| Recommended Lo Pass Crossover | 80 Hz |
| Motor: | |
| VC Diameter | 3" / 75.6mm |
| VC Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Glass Fiber |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 306 Oz |
| Displacement Volume | 3.26L |
| Thiele & Small Parameters | |
| Equivalent Vol | Vas 29.965L |
| Excursion(one way) | Xmax 42 mm |
| Free Air Resonance | Fs 35.6 Hz |
| Mechanical Factor | Qms 7.098 |
| Electrical Factor | Qes 0.68 |
| Total Factor | Qts 0.62 |
| Moving Mass | Mms 410.638 g |
| Compliance | Cms 0.027 mm/N |
| Bl Factor | BL 19.865 |
| VC Inductance | Le 11.25 mH |
| Diaphragm Area | Sd 804.25 cm² |
| Dc Resistance | Re 3.6 + 3.6 ohms |
| Efficiency Bandwidth Product | EBP 52.3 |

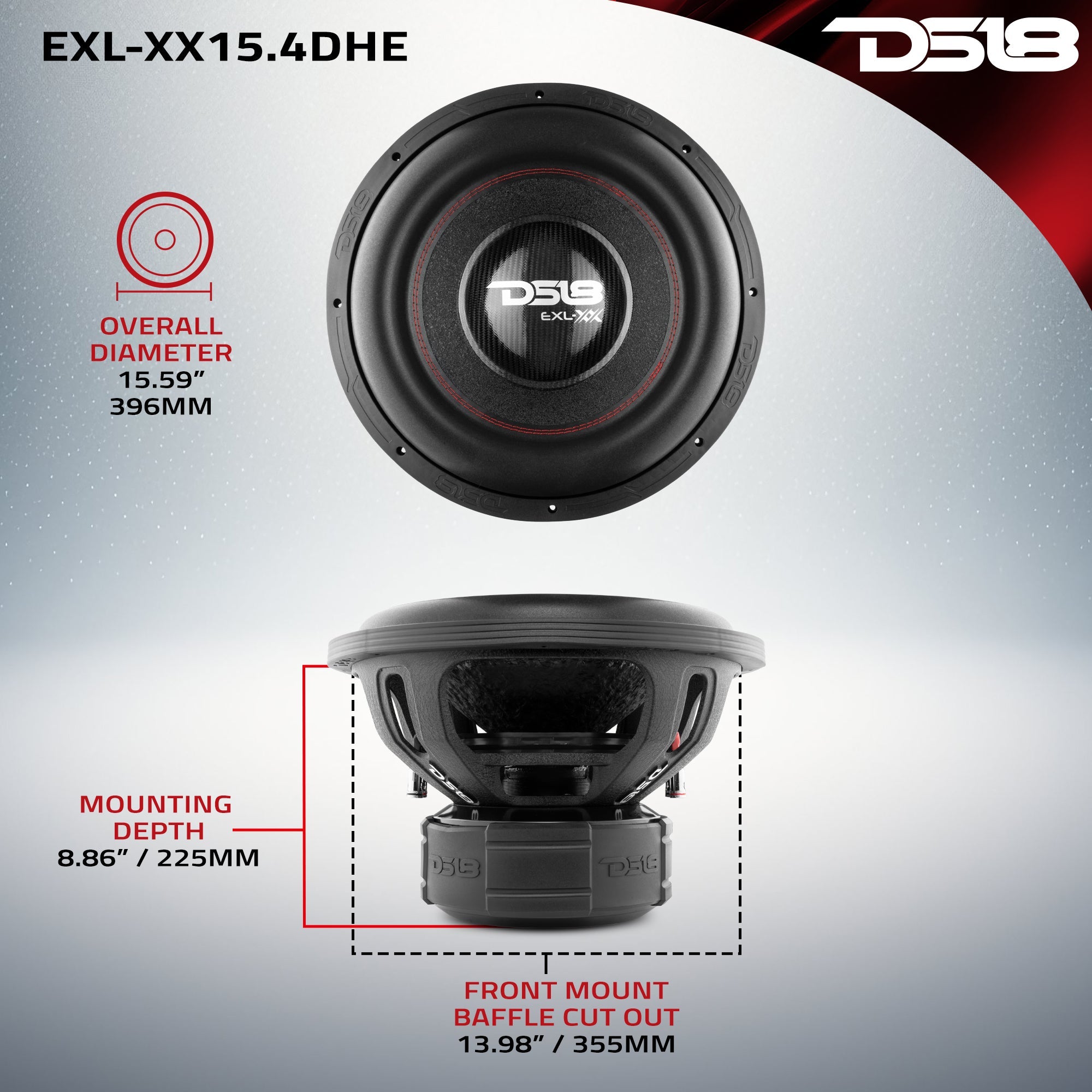

| Measurements | |
| Overall Diameter | 15.59" / 396mm |
| Overall Depth | 10.24" / 260mm |
| Front Mount Baffle Cutout | 13.98" / 355mm |
| Mounting Depth | 8.86" / 225mm |
| Motor Diameter | 8.86" / 225mm |

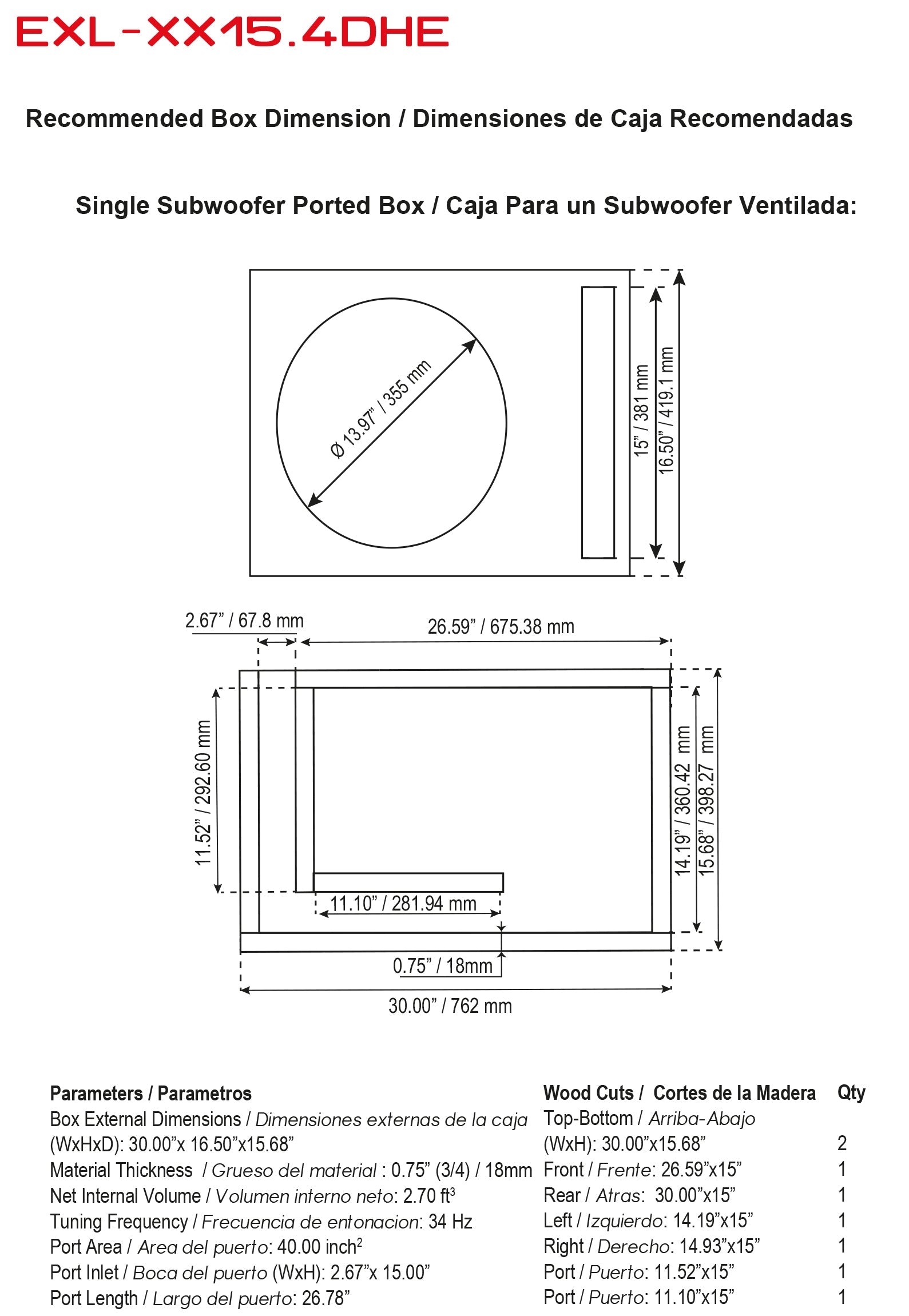

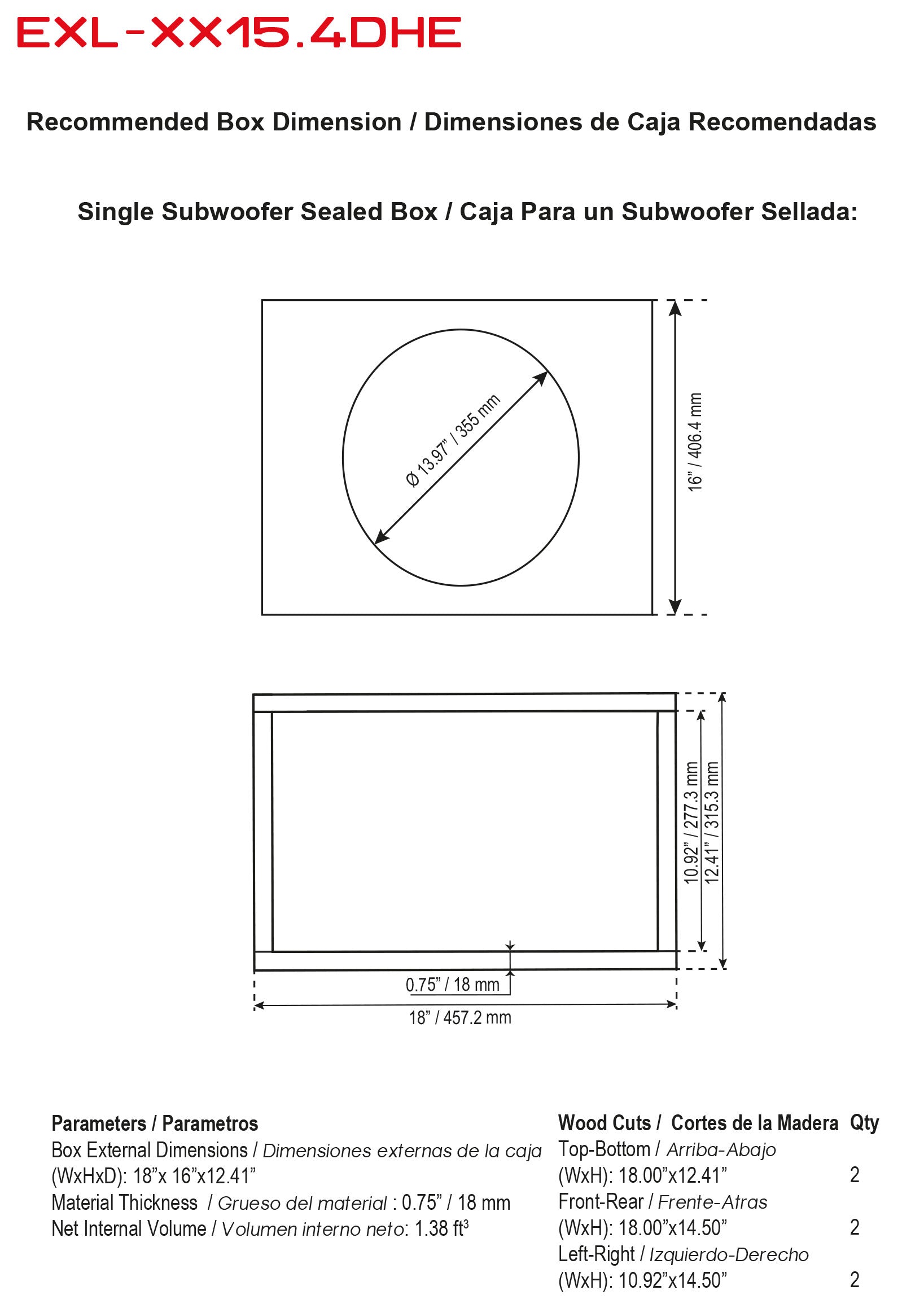

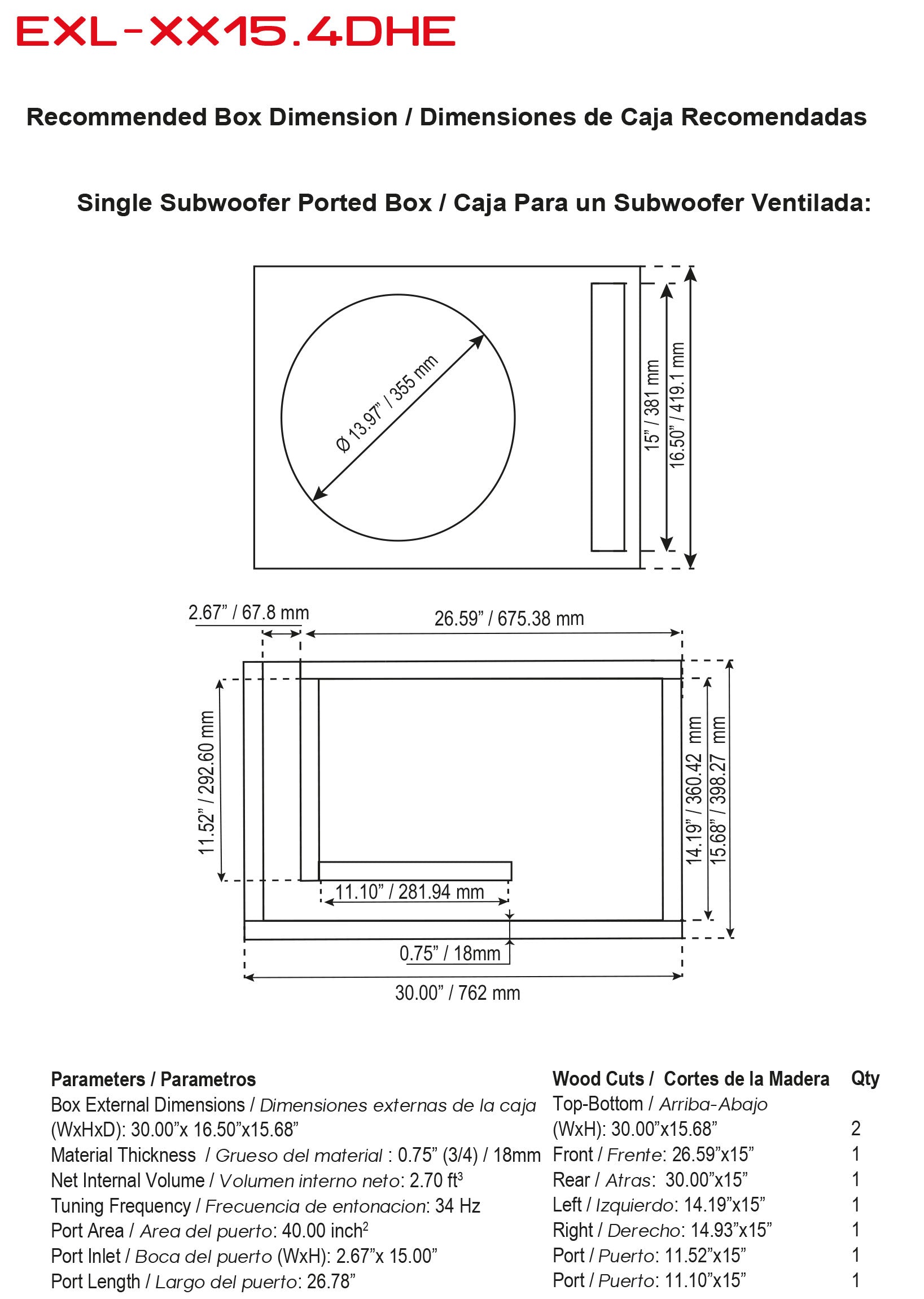

Box Info
Box Info
Key Features
- 15" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 4-Ohm 3" DVC
- Ferrite Magnet
- 88dB
Specifications
| SKU | EXL-XX15.4DHE |
|---|---|
| Nominal Diameter | 15" |
| Nominal Impedance | 4+4 ohms |
| RMS Power Handling | 2000W |
| Maximum Power Handling | 4000W |
| Sensitivity (1w/1m) | 88dB |
| Frequency Response | 20-1.5K Hz |
| Recommended Lo Pass Crossover | 80 Hz |
| Voice Coil Diameter | 3" / 75.6mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Glass Fiber |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 306 OZ |
| Displacement Volume | 3.62L |
| Equivalent Volume Vas | 29.965L |
| Free Air Resonance Fs | 35.6 Hz |
| Mechanical Factor Qms | 7.098 |
| Electrical Factor Qes | 0.68 |
| Total Factor Qts | 0.62 |
| Moving Mass Mms | 410.638 g |
| Compliance Cms | 0.027 mm/N |
| Bl Factor Bl | 19.865 |
| Voice Coil Inductance Le | 11.25 mH |
| Diaphragm Area Sd | 804.25 cm2 |
| Dc Resistance Re | 3.6 + 3.6 ohms |
| Efficiency Bandwidth Product EBP | 52.3 |
| Overall Diameter | 15.59" / 396mm |
| Overall Depth | 10.24" / 260mm |
| Front Mount Baffle Cutout | 13.98" / 355mm |
| Mounting Depth | 8.86" / 225mm |
| Motor Diameter | 8.86" / 225mm |
| Gross Single Unit Weight (lb) | 56.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 18 x 18 x 13.5 |
| Quantity of Units in Master Carton | 1 |
| Gross Master Carton Weight | 56.5 |
| Master Carton Dimensions W x L x H (Inches) | 18 x 18 x 13.5 |
