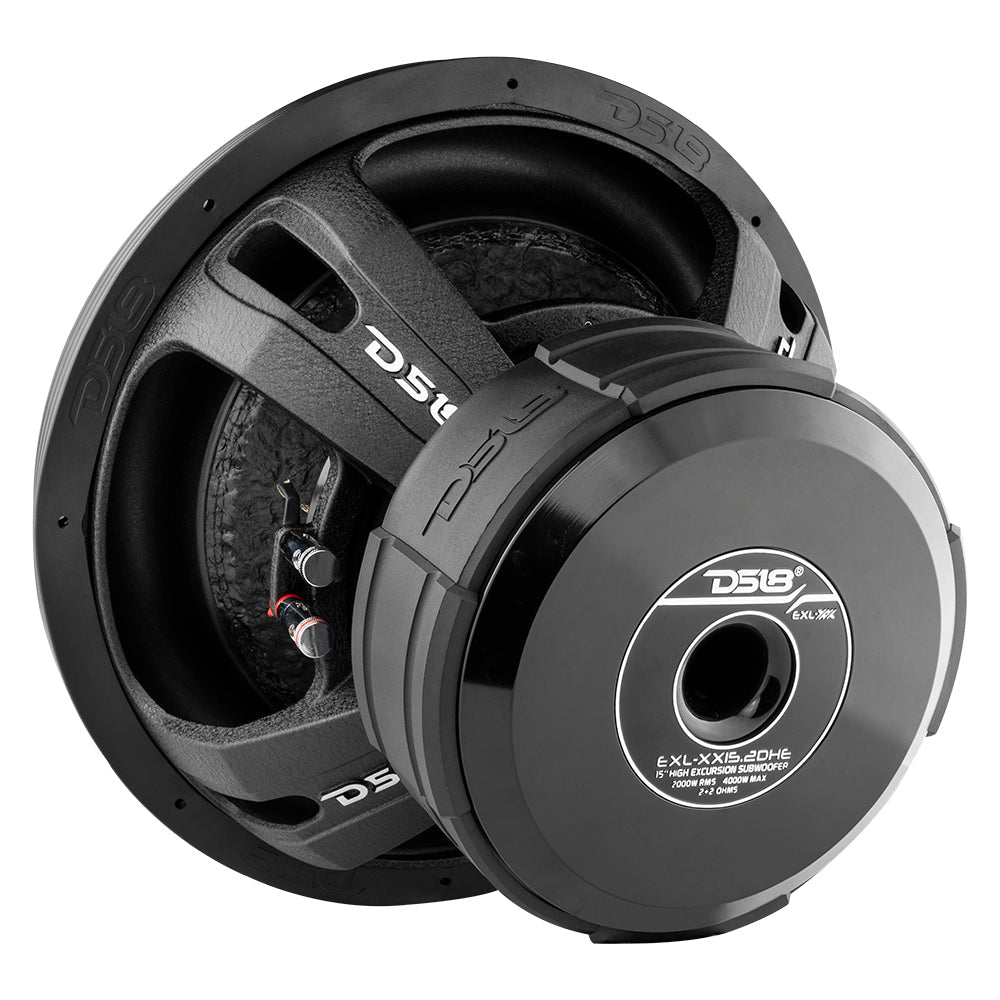

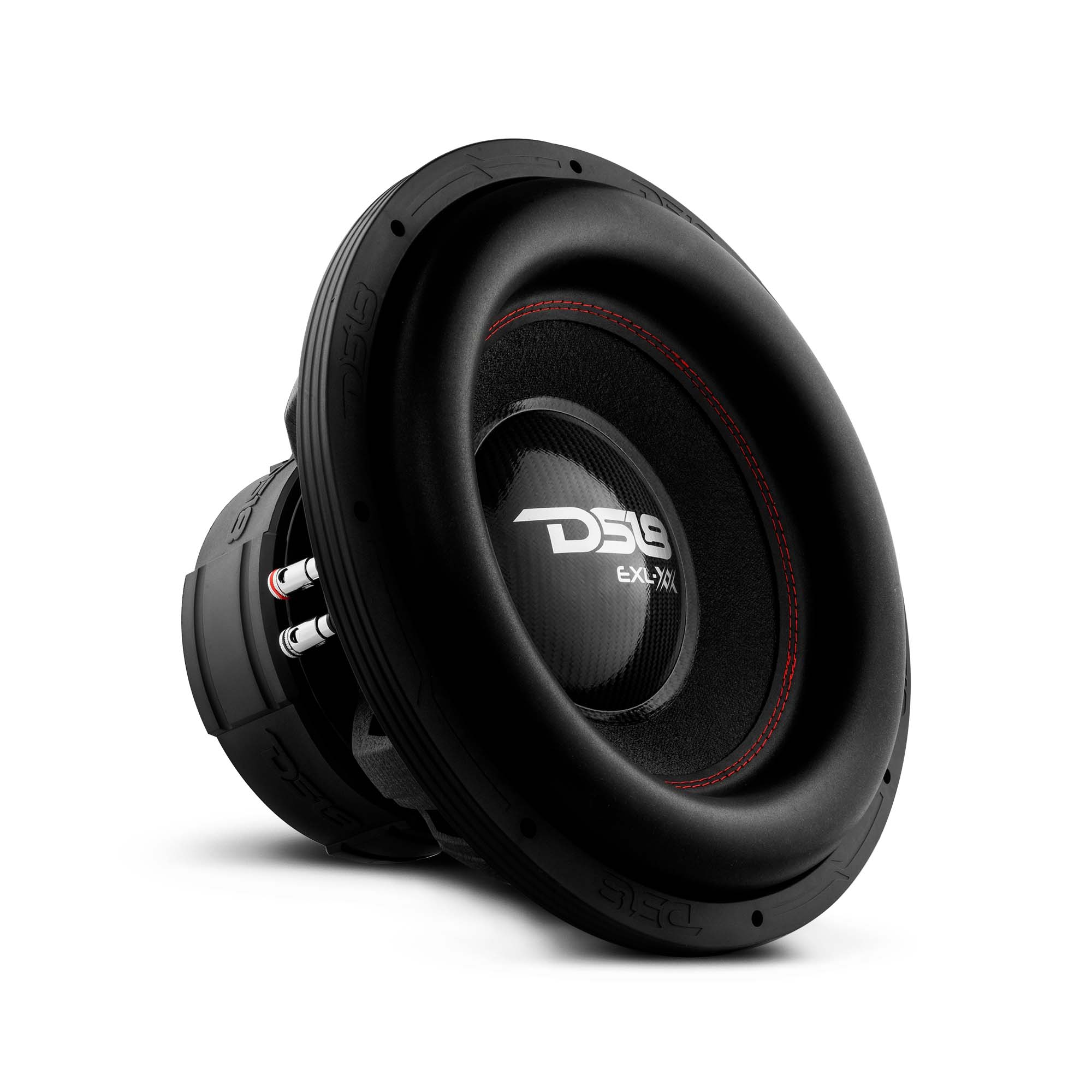

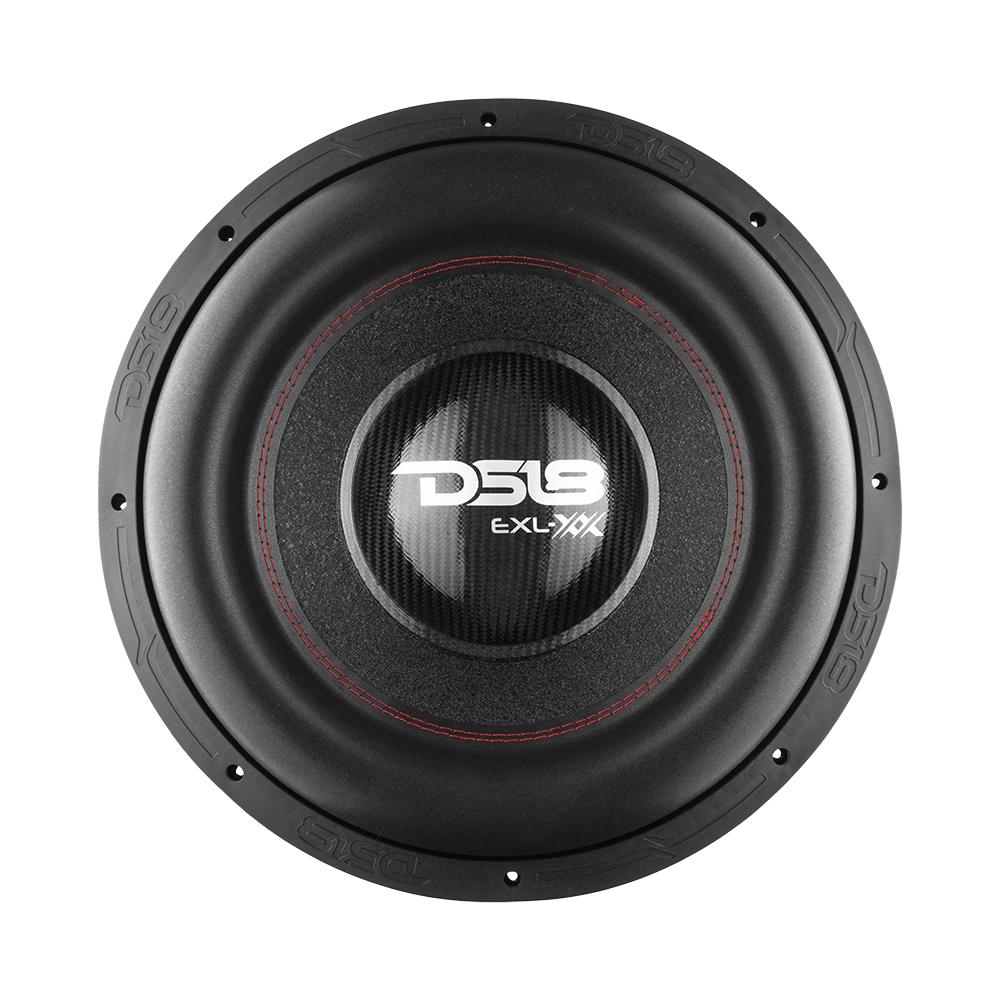

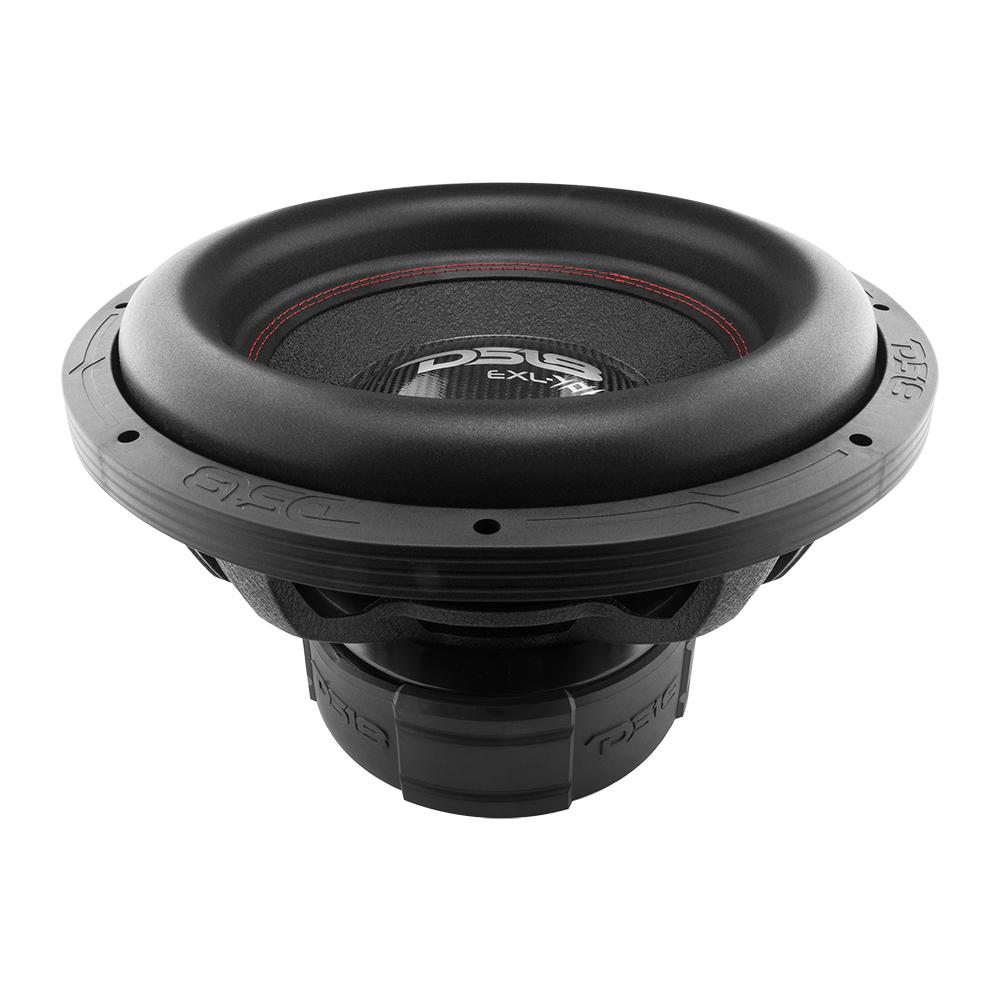

EXL XX 15" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm
Product Overview DS18 EXL-XX15.2DHE 15" High Excursion Car Subwoofer 4000 Watts Max 2-Ohm DVC High excursion is...
- $599.95
- $599.95
- Unit price
- per
Subtotal:
$599.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 EXL-XX15.2DHE 15" High Excursion Car Subwoofer 4000 Watts Max 2-Ohm DVC
High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX15.2DHE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.
Highlights
- High Excursion surround for a very high amount of xmax.
- Great power handling of 2000w RMS and 4000w max.
- Three inch black aluminum voice coil for high power handling and great efficiency.
- FS of 35 hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.
Technical details
| Specifications | |
| Nominal Diameter | 15 |
| Nominal Impedance | 2 + 2 Ohms |
| RMS Power Handling | 2000W |
| MAX Power Handling | 4000W |
| Sensitivity (1w/1m) | 88 dB |
| Frequency Response | 20Hz - 1.5KHz |
| Recommended Lo Pass Crossover | 80 Hz |
| Motor: | |
| VC Diameter | 3" / 75.6mm |
| VC Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Glass Fiber |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 306 Oz |
| Displacement Volume | 3.26L |
| Thiele & Small Parameters | |
| Equivalent Vol | Vas 31.976L |
| Excursion(one way) | Xmax 42 mm |
| Free Air Resonance | Fs 34.9 Hz |
| Mechanical Factor | Qms 5.159 |
| Electrical Factor | Qes 0.584 |
| Total Factor | Qts 0.525 |
| Moving Mass | Mms 440.158 g |
| Compliance | Cms 0.026 mm/N |
| Bl Factor | BL 18.453 |
| VC Inductance | Le 8.562 mH |
| Diaphragm Area | Sd 804.25 cm² |
| Dc Resistance | Re 2 + 2 ohms |
| Efficiency Bandwidth Product | EBP 59.7 |

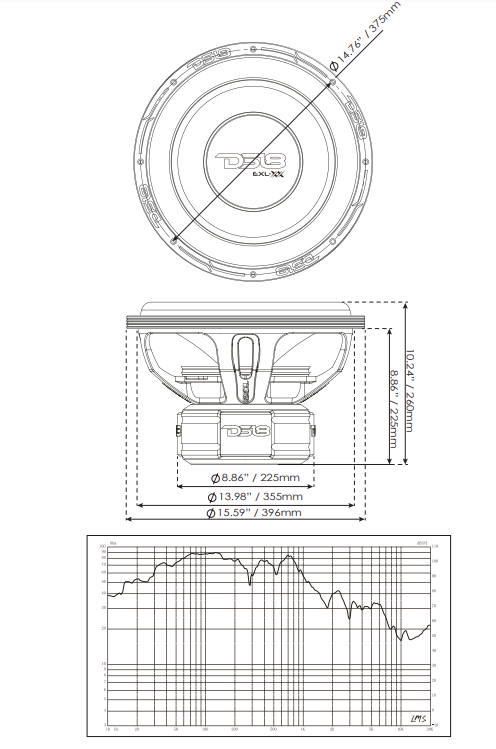

| Measurements | |
| Overall Diameter | 15.59" / 396mm |
| Overall Depth | 10.24" / 260mm |
| Front Mount Baffle Cutout | 13.98" / 355mm |
| Mounting Depth | 8.86" / 225mm |
| Motor Diameter | 8.86" / 225mm |

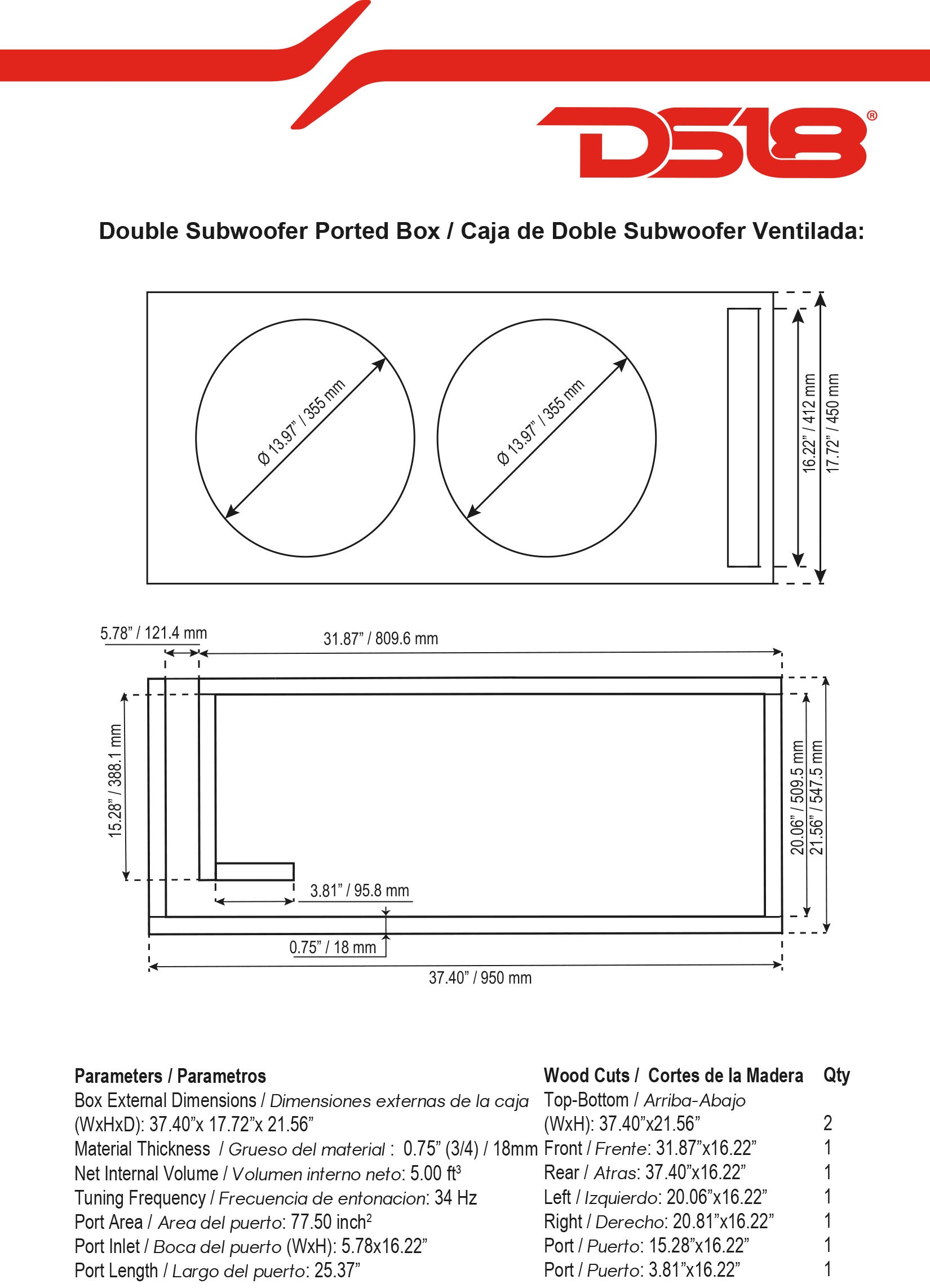

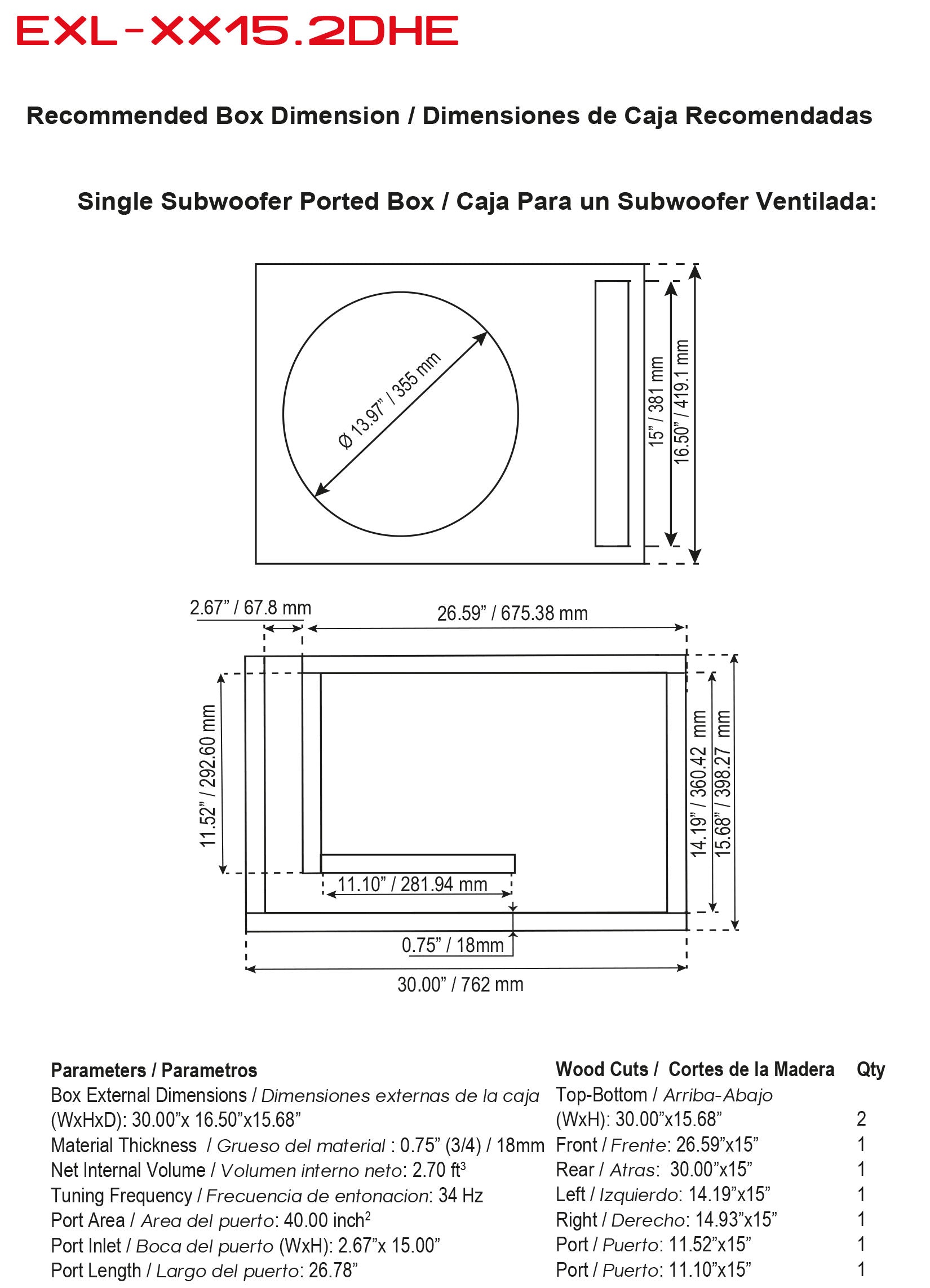

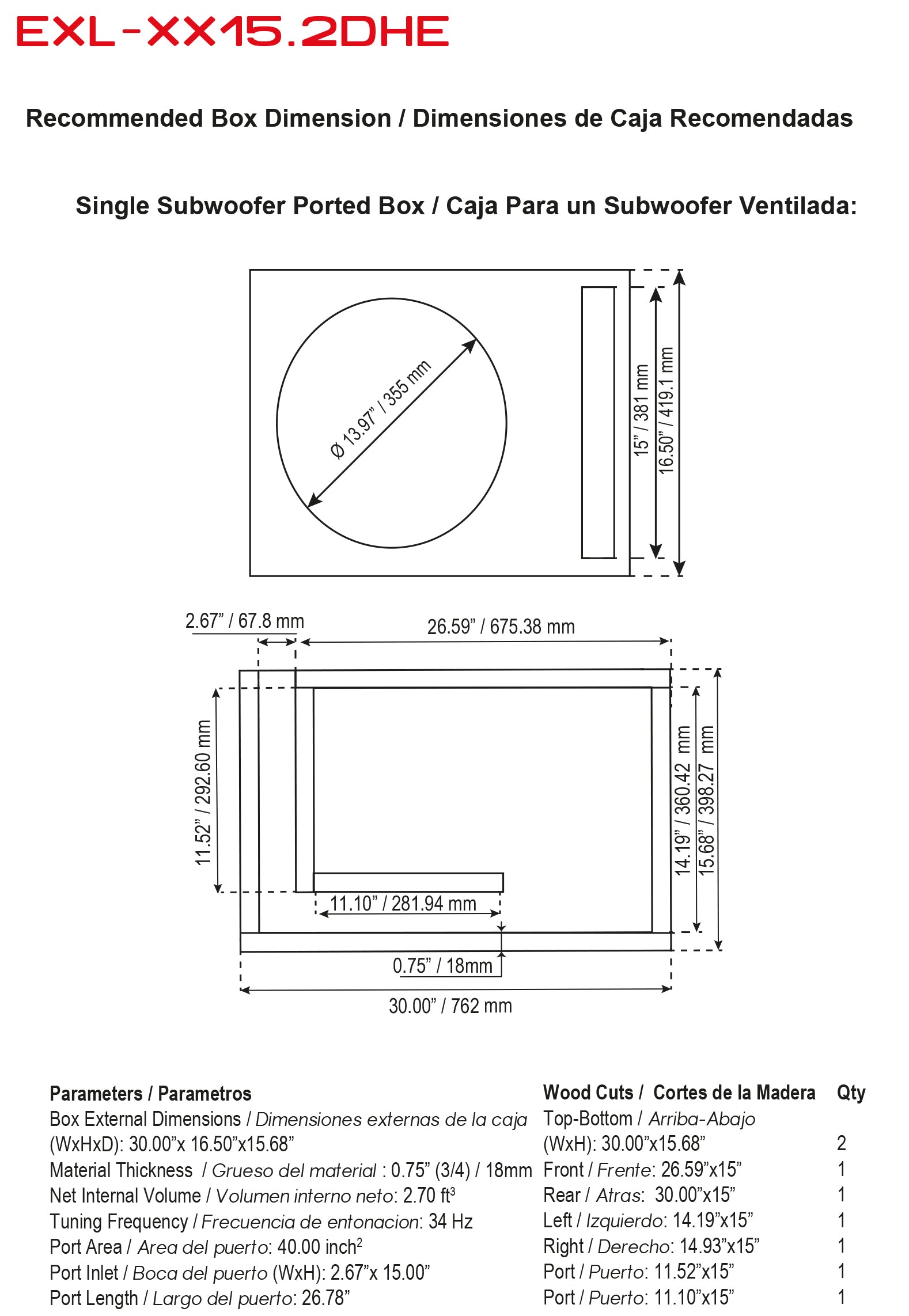

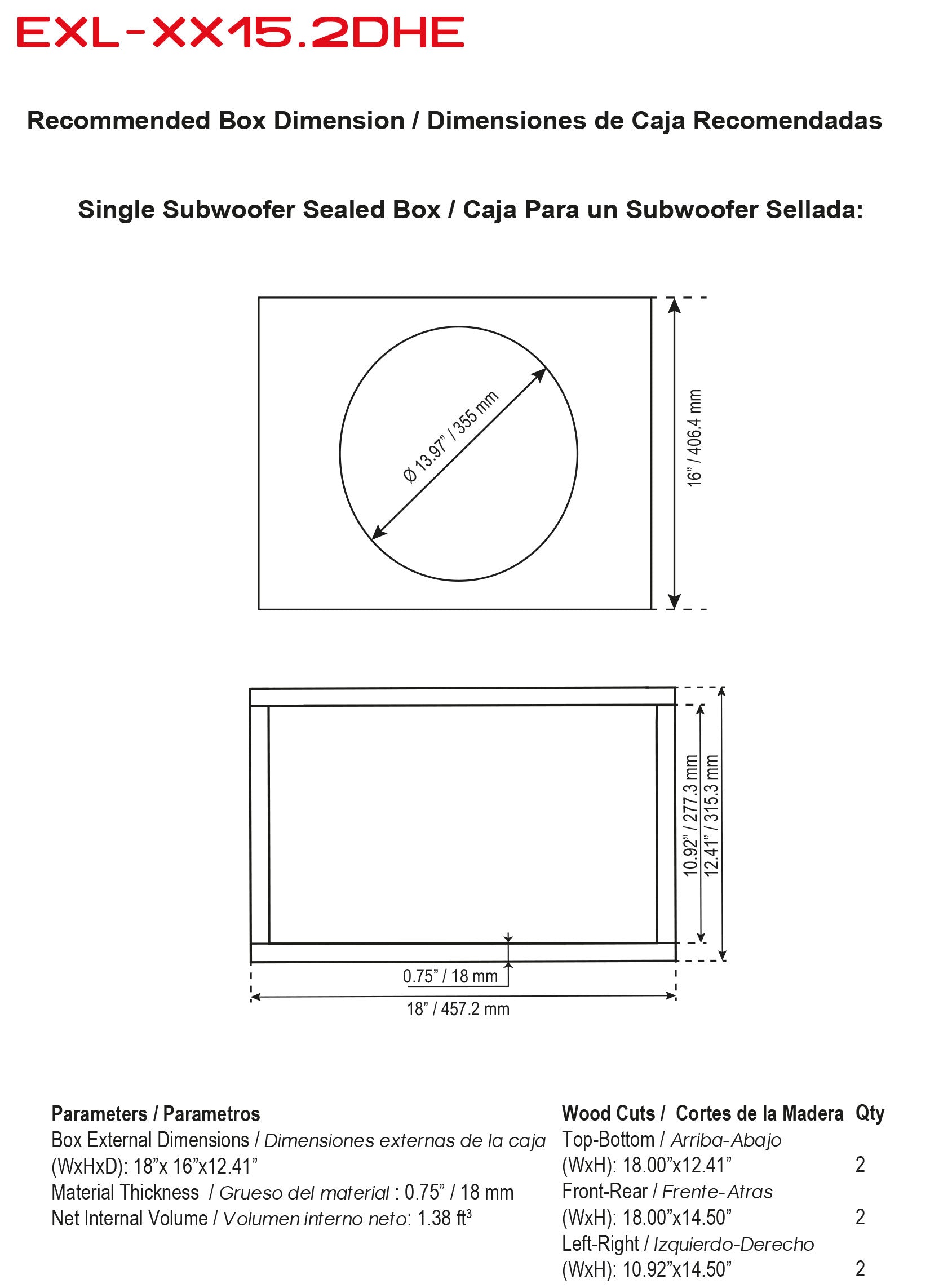

Box Info
Box Info
Key Features
- 15" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 2-Ohm 3" DVC
- Ferrite Magnet
- 88dB
Specifications
| SKU | EXL-XX15.2DHE |
|---|---|
| Nominal Diameter | 15" |
| Nominal Impedance | 2+2 ohms |
| RMS Power Handling | 2000W |
| Maximum Power Handling | 4000W |
| Sensitivity (1w/1m) | 88dB |
| Frequency Response | 20-1.5K Hz |
| Recommended Lo Pass Crossover | 80 Hz |
| Voice Coil Diameter | 3" / 75.6mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Glass Fiber |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 306 OZ |
| Displacement Volume | 3.62L |
| Equivalent Volume Vas | 31.976L |
| Free Air Resonance Fs | 34.9 Hz |
| Mechanical Factor Qms | 5.159 |
| Electrical Factor Qes | 0.584 |
| Total Factor Qts | 0.525 |
| Moving Mass Mms | 440.158 g |
| Compliance Cms | 0.026 mm/N |
| Bl Factor Bl | 18.453 |
| Voice Coil Inductance Le | 8.562 mH |
| Diaphragm Area Sd | 804.25 cm2 |
| Dc Resistance Re | 2 + 2 ohms |
| Efficiency Bandwidth Product EBP | 59.7 |

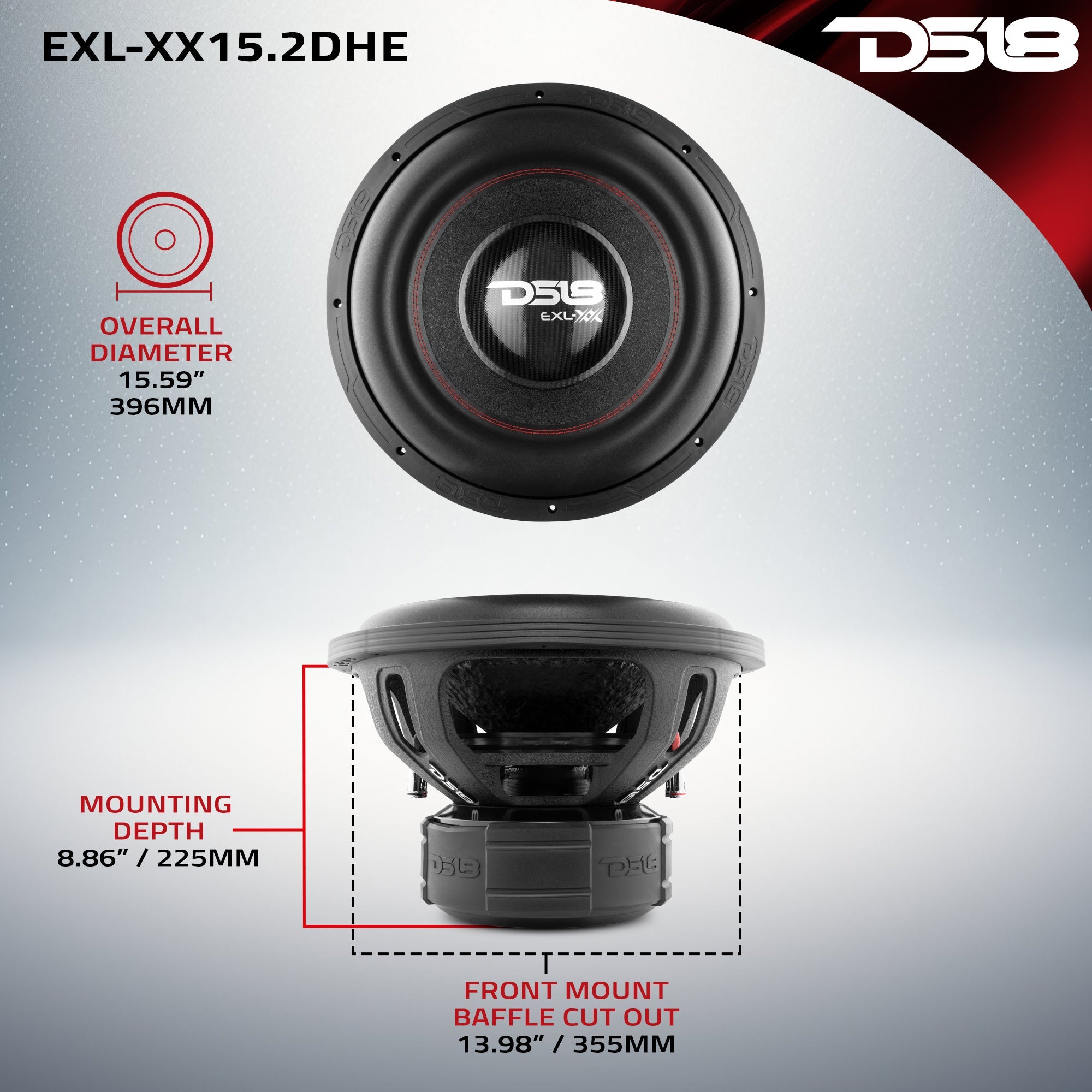

| Overall Diameter | 15.59" / 396mm |
| Overall Depth | 10.24" / 260mm |
| Front Mount Baffle Cutout | 13.98" / 355mm |
| Mounting Depth | 8.86" / 225mm |
| Motor Diameter | 8.86" / 225mm |
| Gross Single Unit Weight (lb) | 56.5 |
| Dimensions W x L x H (Inches) | 18 x 18 x 13.5 |
| Quantity of Units in Master Carton | 1 |
| Gross Master Carton Weight (lb) | 56.5 |
| M/C Dimensions W x L x H (Inches) | 18 x 18 x 13.5 |
