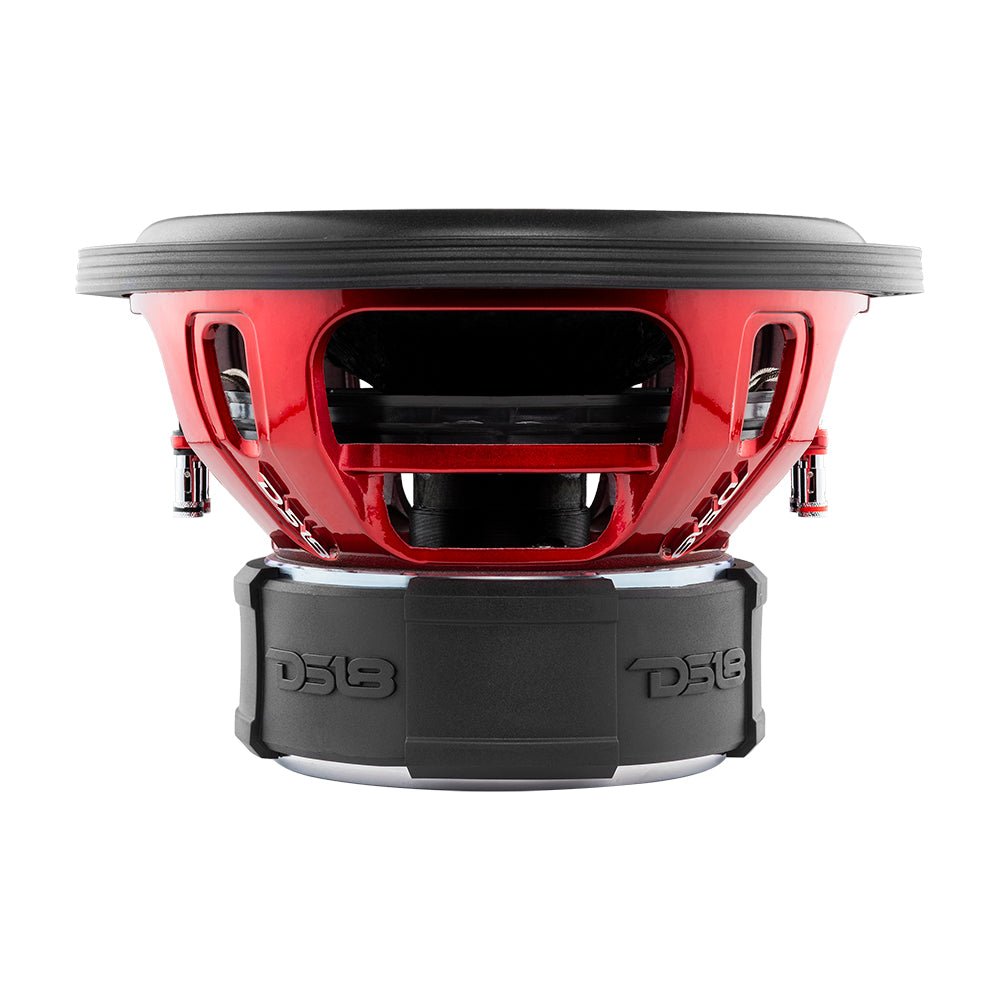

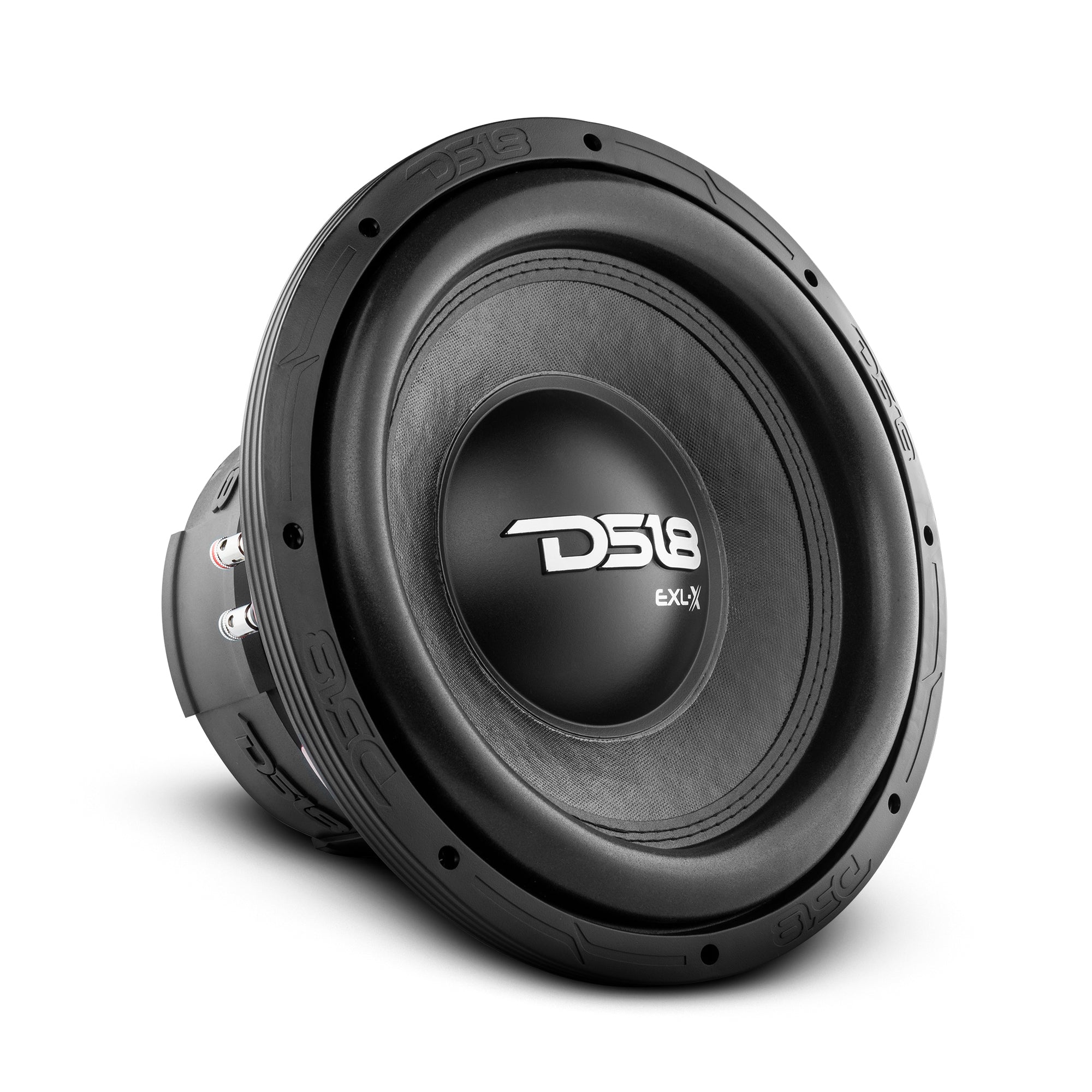

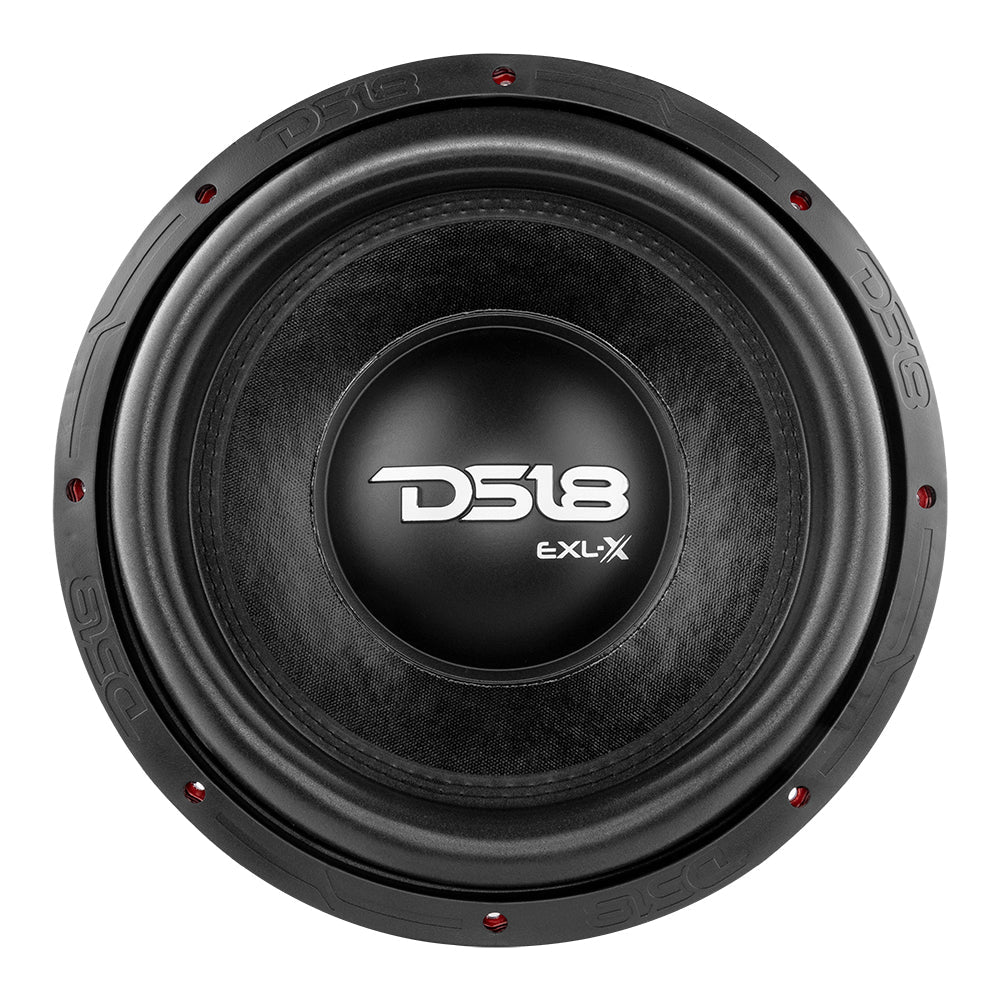

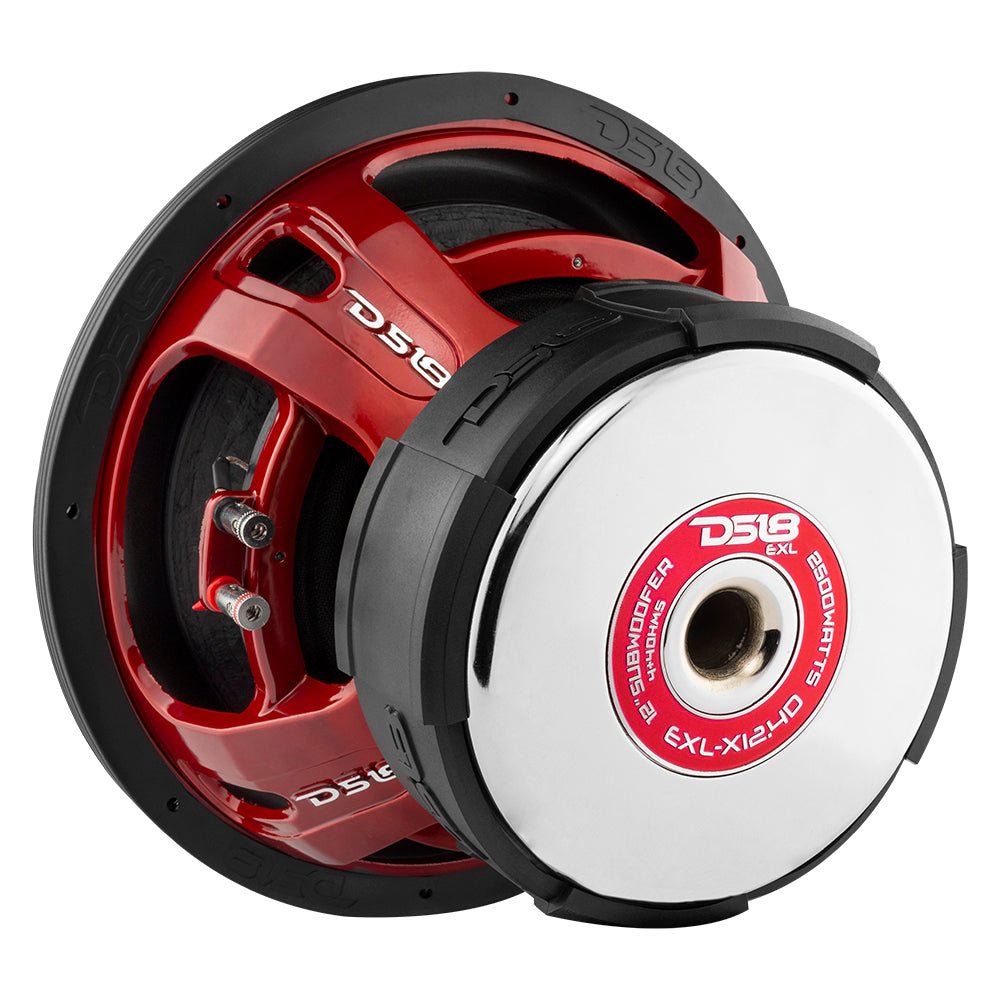

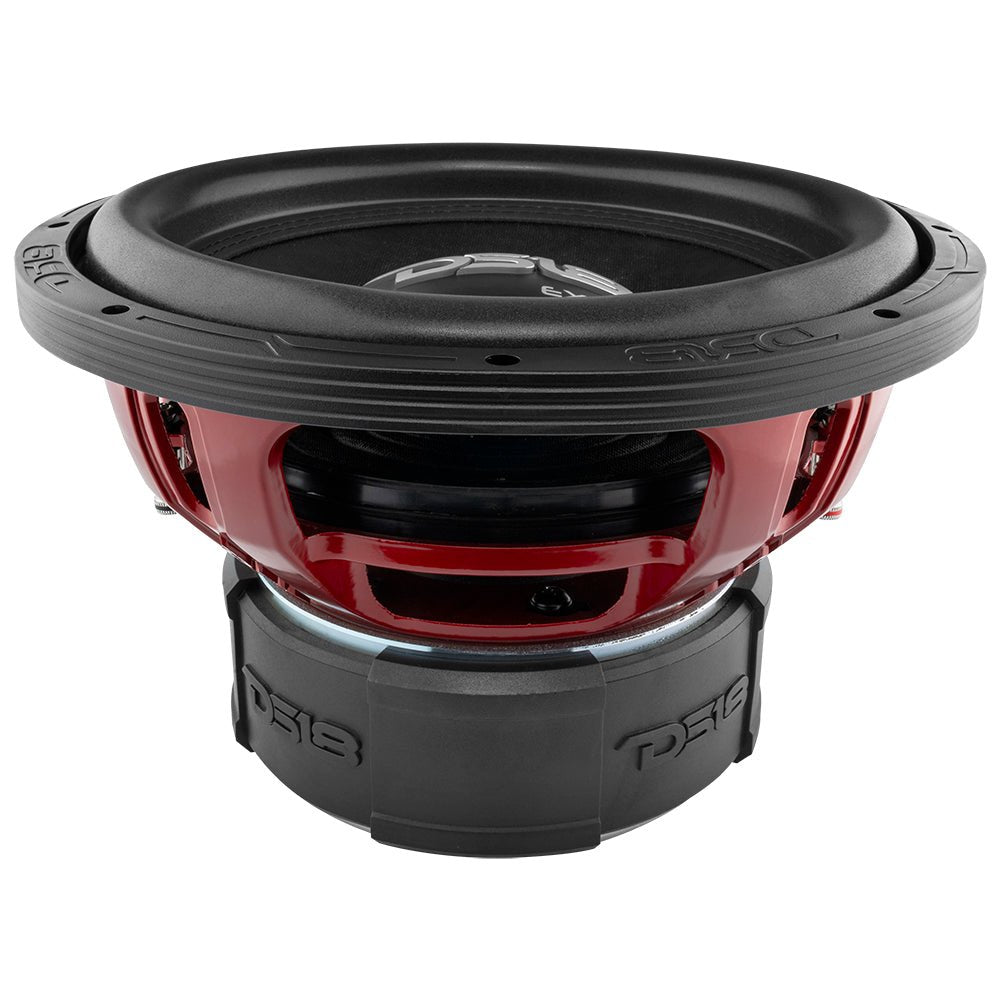

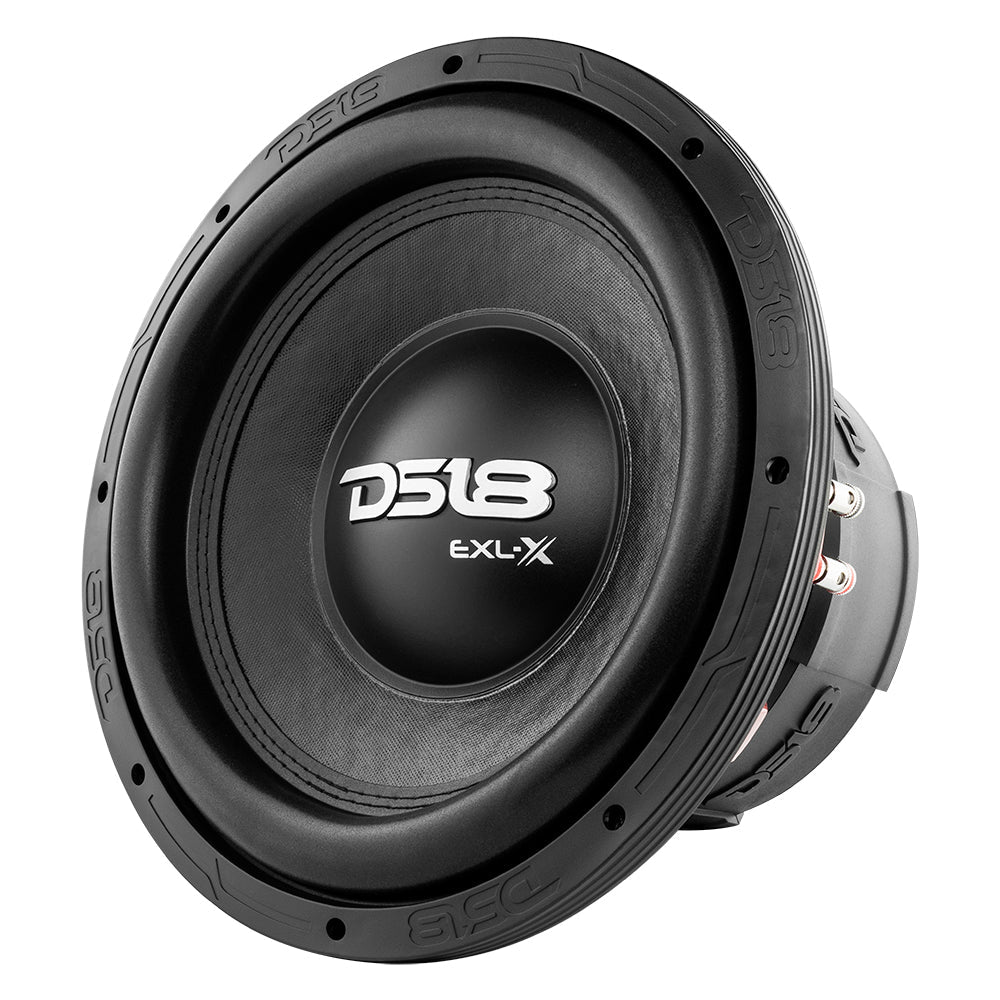

EXL-X 12" Subwoofer 1250 Watts Rms DVC 4-Ohms
Product Overview
DS18 EXL-X12.4D 12" Car Subwoofer 2500 Watts 4-Ohm DVC
| EXL X (Extremely loud) competition grade subwoofers features DS18 private red aluminum basket, fiber glass dust cap, 2.57" voice coils and 2500 watts of power, with the combination of modern technologies and unique engineering solutions this subwoofer is the evidence of DS18 technological and methodical dominance, EXL X is the best choice to enter the bass head world in the lanes or to play daily music. |
Highlights
- Premier DS18 Subwoofer line brings great bass without being super power hungry and looks amazing.
- High strength rubber surround will hold with great ease while pushing out loud and clean bass.
- Amazing looks including DS18 red painted basket with DS18 stamped protective motor boot.
- Designed for sealed / ported boxes and will produce amazing bass in all vehicles.
Technical Details
| Model: | EXL-X12.4D |
| Type: | Subwoofer |
| Size: | 12" |
| RMS Power: | 1250W |
| MAX Power: | 2500W |
| Impedance: | 4 + 4 Ohms |
| Voice Coil Size: | 2.57" |
| Magnet: | Ferrite |
| Magnet Size: | 2 x 105 oz |
| Frequency Response: | 30Hz - 1.7KHz |
| Materials | |
| Frame: | DS18 Private Red Aluminum |
| Cone: | Paper |
| Surround: | Foam Edge |
| Dust Cap: | Glass Fiber |
| Voice Coil Former Material: | Black Aluminum |
| Measurements | |
| Mounting Cut-Out: | 11.1" (282mm) |
| Mounting Depth: | 7" (180mm) |
| Overall Diameter: | 12.6" (321mm) |
| Net Weight: | 15kg |

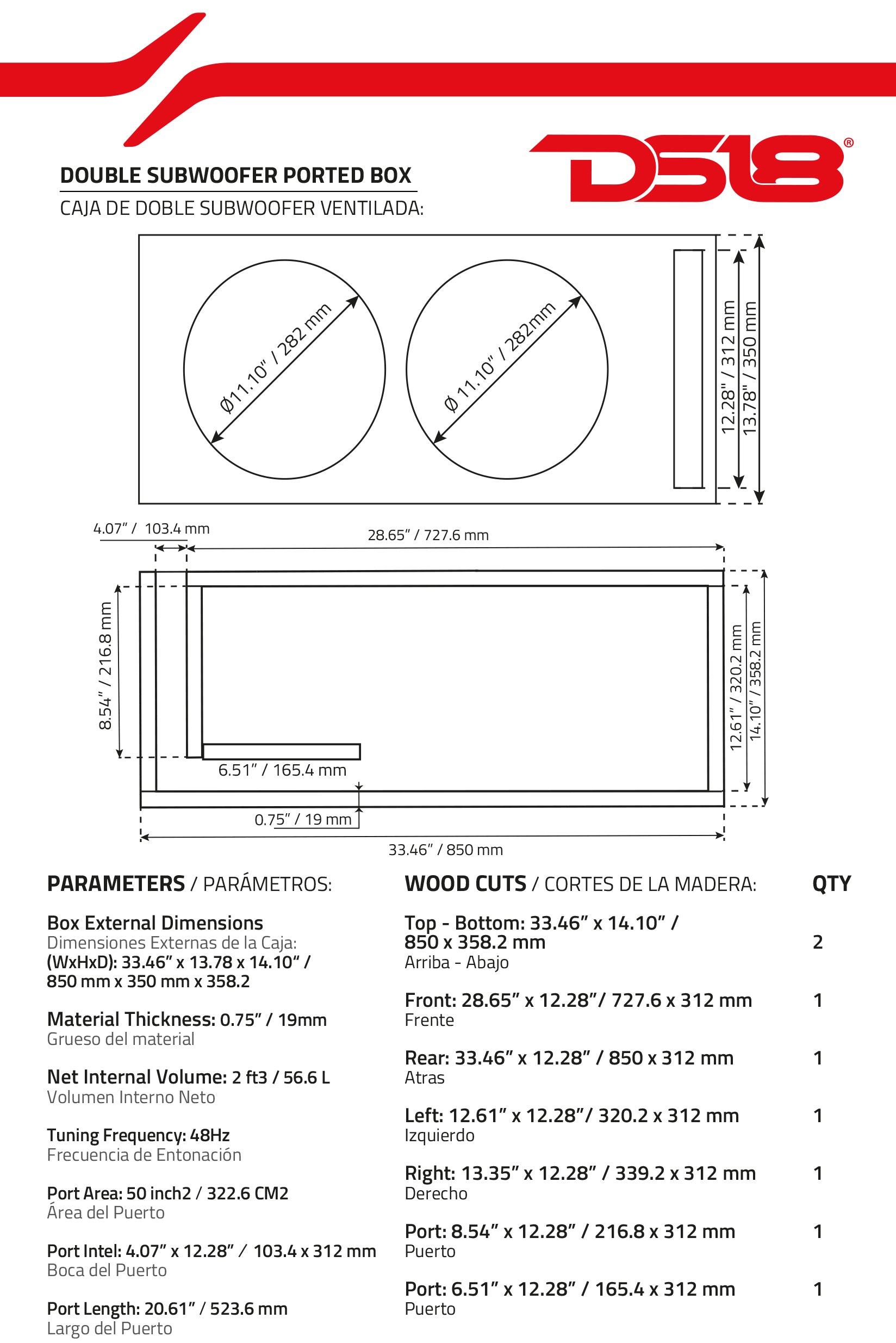

Box Info
Key Features
- 12" Subwoofer
- MAX Power: 2500 Watts
- RMS Power: 1250 Watts
- Impedance: 4-Ohm 2.57" DVC
- Ferrite Magnet
- 88dB
Specifications
| SKU | EXL-X12.4D |
|---|---|
| Nominal Diameter | 12" / 304.8mm |
| Nominal Impedance | 4+4 ohms |
| RMS Power Handling | 1250W |
| MAX Power Handling | 2500W |
| Sensitivity (1w/1m) | 88dB |
| Frequency Response | 30Hz-1.7KHz |
| Recommended Lo Pass Crossover | 100Hz |
| Voice Coil Diameter | 2.57" / 65.2mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Non Pressed Paper + Glass fiber |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 2 x 105 oz |
| Displacement Volume | 3L / 0.105ft3 |
| Equivalent Volume | 9.1L / 0.32ft3 |
| Free Air Resonance | 56Hz |
| Mechanical Factor | 3.305 |
| Electrical Factor | 0.482 |
| Total Factor | 0.431 |
| Moving Mass | 307.124g |
| Compliance | 0.025mm/N |
| Bl Factor | 20.105 |
| Voice Coil Inductance | 10.3mH |
| Diaphragm Area | 490.87cm2 |
| DC Resistance | 3.7 + 3.7 ohm |
| Efficiency Bandwidth Product | 116.1 |
| Sealed Internal Volume | Not Recommended |
| Sealed Box Output Response | N/A |

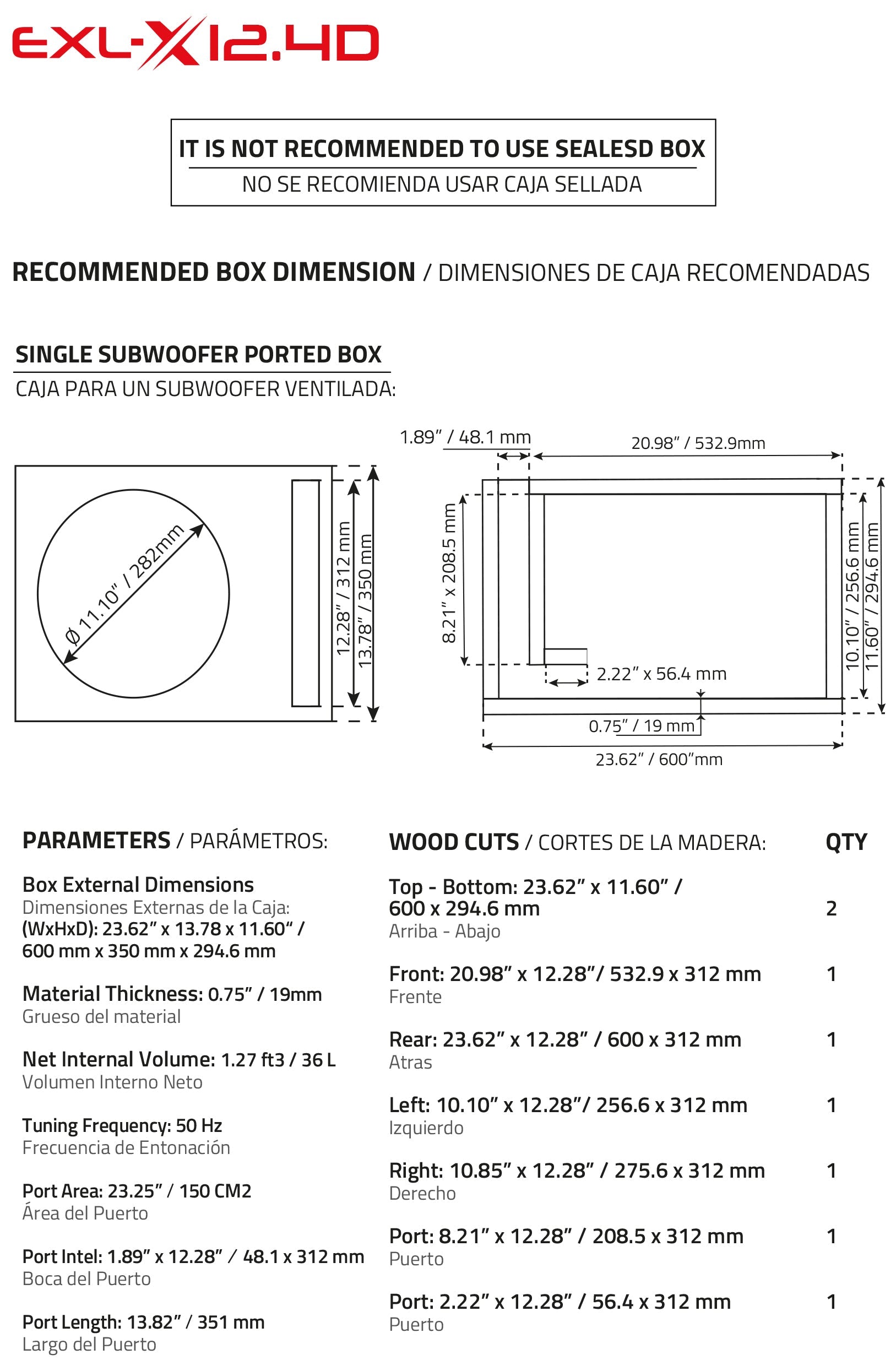

| Ported Internal Volume | 36L / 1.27ft3 |
| Port Size *Square (W x H x Long) | 1.89" x 12.28" x 13.8" / 48.1 x 312 x 351mm |
| Port Tuning Frequency | 50Hz |
| Ported Box Output Response | 42Hz |

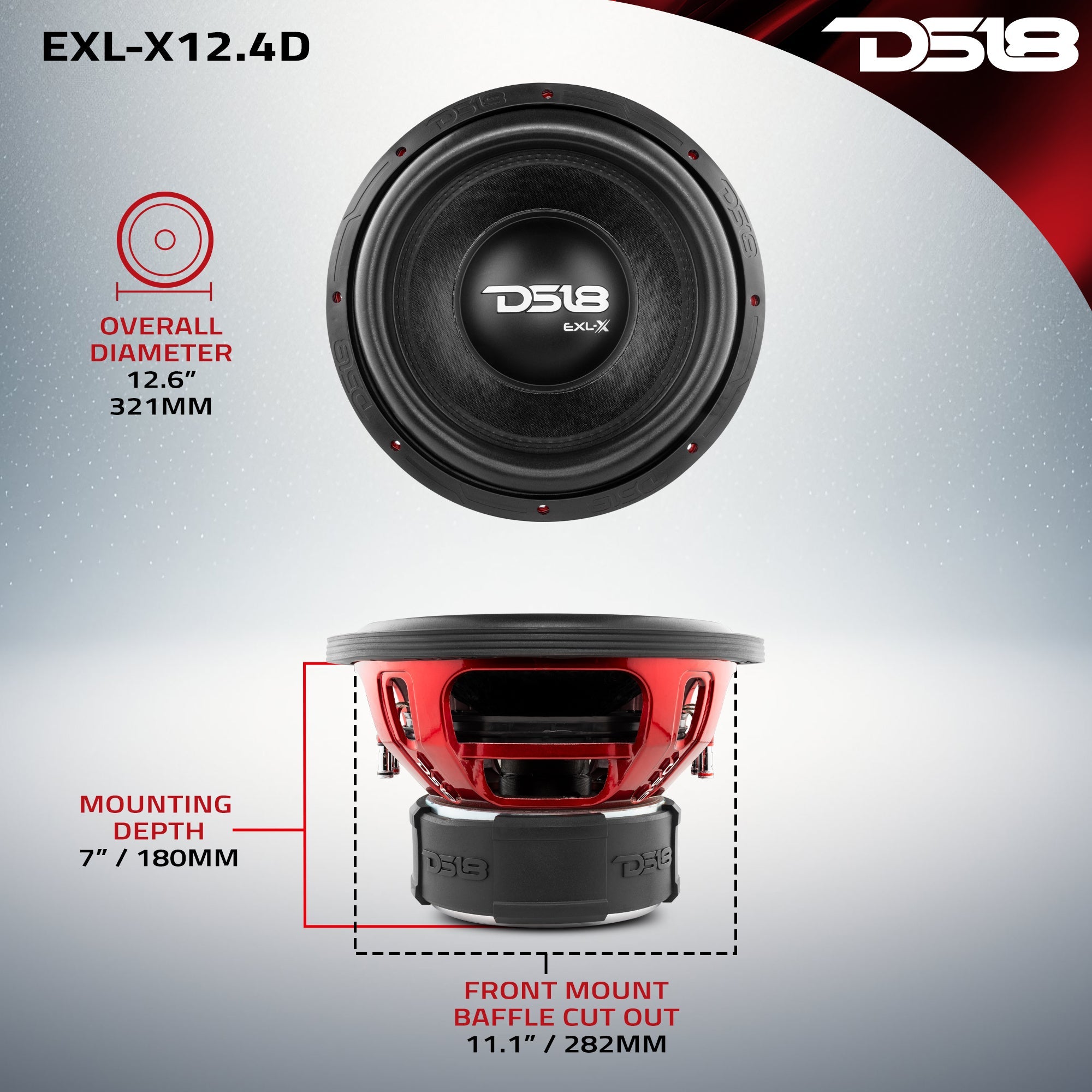

| Overall Diameter | 12.6" / 321mm |
| Overall Depth | 8.14" / 207mm |
| Front Mount Baffle Cutout | 11.1" / 282mm |
| Mounting Depth | 7" / 180mm |
| Motor Diameter | 7.72" / 196mm |
| Gross Single Unit Weight (lb) | 35 |
| Dimensions W x L x H (Inches) | 14.5 x 14.5 x 10.75 |
| Quantity of Units in Master Carton | 1 |
| Gross Master Carton Weight (lb) | 35 |
| M/C Dimensions W x L x H (Inches) | 14.5 x 14.5 x 10.75 |
