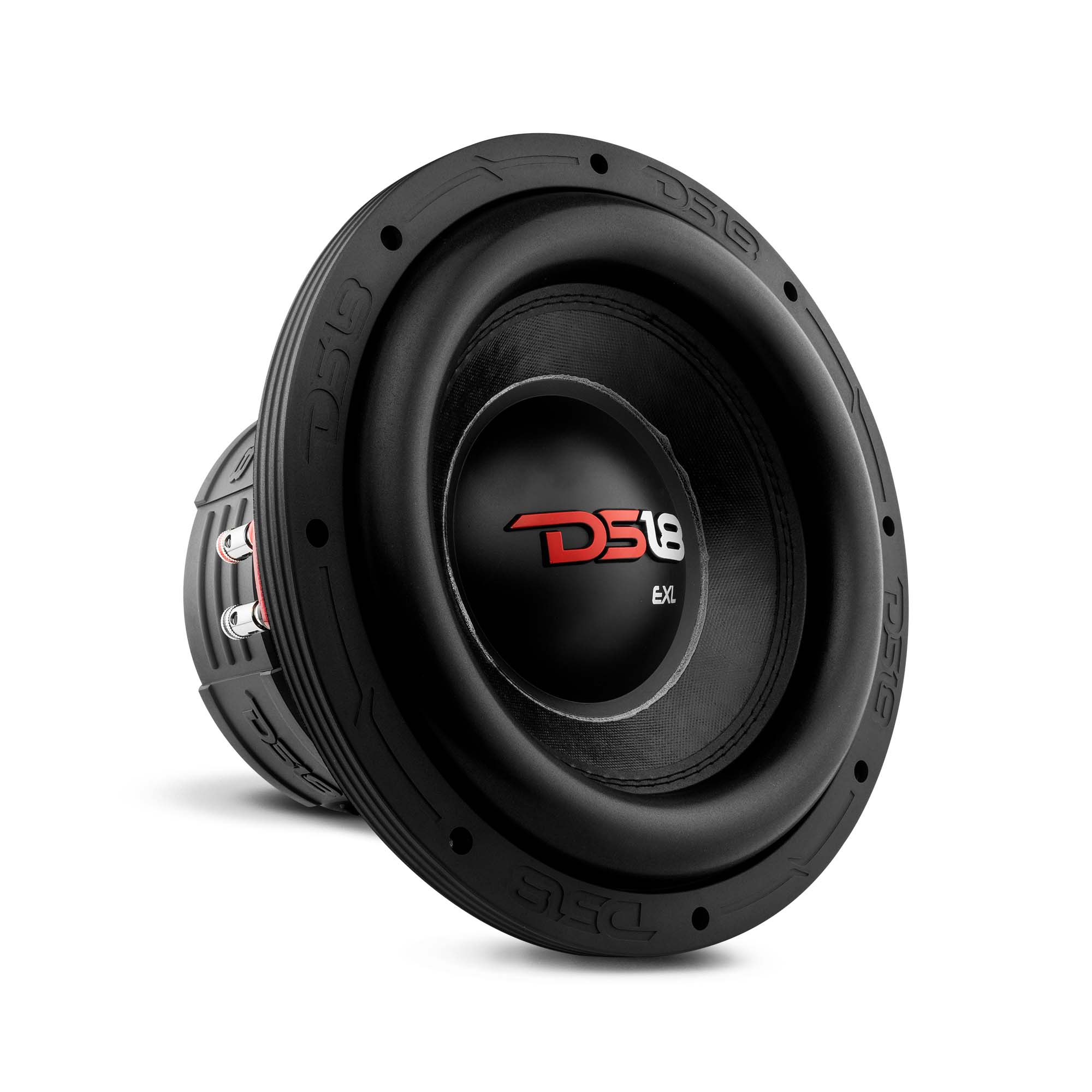

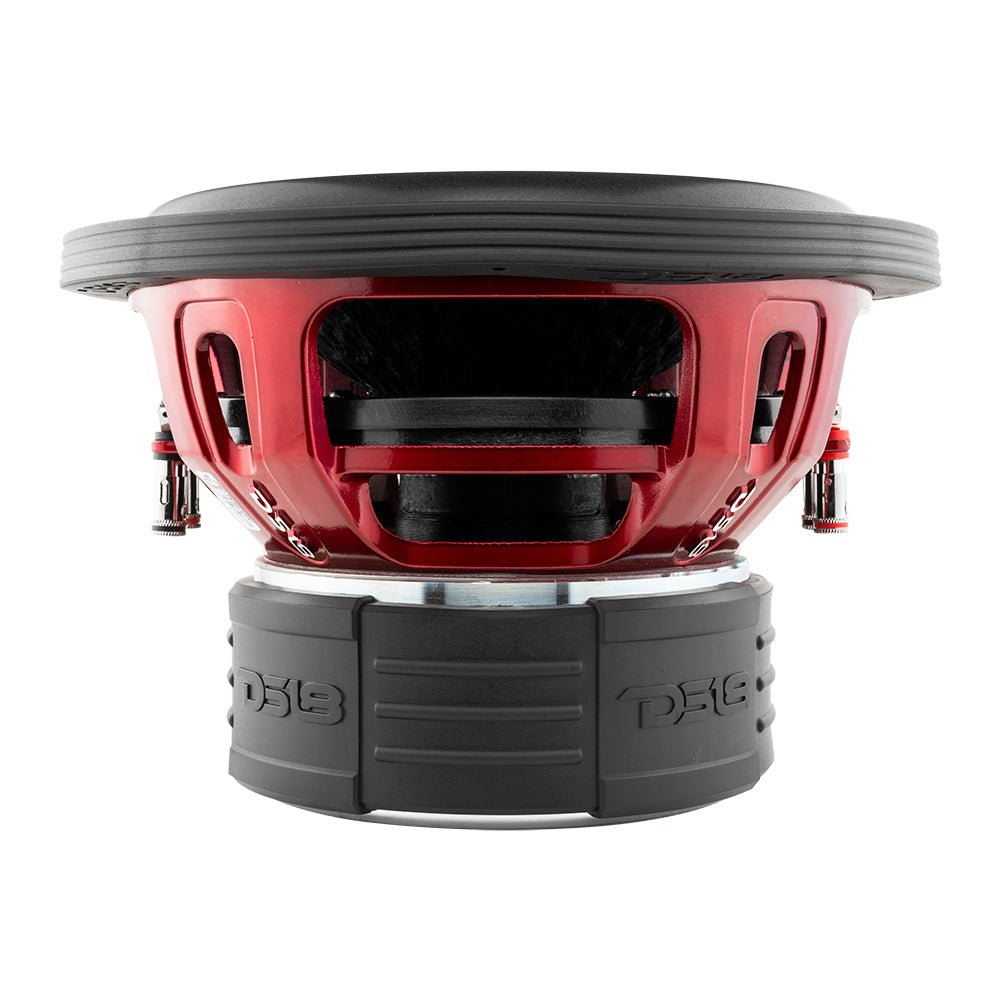

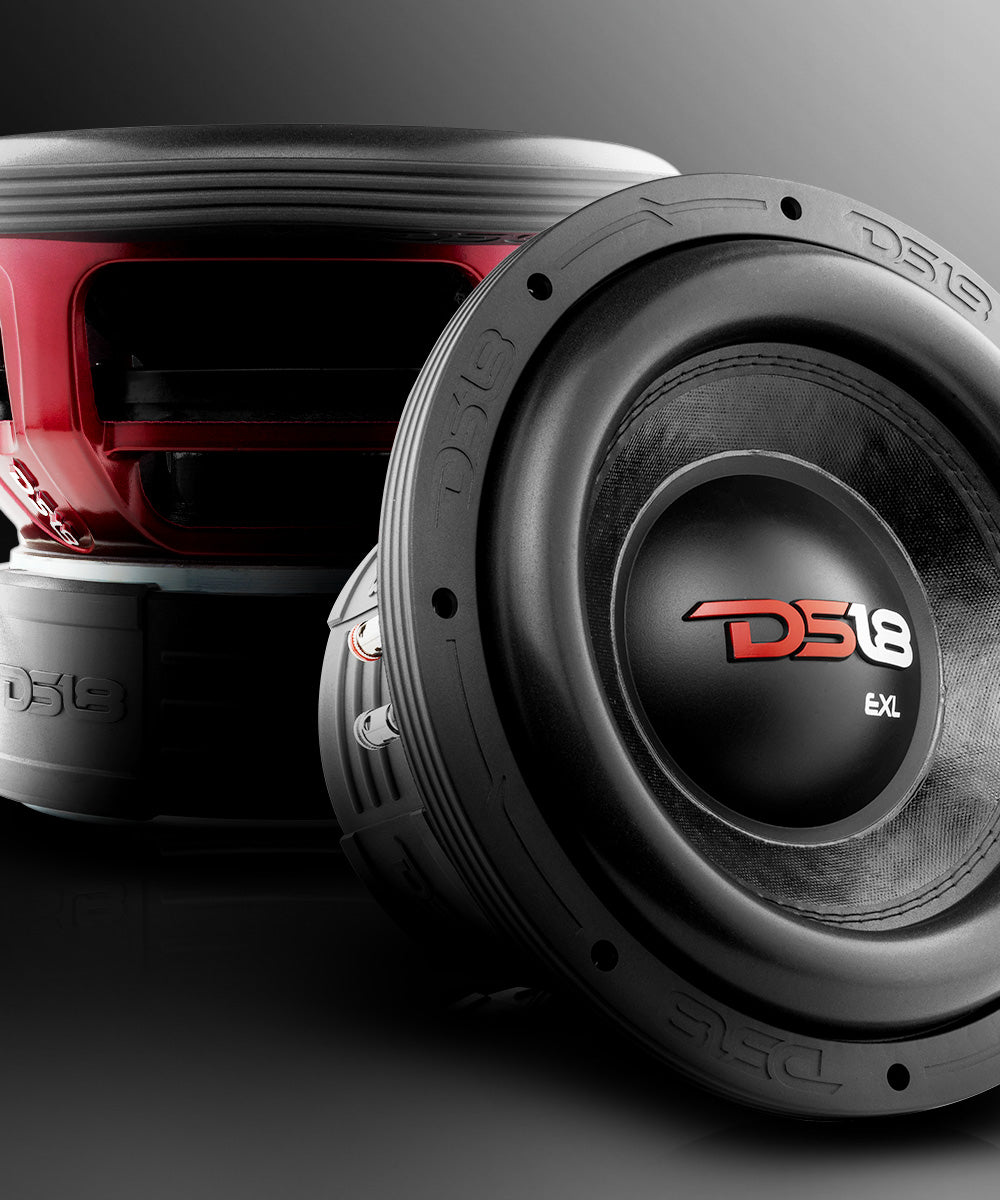

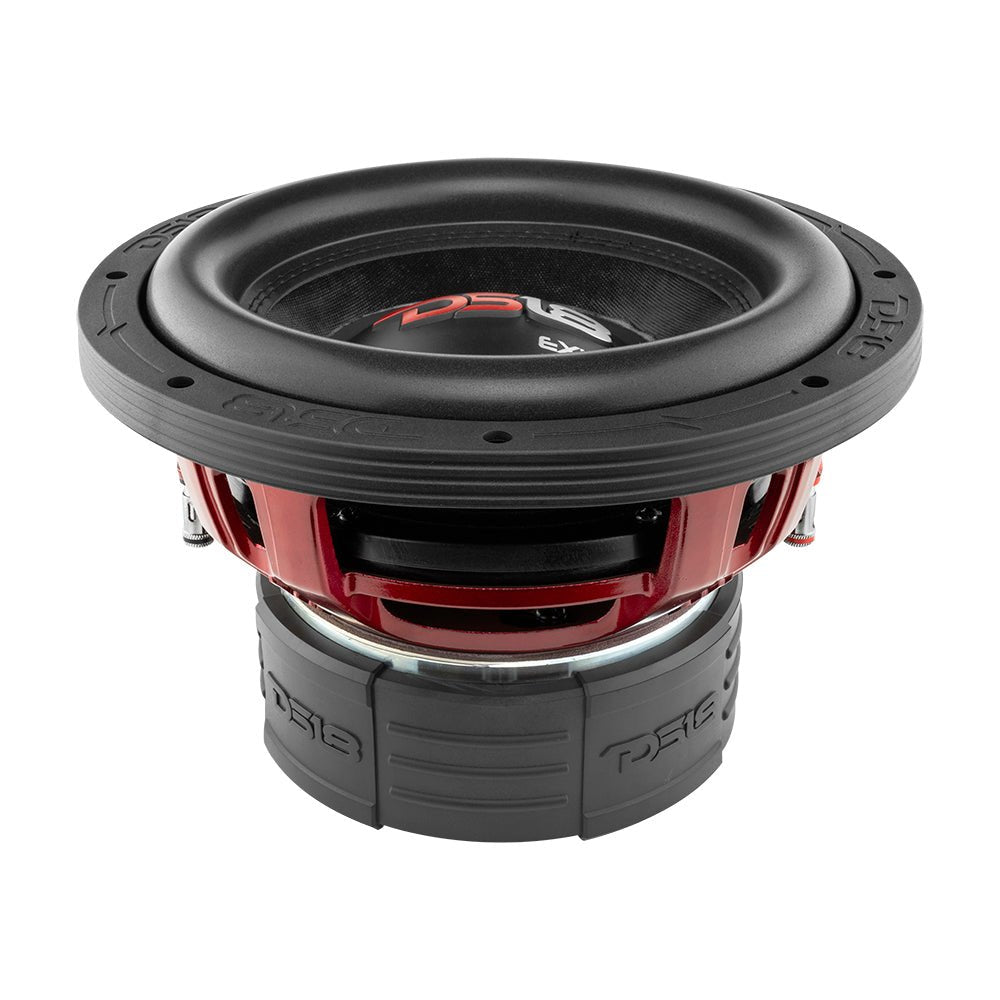

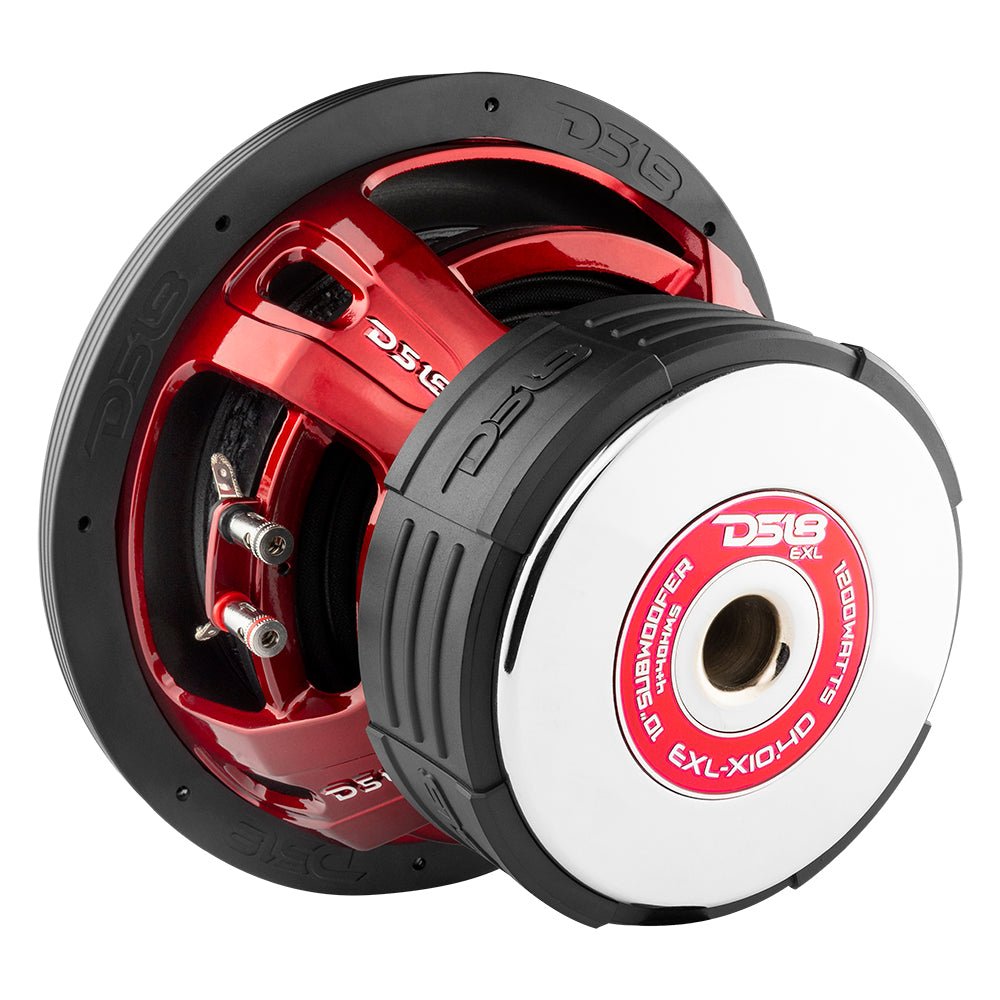

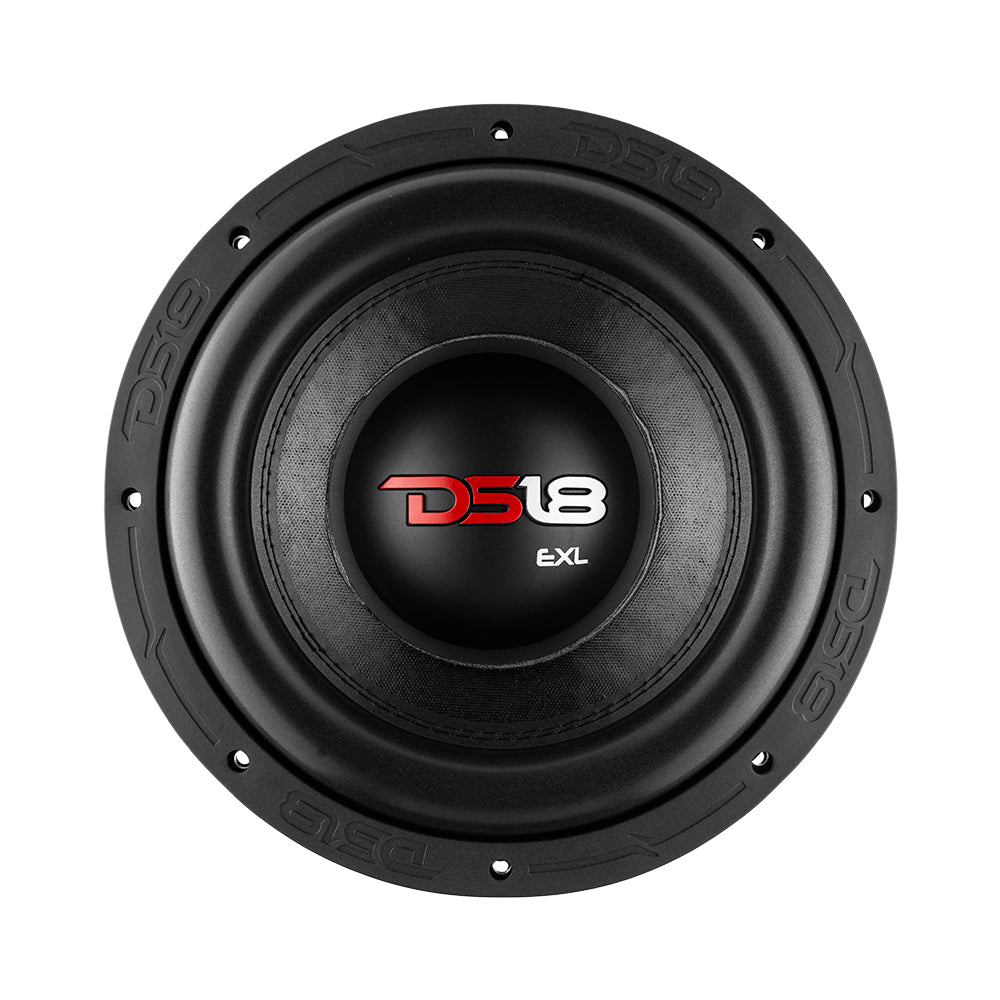

EXL-X 10" Subwoofer 850 Watts Rms DVC 4-Ohms

Availability: Out of stock SKU: EXL-X10.4D
Regular price $347.95 Sale price $278.36

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Product Overview

DS18 EXL-X10.4D 10" Car Subwoofer 1700 Watts 4-Ohm DVC

EXL X (Extremely loud) competition grade subwoofers features DS18 private red aluminum basket, fiber glass dust cap, 2.5" voice coils and 1750 watts of power, with the combination of modern technologies and unique engineering solutions this subwoofer is the evidence of DS18 technological and methodical dominance, EXL X is the best choice to enter the bass head world in the lanes or to play daily music.

Highlights

  • Premier DS18 Subwoofer line brings great bass without being super power hungry and looks amazing.
  • High strength rubber surround will hold with great ease while pushing out loud and clean bass.
  • Amazing looks including DS18 red painted basket with DS18 stamped protective motor boot.
  • Designed for sealed / ported boxes and will produce amazing bass in all vehicles.
Technical Details
                       EXL-X10.4D Product Manual
Model: EXL-X10.4D
Type: Subwoofer
Size: 10"
RMS Power: 850W
MAX Power: 1700W
Impedance: 4 + 4 Ohms
Voice Coil Size: 2.5"
Magnet: Ferrite
Magnet Weight: 180oz
Frequency Response: 35Hz - 1.2KHz
Materials
Frame: DS18 Private Red Aluminum
Surround: Foam Edge
Dust Cap: Glass Fiber
Voice Coil Former Material: Black Aluminum

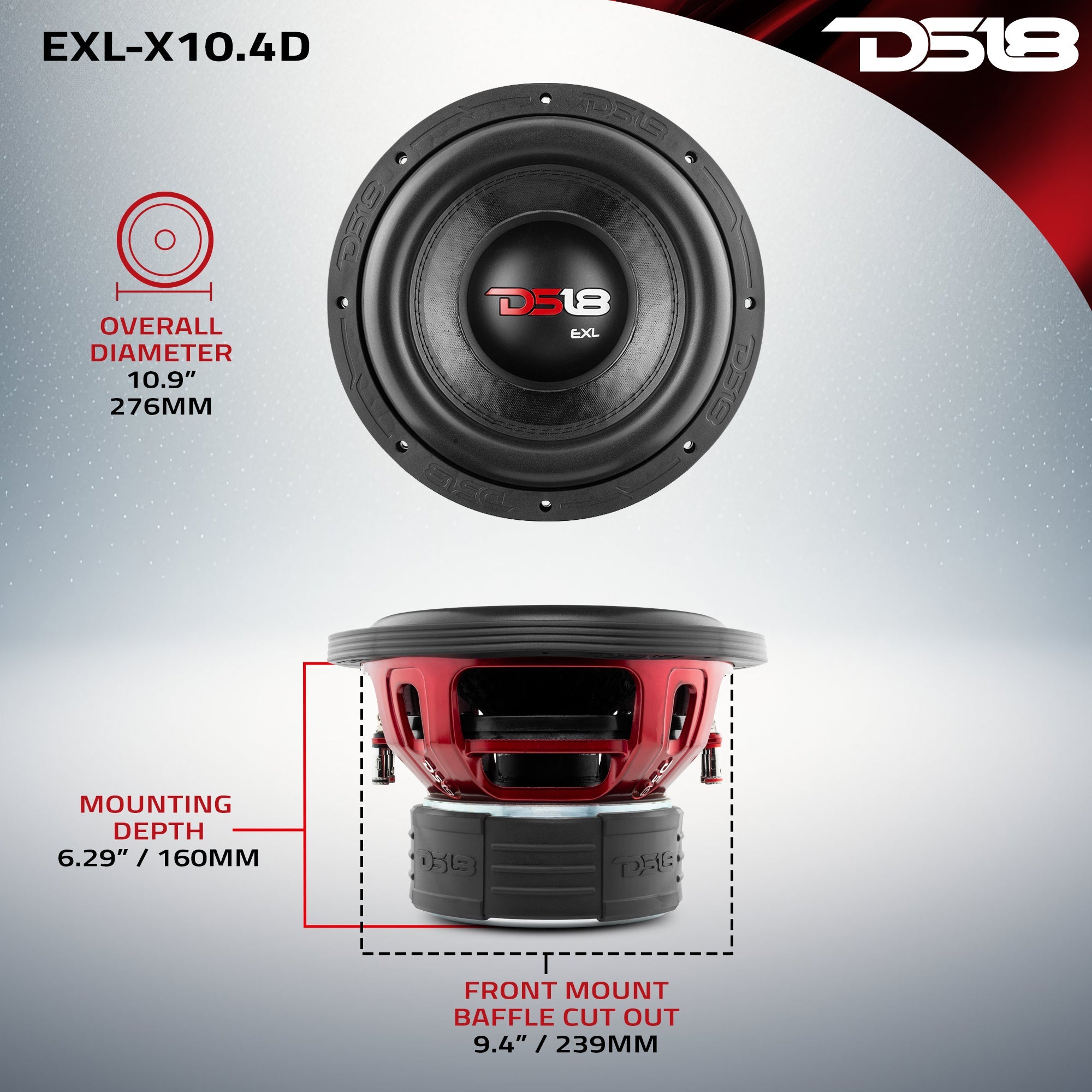

Measurements
Mounting Cut-Out: 9.4"
Mounting Depth: 6.29"
Overall Diameter: 10.9"
Optimum Sealed 0.8
Optimum Ported 1.2
Port Tune 36Hz

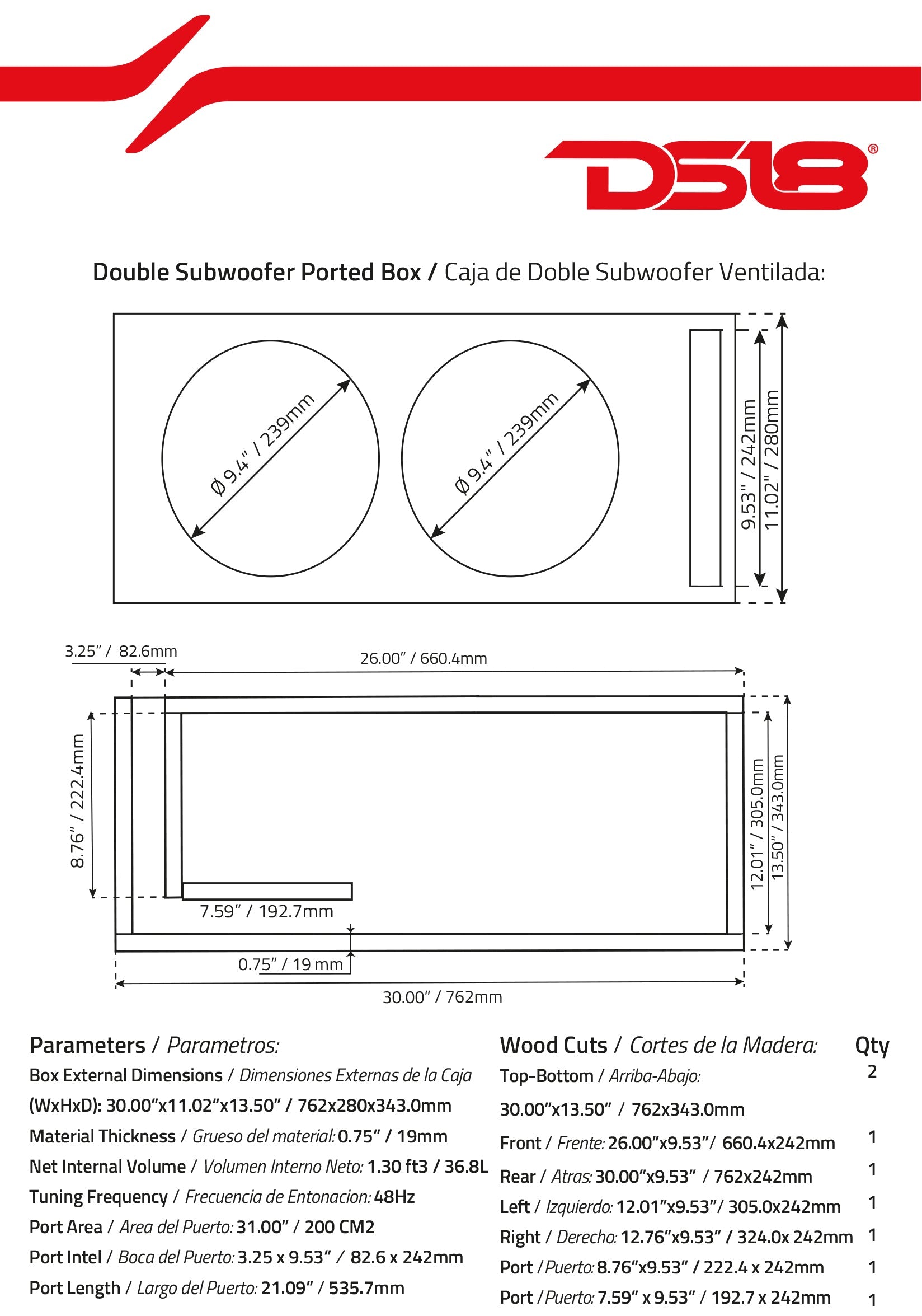

Box Info

Key Features

  • 10" Subwoofer
  • MAX Power: 1700 Watts
  • RMS Power: 850 Watts
  • Impedance: 4-Ohm 2.5" DVC
  • Ferrite Magnet
  • 88.7dB

Specifications

SKU EXL-X10.4D
Nominal Diameter 10" / 254mm
Nominal Impedance 4+4 ohms
RMS Power Handling 850W
MAX Power Handling 1700W
Sensitivity (1w/1m) 88.7dB
Frequency Response 35Hz-1.2Khz
Recommended Lo Pass Crossover 110Hz
Voice Coil Diameter 2.5" / 65.2mm
Voice Coil Former Material Black Aluminum
Winding Material SV
Cone Material Non Pressed Paper + Glass fiber
Dust Cap Material PPI
Surround Material Foam
Basket Material Aluminum
Basket Color/Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 2 x 90 oz
Displacement Volume 2.3L / 0.081ft3
Equivalent Volume 5.82L / 0.2ft3
Free Air Resonance 55Hz
Mechanical Factor 6.519
Electrical Factor 0.714
Total Factor 0.653
Moving Mass 210.25g
Compliance 0.032mm/N
Bl Factor 27.36
Voice Coil Inductance 26.4mH
Diaphragm Area 346.36cm2
DC Resistance 3.2+3.2 ohm
Efficiency Bandwidth Product 77

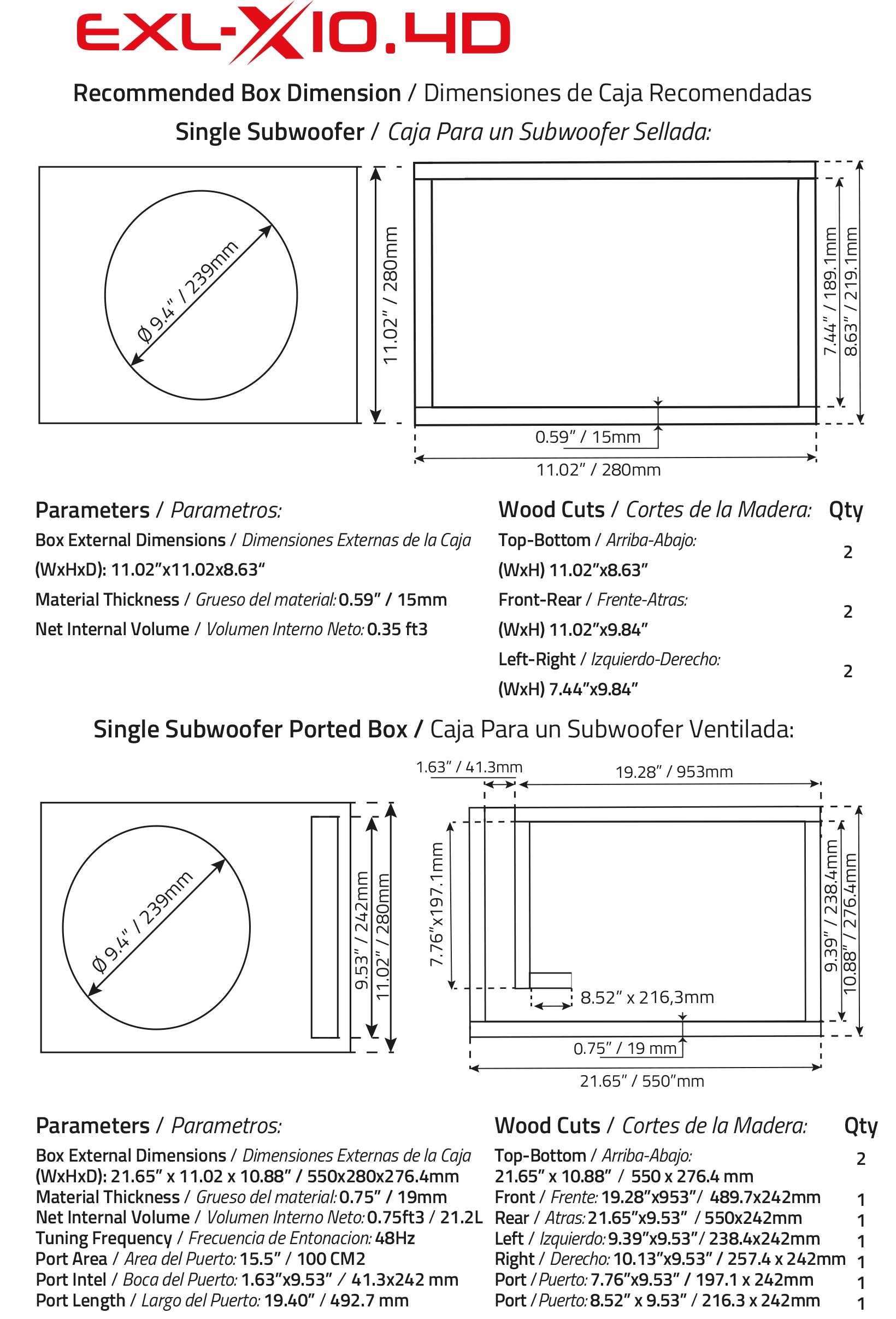

Sealed Internal Volume 9.91L / 0.35ft3
Sealed Box Output Response 60Hz
Ported Internal Volume 21.23L / 0.75ft3
Port Size *Square (W x H x Long) 1.62" x 9.52" x 19.4" / 41.3 x 242 x 493mm
Port Tuning Frequency 48Hz
Ported Box Output Response 38Hz
Overall Diameter 10.9" / 276mm
Overall Depth 7.48" / 190mm
Front Mount Baffle Cutout 9.4" / 239mm
Mounting Depth 6.29" / 160mm
Motor Diameter 7" / 180mm
Gross Single Unit Weight (lb) 25.5
Dimensions W x L x H (Inches) 12.25 x 12.25 x 9.5
Quantity of Units in Master Carton 1
Gross Master Carton Weight (lb) 25.5
M/C Dimensions W x L x H (Inches) 12.25 x 12.25 x 9.5
