2" Throat Bolt on Driver 360 Watts 2.5" Polyimide Vc 8-Ohm
Product Overview DS18 D225PY 2" Bolt On Throat Compression Driver with 2.5" Polyimide Voice Coil 720 Watts 8-ohm...
Vendor:
DS18
Manufacturer SKU
D225PY
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $137.95
- $137.95
- Unit price
- per
Subtotal:
$137.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

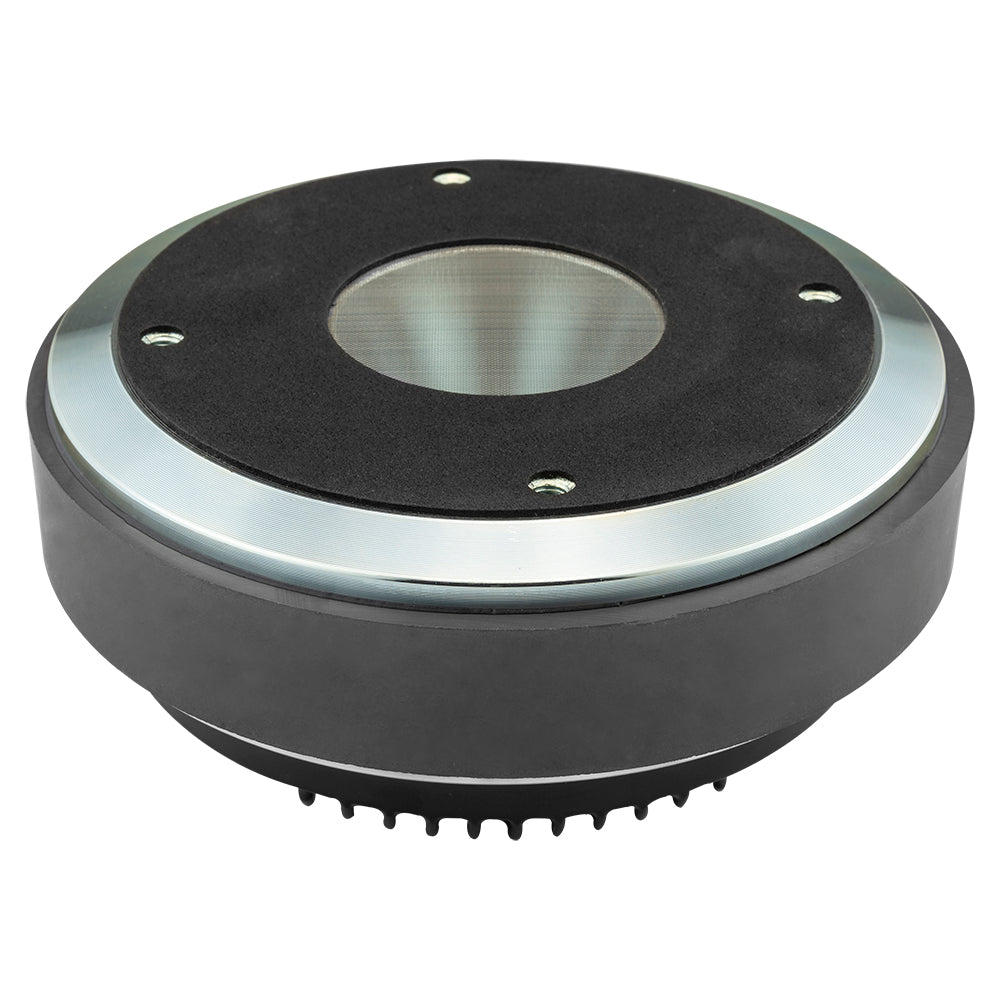

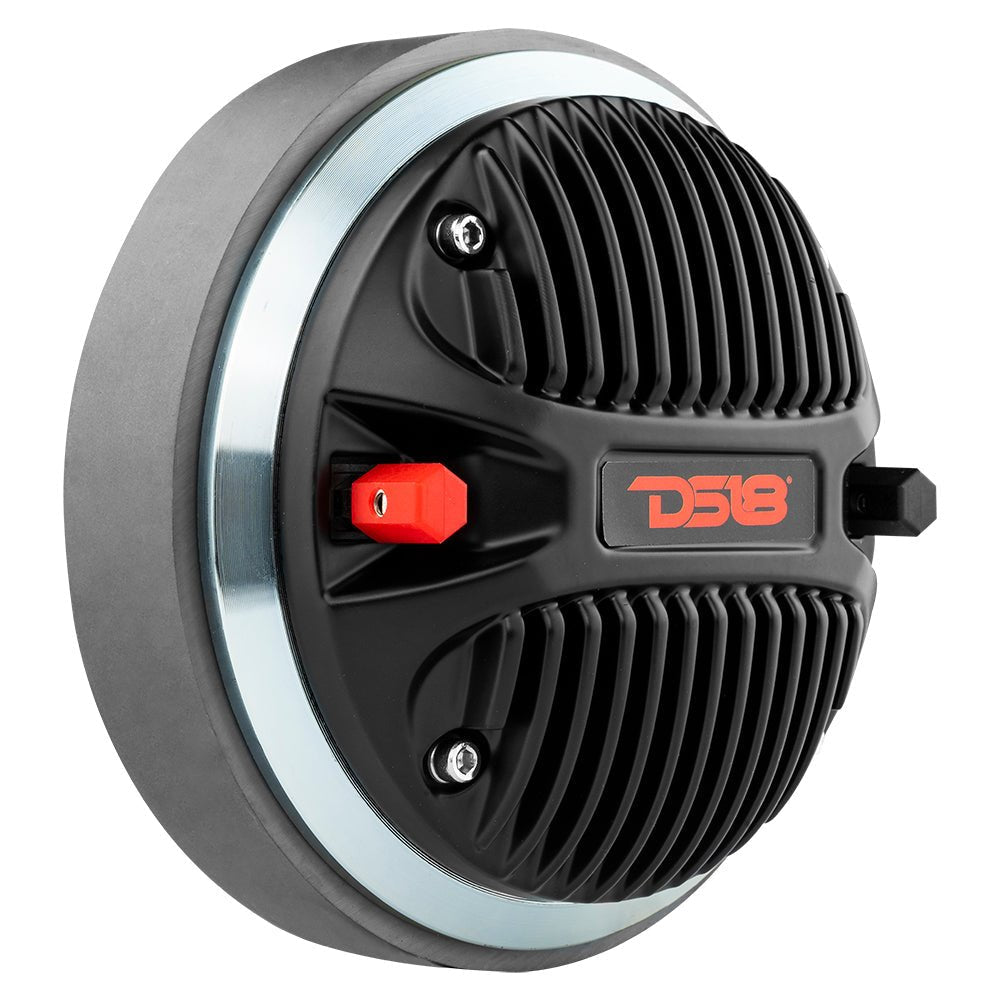

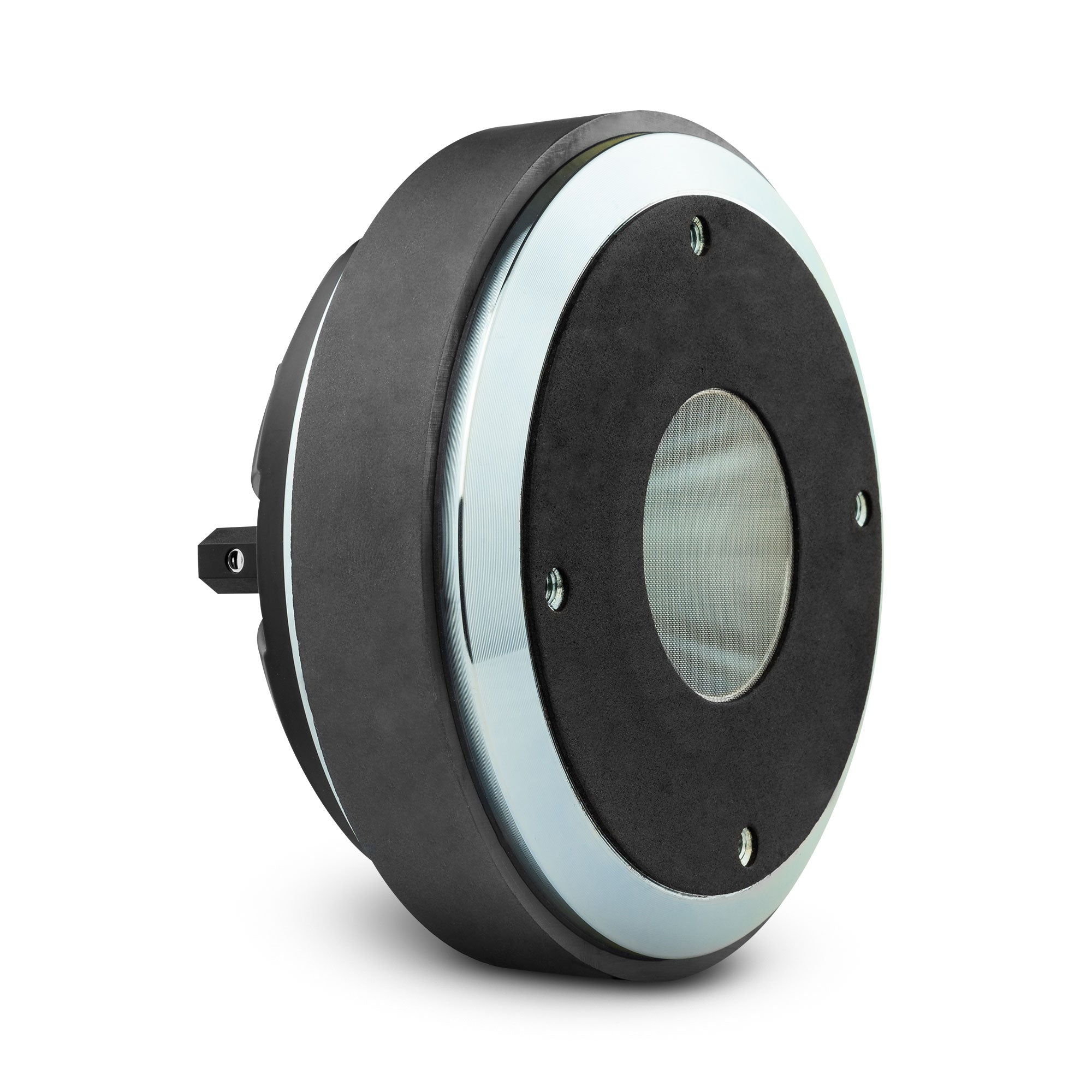

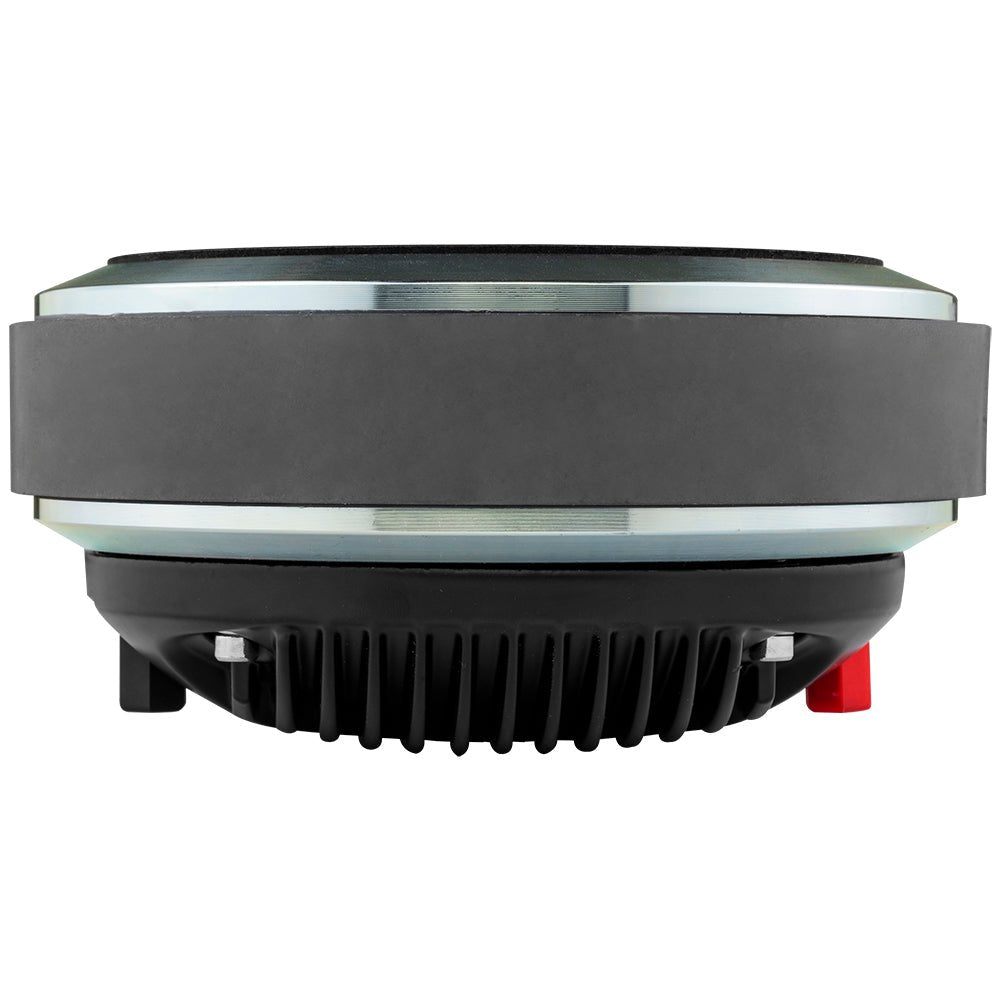

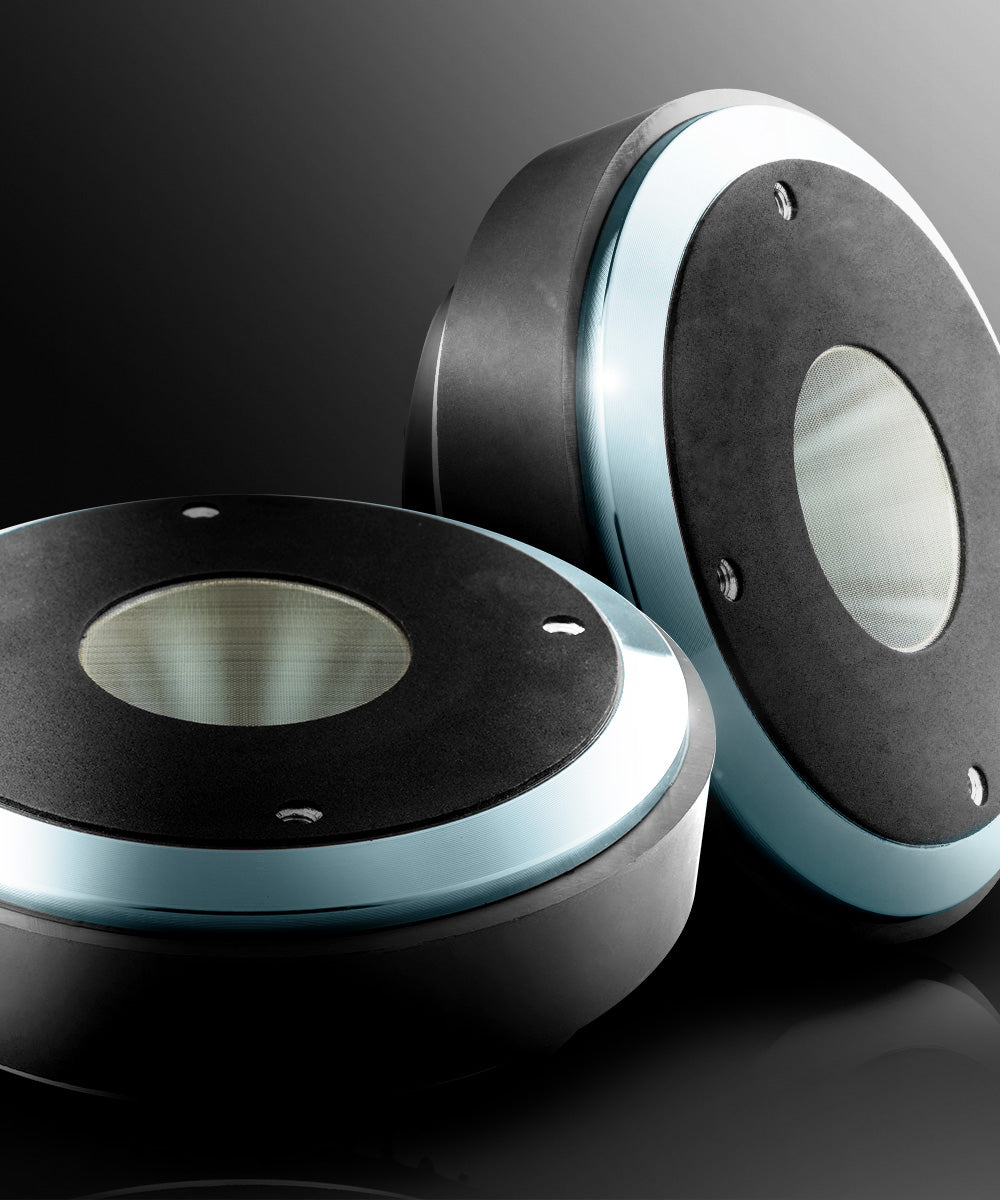

DS18 D225PY 2" Bolt On Throat Compression Driver with 2.5" Polyimide Voice Coil 720 Watts 8-ohm

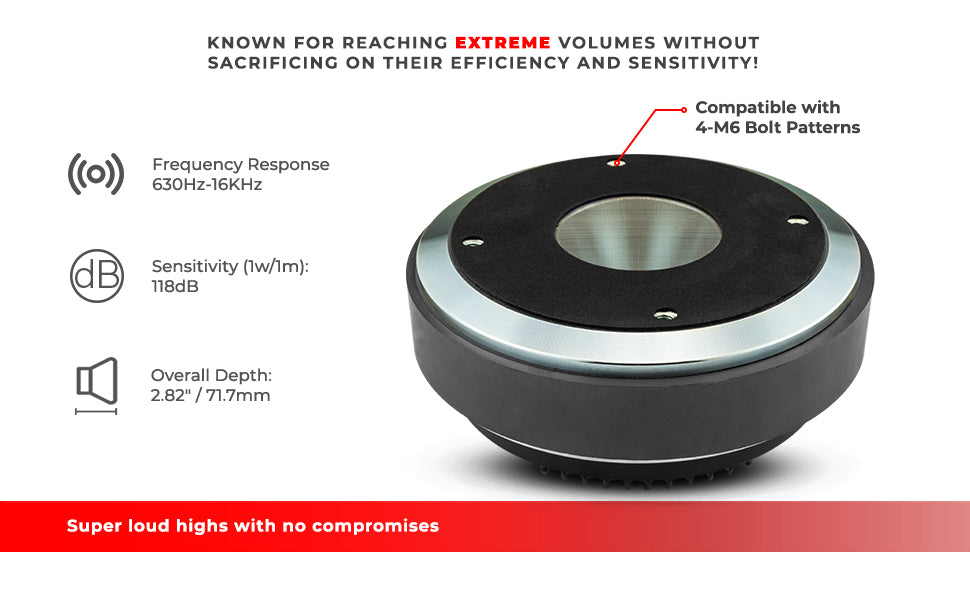

DS18’s Drivers are known for reaching EXTREME volumes without sacrificing on their efficiency and sensitivity! The D225PY takes these values to their MAX through the integration of a 2.5” Polyimide Voice Coil!
Polyimide Voice Coils allow your speakers to maintain higher levels of power without the fear of distortion and overheating. Powered by a ferrite motor, you can expect the D225PY to reach ear piercing high range frequencies.
This driver handles 360W RMS and 720W of Peak Power making this driver an amazing addition to any system that needs super loud highs with no compromises!
Highlights
- Ferrite motor structure that provides great motor force and loudness.
- High strength polyimide voice coil taking 360 W RMS and 720 Peak Watts.
- Intense high frequency volume without sacrificing sound quality.
- Compatible with 4-M6 Bolt Patterns

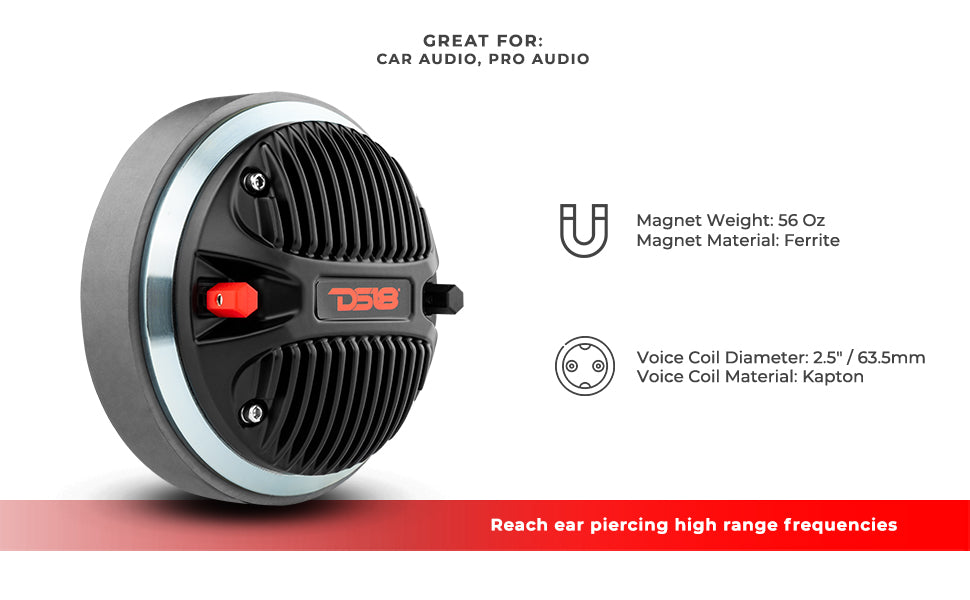

Great For
- Pro Audio
- Car Audio
Technical Details
| SPECIFICATIONS | |
| Throat Diameter | 2"/50.8mm |
| Installation Type | Bolt on |
| Nominal Impedance | 8 OHMS |
| AES Power handling | 180W |
| Program Power Handling | 360W |
| Peak Power handling | 720W |
| Sensitivity (1w/1m) | 118 dB |
| Frequency Response | 630Hz-16KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| Sold in Pair or Single | Single |
| BODY / FEATURES | |
| Filter (Bass Blocker) | 10uf/100v |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| MOTOR | |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Polyimide |
| Magnet Material | Ferrite |
| Magnet Weight | 56 Oz |
| MEASUREMENT | |
| Overall Diameter | 5.75" / 146mm |
| Overall Depth | 2.82" / 71.7mm |

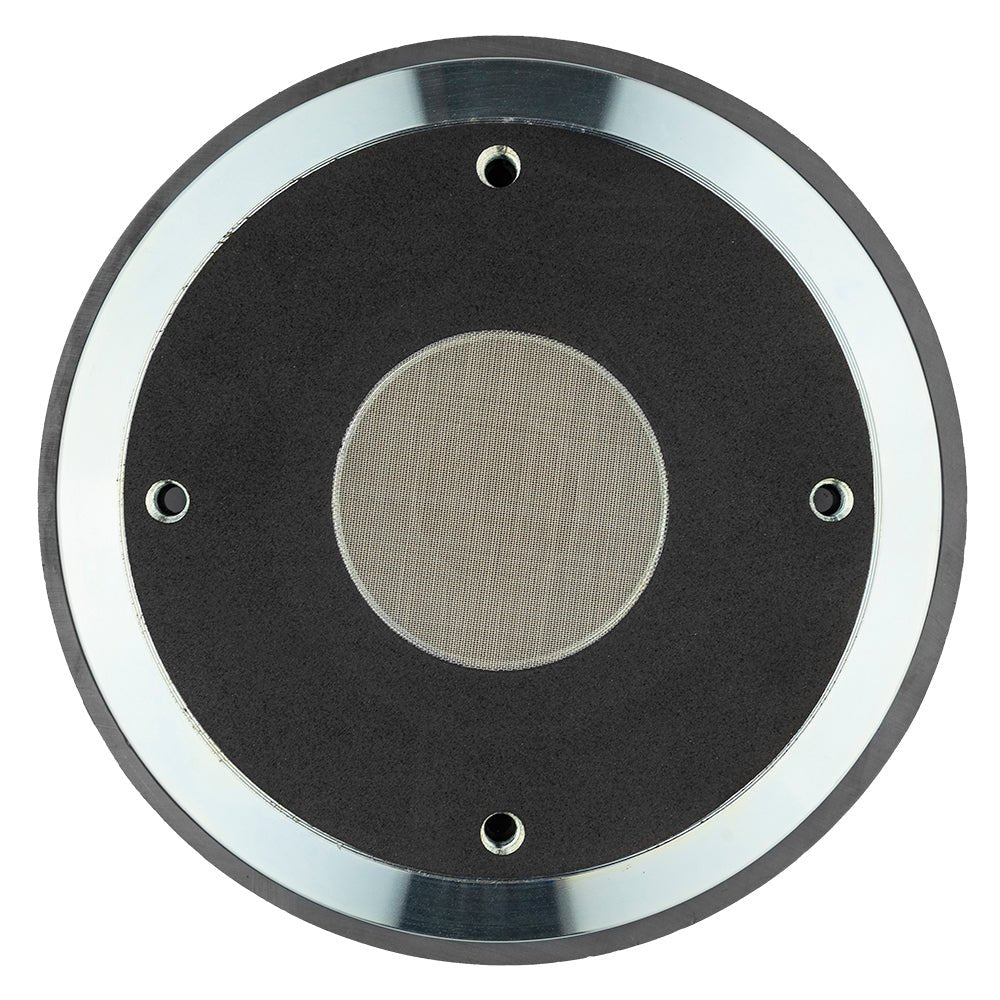

| Bolt Pattern/Type | 4-M6 / 4" / 101.6mm |
Key Features
- 2" Compression Driver
- RMS Power: 360 Watts(720 Watts Peak)
- Impedance: 8 Ohm ~ 118dB
- Ferrite Magnet - Polyimide Diaphragm
- Bolt On
- Easily Repaired With The D225PYVC
Specifications
| SKU | D225PY |
|---|---|
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohm |
| AES Power handling | 180W |
| Program Power Handling | 360W |
| Peak Power handling | 720W |
| Sensitivity (1w/1m) | 118dB |
| Frequency Response | 630Hz-16KHz |
| Recommended Hi Pass Crossover | 800Hz |
| Sold in Pair or Single | Single |
| Filter (Bass Blocker) | 10uf/100v |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Polyimide |
| Magnet Material | Ferrite |
| Magnet Weight | 56 Oz |
| Overall Diameter | 5.75" / 146mm |
| Overall Depth | 2.82" / 71.7mm |
| Bolt Pattern/Type | 4-M6 / 4" / 101.6mm |
