8" Mid-Bass Loudspeaker 150 Watts Rms 4-Ohm
Product Overview DS18 8PRO300MB-4 PRO 8" Mid-Bass Loudspeaker 300 Watts4-Ohm Professional Audio Speakers should slay their respective...
Vendor:
DS18
Manufacturer SKU
8PRO300MB-4
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $71.95
- $71.95
- Unit price
- per
Subtotal:
$71.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

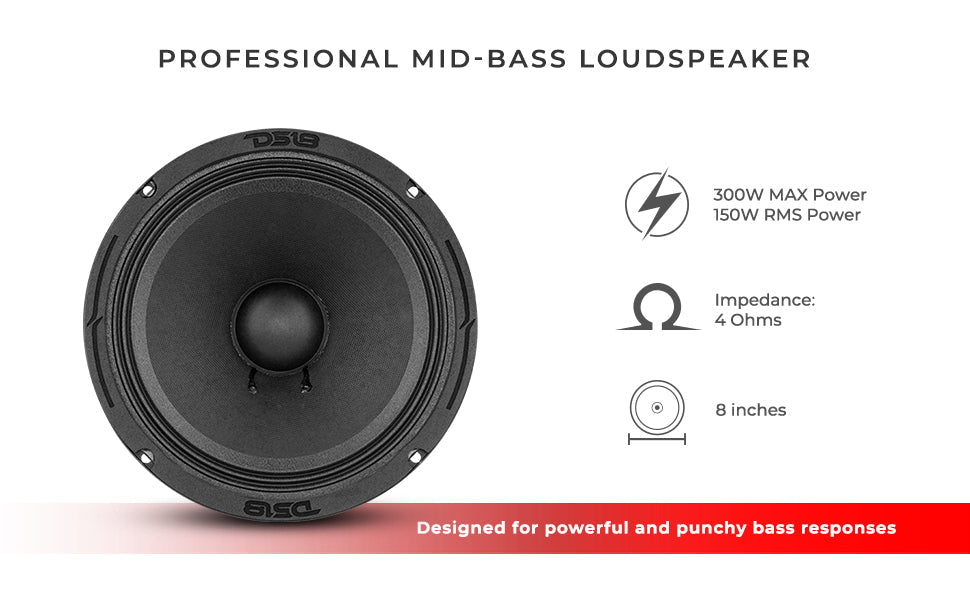

DS18 8PRO300MB-4 PRO 8" Mid-Bass Loudspeaker 300 Watts
4-Ohm
Professional Audio Speakers should slay their respective frequency ranges, and the 8PRO300MB-4 own the mid-bass range!
Designed for powerful and punchy bass responses, the 8PRO300MB-4 deliver clear and loud sound without any distortion, making it perfect for those who like it LOUD!
One of this speakers key features is its frequency response range, which spans from 80Hz to 6KHz. Expect defined midbass response from the 8PRO300MB-4, which is essential for reproducing the lower frequencies of your music with clarity and impact.

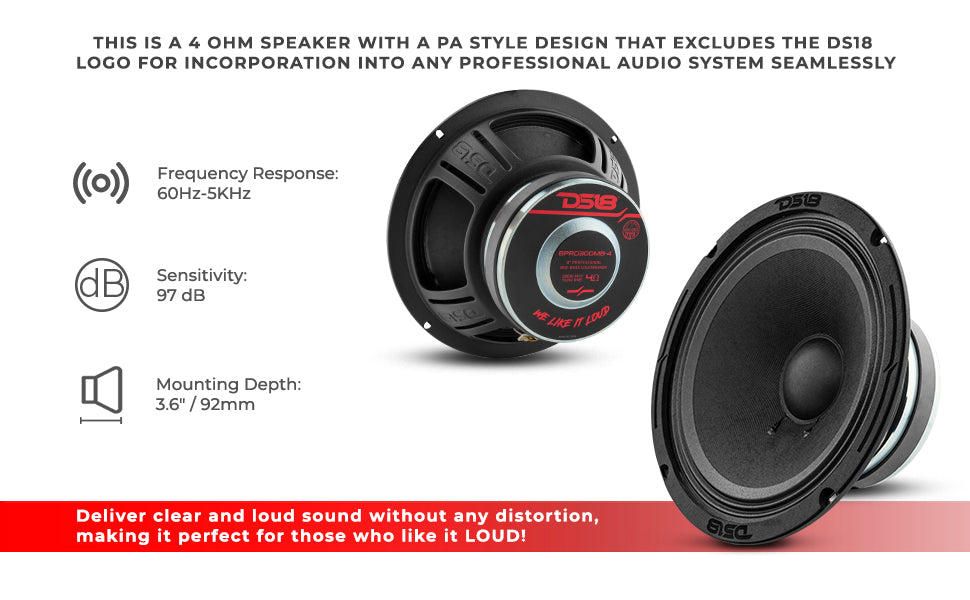

The 8PRO300MB-4 is a 4 ohm speaker with a PA style design that excludes the DS18 logo for incorporation into any professional audio system seamlessly.
The 1.5” Voice coil on the 8PRO300MB-4 handles 150W RMS and 300W Max power levels; very manageable power settings for a speaker with an insanely high 97 dB sensitivity!
If you’re looking to add a professional audio speaker that plays mid-bass notes with authority, the 8PRO300MB-4 is for you!
Highlights
- 1.5” Voice Coil that handles 150W RMS and 300W Max
- 60Hz – 5KHz frequency range for a multitude of tuning options to fit any systems needs
- Reach MAX Volume easily with an insanely high 97 dB sensitivity
Great For
- Car Audio
- Pro Audio
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 97 dB |
| Frequency Response | 60Hz-5KHz |
| Recommended HI Pass Crossover | 80Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| MOTOR | |

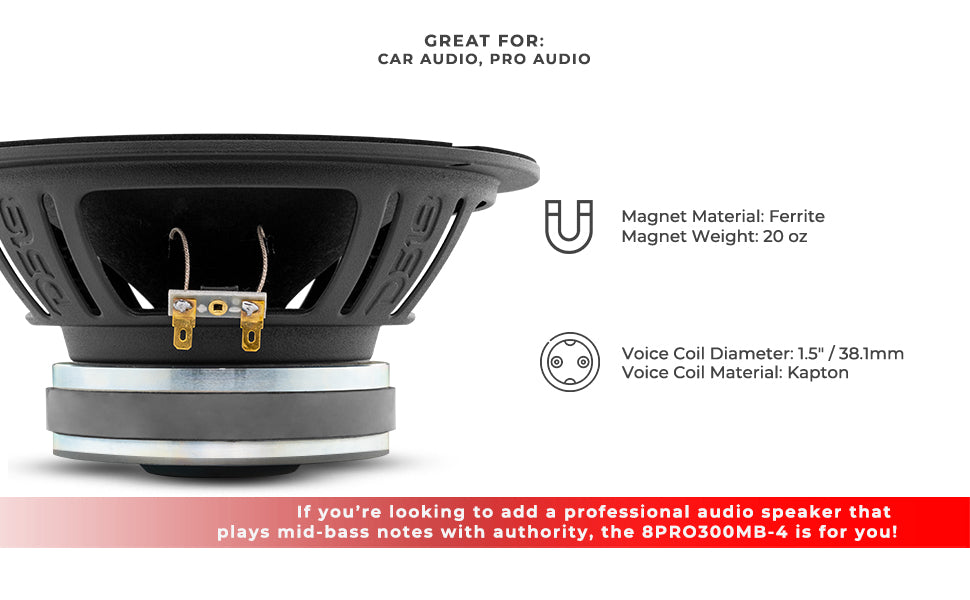

| Voice Coil Diameter | 1.5" / 38.1mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 20oz |
| Displacement Volume | 0.48L / 0.016ft3 |

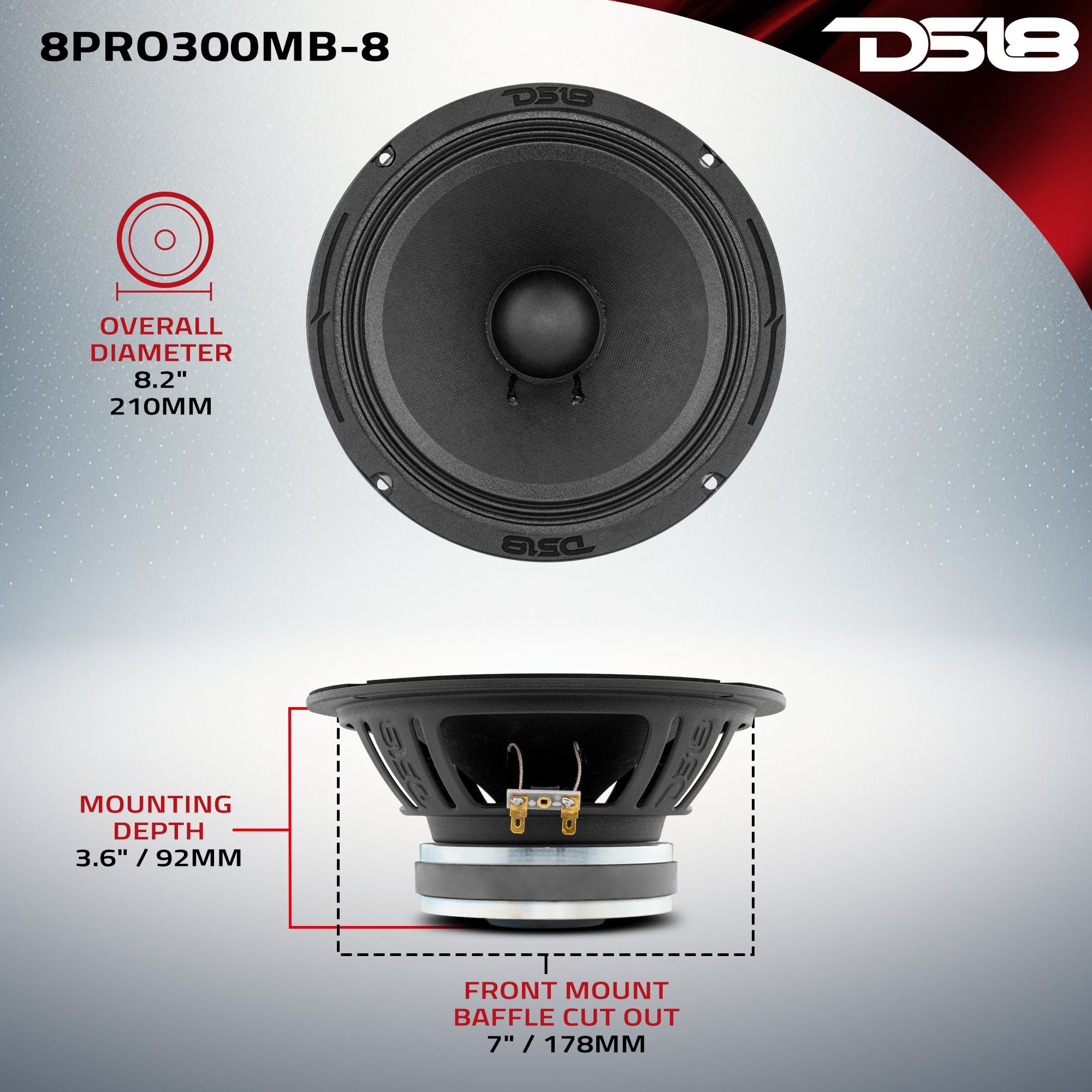

| MEASUREMENT | |
| Overall Diameter | 8.2" / 210mm |
| Overall Depth | 3.8" / 98mm |
| Front Mount Baffle Cutout | 7" / 178mm |
| Mounting Depth | 3.6" / 92mm |
| Motor Diameter | 4.5" / 115mm |
Key Features
- 8" Mid-Bass
- MAX Power: 300 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 97dB
Specifications
| SKU | 8PRO300MB-4 |
|---|---|
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 150W |
| Maximum Power Handling | 300W |
| Sensitivity (1w/1m) | 97 dB |
| Frequency Response | 60Hz-5KHz |
| Recommended HI Pass Crossover | 80Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 1.5" / 38.1mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 20oz |
| Displacement Volume | 0.48L / 0.016ft3 |
| Equivalent Volume Vas | 16.4L / 0.579ft3 |
| Excursion (one way) Xmax | 9.8mm |
| Free Air Resonance Fs | 85Hz |
| Mechanical Factor Qms | 1.62 |
| Electrical Factor Qes | 0.43 |
| Total Factor Qts | 0.34 |
| Moving Mass Mms | 13.78g |
| Compliance Cms | 0.25mm/N |
| Bl Factor Bl | 7.82 |
| Voice Coil Inductance Le | 0.38mH |
| Diaphragm Area Sd | 213.82cm2 |
| DC Resistance Re | 3.5ohms |
| Overall Diameter | 8.2" / 210mm |
| Overall Depth | 3.8" / 98mm |
| Front Mount Baffle Cutout | 7" / 178mm |
| Mounting Depth | 3.6" / 92mm |
| Motor Diameter | 4.5" / 115mm |
| Gross Single Unit Weight (lb) | 5.5 |
| Dimensions W x L x H (Inches) | 9 x 9 x 4.25 |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight (lb) | 44 |
| M/C Dimensions W x L x H (Inches) | 18.25 x 18.25 x 9.25 |
