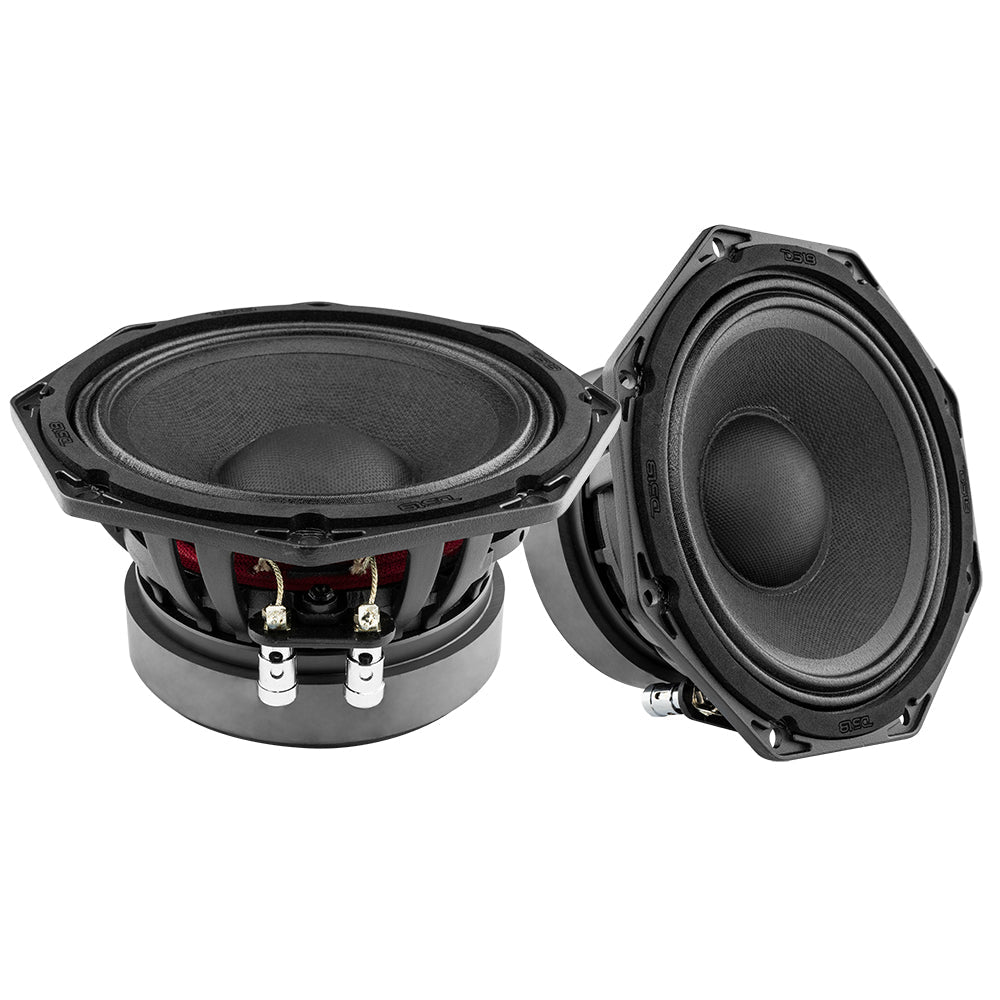

Octagonal 6.5" Mid-Range Loudspeaker 300 Watts Rms 8-Ohm
Octagonal 6.5" Mid-Range Loudspeaker 300 Watts Rms 8-Ohm
Product Overview

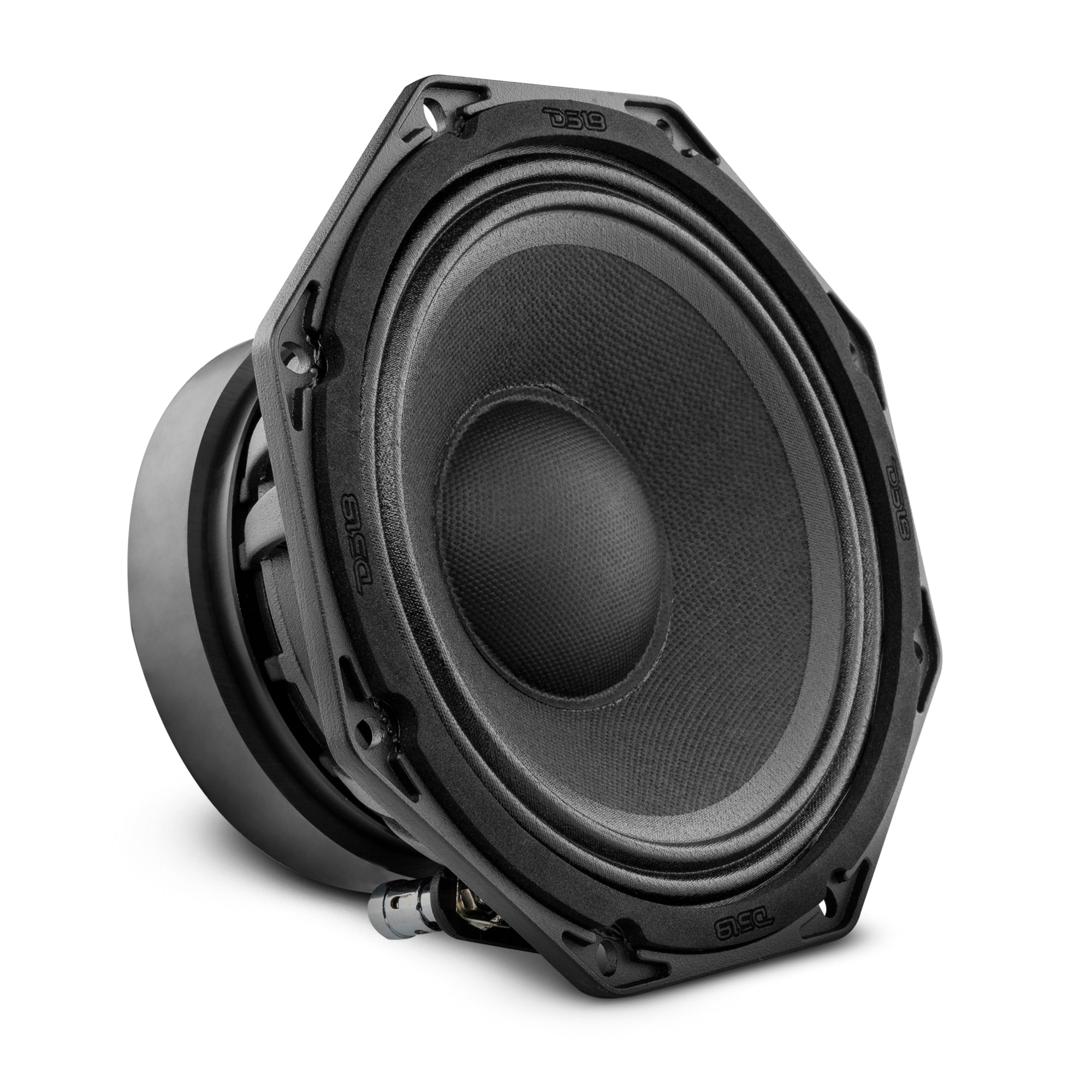

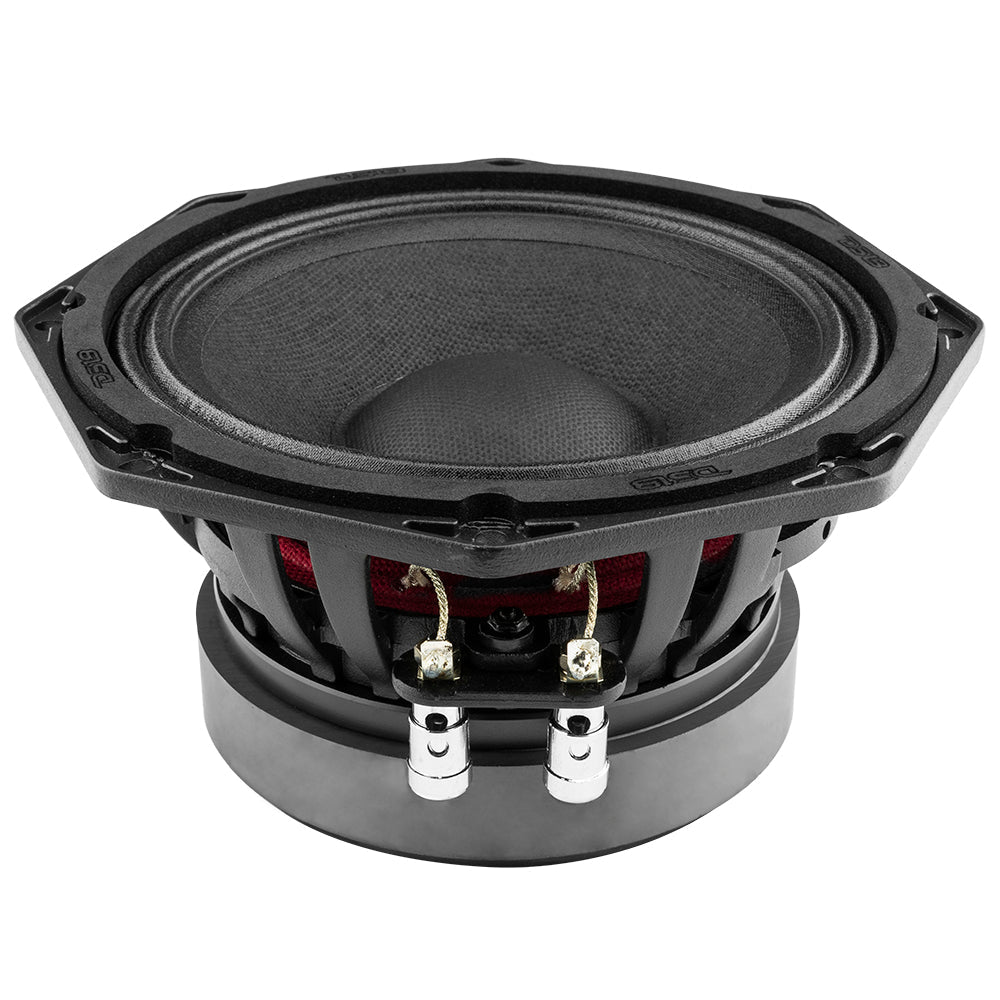

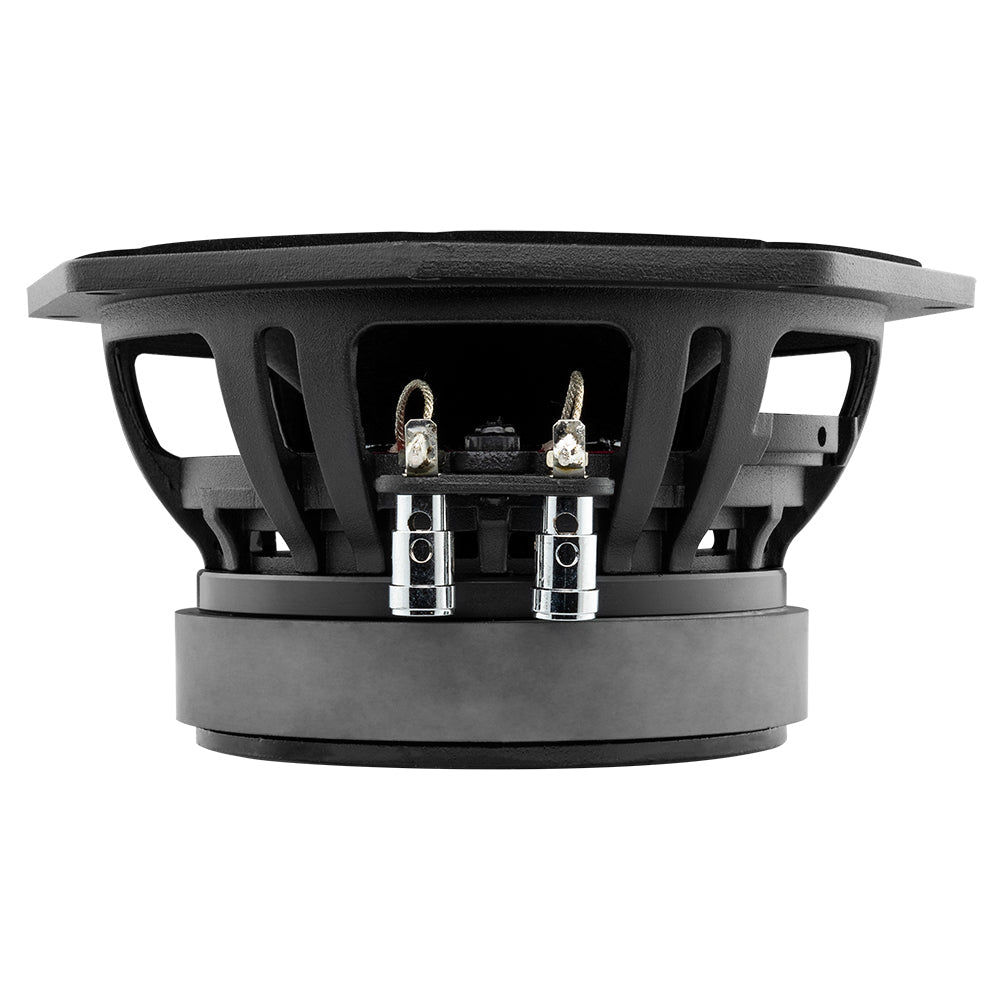

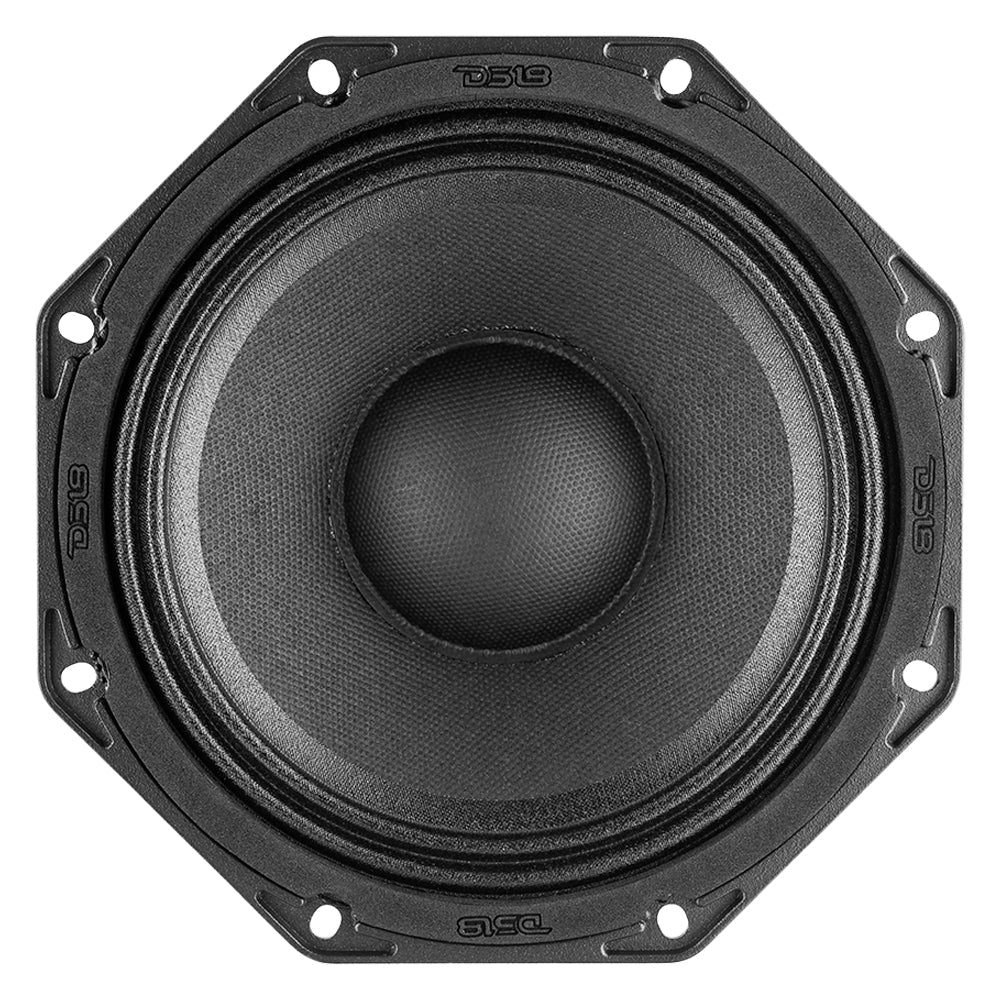

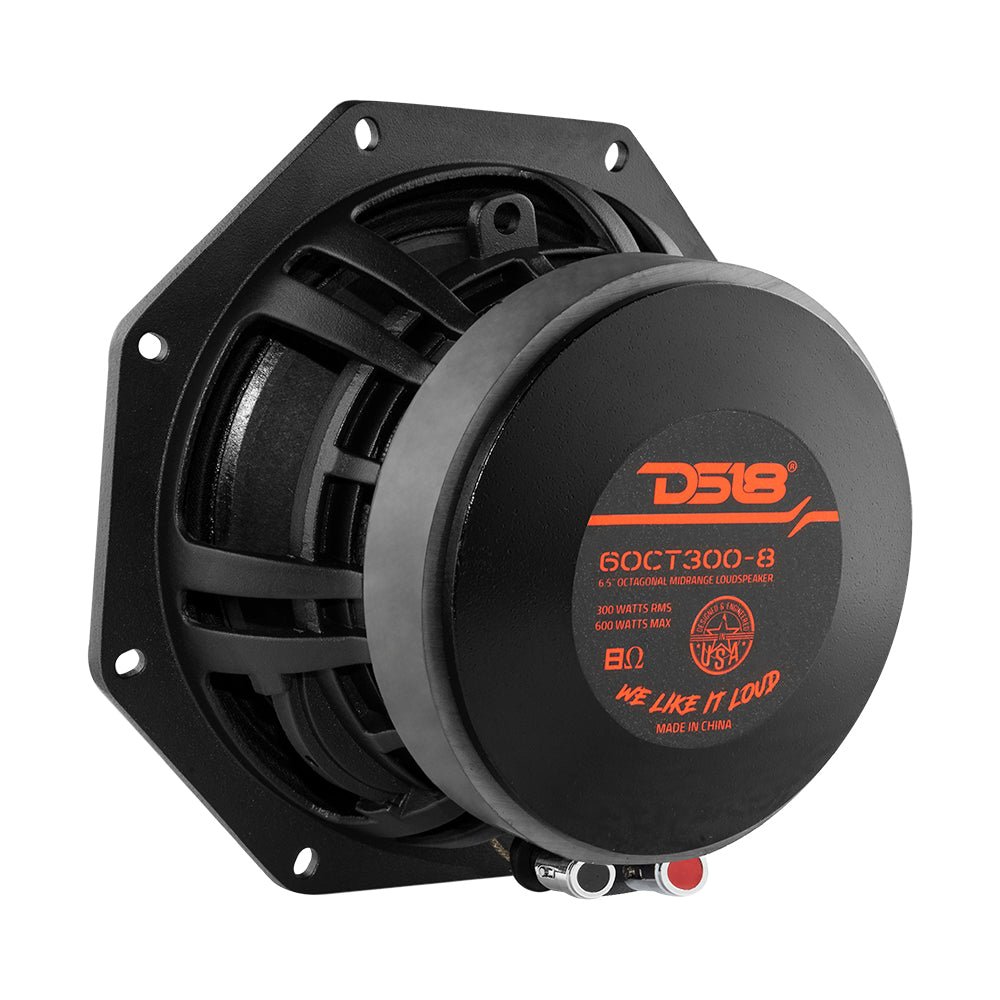

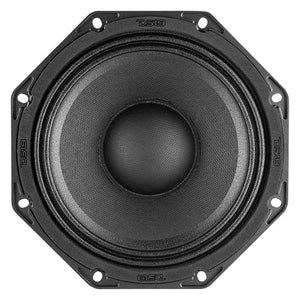

DS18 6OCT300-8 PRO Octagon 6.5" Mid-Range Loudspeaker
600 Watts Max 8 Ohm
Get your system in shape with DS18’s new 6OCT300-8!
This 6.5” octagonal midrange loudspeaker offers better frequency response than your usual round speakers and can reproduce frequencies as low as 80Hz and as high as 10KHz!

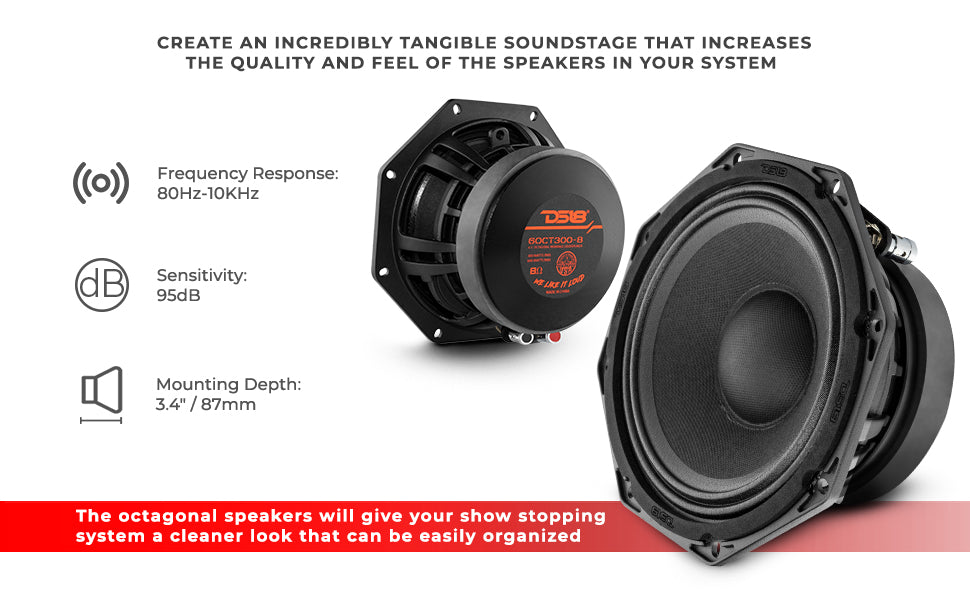

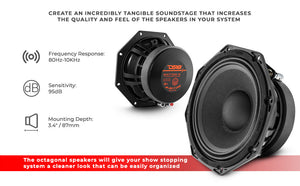

Create an incredibly tangible soundstage that increases the quality and feel of the speakers in your system and sound created by them!
For our competitors, the octagonal speakers will give your show stopping system a cleaner look that can be easily organized for precise reproduction when you need it most.
It’s high sensitivity, rated at 95 dB, allows it to handle powers of 300 W RMS and 600 W MAX. These speakers get LOUD easily, just the way we like it!
Install these 8 ohm speakers into your sound system correctly and enjoy intense volume that never fades!
Highlights

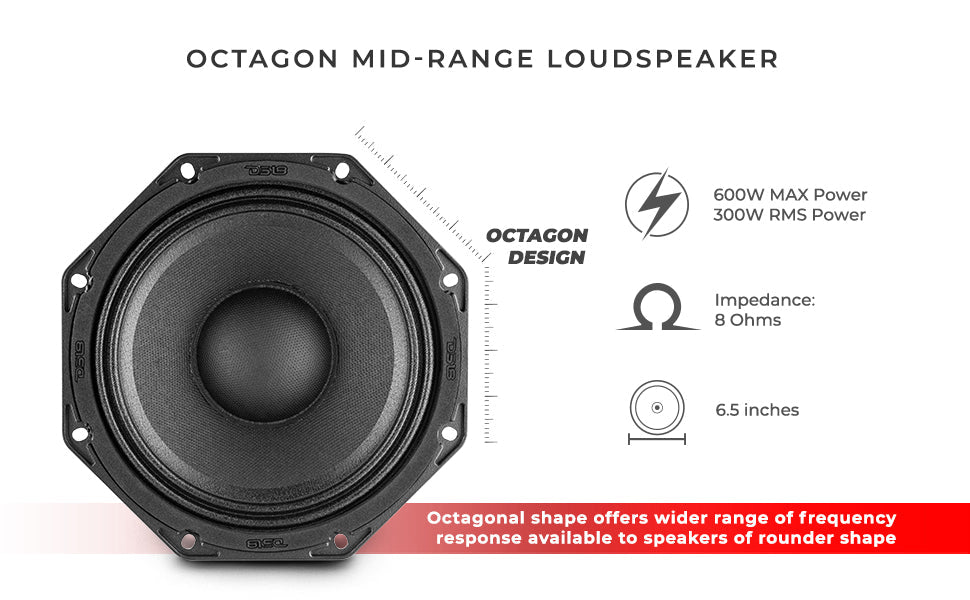

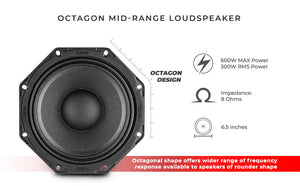

- Octagonal shape offers wider range of frequency response available to speakers of rounder shape
- Easier organization of the equipment in your system
- 300 RMS Power Handling
- 600 MAX Power Handling
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6.5” / 165mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 300W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 80Hz-10KHz |
| Recommended HI Pass Crossover | 120Hz |
| Sold As Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | TIL |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |

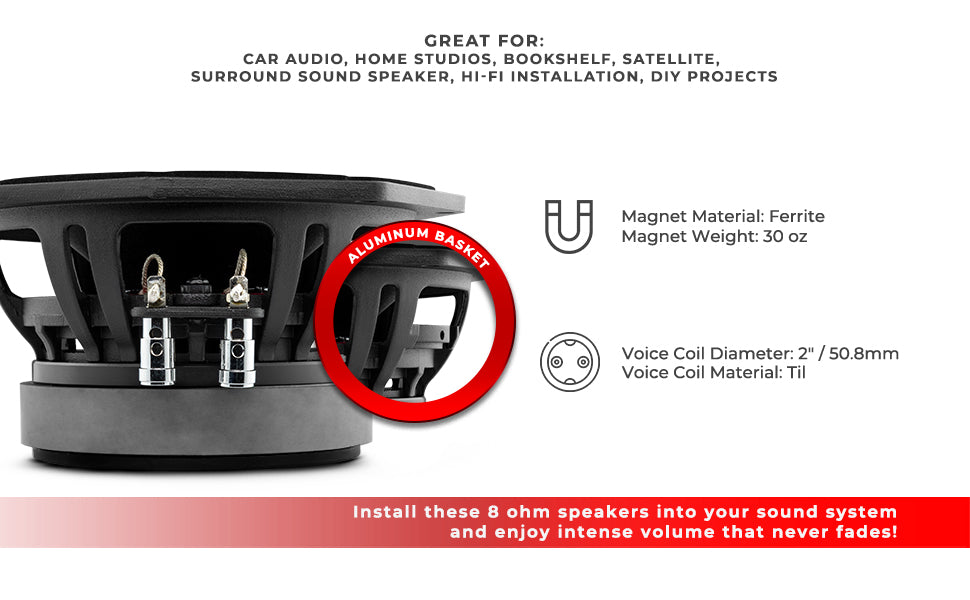

| Basket Material | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 30 oz |
| Displacement Volume | 0.05L / 0.0017ft3 |
| MEASUREMENT | |

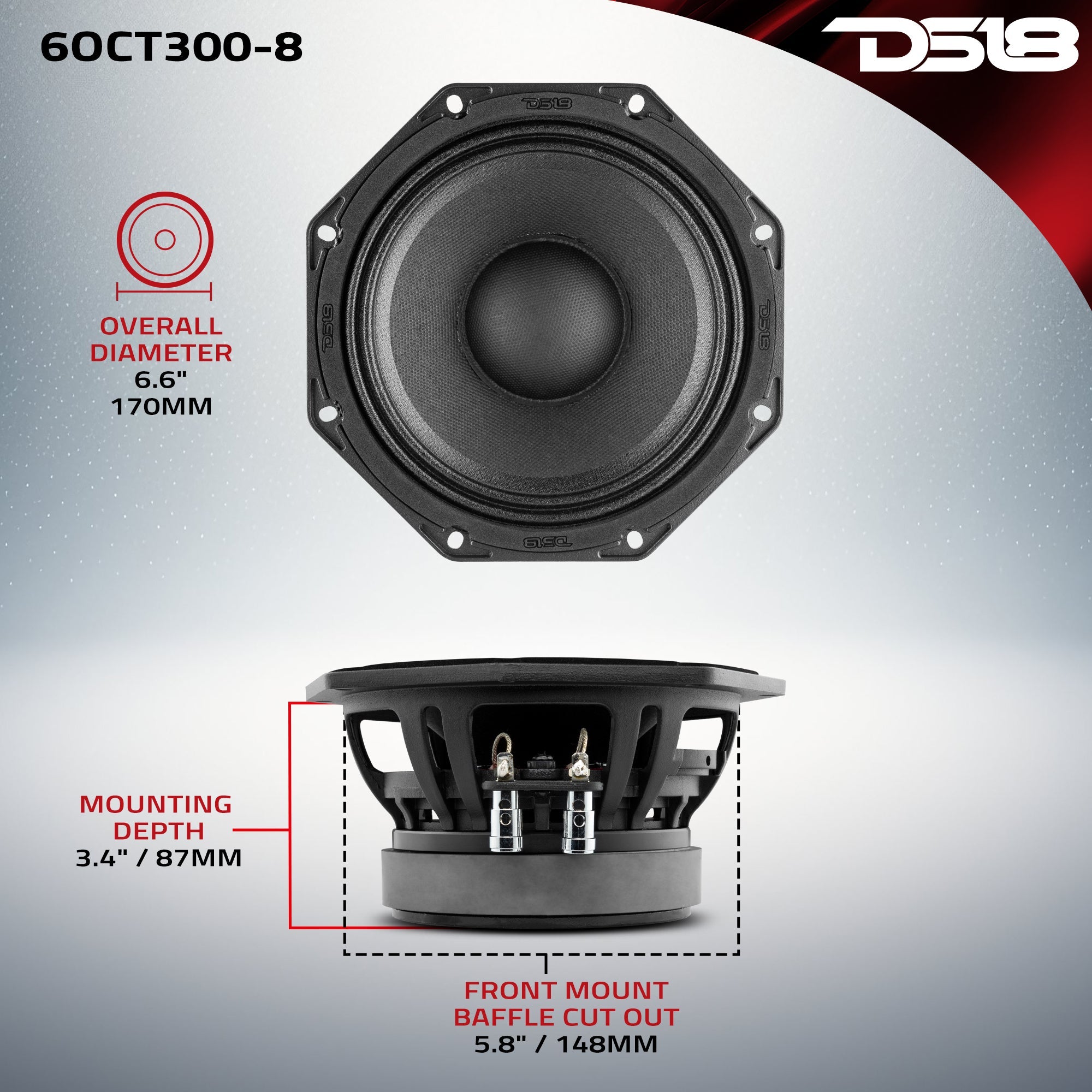

| Overall Diameter | 6.7" / 170mm |
| Overall Depth | 3.7" / 95mm |
| Front Mount Baffle Cutout | 5.8" / 148mm |
| Mounting Depth | 3.4" / 87mm |
| Motor Diameter | 4.7" / 120mm |
Key Features
- 6.5" Octagon Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 95dB
Specifications
| SKU | 6OCT300-8 |
|---|---|
| Nominal Diameter | 6.5" / 165 mm |
| Nominal Impedance | 8 OHMS |
| RMS Power Handing | 300 Watts |
| Maximum Power Handing | 600 Watts |
| Sensitivity (1w/1m) | 95 dB |
| Frequency Response | 80Hz-10KHz |
| Recommended Hi Pass Crossover | 120 Hz |
| Voice Coil Diameter | 2" / 50.8 mm |
| Voice Coil Former Material | TIL |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 30 Oz |
| Vas | 9.55 L / 0.337 ft3 |
| Xmax | 4 mm |
| Fs | 120 Hz |
| Qms | 5.975 |
| Qes | 0.999 |
| Qts | 0.855 |
| Re | 5.87 OHMS |
| Overall Diameter | 6.6" / 170 mm |
| Front Mount Baffle Cutout | 5.8" / 148 mm |
| Mounting Depth | 3.4" / 87 mm |
| Overall Depth | 3.7" / 95 mm |
| Product Weight | 6.5 lbs |
| Product Dimensions | 7.75 x 7.75 x 4.75 |
| M/C Weight | 26.5 lbs |
| M/C Dimensions | 16 x 8.25 x 10.25 |
| M/C QTY | 4 |
| Sold In | Piece |
