Product Overview
Black Diamond DIA-P1800X4D
Class D 4-Channel Full Range Amplifier
The DIA-P1800X4D delivers 200W RMS per channel at 4 ohms and increases to 320W RMS per channel at 2 ohms. When bridged, it pushes 600W RMS per channel at 4 ohms. Its frequency response spans from 20Hz to 20kHz, producing clear sound with only about 1% distortion.
Precise Sound Control

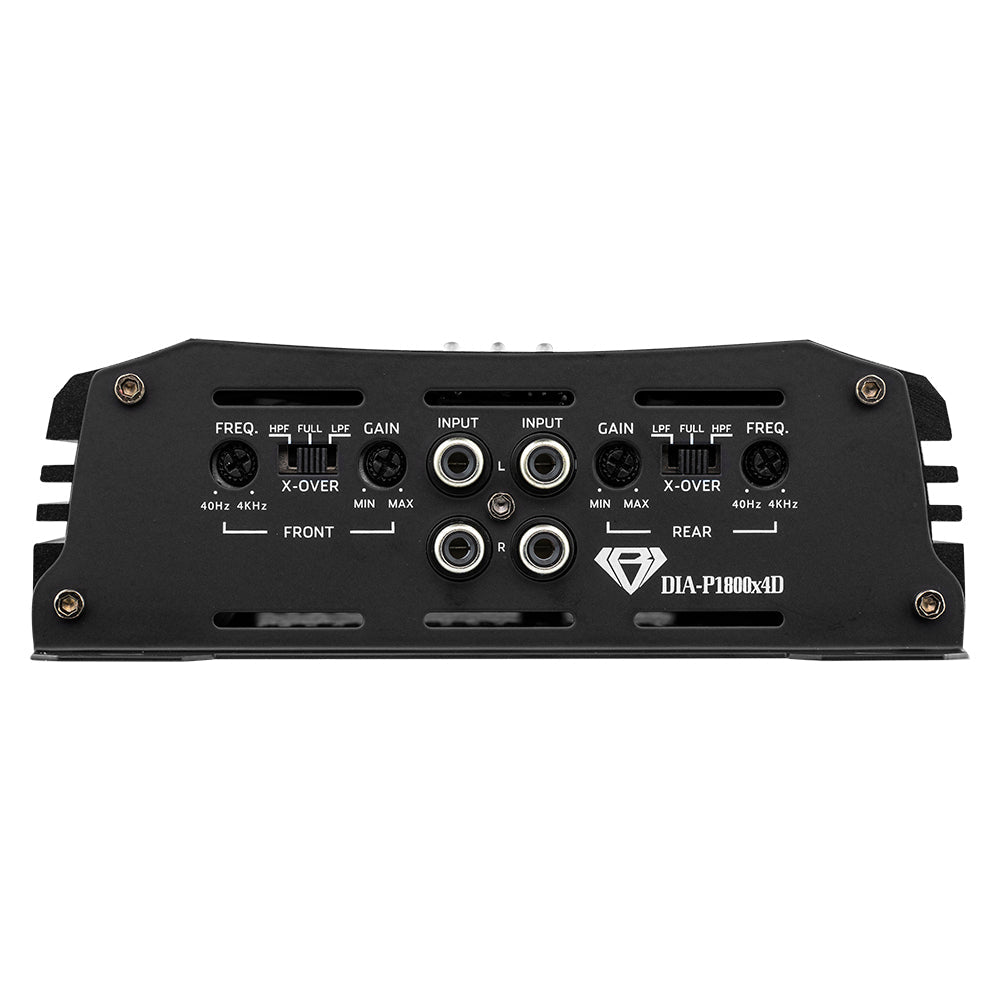

Input gain adjusts from 0.2 to 6 volts, and you can select full, low-pass, or high-pass crossover between 40Hz and 4kHz. This flexibility lets you tailor the sound precisely to your system’s needs.
Built for Endurance

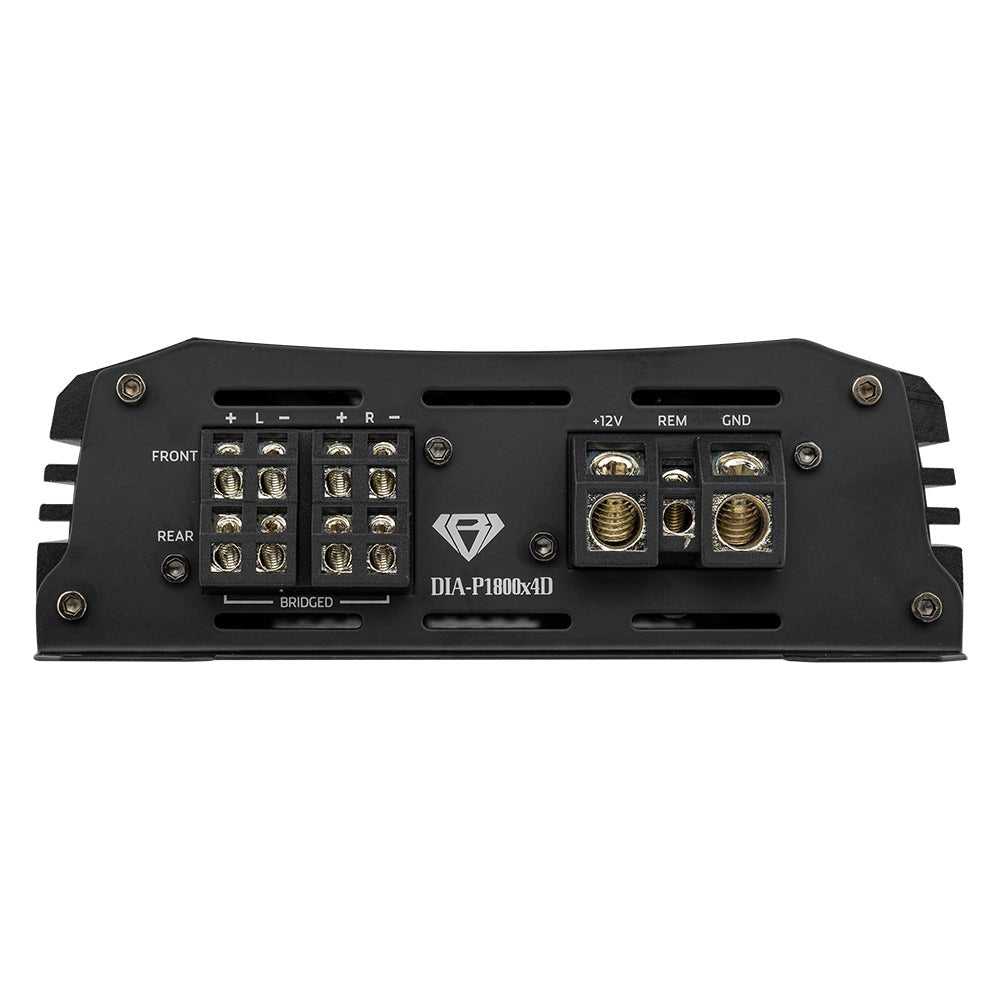

This amplifier features thermal, overload, DC output, short circuit, voltage input, and clipping protections: ensuring stable operation. It uses 4 gauge power wiring and requires a 120A fuse for optimal safety.
Compact and Installation Friendly

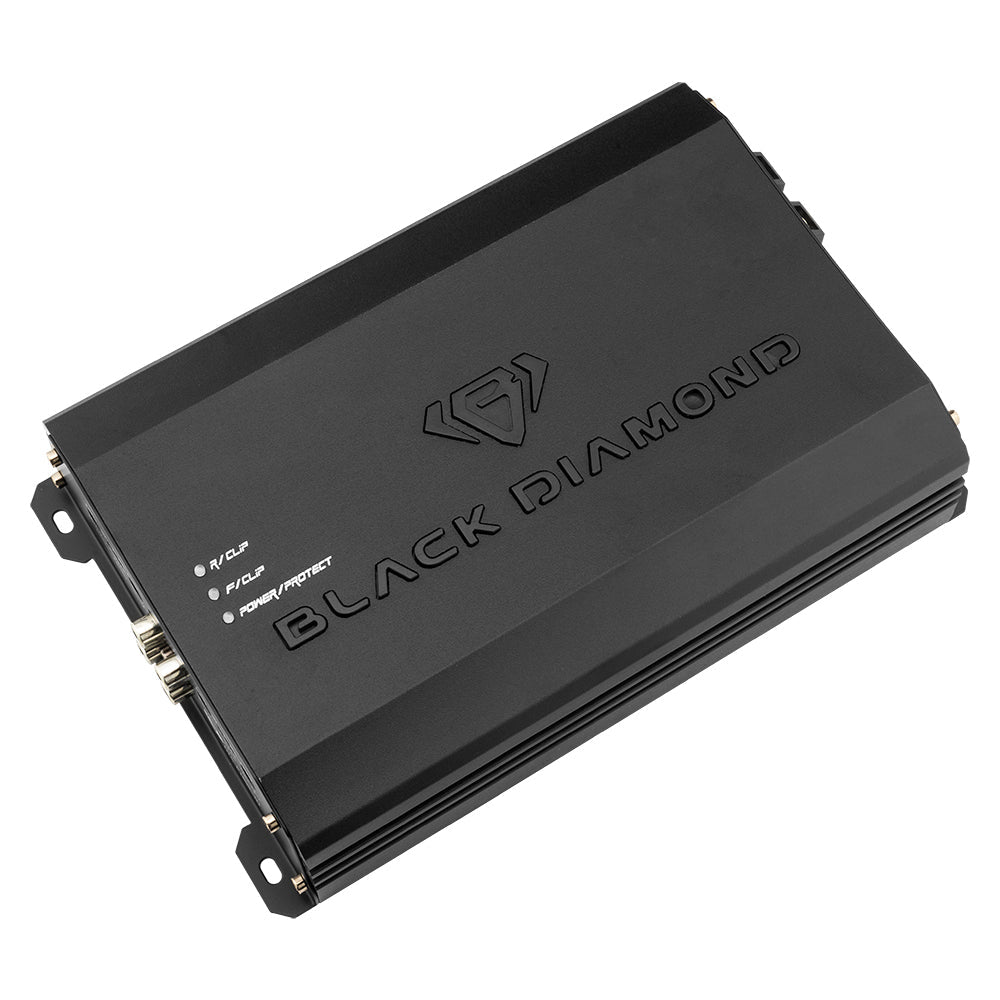

The DIA-P1800X4D measures 9.64 inches long, 6.1 inches wide, and 2 inches tall. Its 8.66-inch heatsink efficiently dissipates heat for long-lasting performance.
Key Features
- Powerful Output – 200W RMS @ 4Ω, 320W RMS @ 2Ω, 600W RMS bridged @ 4Ω
- Versatile Crossovers
- Precision Tuning
- Reliable Protection
- Compact & Durable
Specifications
| Total Watts (Peak) | 3600W |
|---|---|
| RMS Power @ 4 ohm | 200W |
| RMS Power @ 2 ohm | 320W |
| RMS Power @ 4 ohm Bridge | 600W |
| Frequency Response | 20Hz - 20KHz |
| Signal to Noise Ratio | >90dB |
| Efficiency @4ohm | 85% |
| THD | 1% |
| Low Level Input Range | 0.2v - 6v |
| Selectable X-Over | FULL/LPF/HPF |
| X-Over Filter Range | 40Hz~4KHz |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 4 Channels |
| Minimum Impedance | 2 ohm (Stereo) 4 ohm (Bridge) |

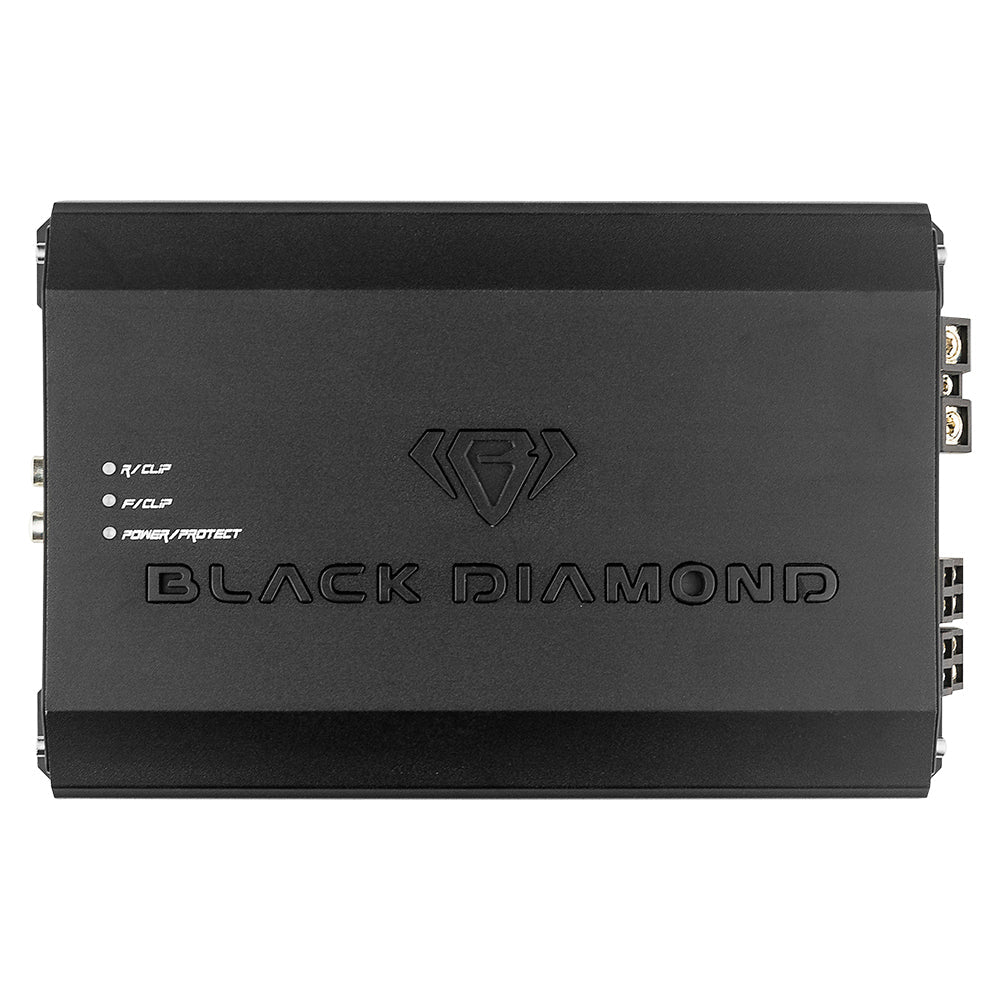

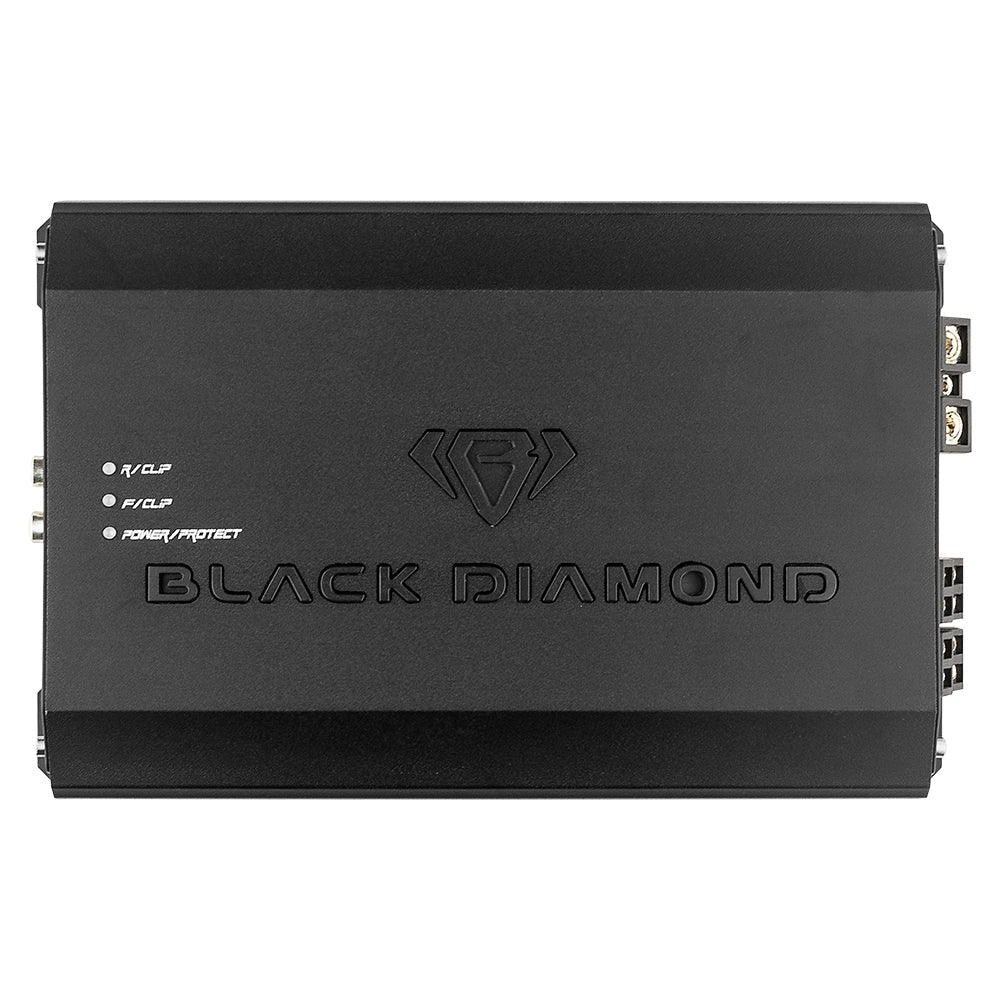

| Led Indicator | Power/Protect/Clipping |
| Power Input Terminal Size | 4GA |
| Fuse Size | 120A |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes <9 / >16 Volts |
| Clipping Protection | Yes |
| Body Color / Finish | Black / Satin |
| Overall Length | 9.64" / 245mm |
| Overall Wide | 6.18" / 157mm |
| Overall Height | 2" / 52.8mm |
| Heatsink Length | 8.66" / 220mm |
