Product Overview

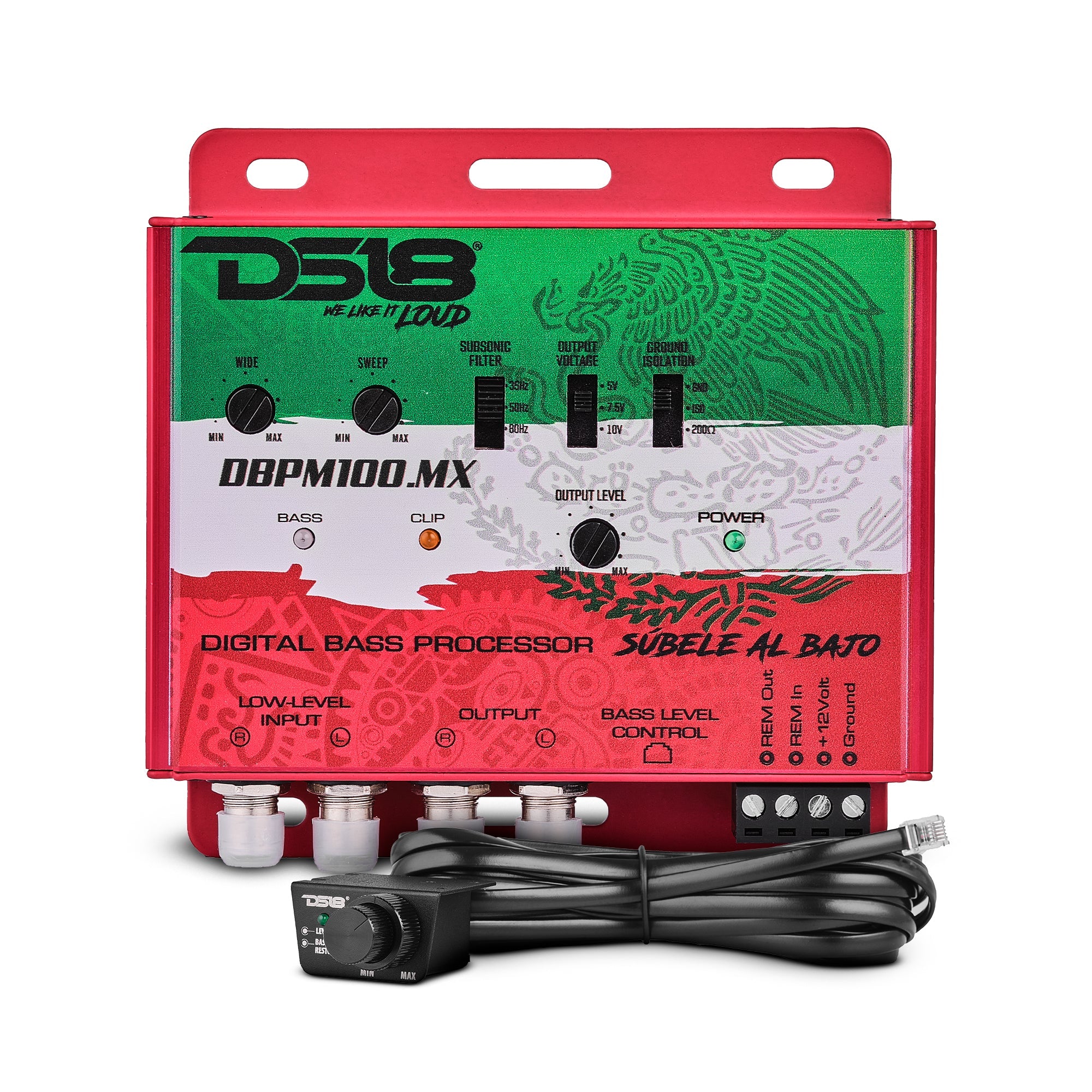

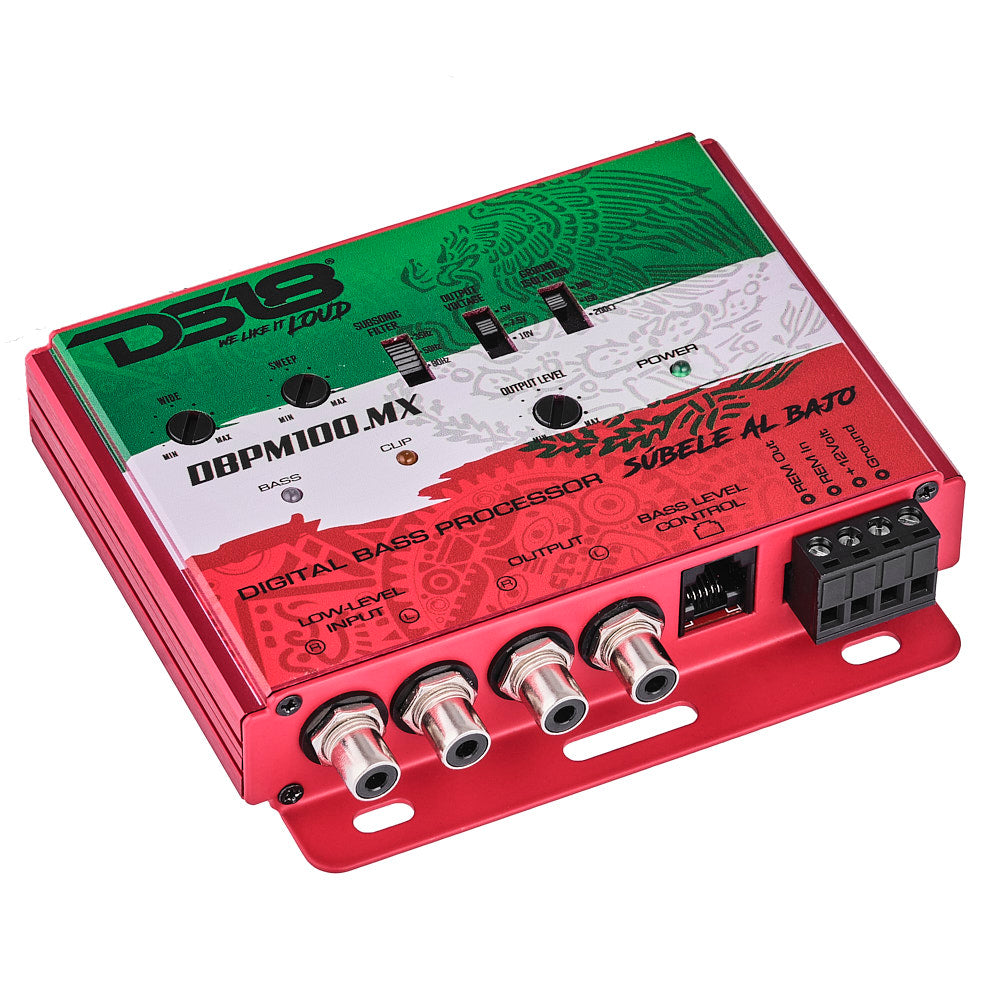

Digital Bass Processor – Mexico Design
Get LOUD for la cultura with DS18’s DBPM100.MX!
This sleek, compact bass processor packs a punch. Fully adjustable, it fine-tunes low frequencies from the original source with authority, giving you control like never before. The dual-knob dash remote lets you effortlessly command your bass, while the subsonic filter (adjustable at 35Hz, 50Hz, and 80Hz) ensures clean, distortion-free sound.
Built for durability, the DBPM100.MX features a corrosion-resistant PCB and LED indicators for power, bass enhancement, and clipping. With an 8-17V operating range and ultra-low power consumption, it’s efficient, reliable, and easy to install in any setup.
Crank up the bass and vive la vida en voz alta with DS18’s DBPM100.MX!
Key Features
- Digital Bass Restoration Processor
- Limited Edition Mexican Flag Design

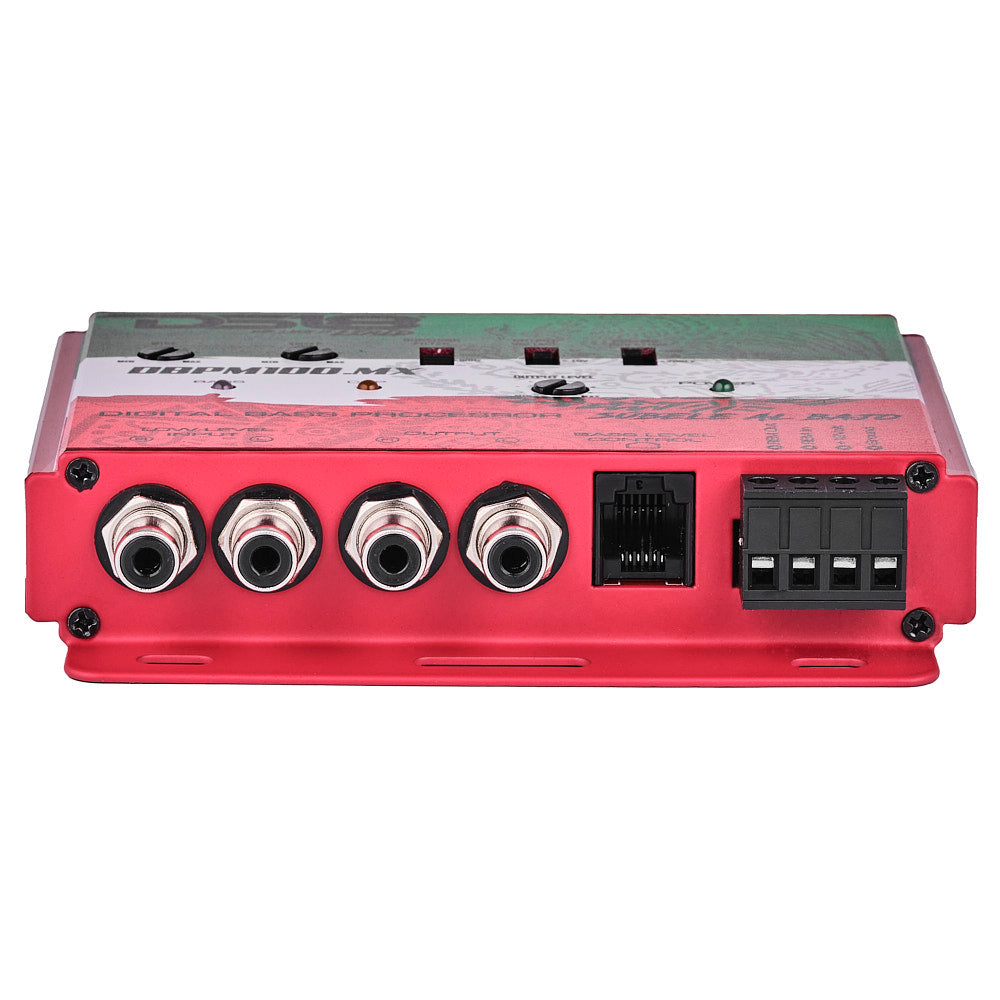

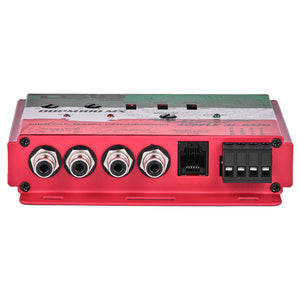

- 2 Channel Preamp Input / Output
- Fully Adjustable Sweep & Width Controls
- Subsonic Filter Selectable at 35Hz, 50Hz, or 80Hz
- 5V / 7.5V / 10V Selectable Output Voltage

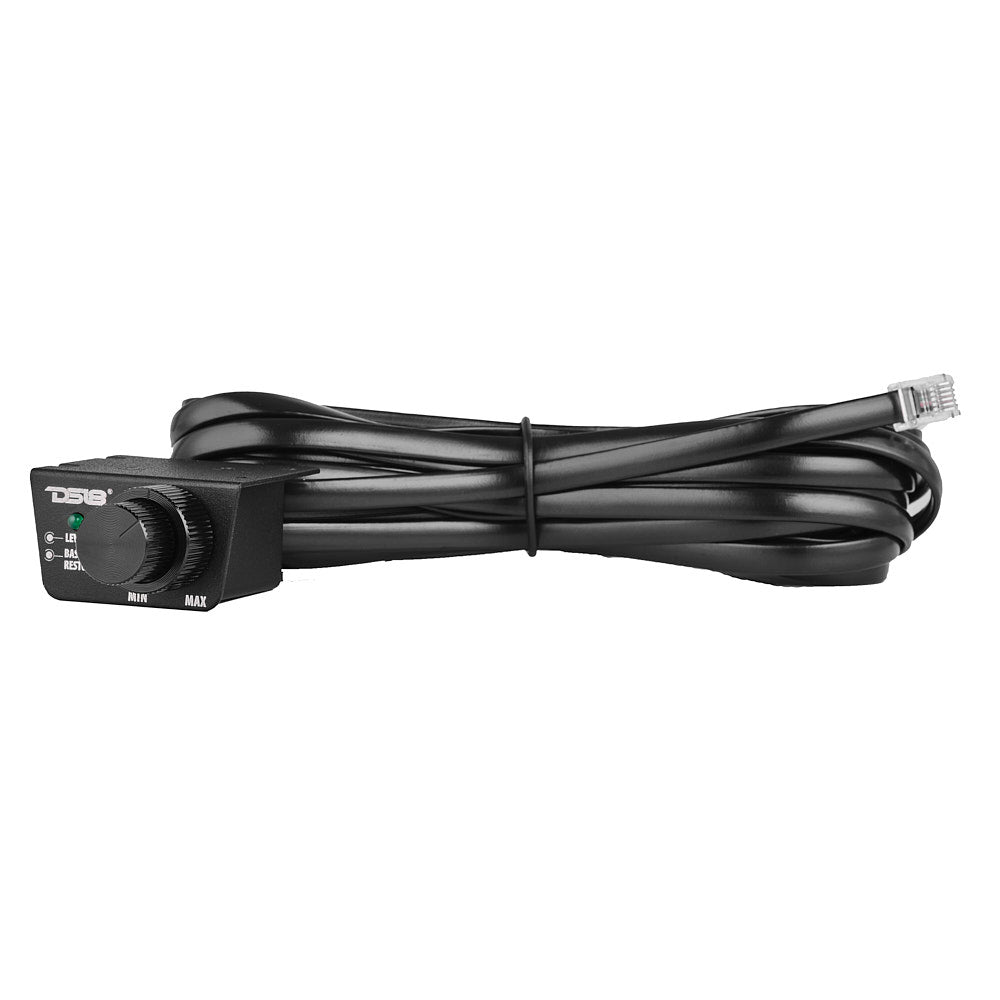

- Includes Dash-Mount Dual Knob Remote With Clip Indicator LED
- High-Level Inputs with Balanced Noise Rejection (Perfect for OEM Integration)
- Compact Aluminum Chassis with Anti-Corrosion PCB
Specifications
| SKU | DBPM100.MX |
|---|---|
| Operating Voltage | 8-17V |
| Power Consumption | 0.24A |
| Recommended Fuse Rating | 1A |
| Power Input Terminal Size | 16ga |
| LED Indicator | Power / Bass Enhancer / Clip |
| Ground Isolation Switch | Yes (GND/ISO/200Ω) |
| Hi-Level Speaker Input | No |
| Auto Turn-on Function | No |
| Remote Turn-on (Input / Output) | Yes |
| Remote Level Control | Yes (Bass Enhancer) |
| RCA Connector Type | Tiffany (Silver) |
| Housing Material | Aluminum |
| Body Color / Finish | Red/Green/White (Mexico Theme) |
| Frequency Response | 10Hz-20kHz |
| S/N Ratio | 120dB |
| THD | 0.0022% |
| Input Sensitivity (Low-Level) | <10V |
| Input Sensitivity (Hi-Level) | N/A |
| Input Impedance | 20Kohms |
| Output Voltage | Selectable (5V/7.5V/10V) |
| Output Impedance | 100ohms |
| Balanced Input Noise Rejection | >60dB |
| Stereo Separation | >80dB |
| Subwoofer LPF Frequency Cut-off | No (Full Range Signal) |
| Subwoofer Infrasonic Frequency Cut-off | Selectable (35/50/80Hz) |
| Gain | 0~8.8V |
| Center Frequency (Sweep) | 75Hz~120Hz |
| Q Factor (Wide) | 1~3 |
| Compact Size to easy Installation for Any Applications | Yes |
| Surface Mount Component Technology | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |
| Remote Level Control with Clip Indicator | Yes |
| Overall Length | 4.72" / 120mm |
| Overall Width | 4.4" / 113mm |
| Overall Height | 1" / 26mm |
