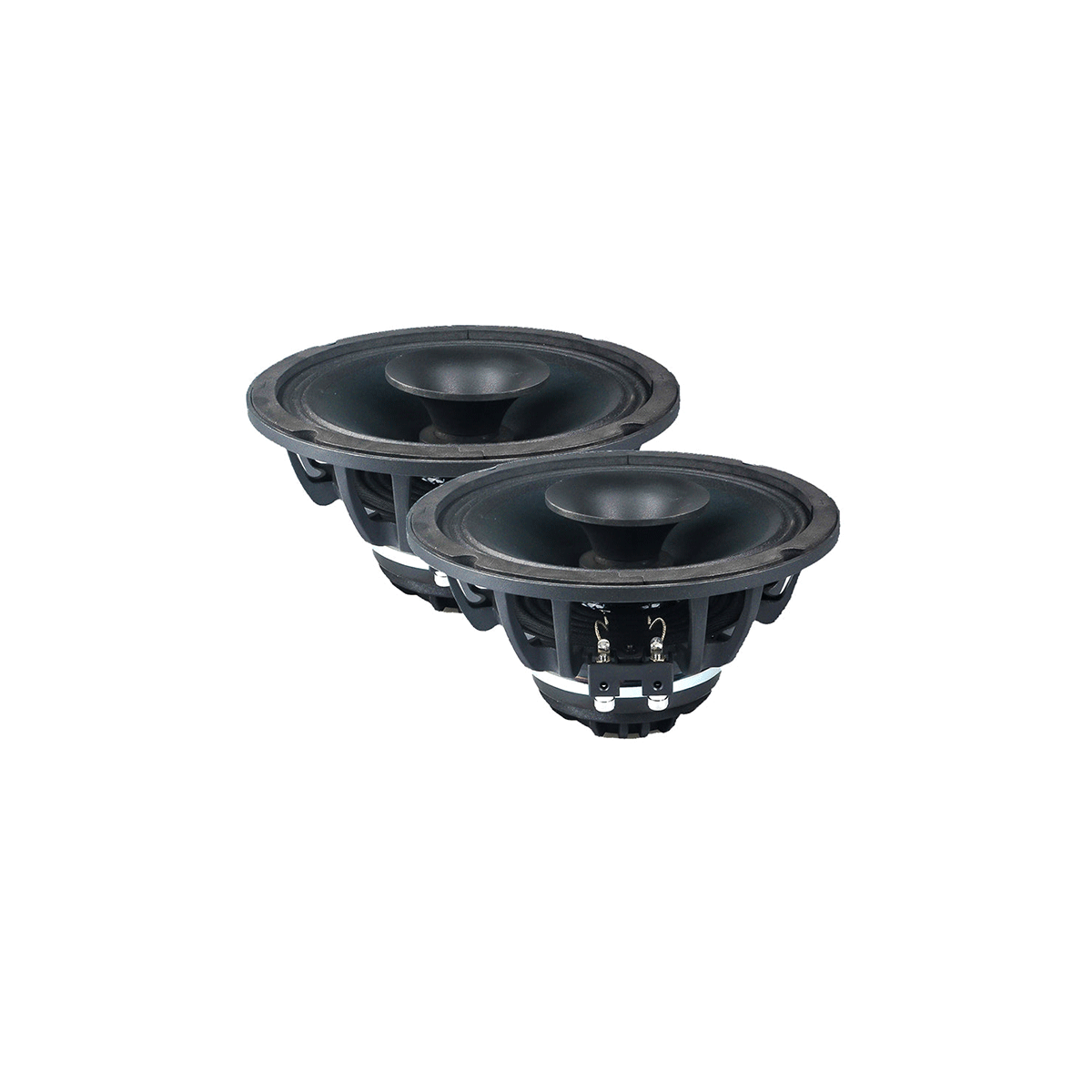

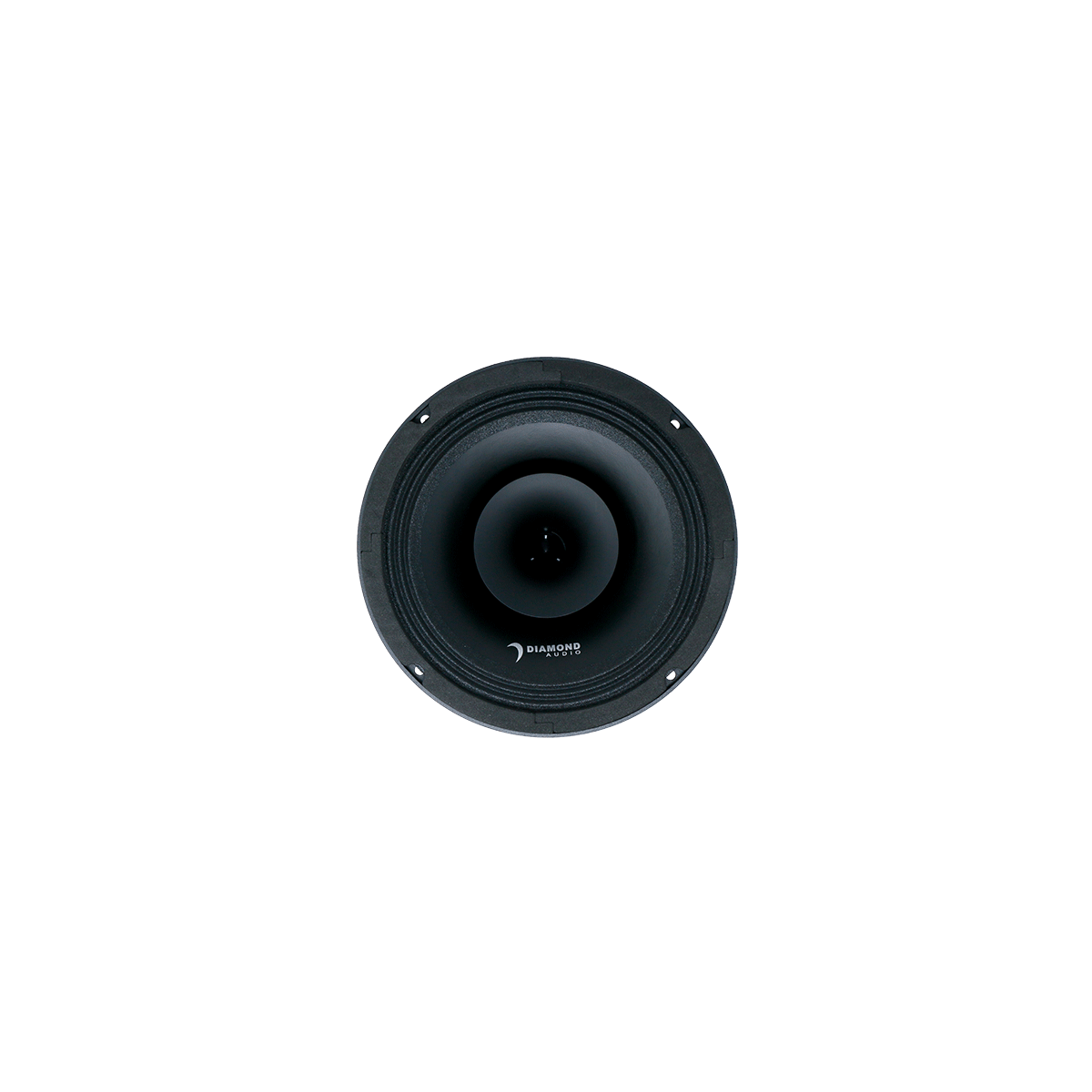

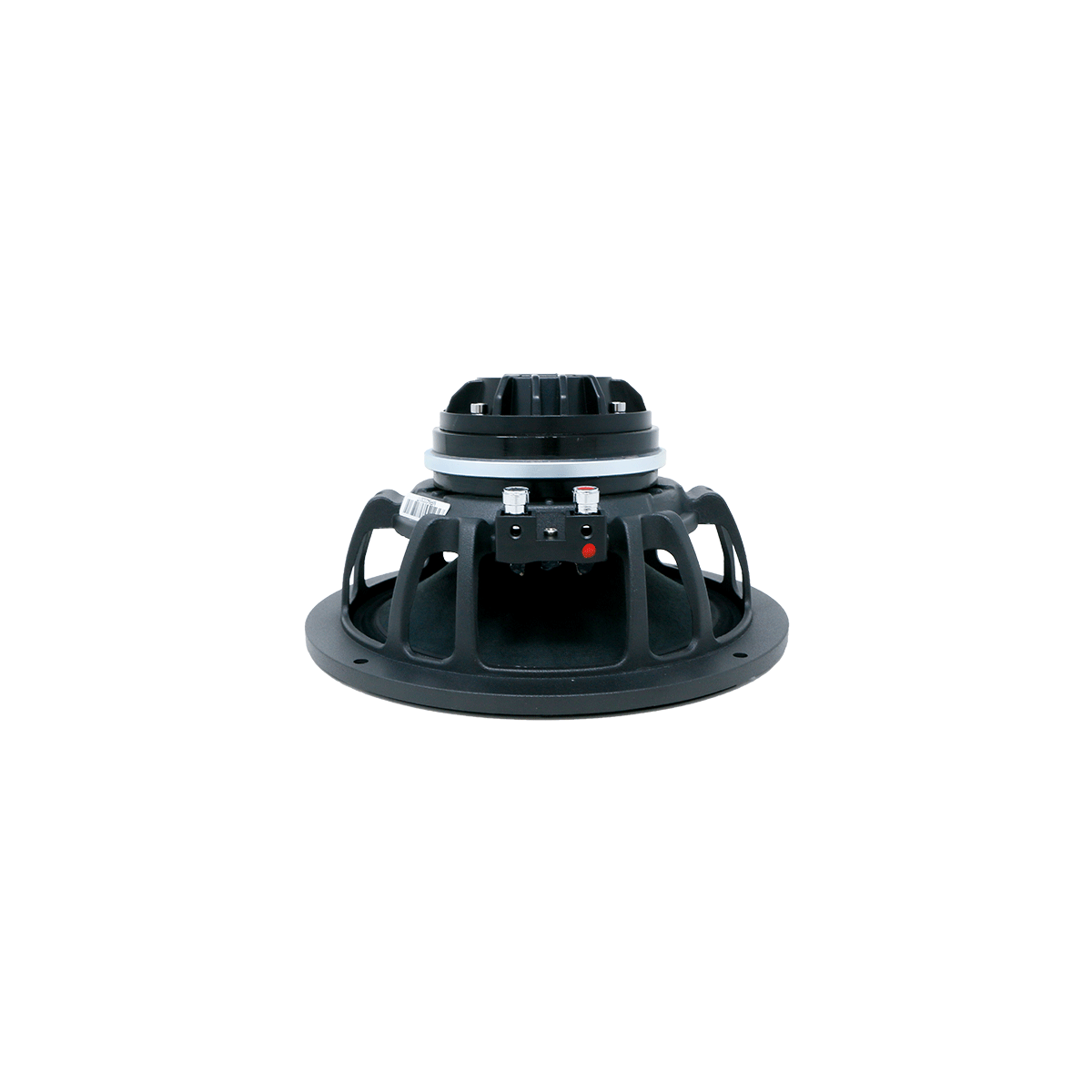

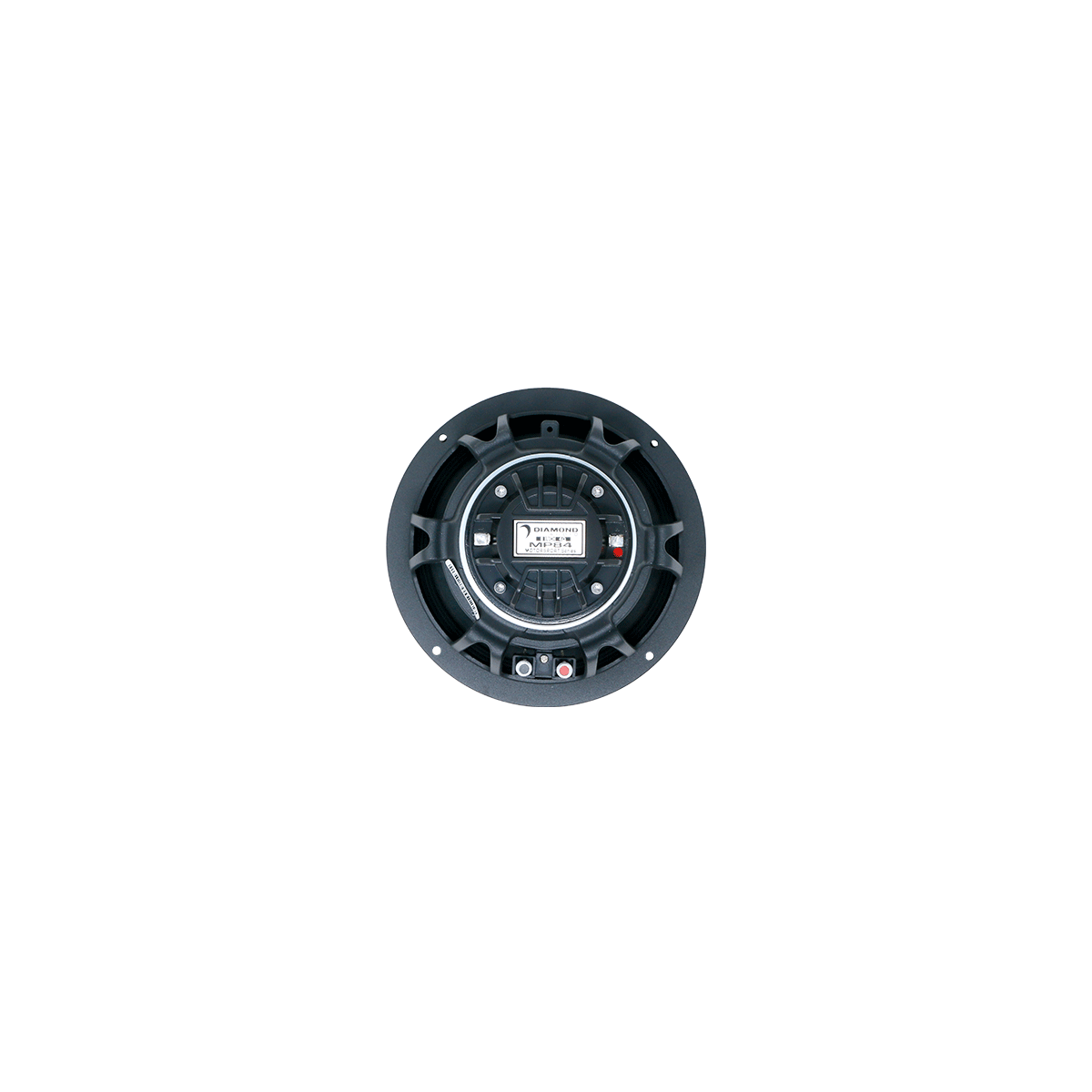

MP Series 8" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4 ohm ) - MP84

MP84 - MP Series 8" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4 ohm )

Discover the ultimate in audio performance with Diamond Audio's MP Series speakers. Engineered for maximum efficiency and loudness, these speakers incorporate a horn style tweeter with a replaceable tweeter diaphragm, ensuring unparalleled sound clarity and power. Designed to meet the needs of discerning audio enthusiasts, the MP Series is your perfect audio companion for boats, Harley Davidson motorcycles, and recreational vehicles.

The MP Series speakers are designed to be ultra-efficient, ensuring that you get the most out of your audio system with minimal power consumption. Experience high-decibel sound that delivers powerful, clear audio whether you're on the water, the open road, or off the beaten path.

Crafted with a high-end cast basket and superior design, the MP Series speakers are built to last. The horn style tweeter enhances sound projection and clarity, while the replaceable tweeter diaphragm ensures long-term performance and ease of maintenance.

Diamond Audio is renowned for delivering superior sound quality, and the MP Series is no exception. Enjoy your favorite music with exceptional clarity, rich mid-range, and powerful bass, making every journey a sonic adventure.

Whether you're outfitting your boat, Harley Davidson, or recreational vehicle, Diamond Audio's MP Series speakers are the ideal choice for high-quality, durable audio equipment. Built to withstand the rigors of various environments, these speakers deliver consistent, high-performance sound wherever your journey takes you.

Upgrade your audio system with Diamond Audio MP Series speakers and experience the pinnacle of sound performance and reliability. Feel the difference that high-end engineering and precision craftsmanship can make - choose Diamond Audio for your next adventure!

Disclaimer

*** The speakers are water resistant and not waterproof. They can be damaged by large amounts of water. ***

Features

Specifications

Power: 200W RMS/400W MAX
SPL(dB) MidBass: 95.2
SPL(dB) Tweeter: 107
Re( ohm ): 3.2
Qms: 12.46
Qes: 0.42
Qts: 0.41
Fs(Hz): 69.43
Vas(L): 27.5
Cms(mm/N): 0.43
Mms(g): 12.3
Sd(cm): 213.8
BL(T*M): 6.4
Xmax(mm): 1.0
Hi-pass Filter: 12dB 2nd Order Crossover
Diameter: 8.31" (211mm)
Mounting Diameter: 7.09" (180mm)
Mounting Depth: 3.98" (101mm)
Total Depth: 4.25" (108mm)
Magnet Diameter: 4.06" (103mm)
Mid Driver: 2" Single Layer High Temp 4 ohm  Voice Coil
Tweeter: 1.0" 8 Ohm - Single Layer High Temp Voice Coil
Frequency Response: 80Hz -18Khz
