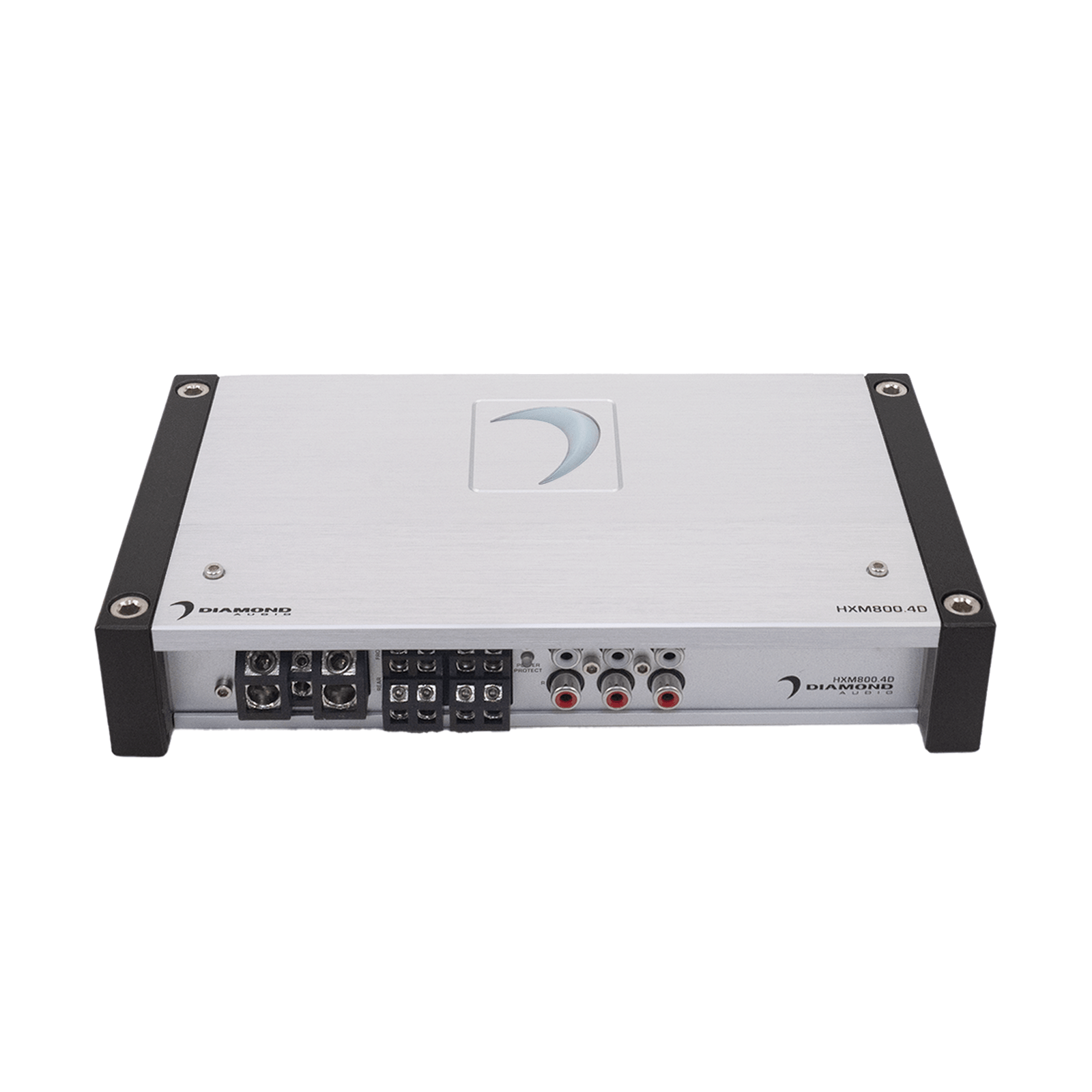

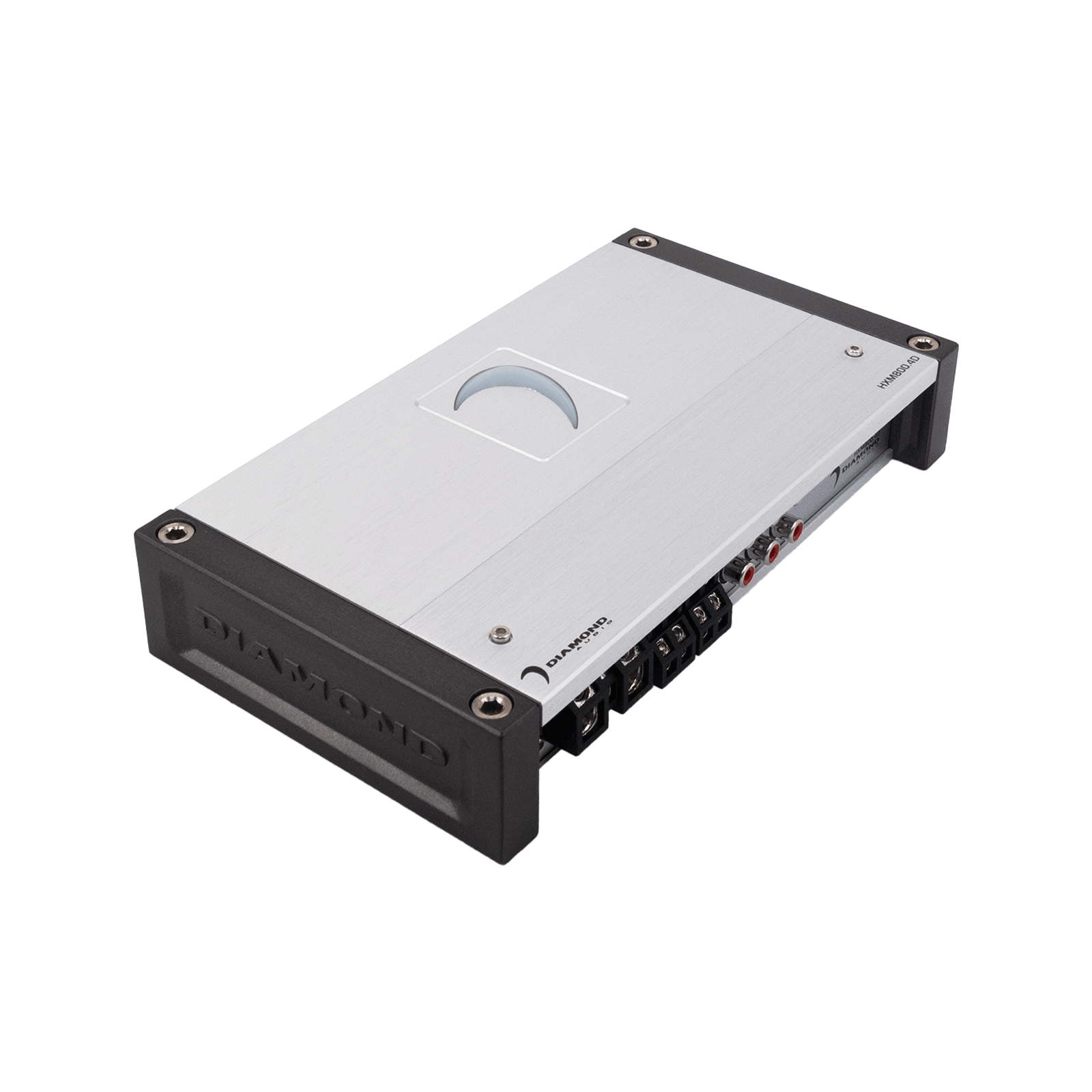

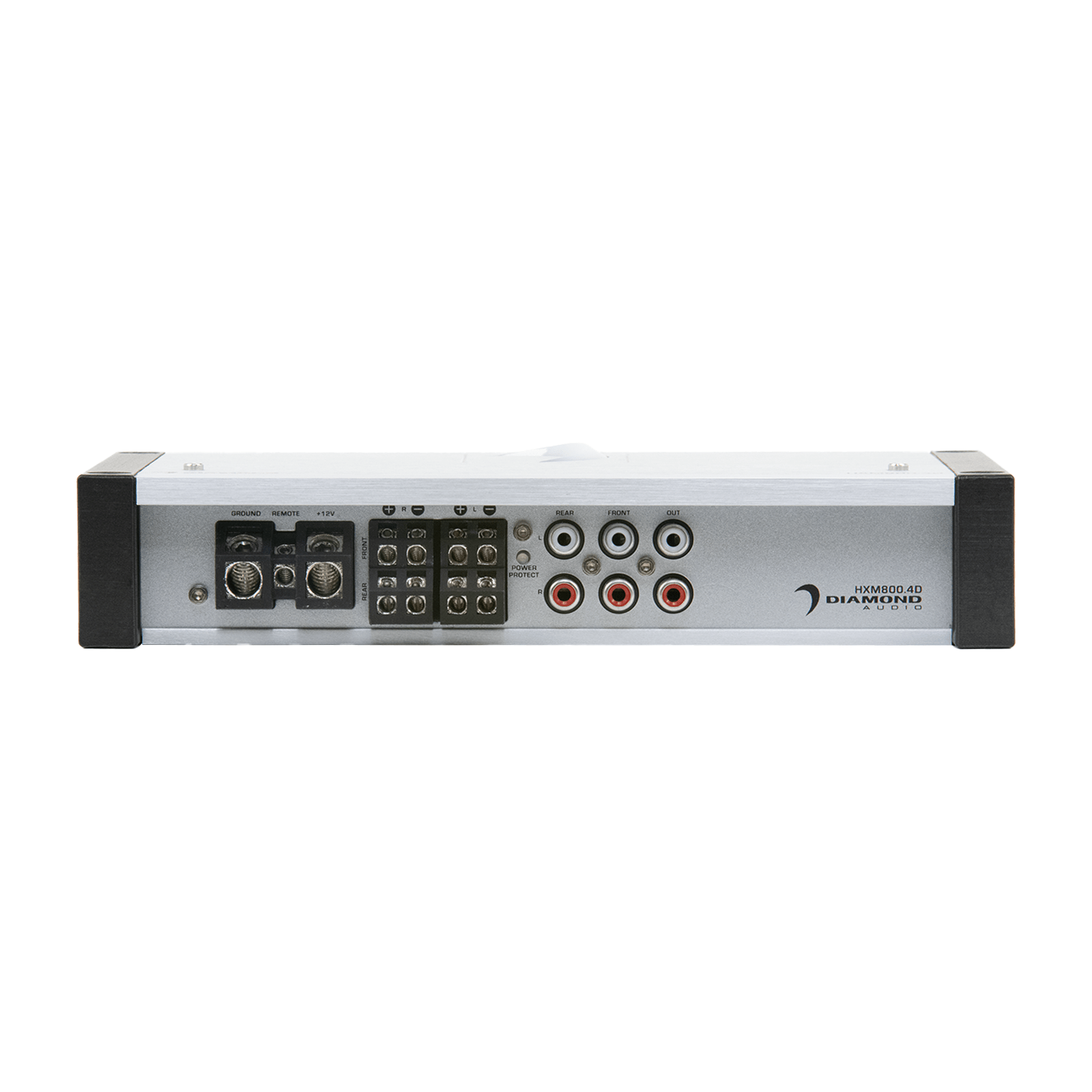

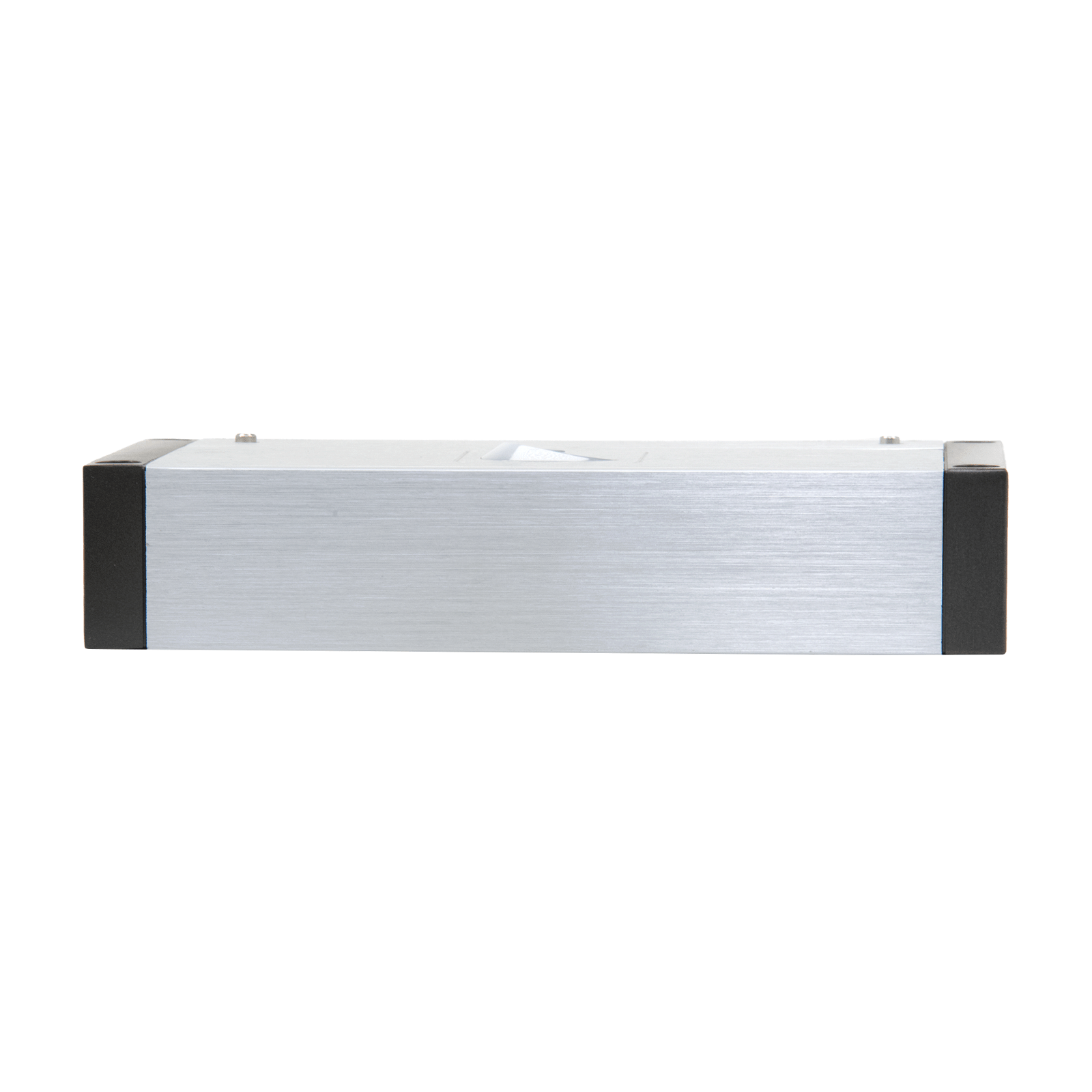

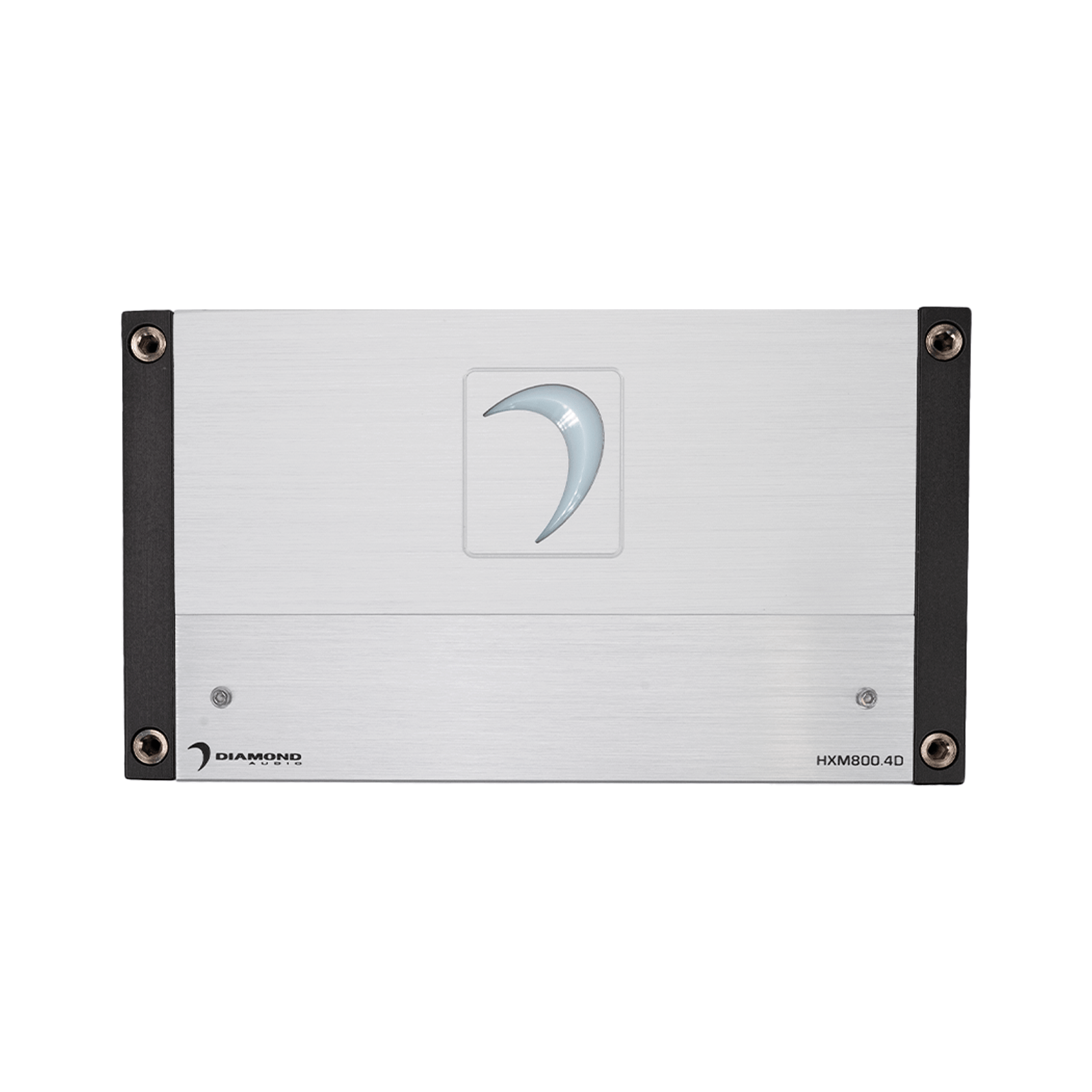

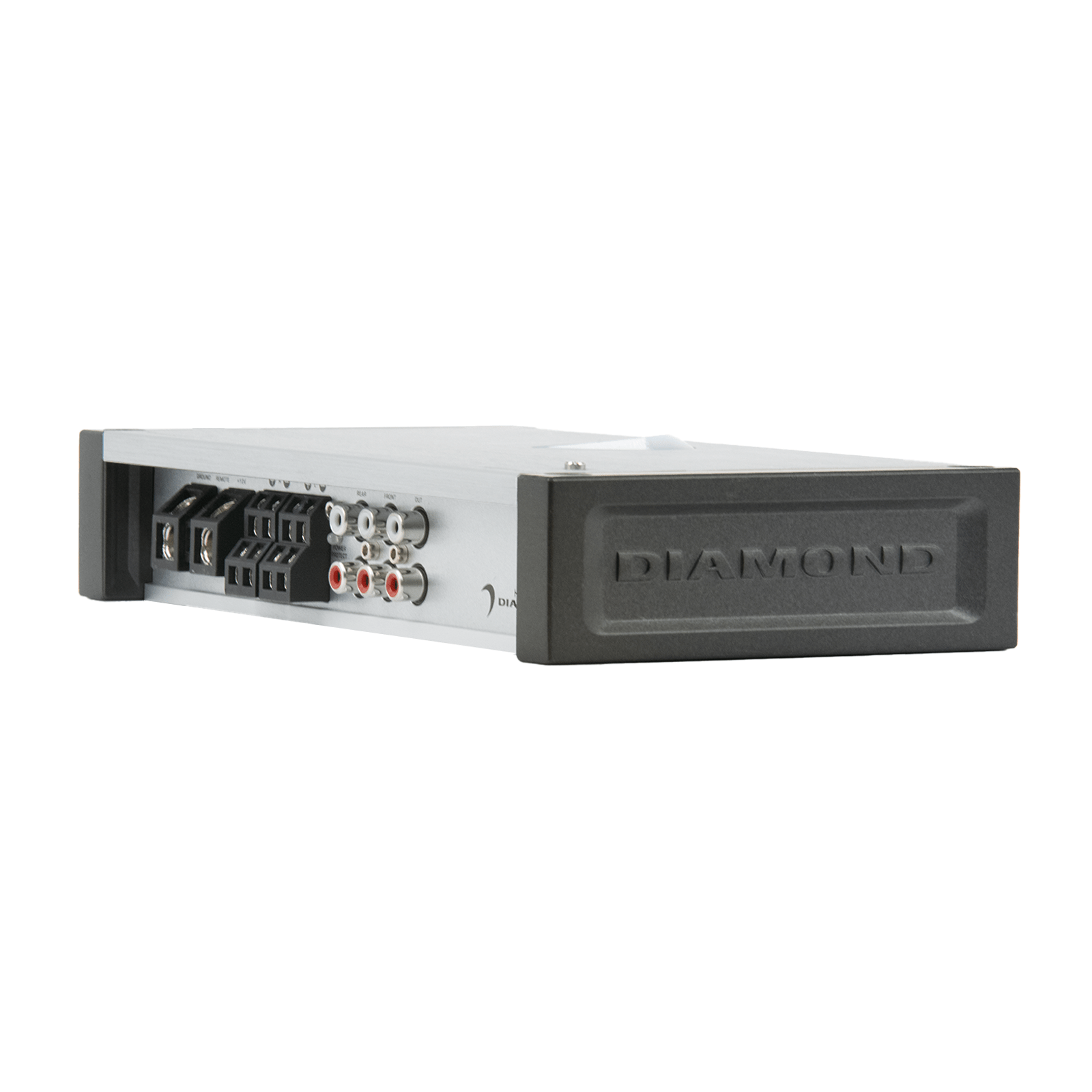

HXM800.4D - HXM Series 4-Channel Full Range Class D Amplifier

Introducing the MOTORSPORT Series Amplifiers from Diamond Audio - designed to deliver exceptional sound quality while enduring the toughest outdoor elements. Engineered with superior full-range Class D Digital Technology, these amplifiers generate impressive RMS power within a compact footprint.

Perfect for boats, UTVs, motorcycles, or any mobile audio application, MOTORSPORT amplifiers bring the renowned Diamond Audio listening experience to outdoor settings. Their water-resistant construction and conformal-coated multi-layer circuit boards ensure reliability in marine applications and harsh environments.

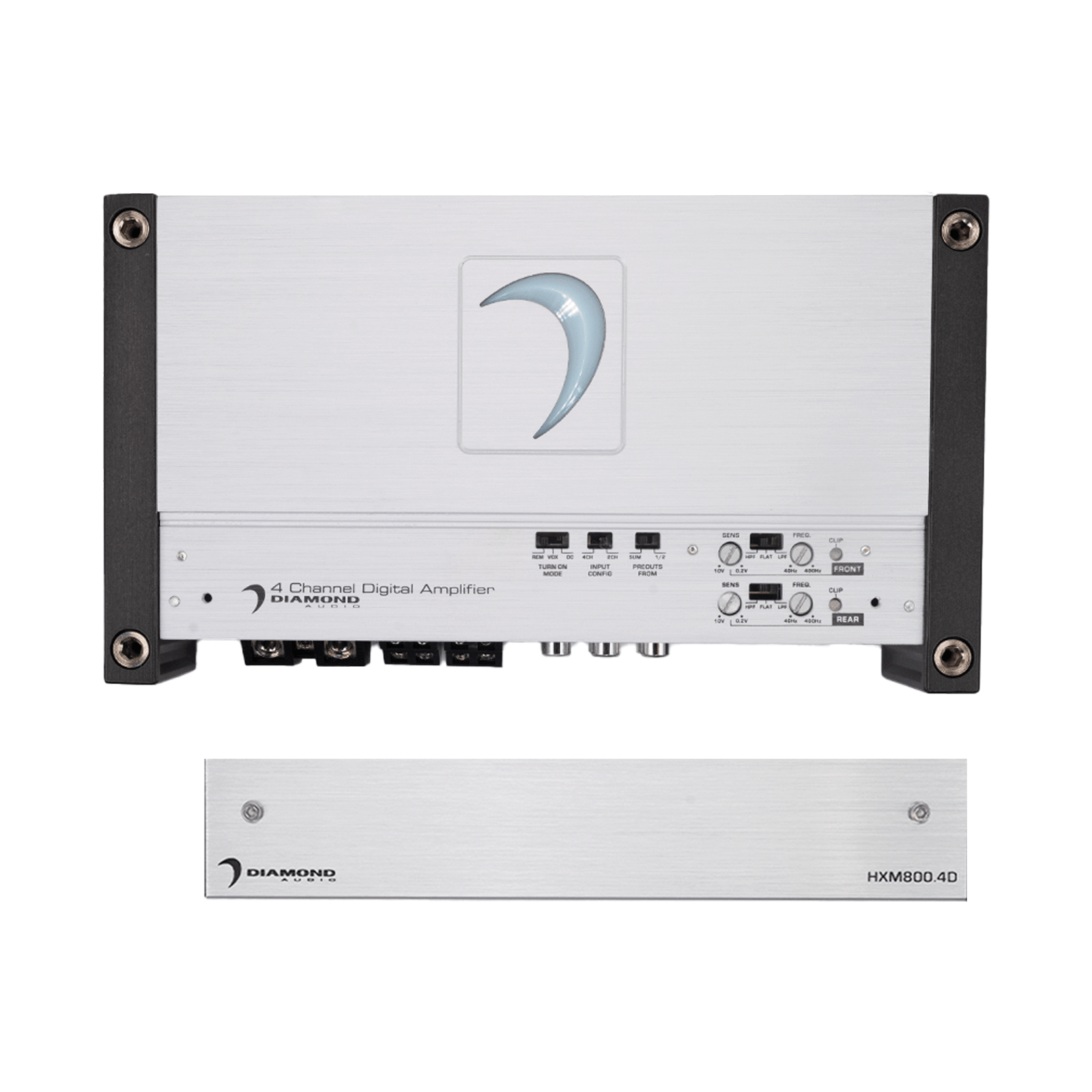

Enjoy noise-free operation with balanced differential inputs, and benefit from full-range digital Class D technology with DirectFET power MOSFET output stage. The 12dB per octave adjustable crossovers and phase control allow for precise system tuning, while top-mounted controls provide convenient adjustment.

Simplifying installation, the selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit. When quality, precision, and performance are essential, look no further than the MOTORSPORT Series Amplifiers from Diamond Audio. Upgrade your outdoor audio system today and experience unparalleled sound and durability.

Features

Specifications

RMS Power (2 ohm ): 200W X 4
RMS Power (4 ohm ): 120W X 4
Bridged (Mono 1 ohm ): N/A
Bridged (Mono 2 ohm ): N/A
Bridged (Mono 4 ohm ): 400W X 2 (4 ohm  ONLY)
Power Supply: Full PWM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
THD 4 (1KHz @4 ohm ): 0.05%
S/N Ratio (A weighted @1W): -77.4dBA
S/N Ratio (A weighted @FP): -97.4dBA
Low Input Level: 0.2mV-10.0V
High Input Level: Up to 25W RMS
Low Input Level: 22K ohm
High Input Level: N/A
Output Impedance: 0.047 ohm
Damping Factor (50Hz @ 4 ohm ): >250
Bandwidth (-3dB): 10Hz-35KHz
Variable High-Pass: 40Hz-400Hz
Variable Low-Pass: 40Hz-400Hz
Variable Sub-Sonic: N/A
ATC: 40A
L x W x H: 9.3" x 5.27 x 1.75 (234mm x 133.9mm x 44.5mm)
