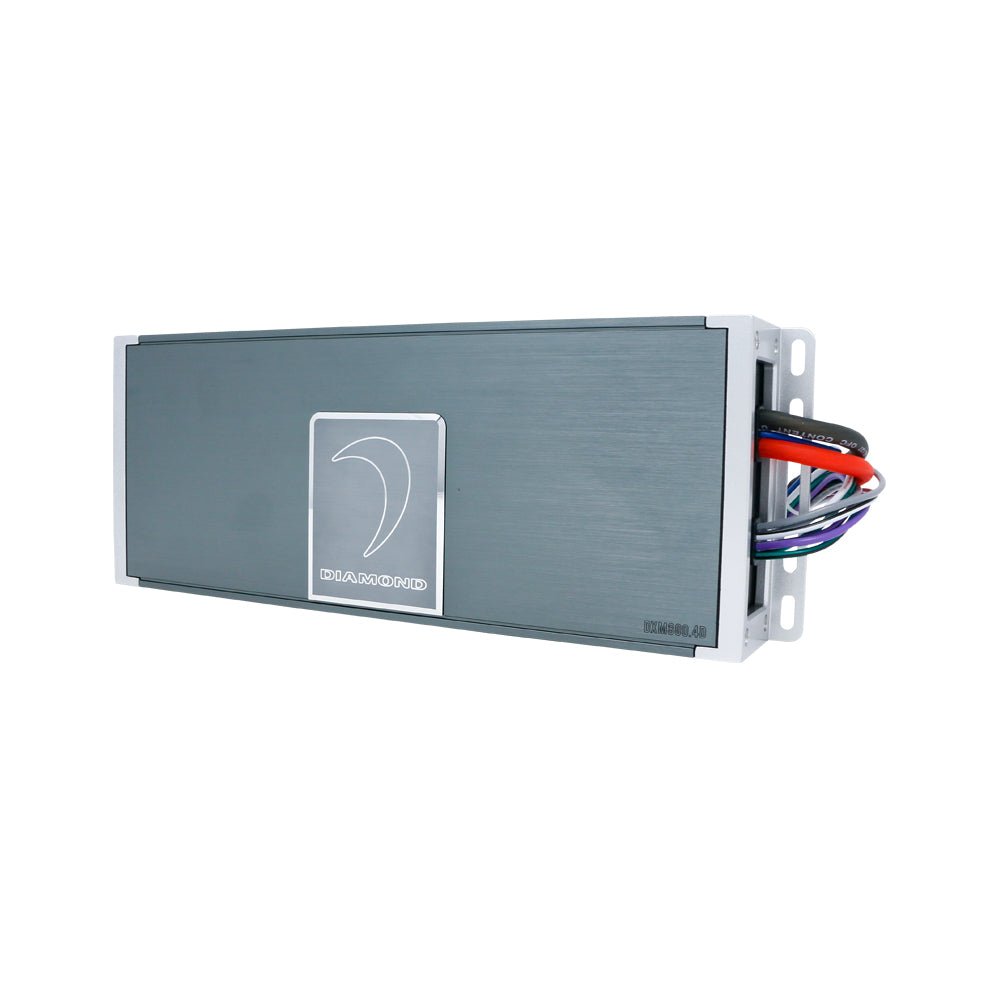

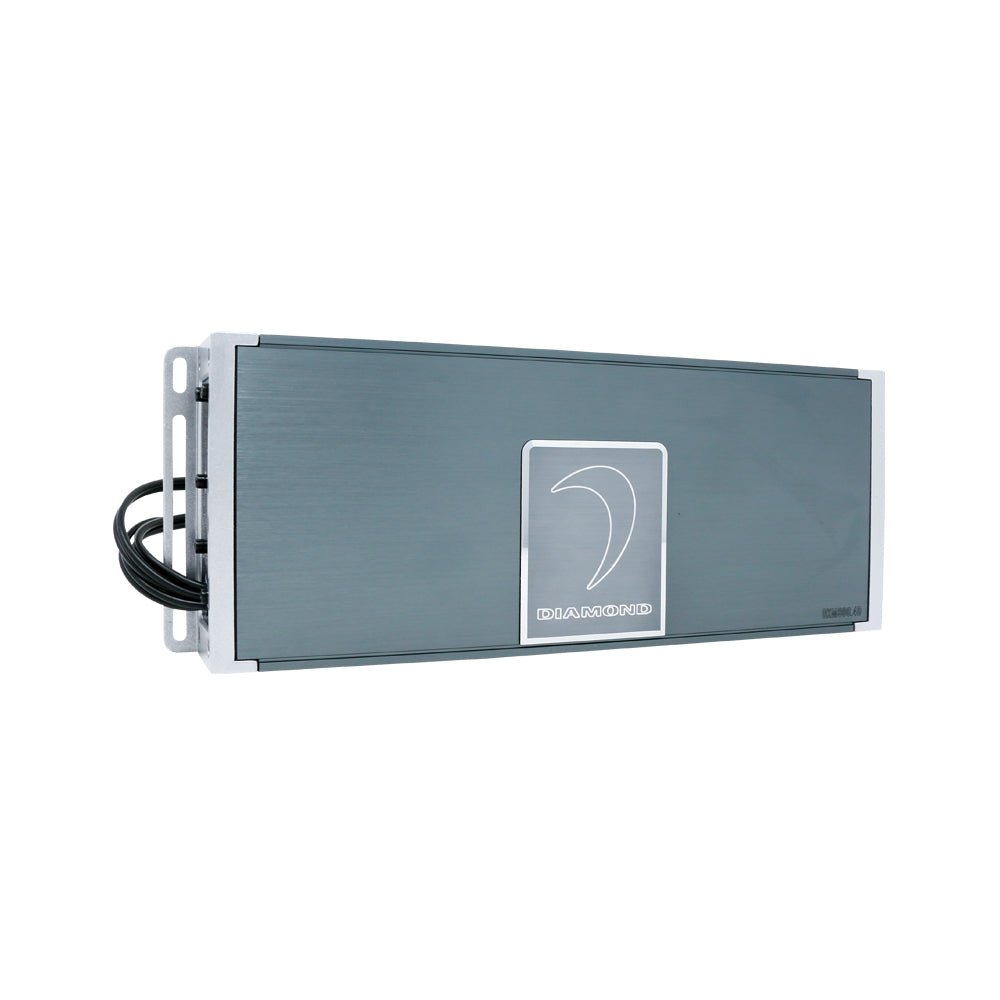

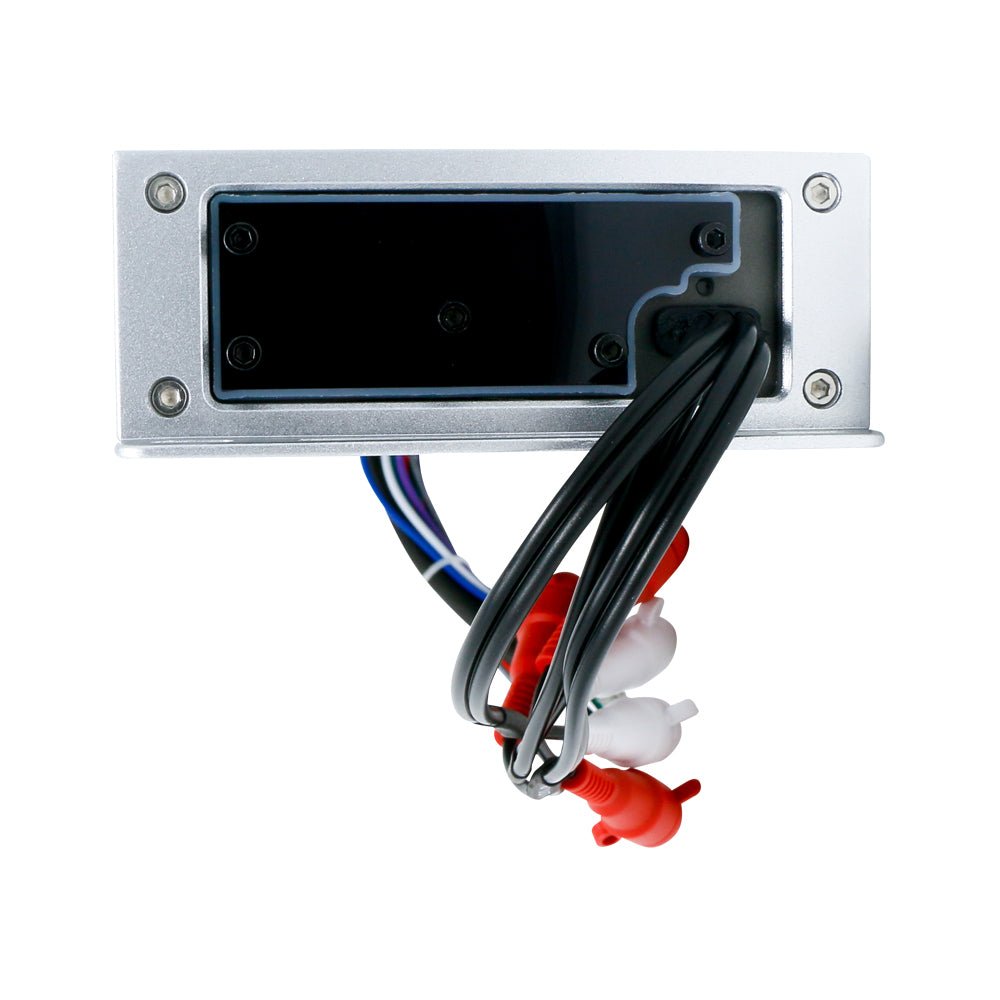

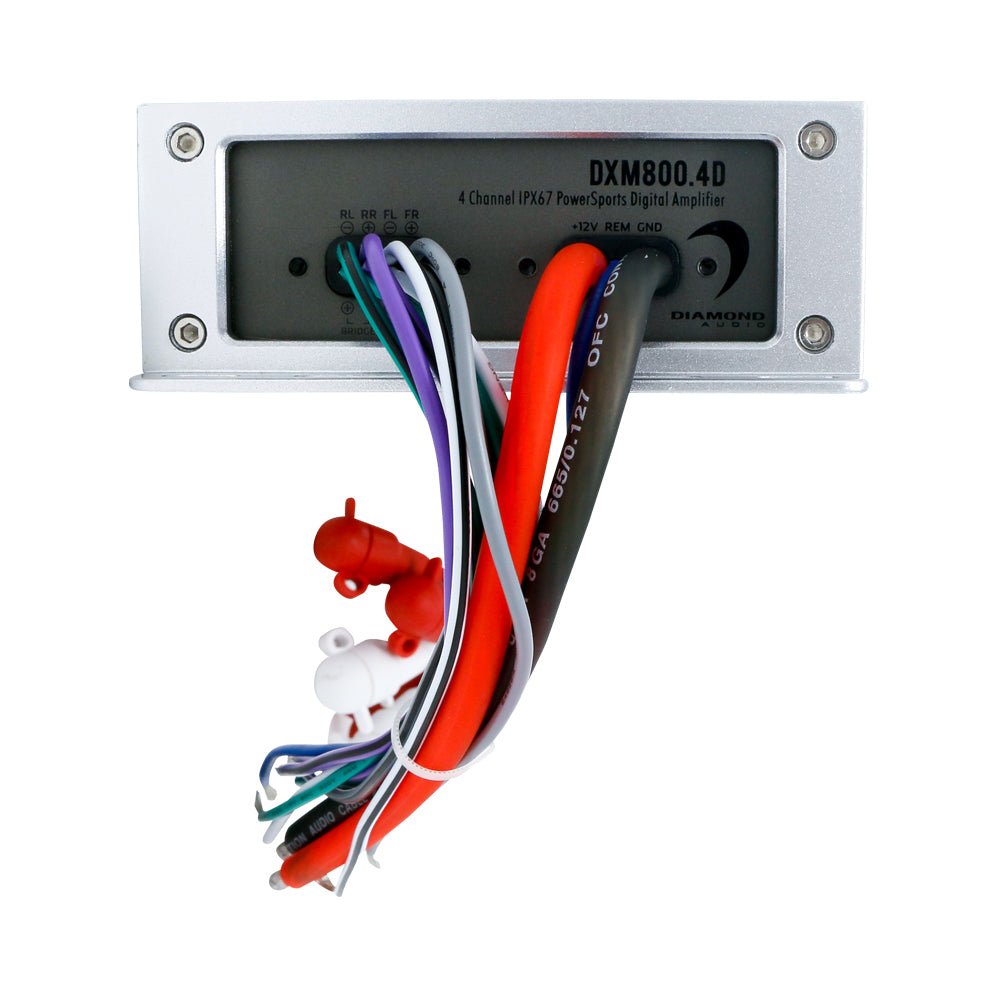

DXM800.4D - DXM Series 4-Channel Full Range Class D Waterproof Amplifier

Introducing our high-end marine amplifiers, meticulously designed for motorcycles, boats, ATVs, automobiles, and off-road vehicles. These amplifiers are exceptionally powerful and extremely reliable, engineered to deliver outstanding performance in the most demanding environments.

Built with IPX67-rated waterproof multi-layer circuit boards, these amplifiers are perfect for marine applications, ensuring durability and longevity. Enjoy noise-free operation with balanced differential inputs, and experience superior sound quality with full-range digital Class D technology and Direct FET power MOSFET output stage.

Fine-tune your audio system with 12dB per octave adjustable crossovers and phase control, providing precise system tuning. The selectable 3-option Auto Turn-On Mode circuit is designed to work seamlessly with any OEM head unit, simplifying installation and enhancing versatility.

Upgrade your audio experience with our high-end marine amplifiers. Whether you're on the water, off-road, or cruising the highway, these amplifiers deliver the power, reliability, and sound quality you demand. Embrace the ultimate in audio performance and rugged durability today.

Features

Specifications

Ratings:
Power @ 2 ohm : 200W RMS x 4
Power @ 4 ohm : 125W RMS x 4
Power @ 4 ohm  Bridged: 400W RMS x 2CH
Total Harmonic Distortion: <0.3%
S/N Ratio (1W@4 ohm ): >-102dB
Gain Range: 0.2v-10v
Crossover Range: 40Hz-400Hz
Frequency Range: 10Hz-33KHz
Current Draw Full Power (Music): 93A (9.3A) AVG
Fuse Rating: 45A
Dimensions: 11.8"x4.3"x1.7" (298.6mm x 110mm x 44.0mm)
Selectable X-Over: LPF/FULL/HPF
Selectable Input Modes: 2CH/4CH
