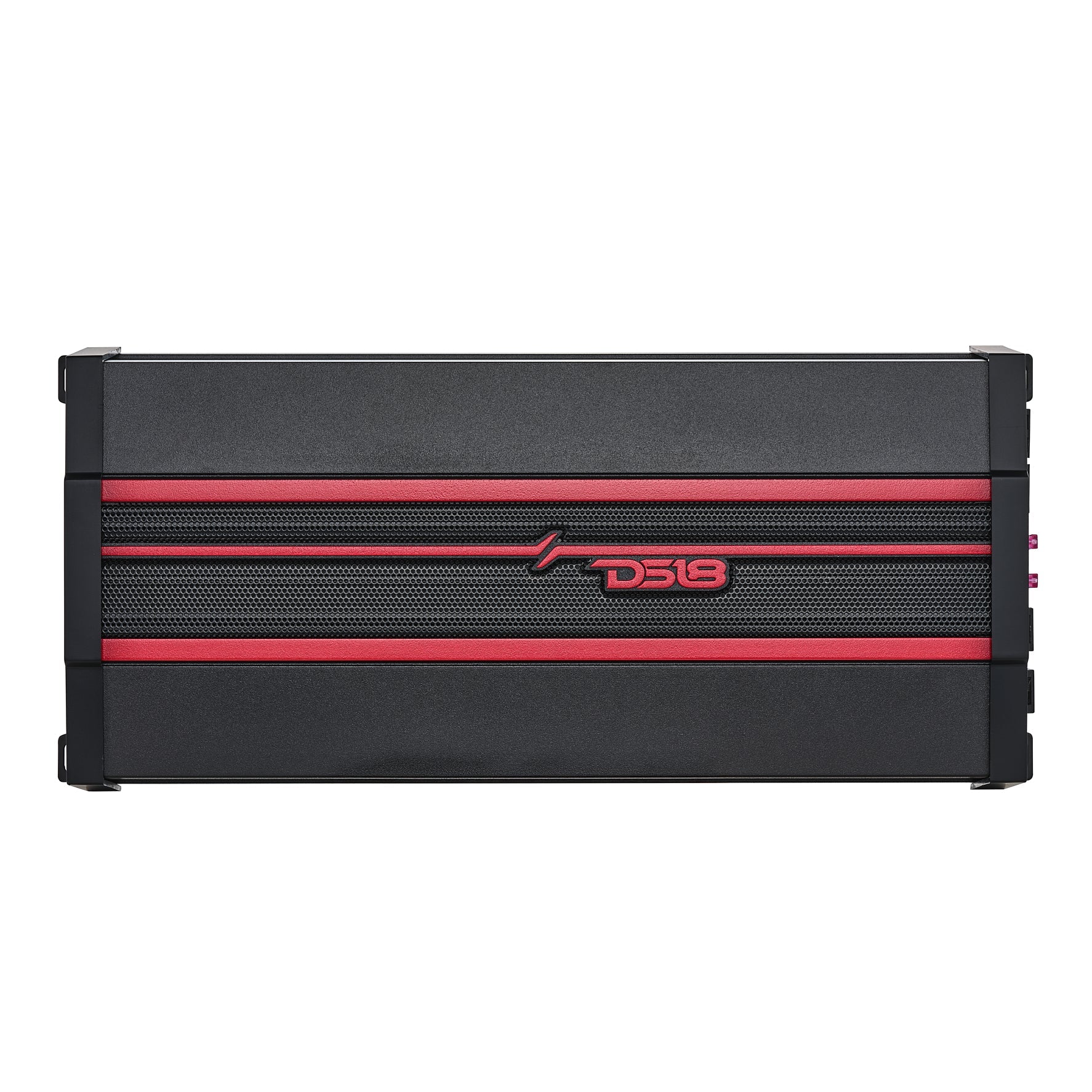

CANDY Compact Full-Range Class D 4-Channel Amplifier 3200 Watts
Product Overview Digital 4-Channel Amplifier DS18’s CANDY-XXL4B is a 4-channel digital amplifier engineered for massive volume, clean...
- $299.95
- $299.95
- Unit price
- per
Subtotal:
$299.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
Digital 4-Channel Amplifier
DS18’s CANDY-XXL4B is a 4-channel digital amplifier engineered for massive volume, clean signal, and pro-level tuning — all in a compact 13” footprint that hits hard and runs cool.
Extreme Output Without the Bulk
The CANDY-XXL4B delivers 3200W peak resulting in clean RMS output across all channels at: 4 x 220W @ 4Ω, 4 x 400W RMS @ 2Ω, and 2 x 750W @ 4Ω Bridged!
Bridge It. Boost It. Tune It.

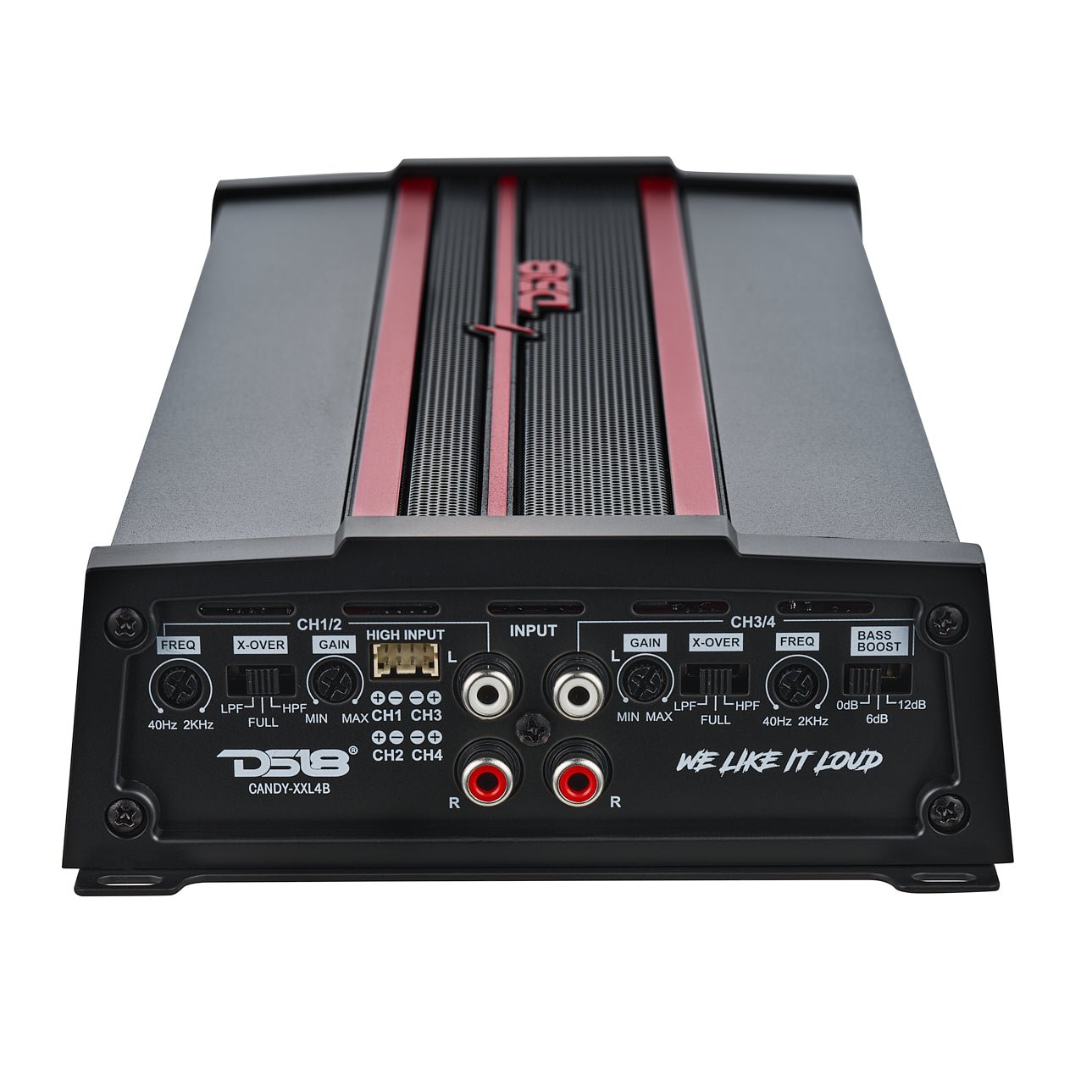

Fine-tune your system with adjustable crossovers (40Hz–2kHz) and selectable bass boost (0/6/12dB).
OEM-Ready with Pro Installer Features
Drop it in fast with Hi-Level Inputs and Auto Turn-On — perfect for factory system upgrades. This means easy installs in tight spaces, stealth builds, or even powersports applications.
Built to Last.

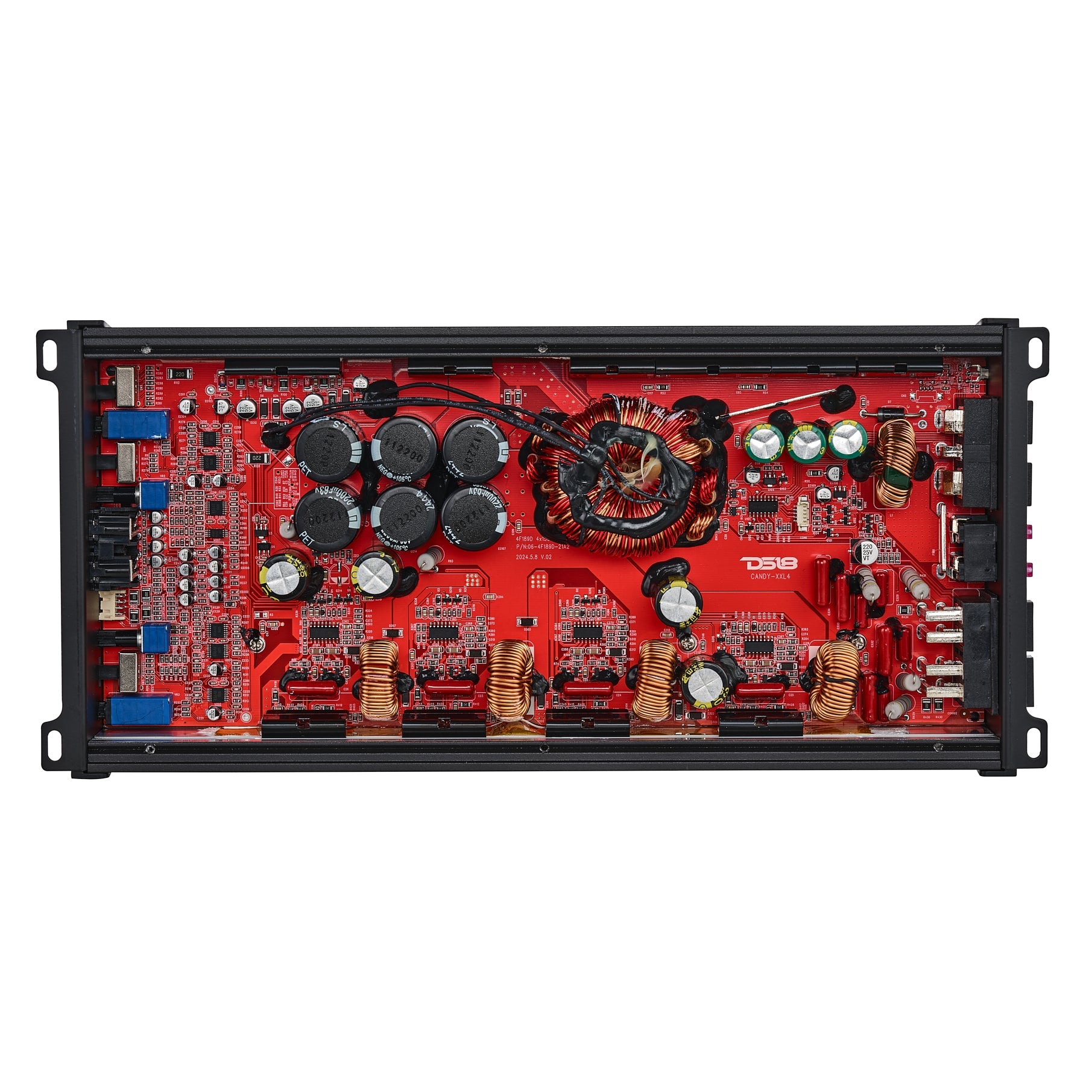

A high-efficiency Class D design, dual 50A fuses, and full thermal, overload, and short protection make the CANDY-XXL4B ready for anything your system throws at it.
Choose the CANDY-XXL4B when you're ready for harder, cleaner, and LOUDER sound!
Key Features
- 4 Channel
- Stereo Full Range
- 2 ohm St/4 ohm Bridge
- Class D
- Compact Design
- Hi-Level Input With Auto Turn-On
Specifications
| SKU | CANDY-XXL4B |
|---|---|
| Total Watts (Peak) | 3200W |
| RMS Power @ 4 Ohm | 220W x 4 |
| RMS Power @ 2 Ohm | 400W x 4 |
| RMS Power @ 4 Ohm Bridge | 750W x 2 |
| Frequency Response | 20Hz~20KHz |
| Signal to Noise Ratio | 70dB |
| Efficiency @ 4ohm | >75% |
| Damping Factor | 26 |
| Input Impedance | 10K ohm |
| Channel Separation | 50dB |
| Total Harmonic Distortion (THD) | 0.50% |
| Low Level Input Range | 0.2~6V |
| High Level Input | Yes, 2~10V |
| Selectable X-Over | LPF/FULL/HPF |
| X-Over Filter Range | 40Hz~2kHz |
| Bass Boost Range | 0/6/12dB |
| Bass Boost Frequency | 50Hz |
| Infrasonic Filter | No |
| Phase Selector | No |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 4 |
| Minimum Impedance | 2 ohm St / 4 ohm Bridge |
| Led Indicator | Power / Protection |

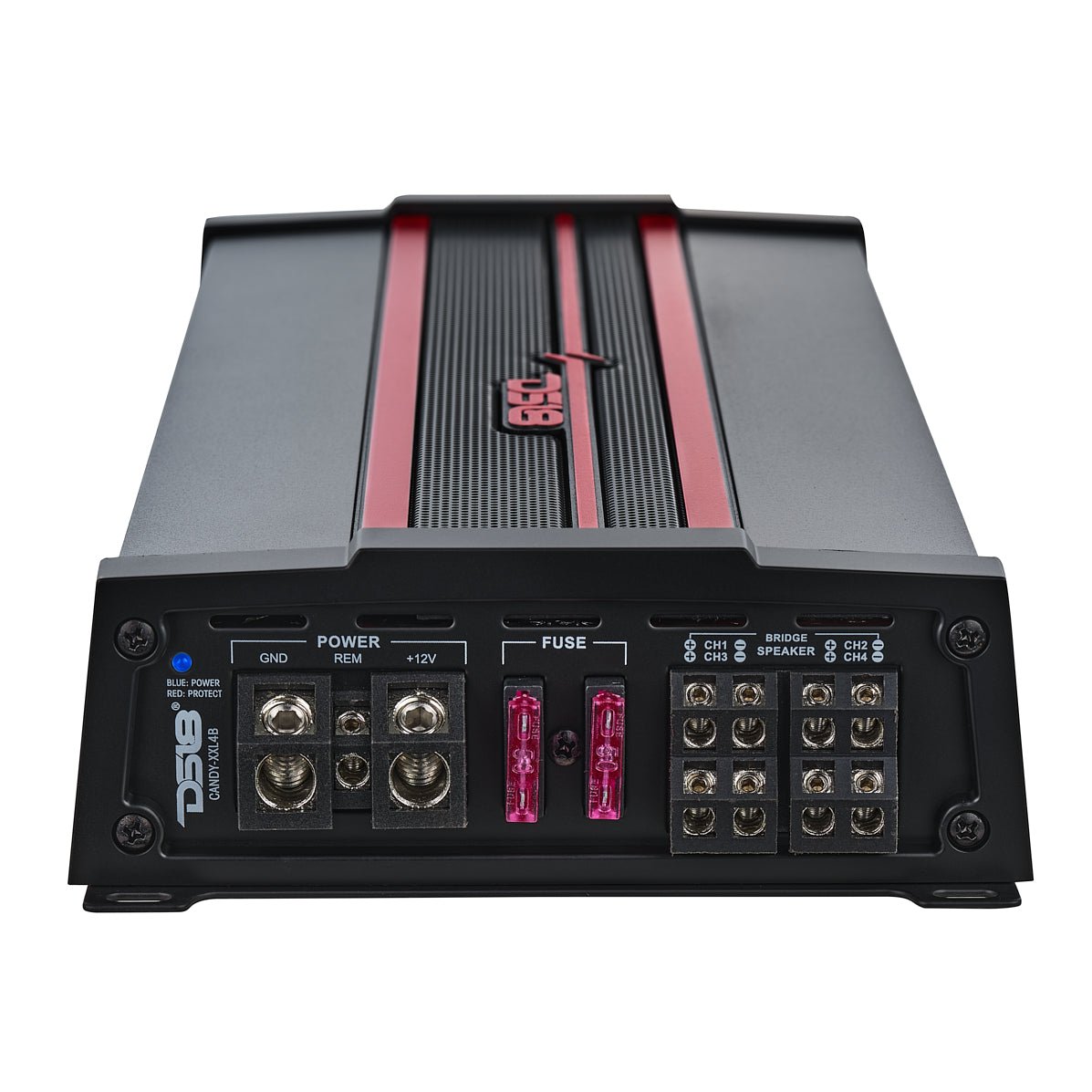

| Power Input Terminal Size | 4Ga |
| Fuse Size | 50A x 2 |
| Remote Level Control | No |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes (>158F) |
| Over-Load Protection | Yes |
| DC Output Protection | No |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (9-16v) |
| Clipping Protection | No |
| Body Color / Finish | Matte Black |
| Hi-Level Input With Auto Turn-On | Yes |
| Input Selector | No |
| Compact Size to easy Installation for Any Applications | Yes |
| Surface Mount Component Technology | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |
| Overall Length | 13" / 330mm |
| Overall Width | 5.9" / 150mm |
| Overall Height | 2.16" / 55mm |
| Heatsink Length | 11.8" / 300mm |
| Gross Single Unit Weight | 2.8Kg |
