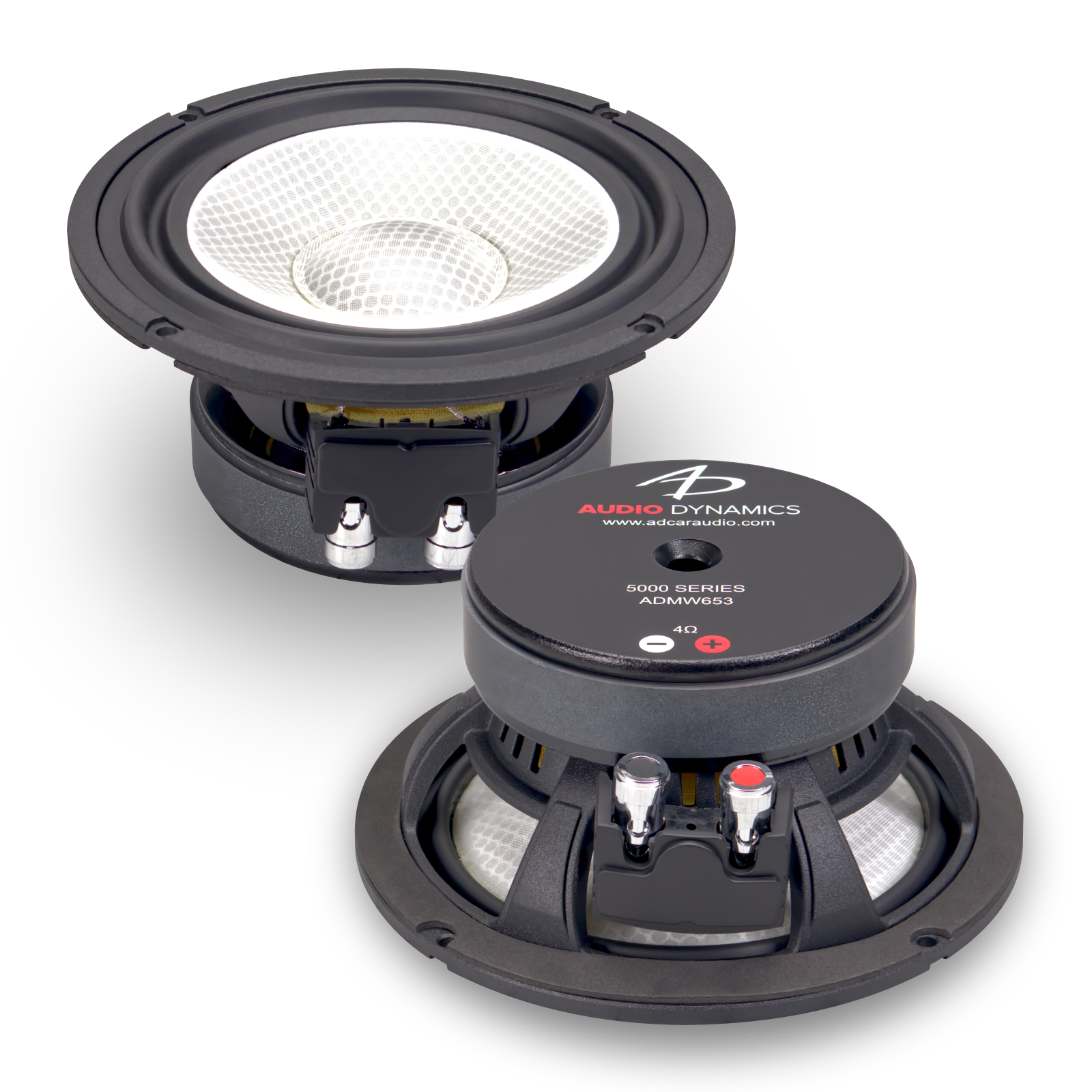

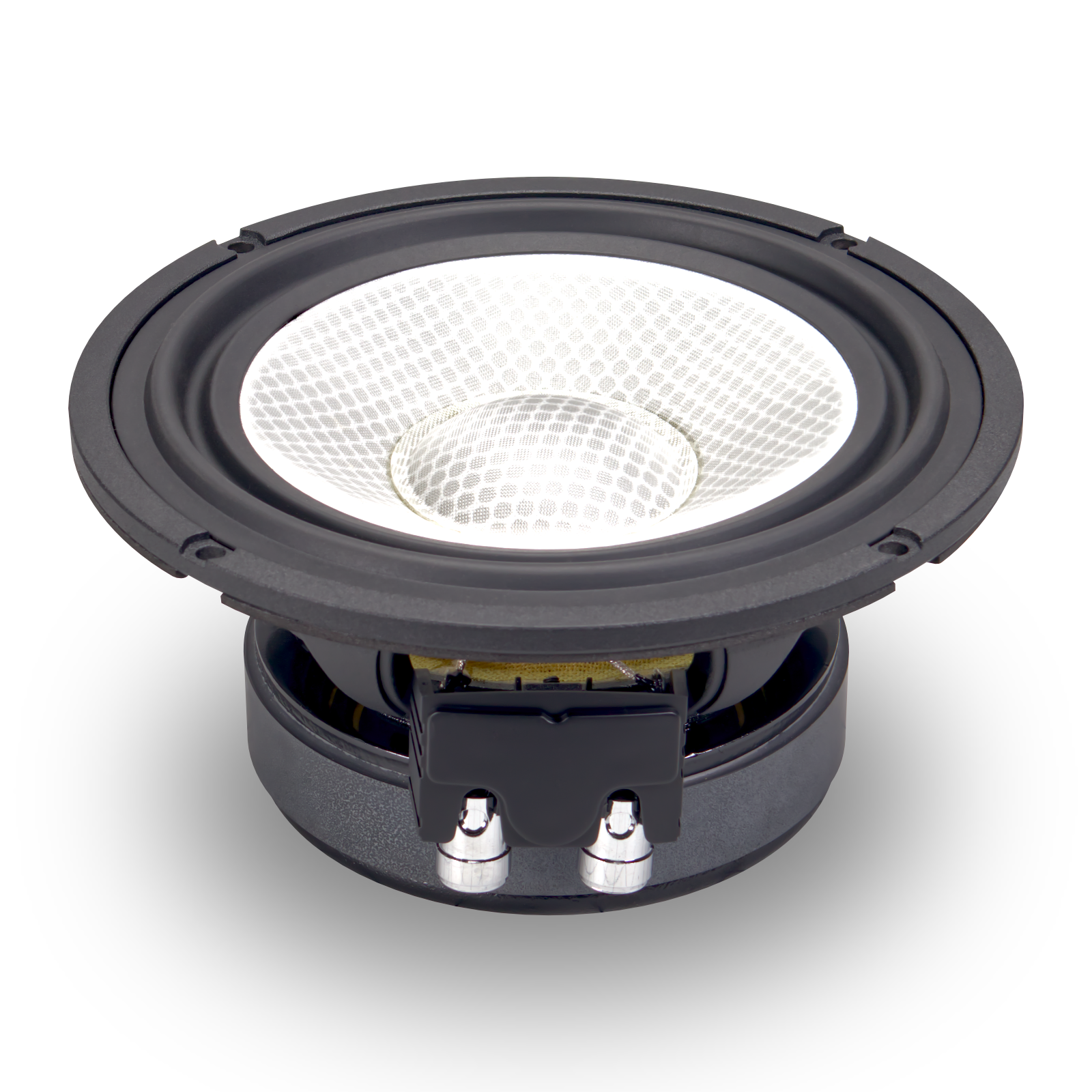

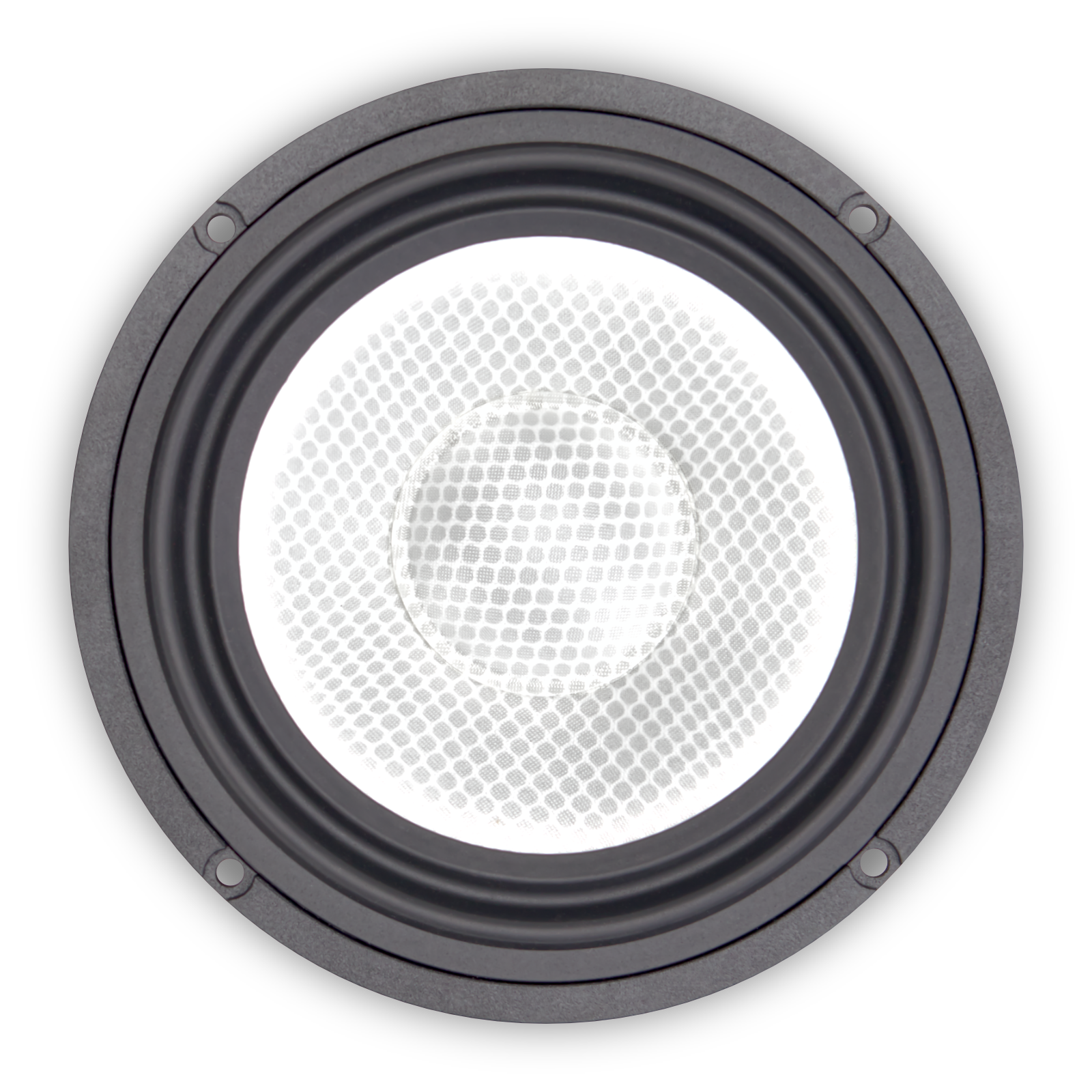

5000 Series 6.5" Mid Woofer - MW653
In Store Pick Up OnlyHighlights Cotton cloth and glass fiber composite honeycomb cone 6 ½" (166 mm)...
- $599.00
- $599.00
- Unit price
- per
Subtotal:
$599.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- Cotton cloth and glass fiber composite honeycomb cone
- 6 ½" (166 mm) Cast frame mid/woofer
- Rubber S roll surround for extreme excursion capability
- 1 3/8" (35 mm) voice coil
- +/- 4mm of one-way linear excursion
- Large gauge push pin terminals
- Shorting ring for extended response
- 200 Watts RMS power handling*
* All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 70Hz at 24dB/Octave, 80Hz at 18dB/Octave, or 100Hz at 12dB/Octave.
Description
Description
Audio Dynamics speakers were designed to reproduce music with ultimate accuracy.
We've spent countless hours testing different cone materials that could stay rigid during extreme excursion and allow the speaker to maintain efficiency and incredible sound quality. Ultimately, we chose a cotton cloth and glass fiber composite honeycomb cone. We also incorporated our new S roll surround, shorting ring, and 35mm voice coil. This speaker handles extreme power and delivers dynamic and effortless mid bass.
Fs 63.420 Hz Qms 2.530 Vas 10.760 l Cms 0.453 mm/N Mms 13.740 g Rms 2.188 kg/s Dia 128.300 mm Sd 129.284 cm² Qes 0.520 Re 3.376 ohm Le 0.127 mH Z 4.051 ohm Bl 5.962 Tm Bl²/Re 10.529 N²/W Qts 0.431 no 0.509 % SPL 89.214 dB
Frame Outer Diameter 6 1/2" (166mm) Grille Outer Diameter 7 3/16" (182mm) Motor Outer Diameter 3 15/16" (100mm) Grille Protrusion 15/16" (23mm) Mounting Hole Diameter 5 5/8" (142mm) Mounting Depth 2 7/8" (73mm)
