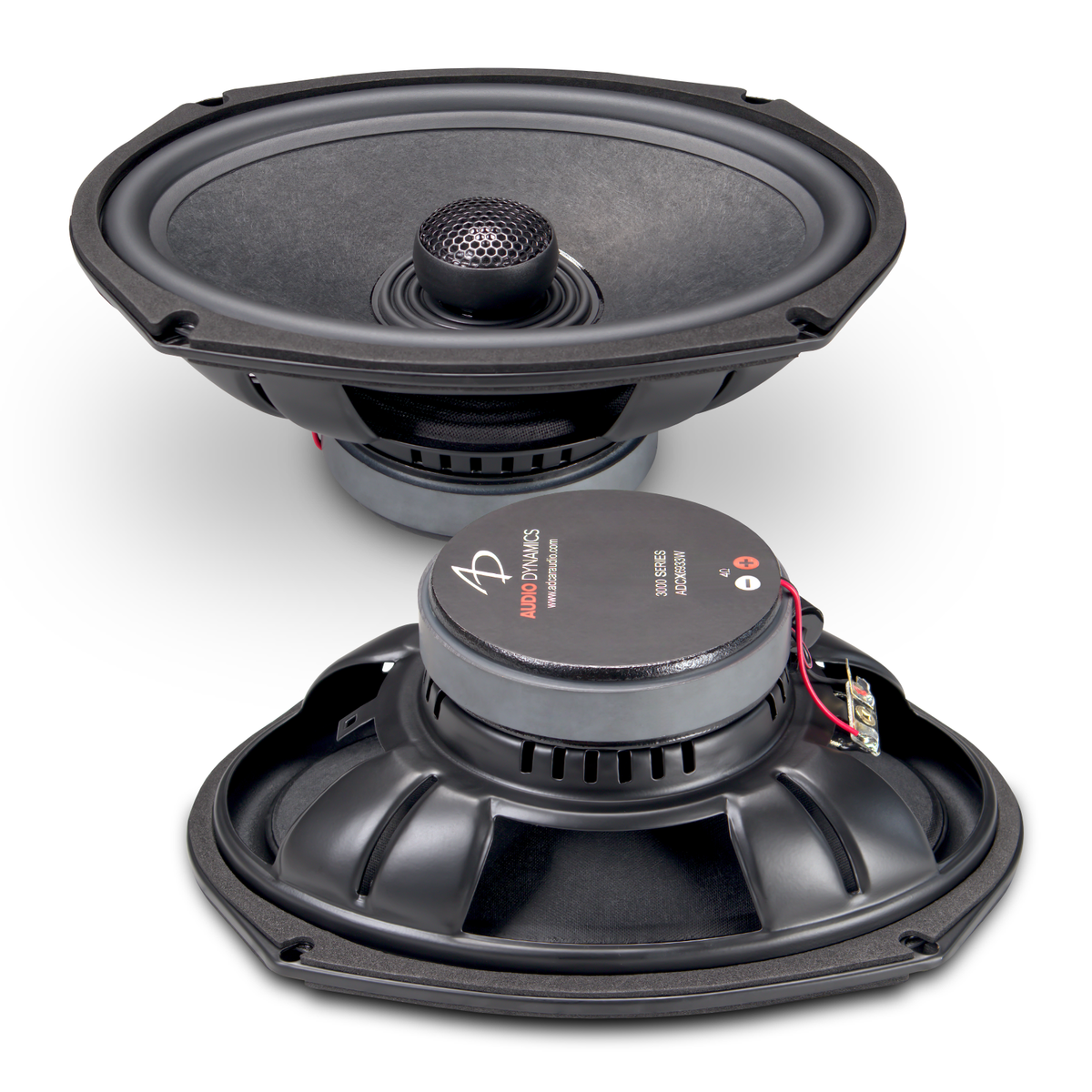

3000 Series 6"x 9" - CX6933W

Highlights

• 6" x 9" 2-way Coaxial
• Perfectly blended wool pulp cone midrange for realistic tonal accuracy
• Thick steel frame
• Rubber surround
• Sealed voice coil to cone gap protects against water and dirt
• Gold plated terminals
• 1.18" (30mm) voice coil midrange
• 1" (25mm) silk dome tweeter
• 4 ohm nominal impedance
• 125 Watts RMS power handling*

All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 60Hz at 24dB/Octave, 80Hz at 18dB/Octave, or 100Hz at 12dB/Octave.

Description

Description

Audio Dynamics speakers were designed to reproduce music with ultimate accuracy.
We've spent countless listening hours examining the tonal qualities of many different cone materials; from glass fiber, to Kevlar, to carbon fiber and more. Ultimately, we chose a wool pulp cone for its ability to deliver astonishing realism and detailed timbre across the harmonics.
Our 3000 series speakers will pull you into the musical performance and breath new life into your music collection.

WOOFER:                     TWEETER:
Fs  79.470 Hz               Fs  1757.000 HzQms 3.468                   Qms    5.623Vas 13.77 Liters            Qes    2.663Cms 0.215 mm/N             Re     3.432 OhmsMms 18.62 g                 Le     0.2155 mHRms  kg/s                   Z     10.68 OhmsDia  164.80 mm/N            Qts    1.807Sd   mm^2

Qes 1.356
Re  3.362 Ohms
Le  0.4254 mH
Z   11.96 Ohms
BL  4.801 Tm
Bl²/Re  N^2/W

Qts 0.9749
no  0.4858%
SPL 88.97 dB
EBP

Frame Outer Diameter	6 1/2" x 9 1/4"   (164mm x 234.5mm)
Grille Outer Diameter	7 1/4" x 10 3/16" (183mm x 258mm)
Motor Outer Diameter	3 15/16" (99.7mm)
Grille Protrusion	1 1/16"  (27.3mm)
Mounting Depth		3 3/16" (80mm)
