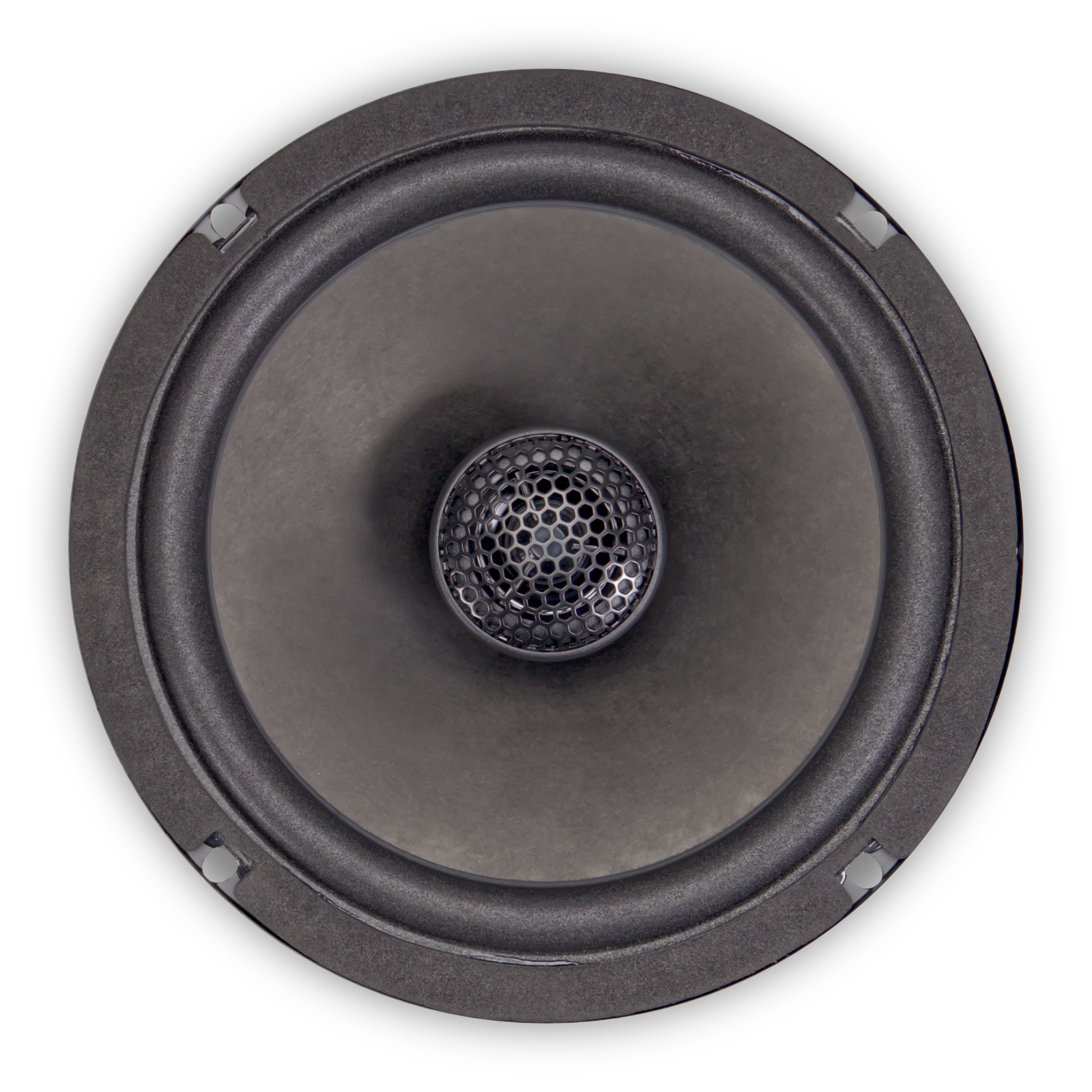

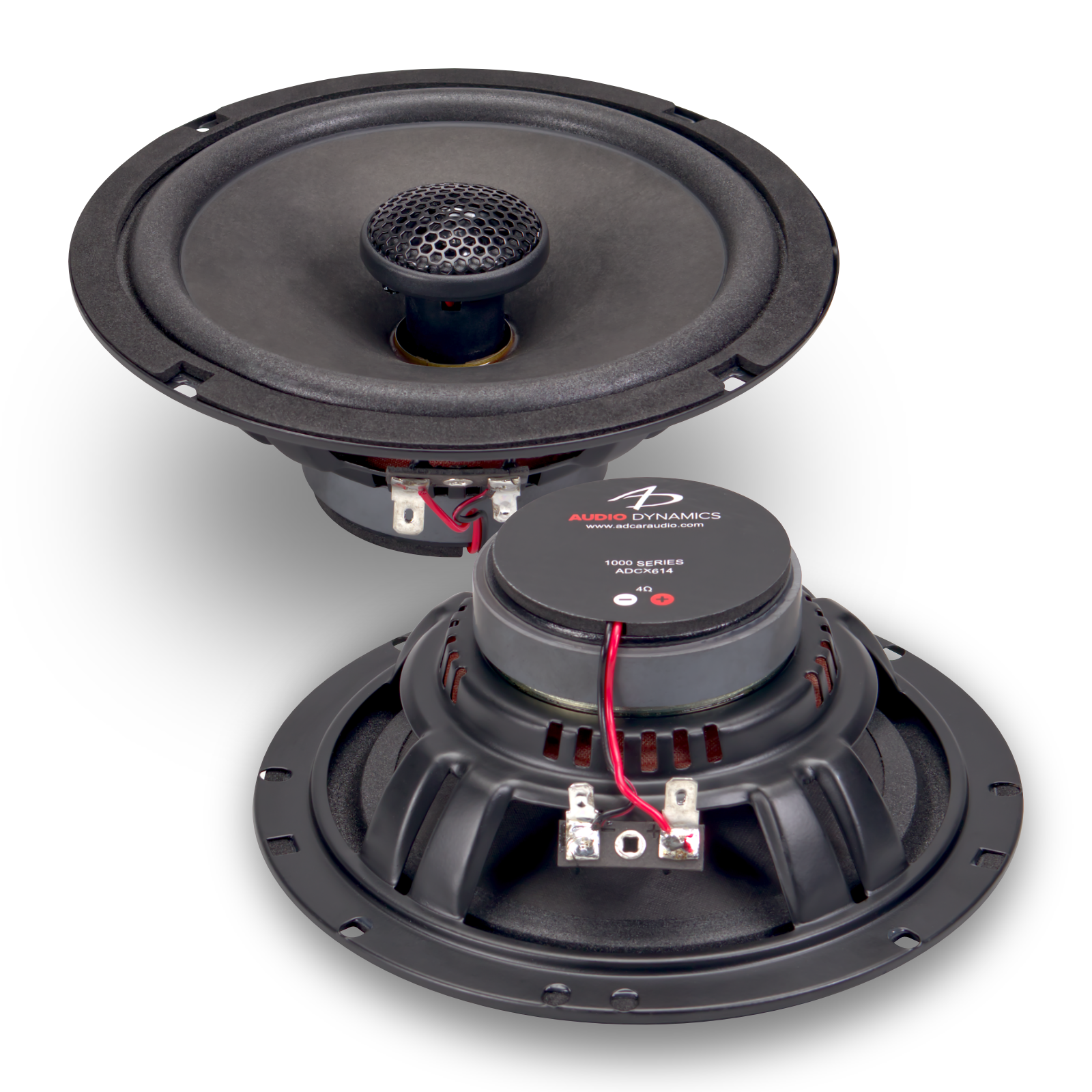

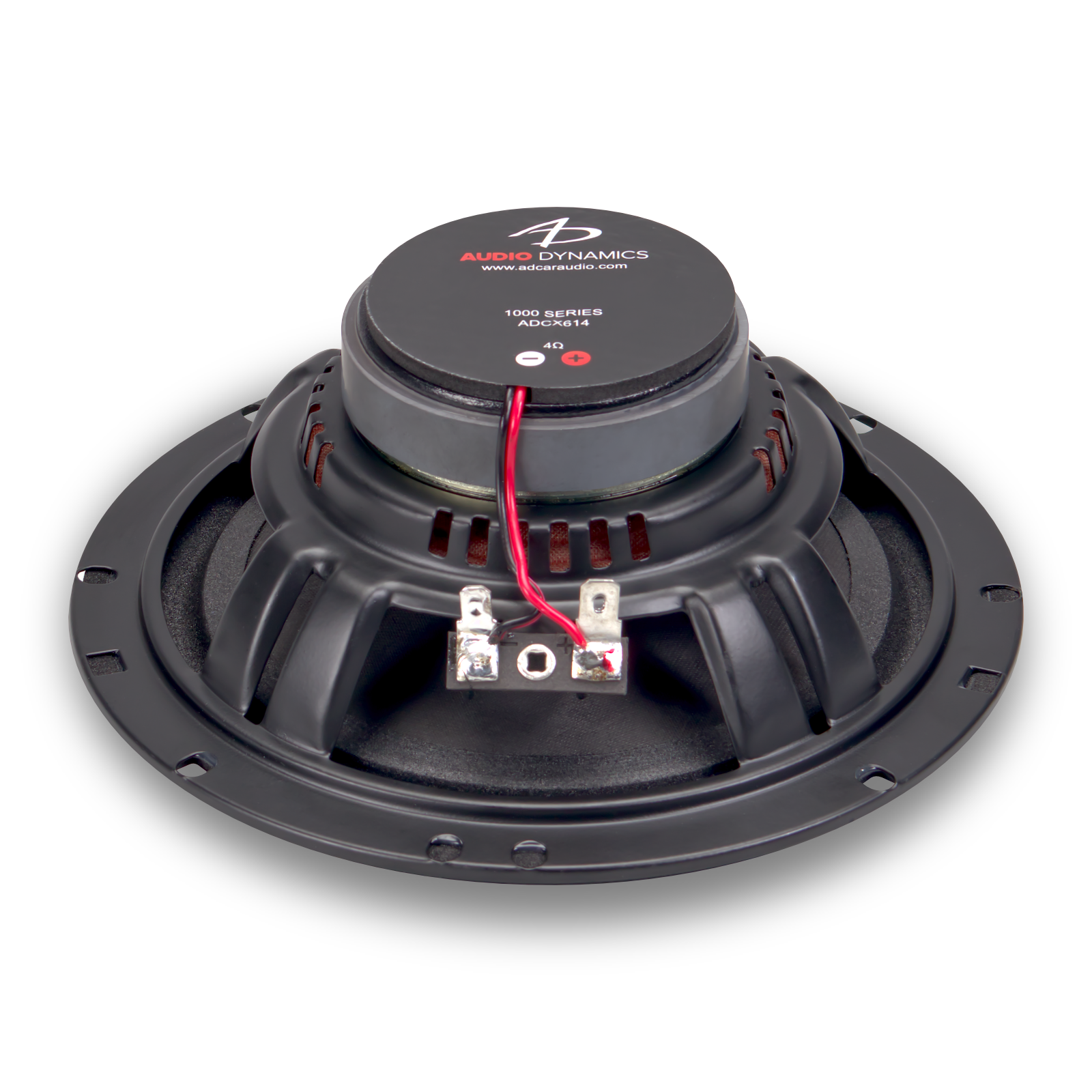

1000 Series 6.5" - CX614
In Store Pick Up OnlyHighlights Coated paper cone 6 ½" (166 mm) Steel frame mid/woofer Lightweight foam...
- $109.00
- $109.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$109.00
Couldn't load pickup availability
Description
xIn Store Pick Up Only
Highlights
- Coated paper cone
- 6 ½" (166 mm) Steel frame mid/woofer
- Lightweight foam surround
- 1" (25 mm) voice coil mid/woofer
- 1/2" (13 mm) polymer film tweeter
- 75 Watts RMS power handling*
- 4 ohm
All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 70Hz at 24dB/Octave, 80Hz at 18dB/Octave, or 100Hz at 12dB/Octave.
Description
Description
Audio Dynamics speakers were designed to reproduce music with ultimate accuracy.
Our goal for this speaker was to produce the best sounding speaker for its affordable price point. Ultimately, we chose a coated paper cone to deliver great tonality and kept the cone and surround lightweight to maintain efficiency. This speaker sounds great and gets loud in low power systems.
Fs 93.230 Hz Qms 6.371 Vas 9.251 l Cms 0.381 mm/N Mms 7.558 g Rms 0.703 kg/s Dia 129.000 mm Sd 130.698 cm² Qes 1.620 Re 3.243 ohm Le 0.054 mH Z 3.892 ohm Bl 2.977 Tm Bl²/Re 2.733 N²/W Qts 1.292 no 0.446 % SPL 88.642 dB
Frame Outer Diameter 6 9/16" (166mm) Grille Outer Diameter 7 3/16" (182mm) Motor Outer Diameter 2 3/4" (70mm) Tweeter Protrusion 1/4" (6mm) Grille Protrusion 7/8" (23mm) Mounting Hole Diameter 5 5/8" (142mm) Mounting Depth 2 1/4" (56mm)
