2000+4000 Series 6"x 9" Set - CS6924PS
In Store Pick Up OnlyHighlights Set consists of 6"x 9" model MW6924, 3" point source model PS343,...
- $699.00
- $699.00
- Unit price
- per
Subtotal:
$699.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights

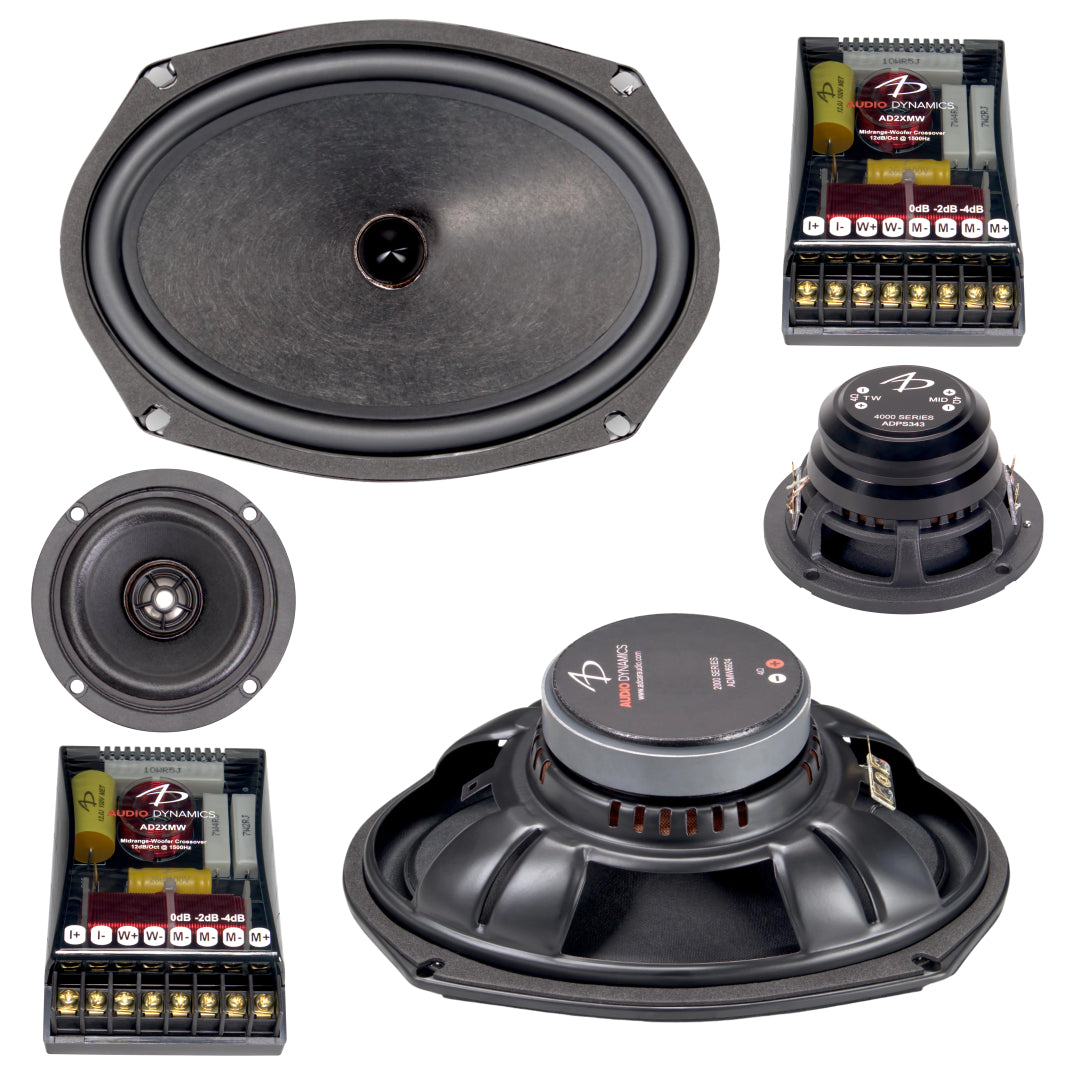

- Set consists of 6"x 9" model MW6924, 3" point source model PS343, and crossover model 2XMW

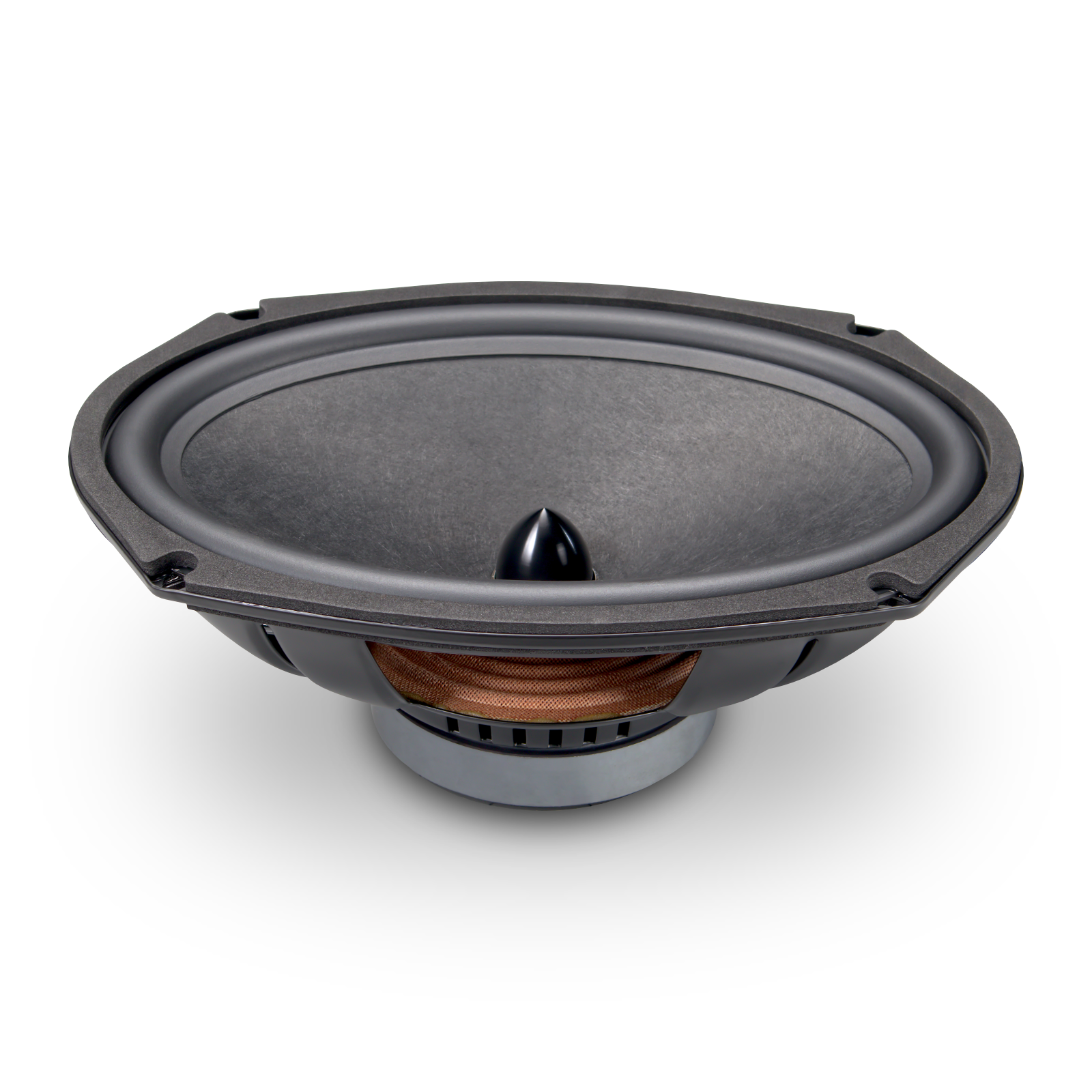

- Perfectly blended wool pulp cone mid/woofer for realistic tonal accuracy

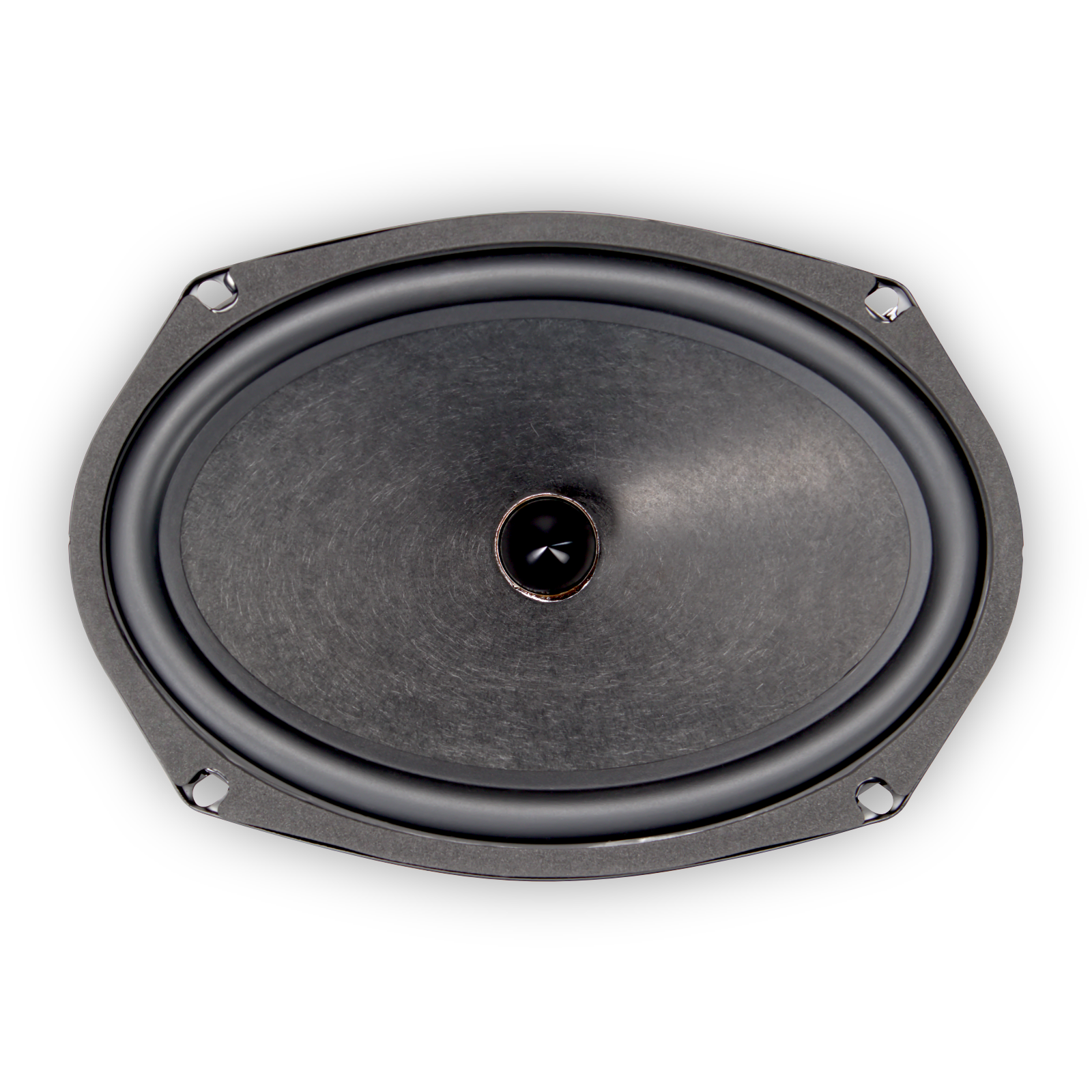

- 6 ½" x 9" (163 mm x 234.5 mm) Thick steel frame mid/woofer
- Rubber Surround
- 1" (25 mm) voice coil mid/woofer
- Gold plated terminals

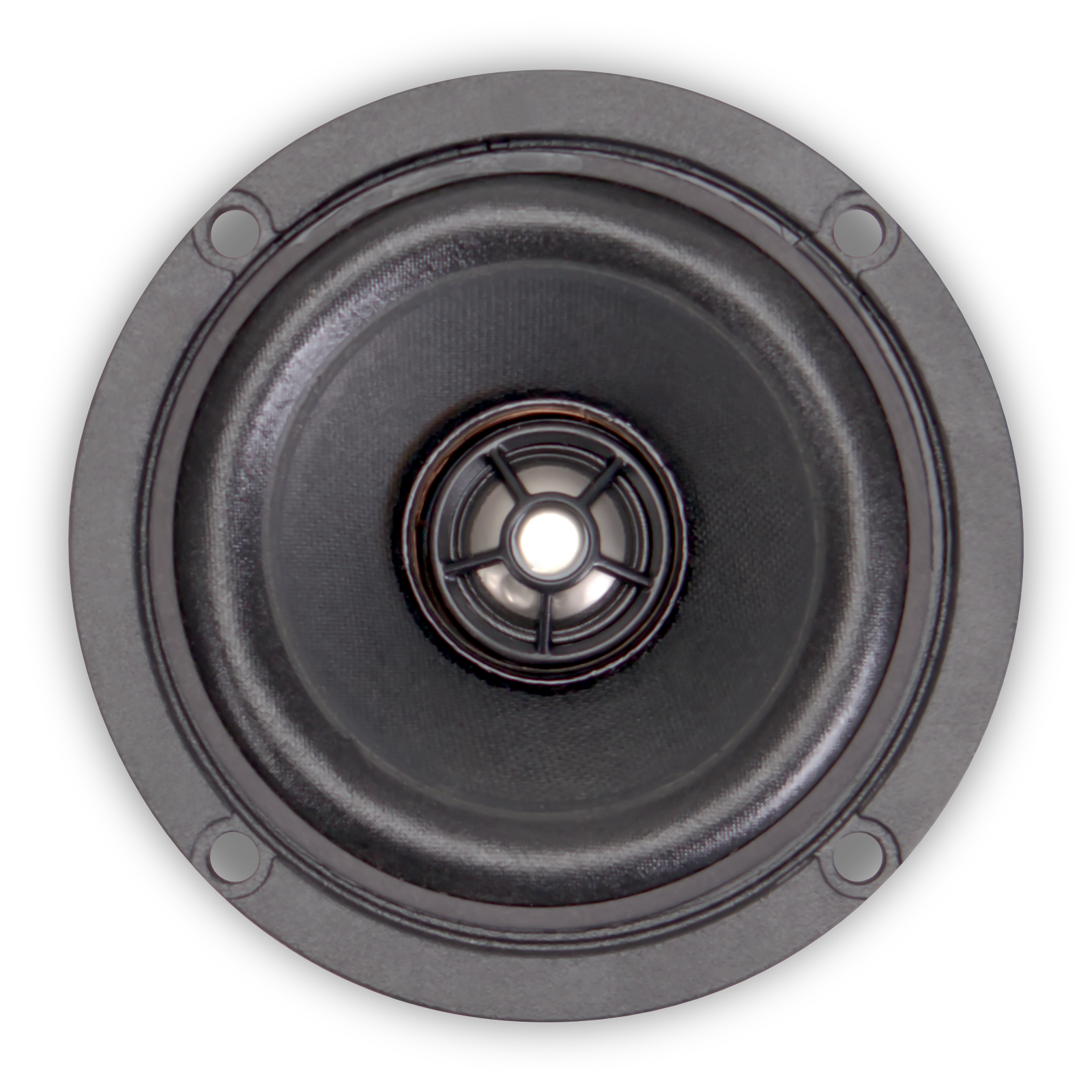

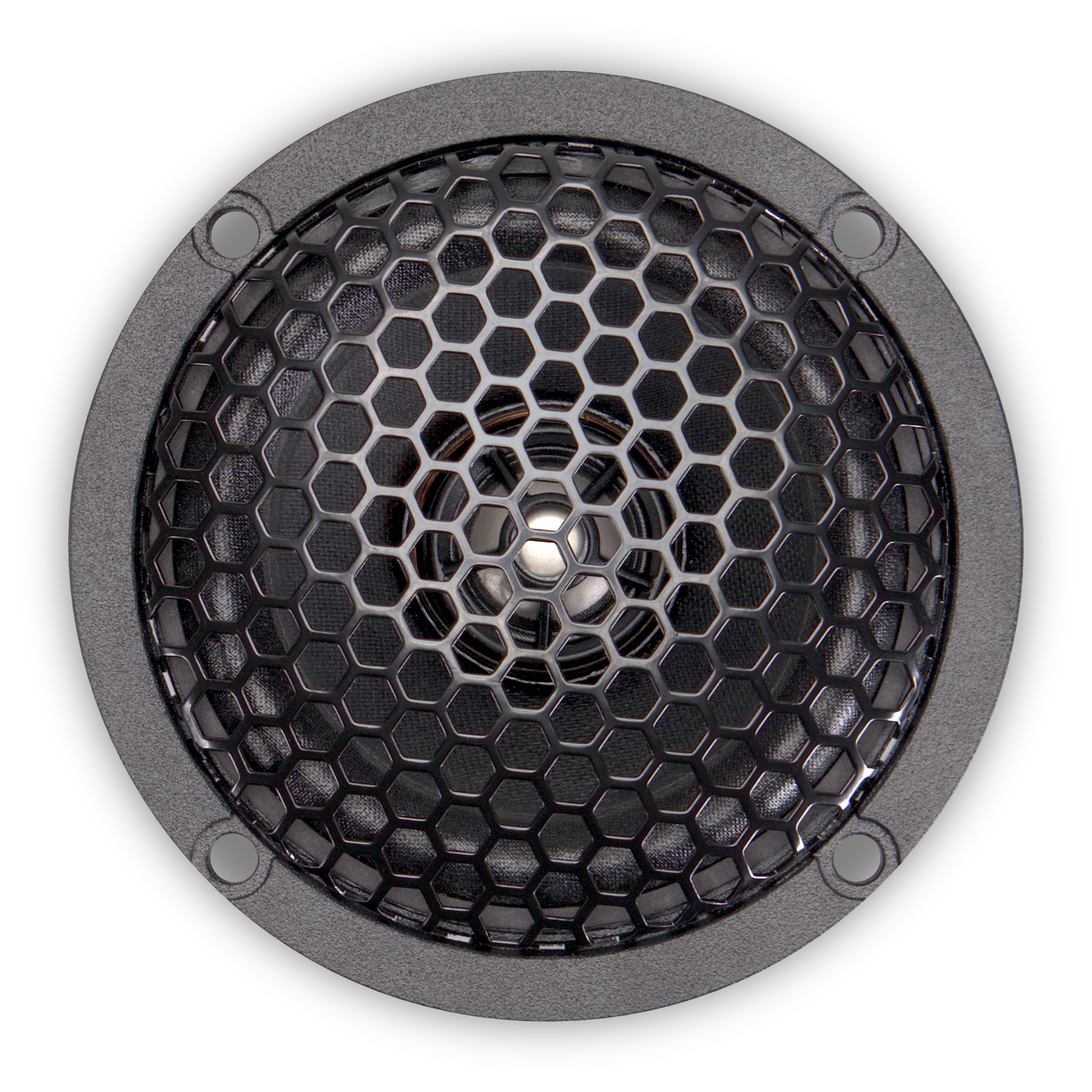

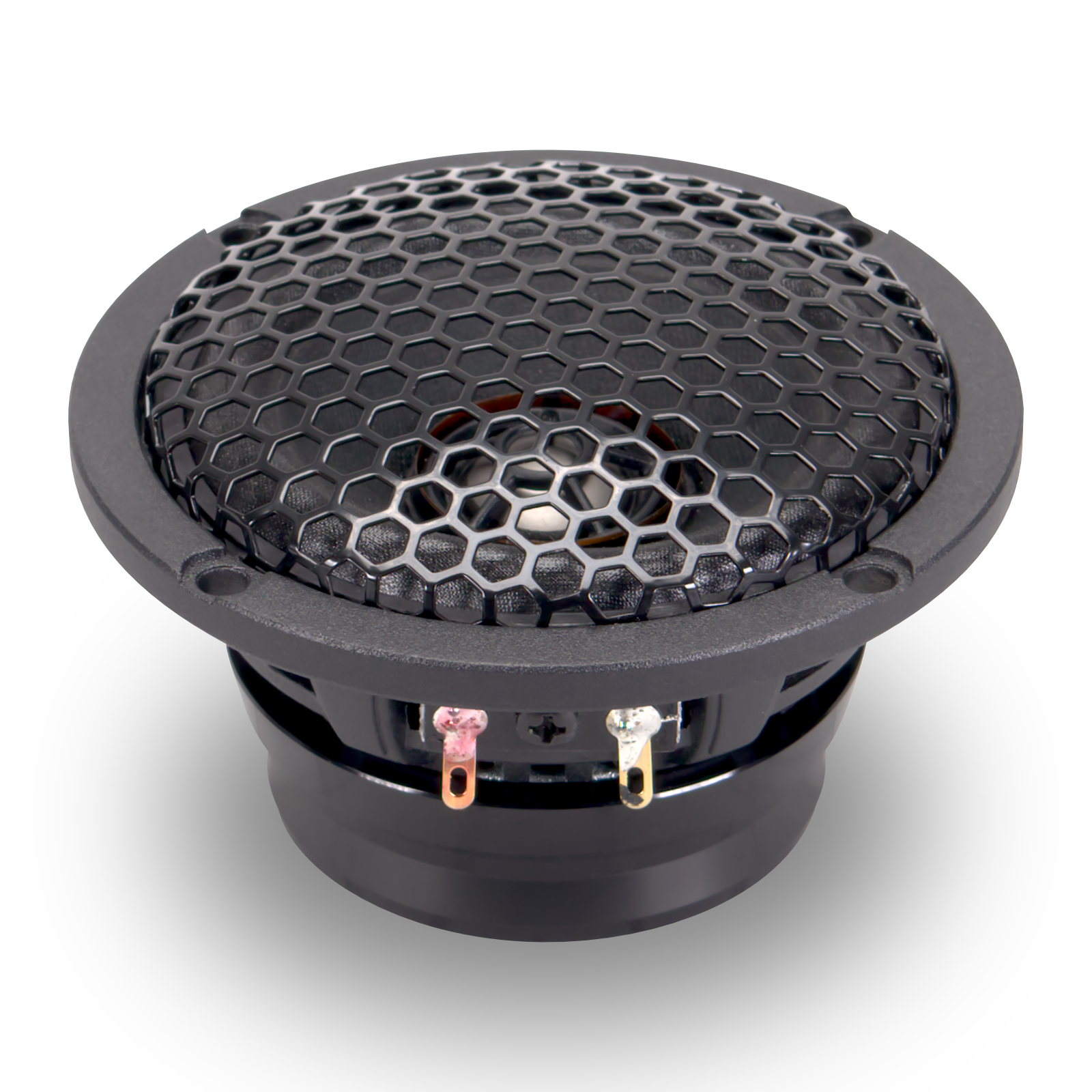

- 3" wool pulp cone midrange and 5/8" titanium tweeter point source

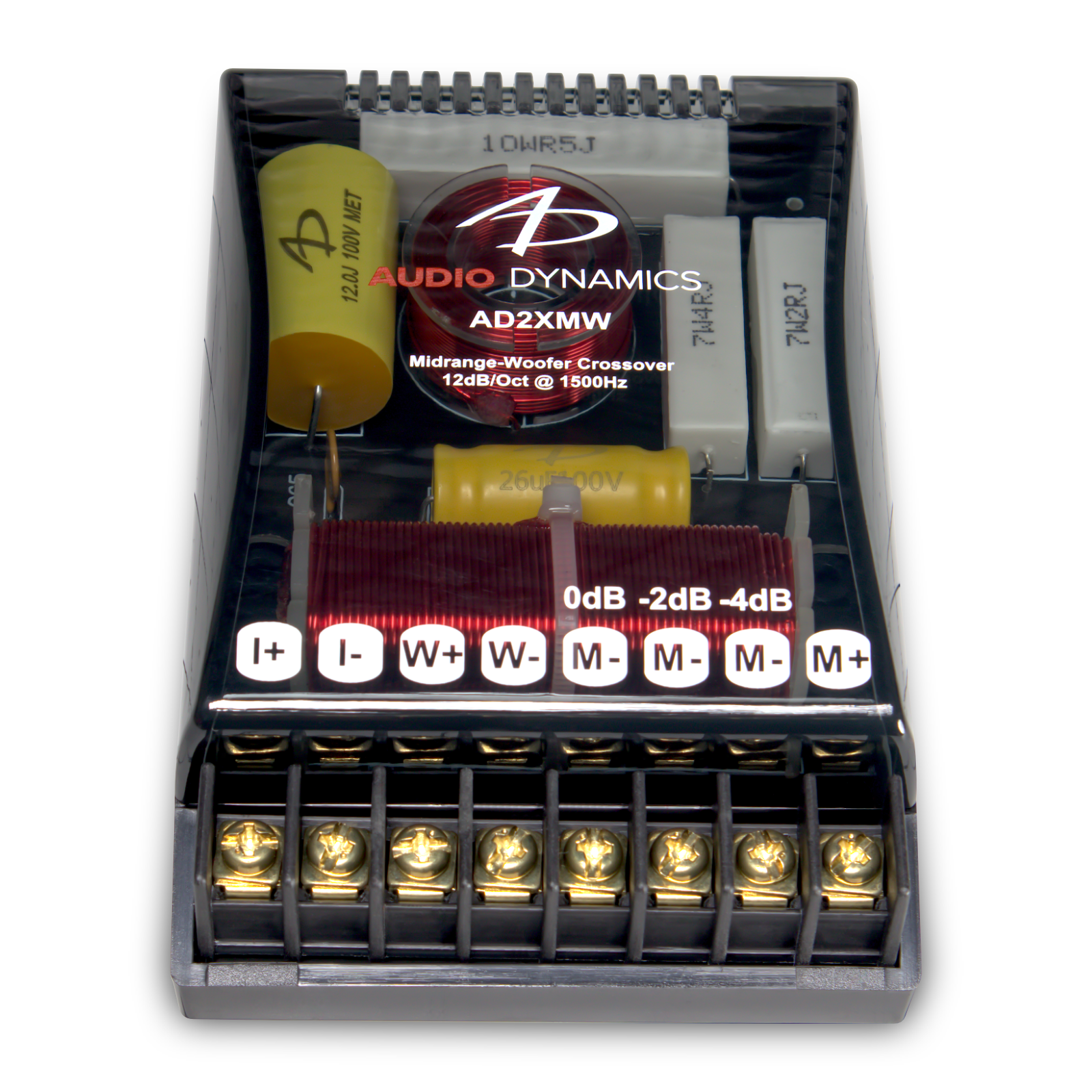

- Polypropylene capacitor and air core inductor in tweeter crossover circuit
- -4, -2, 0 dB direct wire tweeter attenuation
- 100 Watts RMS power handling*
All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 60 Hz at 24 dB/Octave, 80 Hz at 18 dB/Octave, or 100 Hz at 12 dB/Octave.
Description
Description
Audio Dynamics speakers were designed to reproduce music with ultimate accuracy.
We've spent countless listening hours examining the tonal qualities of many different cone materials; from glass fiber, to Kevlar, to carbon fiber and more. Ultimately, we chose wool pulp for its ability to deliver astonishing realism and detailed timbre across the harmonics. We then added an acoustically-transparent chemical to help the soft parts resist moisture.
Our speakers will pull you into the musical performance and breath new life into your music collection.

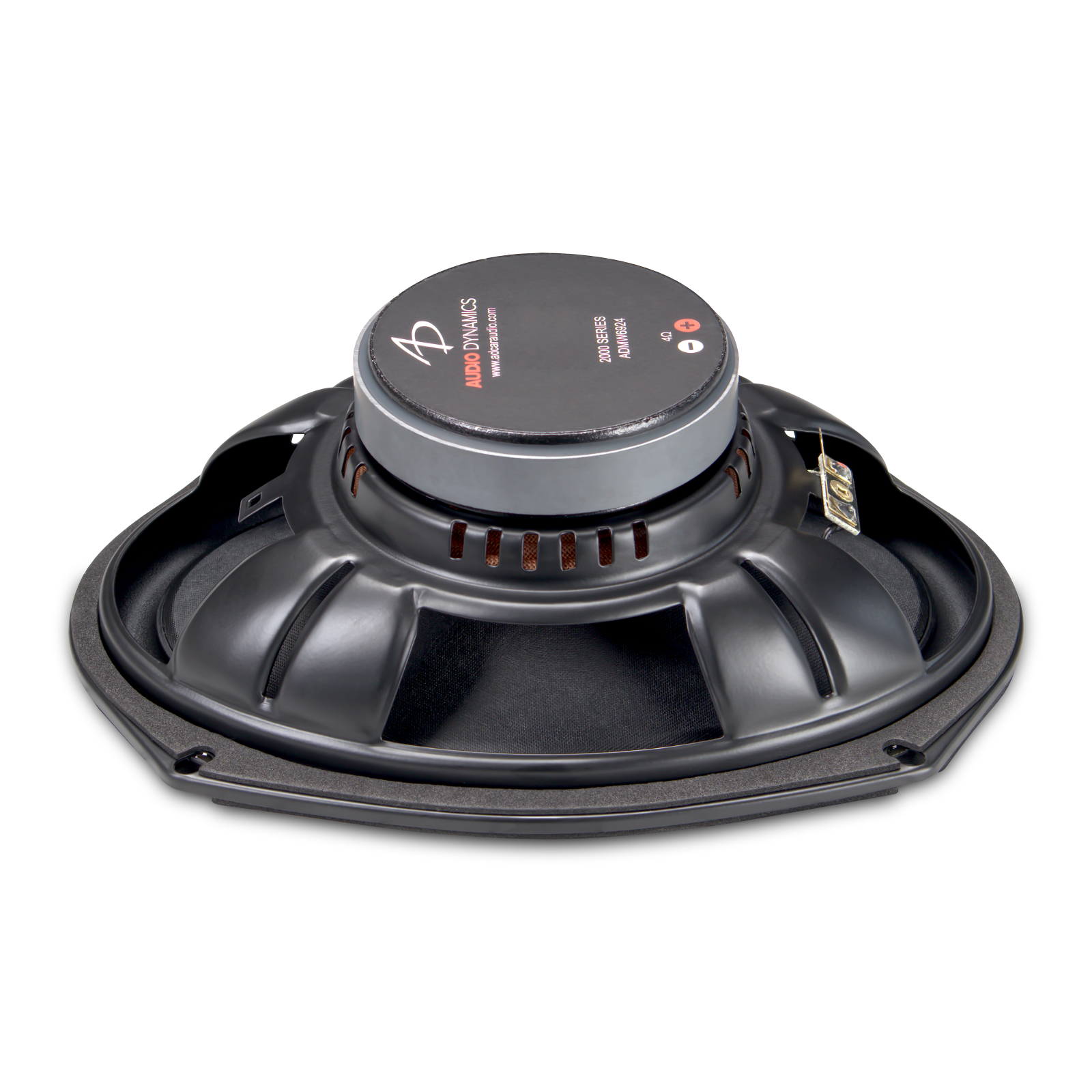

6"x 9" Woofer: Fs 55.52 Hz Qms 3.889 Vas 25.09 l Cms 0.423 mm/N Mms 19.45 g Rms kg/s Dia 161.8 mm Sd cm² Qes 1.171 Re 3.287 ohm Le 0.3125 mH Z 14.21 ohm Bl 4.364 Tm Bl²/Re N²/W Qts 0.889 no 0.3497 % SPL 87.54 dB 6"x 9" Woofer:Frame Outer Diameter 6 1/2" x 9 1/4" (164mm x 234.5mm) Motor Outer Diameter 3 1/2" (89.3mm) Mounting Hole Diameter 5 5/8" (142mm) Mounting Depth 3" (75.7mm)
3" Midrange: Fs 140.5 Hz Qms 6.709 Qes 1.199 Re 3.240 ohm Le 0.077 mH Z 3.888 ohm Qts 1.017 5/8" Tweeter:Fs 2402.0 Hz Qms 0.740 Qes 5.285 Re 3.527 ohm Le 0.028 mH Z 4.232 ohm

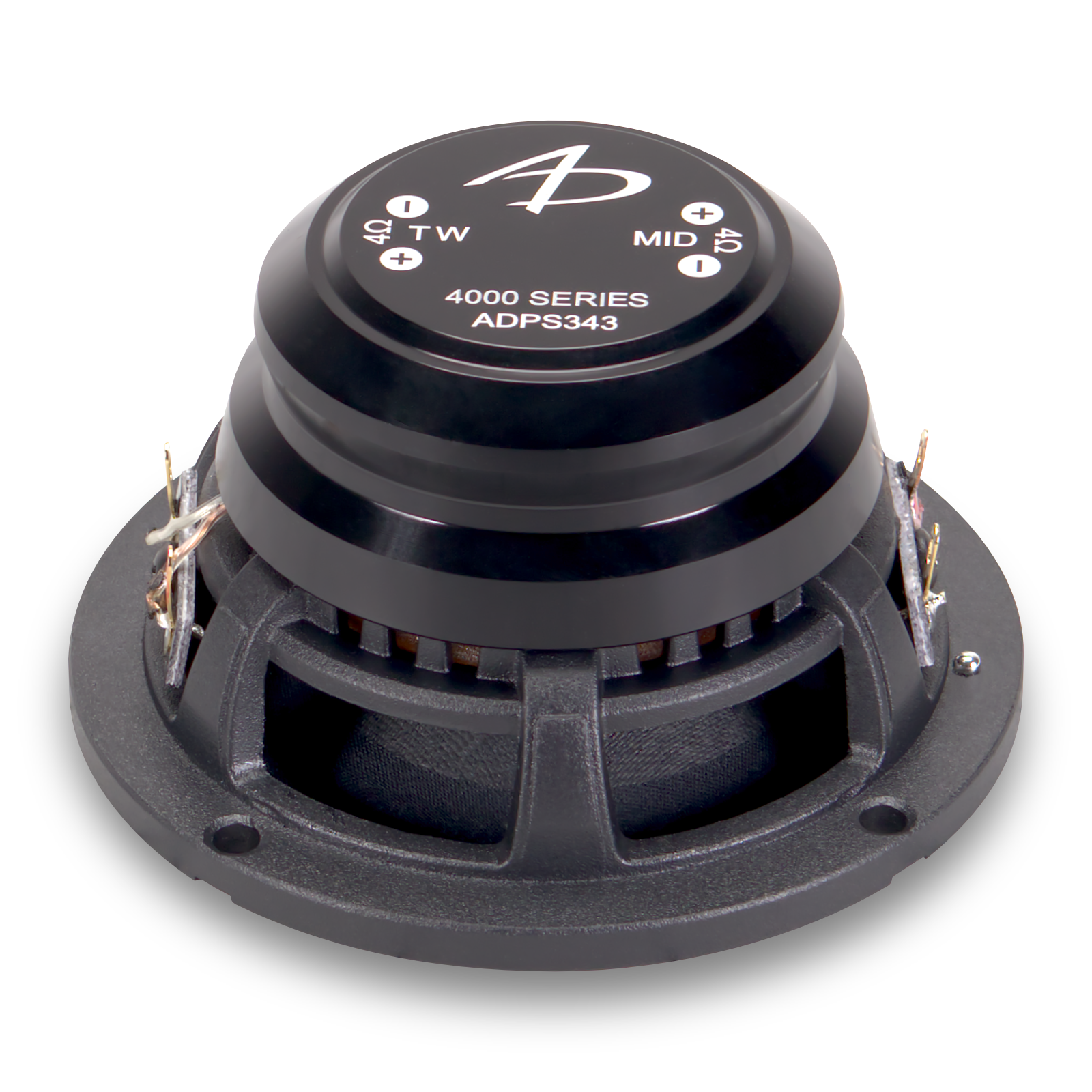

3" Point source: Frame Outer Diameter 3 5/8" (92mm) Motor Outer Diameter 2 1/2" (63mm) Mounting Hole Diameter 3 1/16" (78mm) Mounting Depth 1 13/16" (36mm)
