Highlights

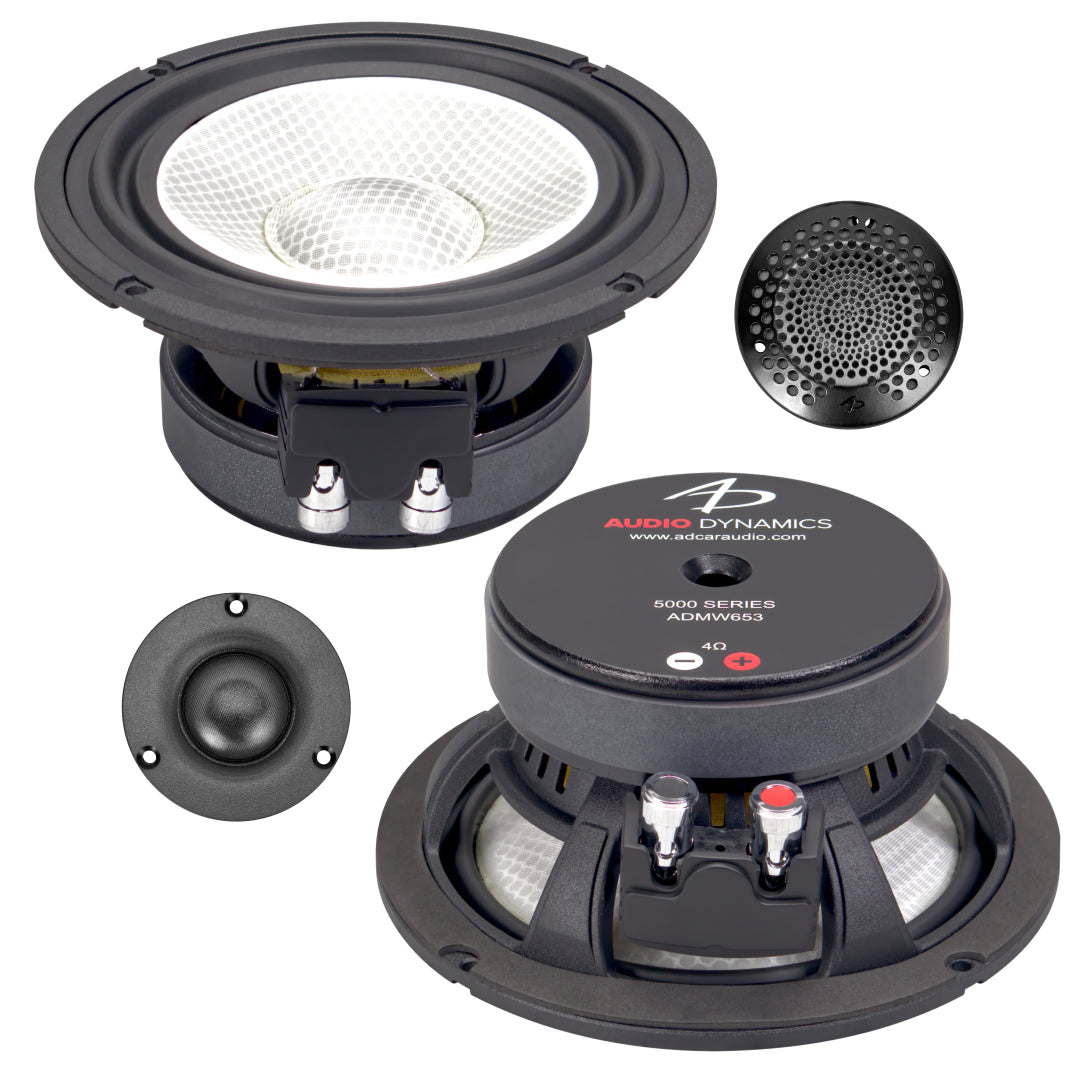

2-way component set for ACTIVE crossovers

• 6 1/2" (166mm) mid woofer and 1" tweeter component set
• For active crossover designed systems (No passive crossover network included)
• 6 1/2" (166 mm) Cast frame mid/woofer
• Cotton cloth and glass fiber composite honeycomb cone
• Rubber S roll surround for extreme excursion capability
• 1 3/8" (35 mm) voice coil
• +/- 4mm of one-way linear excursion
• Large gauge push pin terminals
• Shorting ring for extended response
• 1" (25 mm) Dome Tweeter
• Custom tooled cast housing
• 1" (25mm) voice coil for extreme power handling and motor force
• Patented split gap motor with multiple copper shorting rings for an extended response with world class open and natural sound
• Industry leading +/- 1.6mm of linear excursion
• Triple fabric dome with proprietary unifying compound for world class damping
• Large roll surround for higher stroke and full range down to 1500Hz
• Chemically etched, friction fit, steel grille featuring artistic hole pattern design
• 200 Watts RMS power handling*

* Mid-woofer power rating is figured using an electronic high pass crossover with a minimum crossover point of 70Hz at 24dB/Octave, 80Hz at 18dB/Octave, or 100Hz at 12dB/Octave.

* Tweeter power rating is figured using an electronic high pass crossover with a minimum crossover point of 3kHz at 24dB/Octave, 3.5kHz at 18dB/Octave, or 4kHz at 12dB/Octave.

Description

Description

Audio Dynamics speakers were designed to reproduce music with ultimate accuracy.

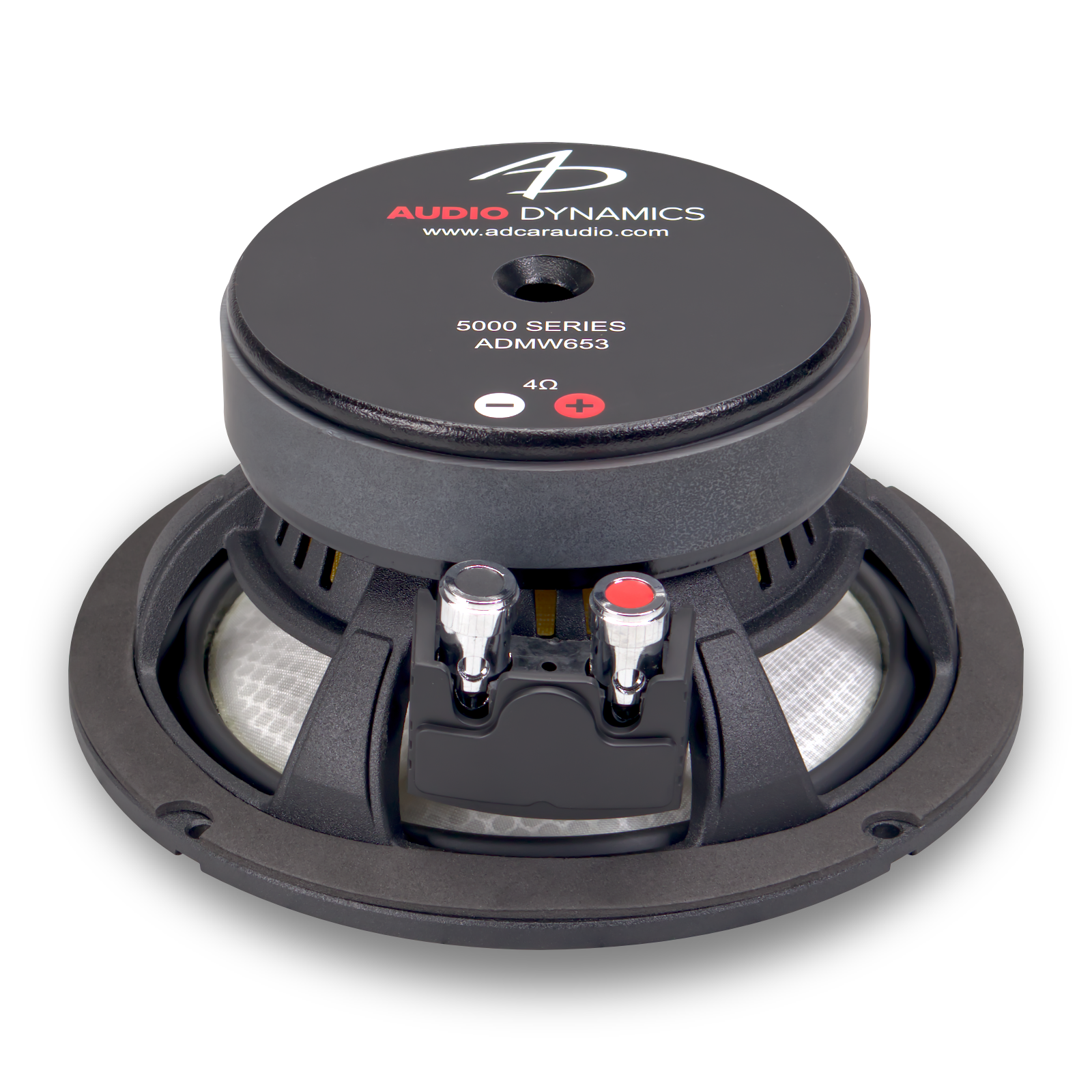

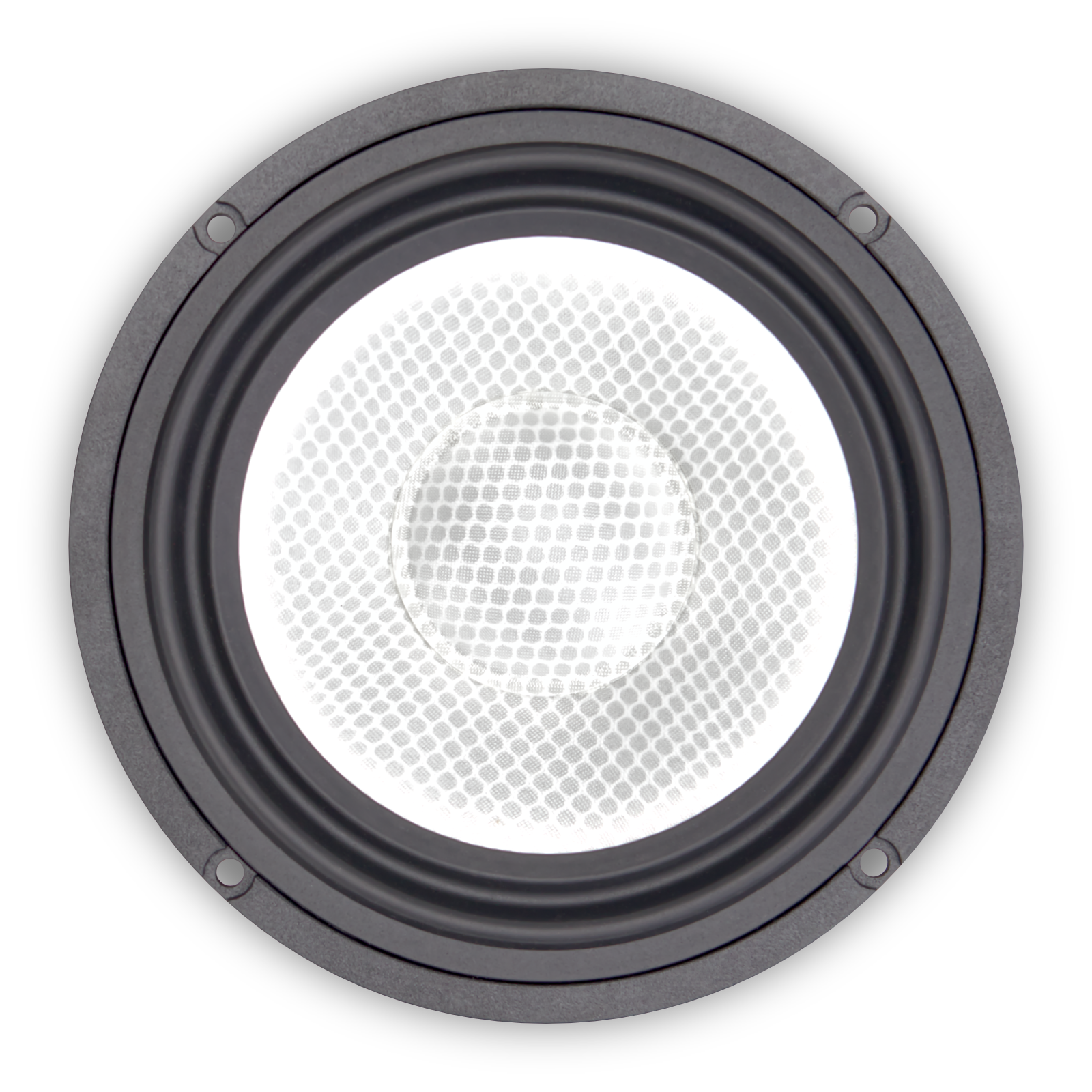

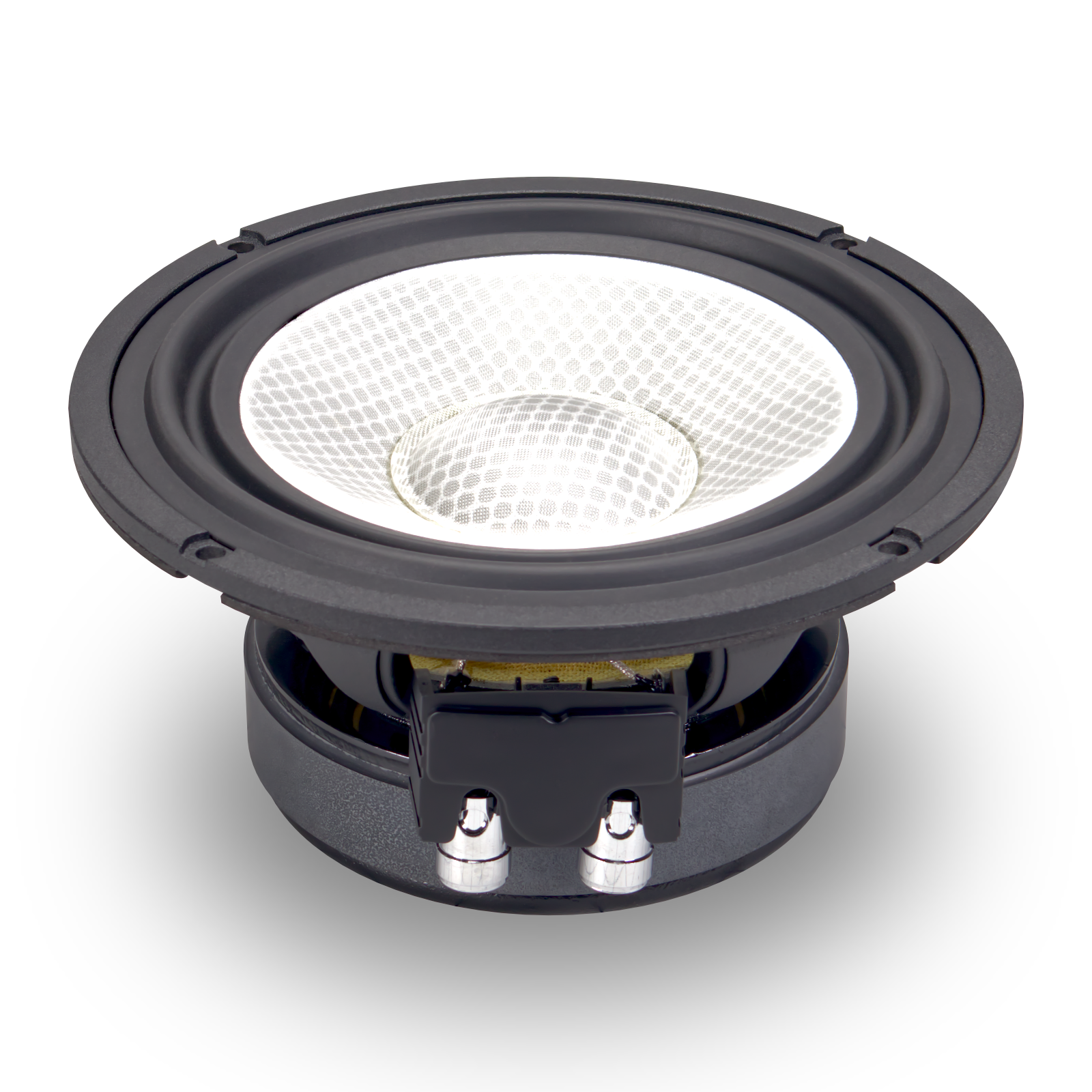

MW653 Mid-woofer Overview

We've spent countless hours testing different cone materials that could stay rigid during extreme excursion and allow the speaker to maintain efficiency and incredible sound quality. Ultimately, we chose a cotton cloth and glass fiber composite honeycomb cone. We also incorporated our new S roll surround, shorting ring, and 35mm voice coil.

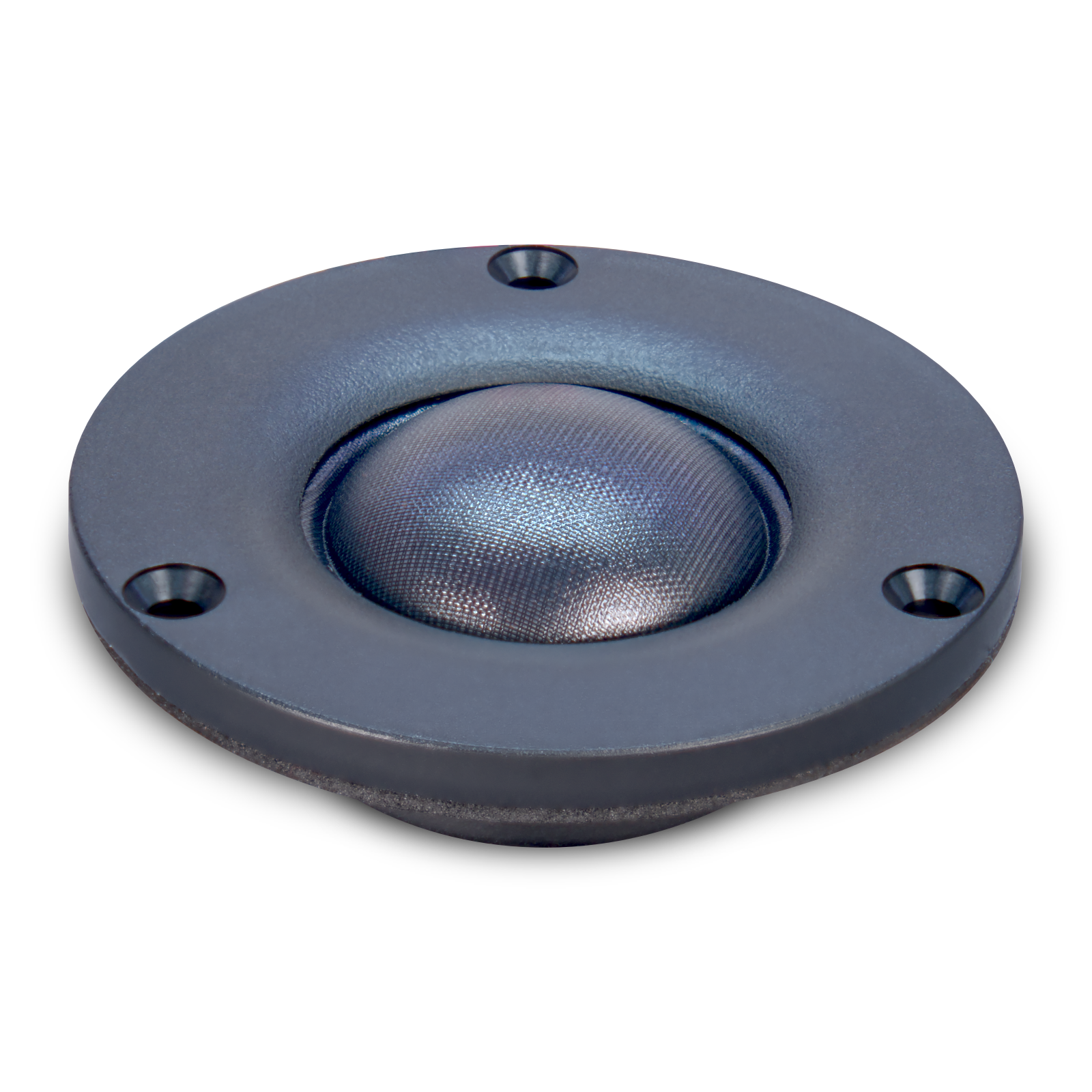

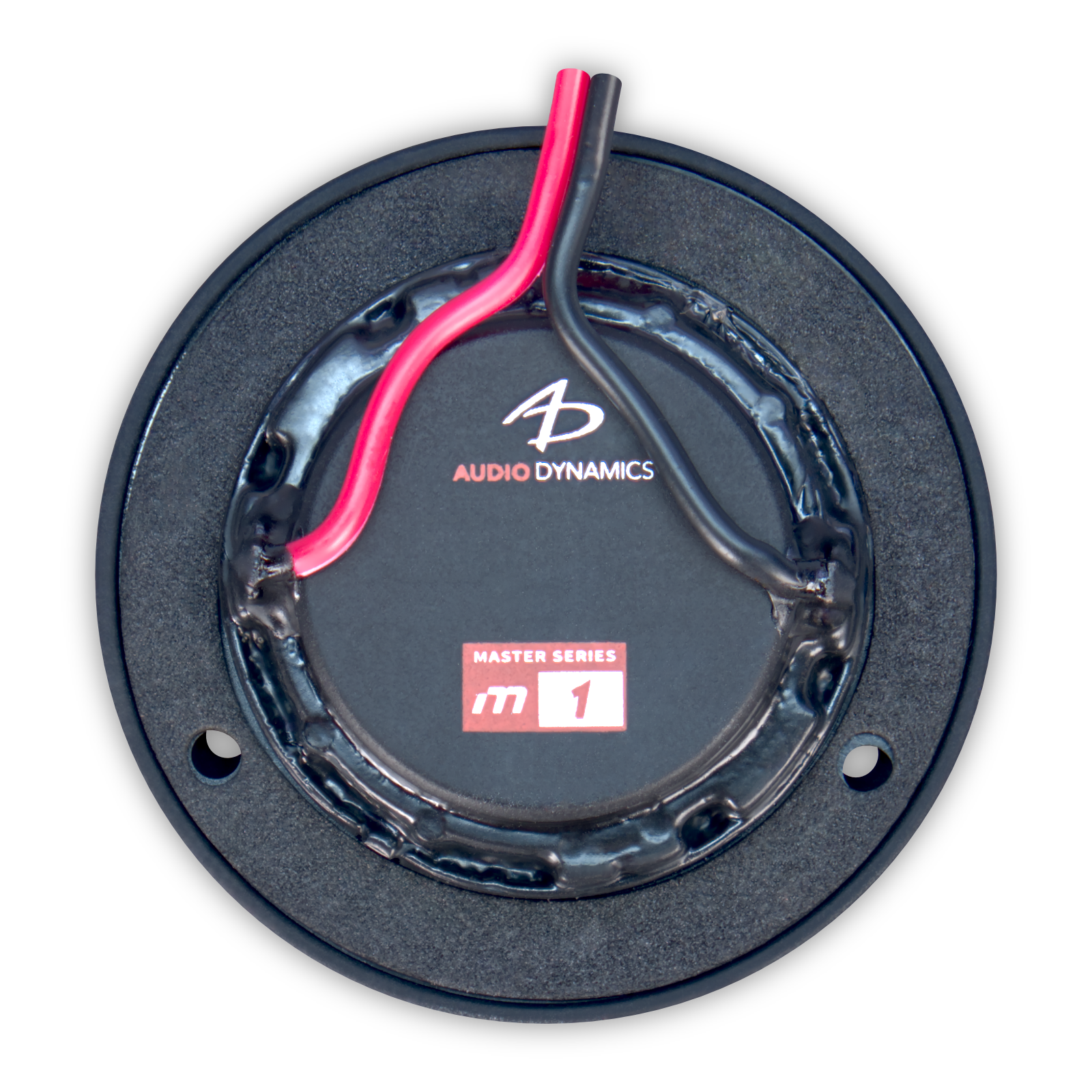

M1 Tweeter Overview

The Master Series M1 tweeter is a high stroke, low distortion multilayer fabric dome 25mm tweeter. This tweeter features exceptionally high stroke to allow lower crossover points without compression.

The M1 tweeter features a split-gap design which provides ±1.6mm of linear excursion, approximately 5 to 6 times that of most other tweeters. The result is a wider operational bandwidth - as low at 1500 Hz - and distortion reduced by up to a factor of 4.

The M1 use a specially developed dome material. The dome's fabric is a lamination of silk, polyester, and cotton and treated with a proprietary compound to unify the layers but allow each to provide their own unique benefits. Silk adds the stretch/pull basic mechanical strength; polyester provides rigidity of shape; cotton provides improved damping.

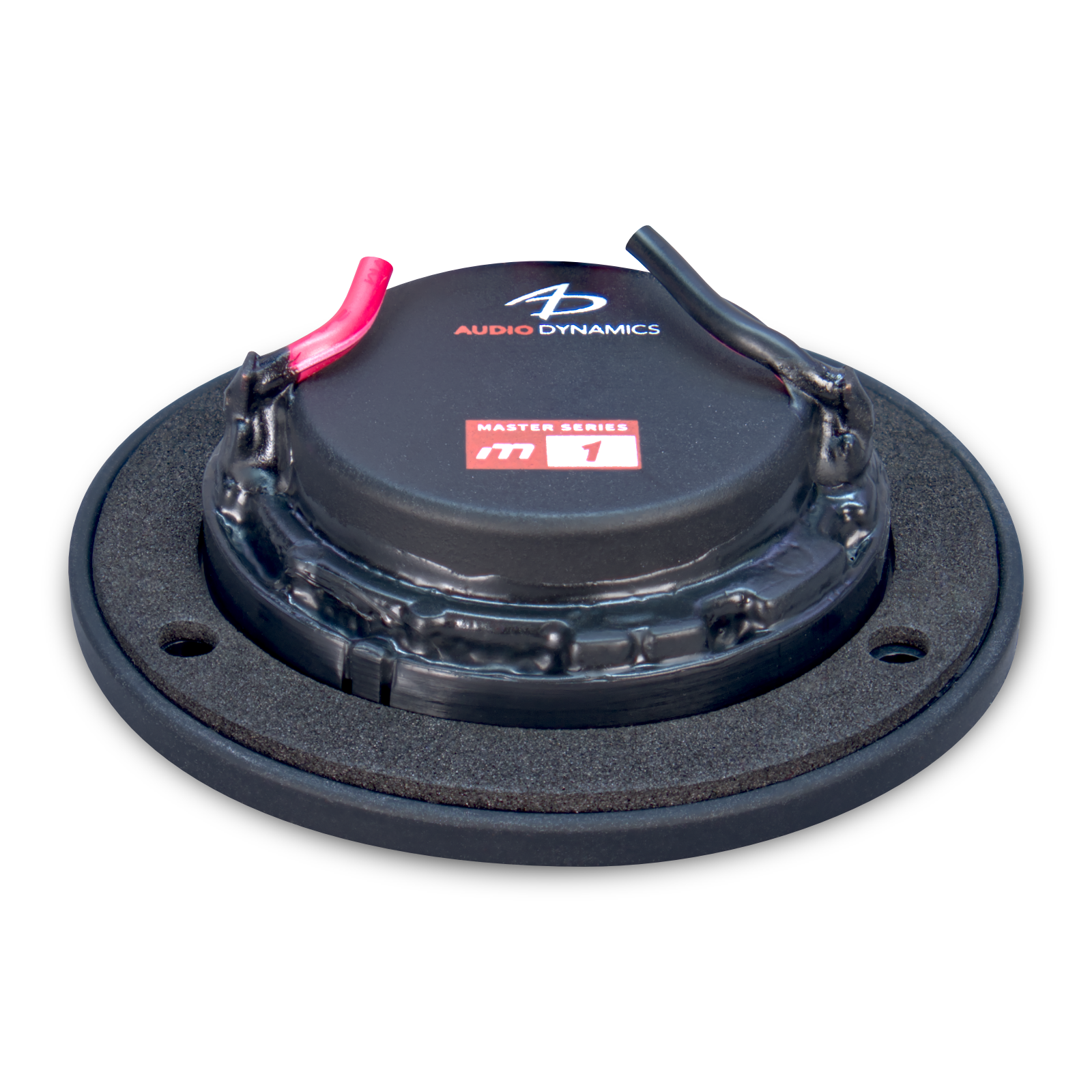

The M1 does not use a rear chamber to lower its resonance; instead, a larger roll surround provides a lower resonance of the driver. This design allows for higher stroke as well, for full-range output down to 1500 Hz. And by removing the rear chamber, resonances from that chamber are eliminated. The elimination of the rear chamber results in an 11.7mm (15/32") mounting depth for freedom of positioning.

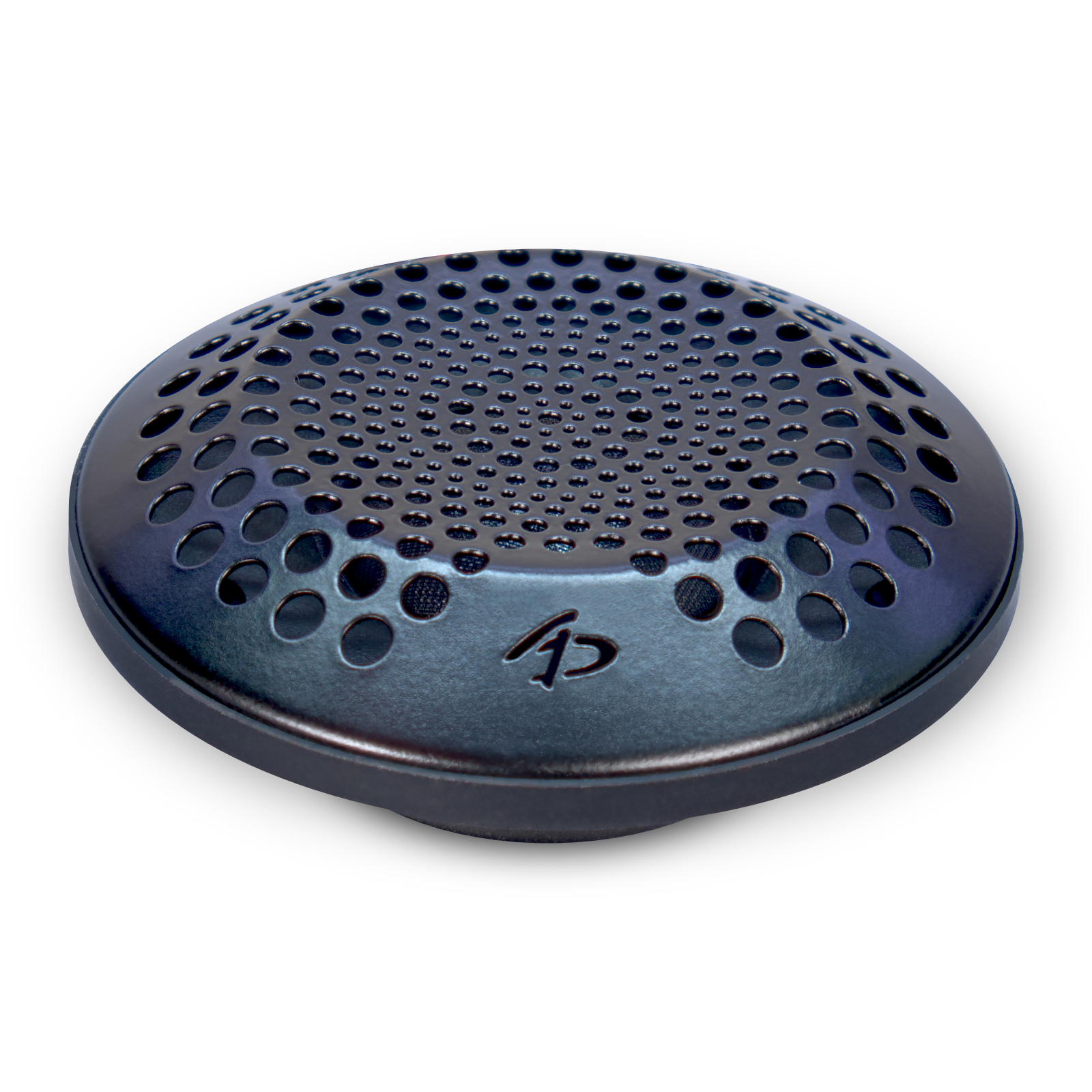

The M1 comes with a chemically etched steel grille featuring an anti-resonant hole-pattern with size of opening optimized for dispersion. The grille is mounted to the main tweeter with a friction-fit gasket ensuring vibration-free operation and eliminating visible screws.

This component set handles extreme power and delivers the most dynamic and effortless mid bass and high frequencies of any drivers ever produced by Audio Dynamics.

MW653 Mid-woofer:
Fs	63.420 Hz
Qms	2.530
Vas	10.760 l
Cms	0.453 mm/N
Mms	13.740 g
Rms	2.188 kg/s
Dia	128.300 mm
Sd	129.284 cm²

Qes	0.520
Re	3.376  ohm
Le	0.127 mH
Z	4.051  ohm
Bl	5.962 Tm
Bl²/Re	10.529 N²/W

Qts	0.431
no	0.509 %
SPL	89.214 dB

Frame Outer Diameter	6 1/2"   (166mm)
Grille Outer Diameter	7 3/16"  (182mm)
Motor Outer Diameter	3 15/16" (100mm)
Grille Protrusion	  15/16" (23mm)
Mounting Hole Diameter	5 5/8"   (142mm)
Mounting Depth		2 7/8"   (73mm)

M1 Tweeter:
Fs	           1500.000 Hz
Nominal Impedance  4 ohms

Outer Diameter	           2 5/16"  (58.8mm)
Flush Mounting Depth	    15/16"  (11.7mm)
Flush Mounting Diameter	   1 17/32" (38.8mm)
