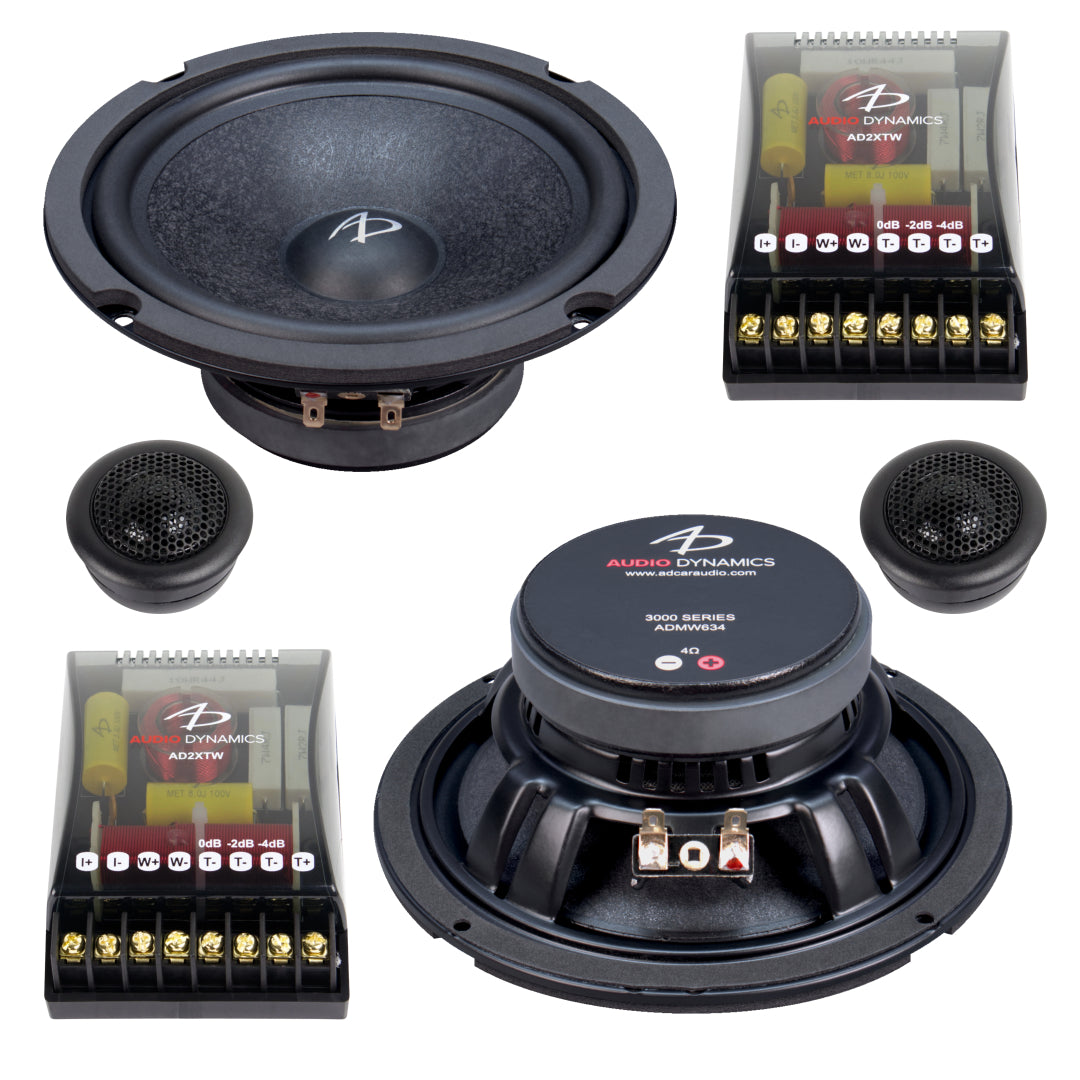

3000 Series 6.5" Set - CS634
In Store Pick Up OnlyHighlights Basalt pulp cone mid/woofer for realistic tonal accuracy 6 ½" (166 mm)...
- $377.00
- $377.00
- Unit price
- per
Subtotal:
$377.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights

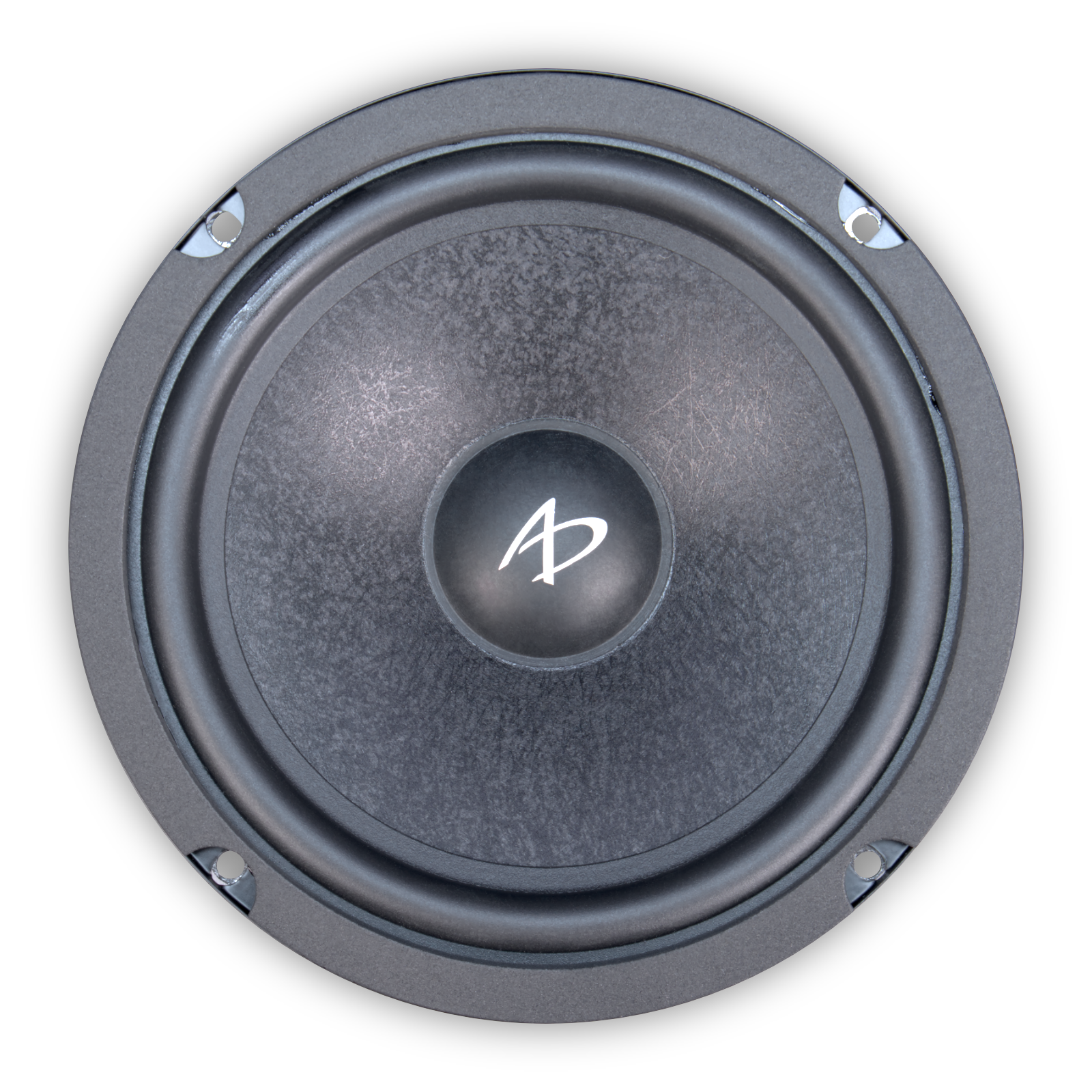

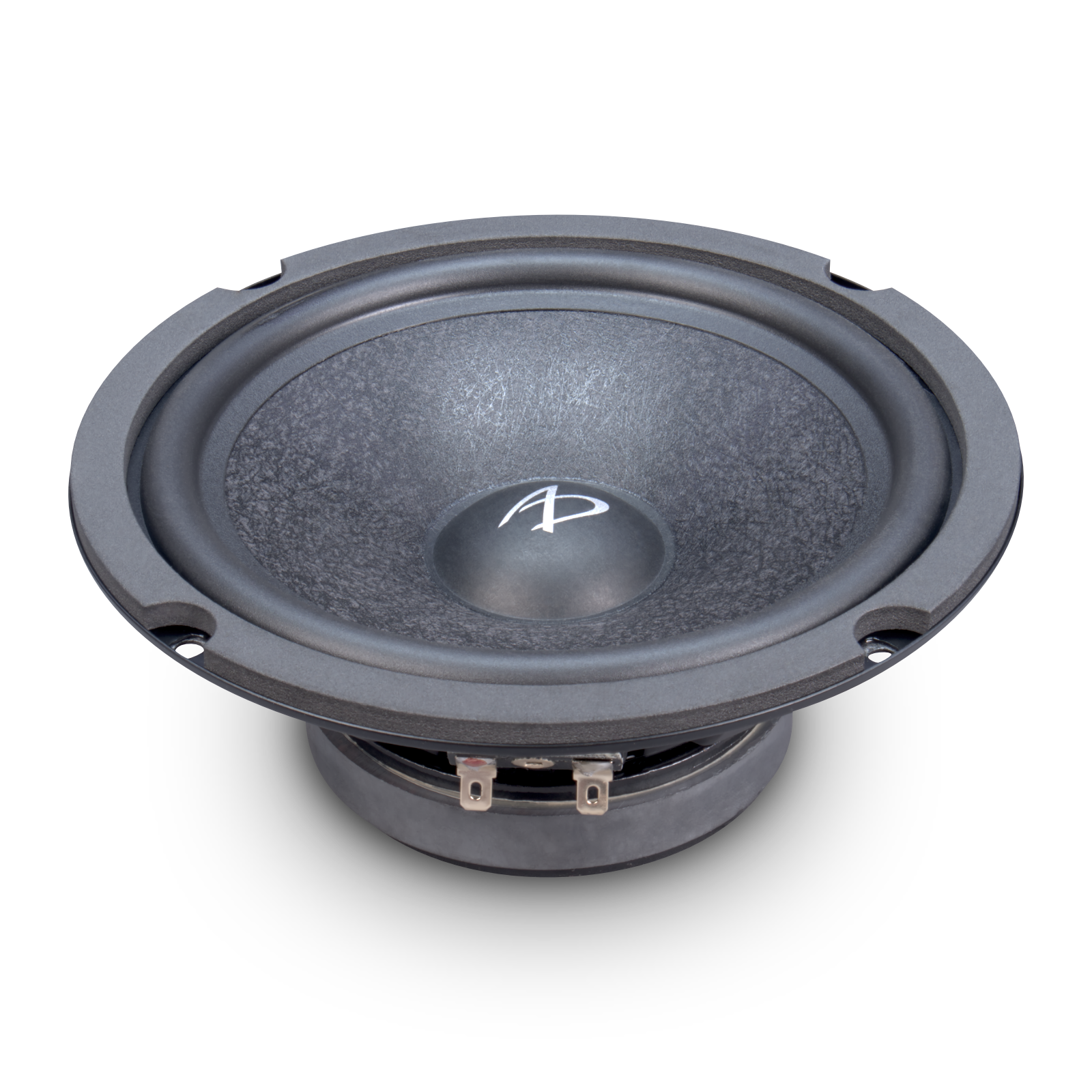

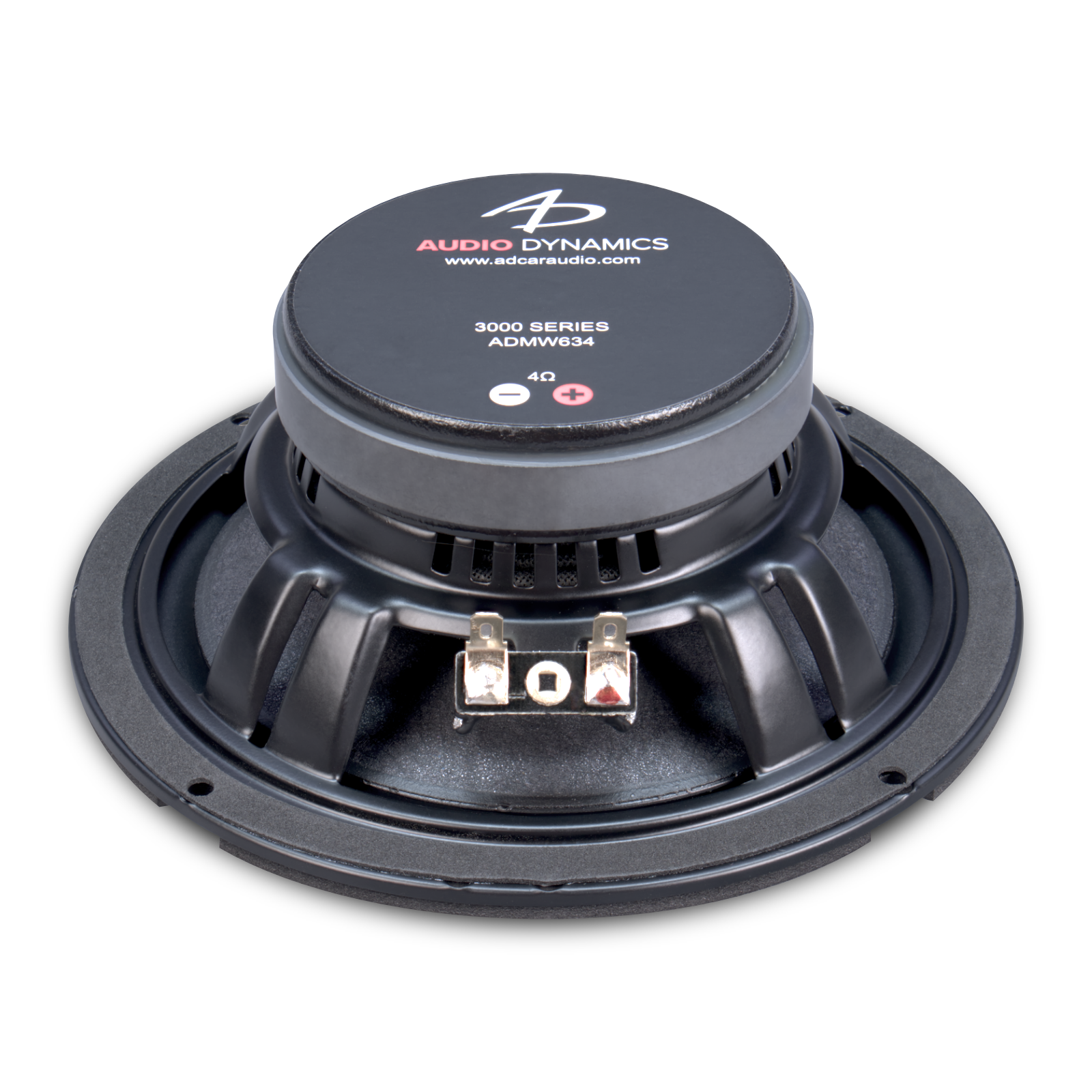

- Basalt pulp cone mid/woofer for realistic tonal accuracy
- 6 ½" (166 mm) Steel frame mid/woofer
- 60 count yarn cloth surround
- 1 3/16" (30 mm) voice coil mid/woofer
- Shorting ring for extended response
- Gold plated terminals

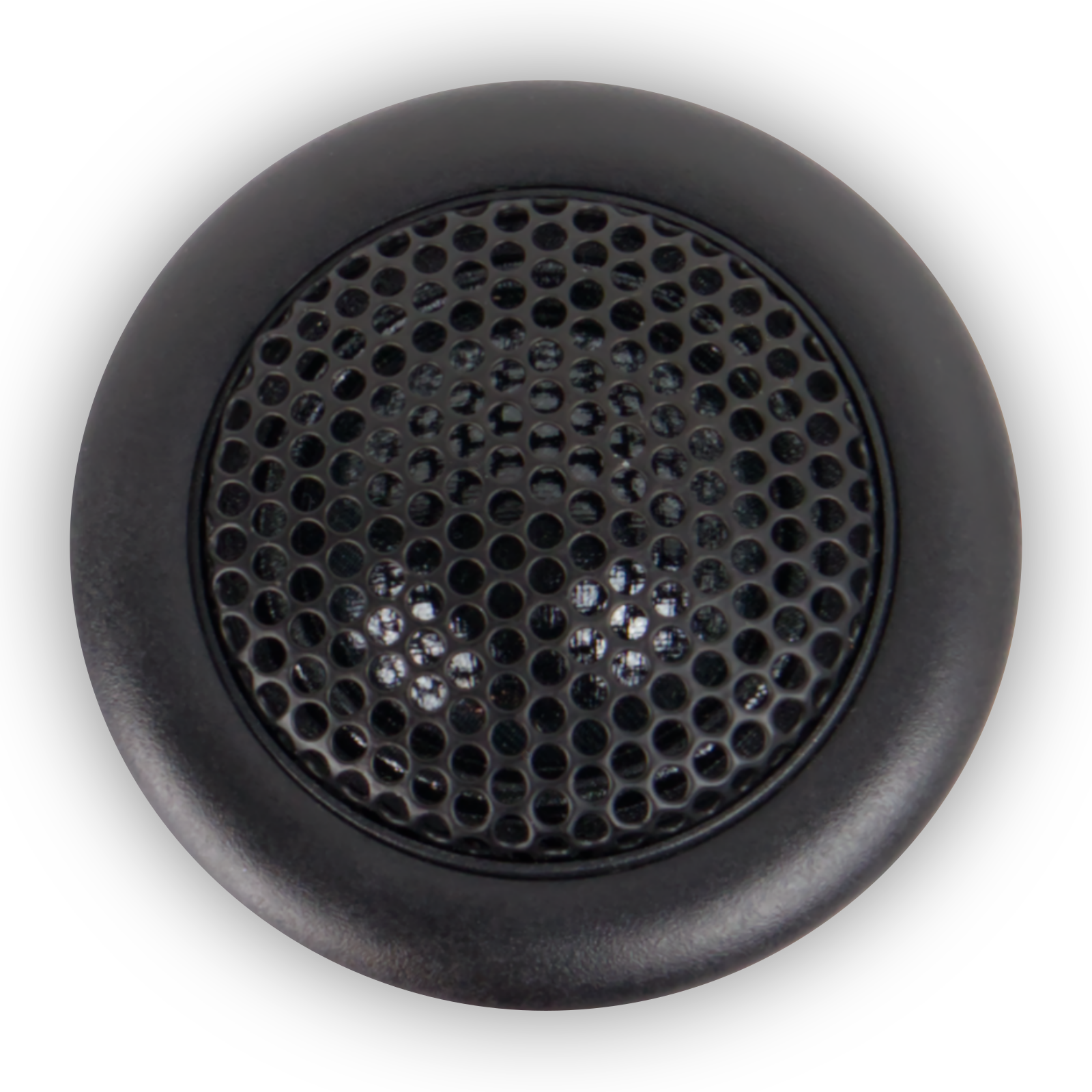

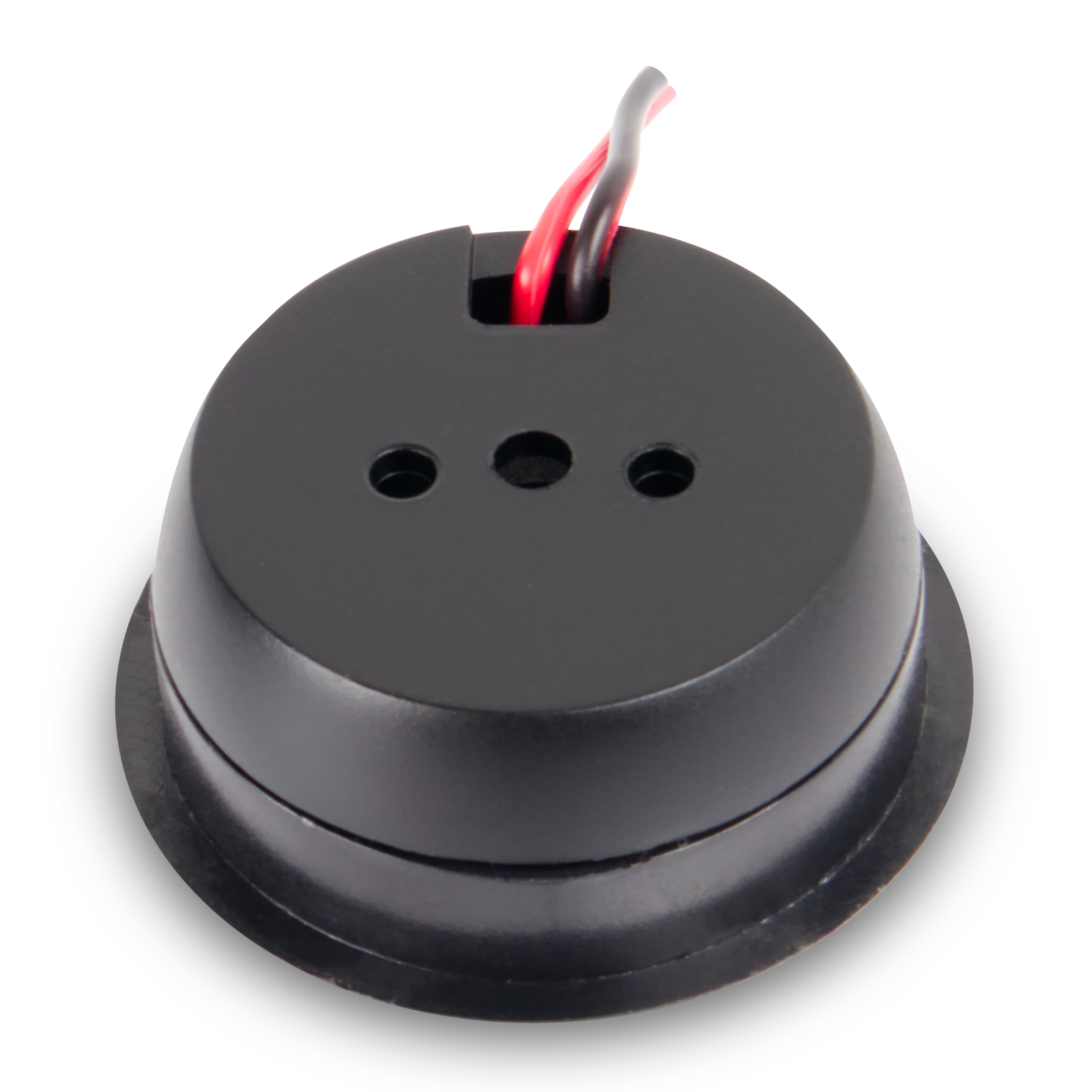

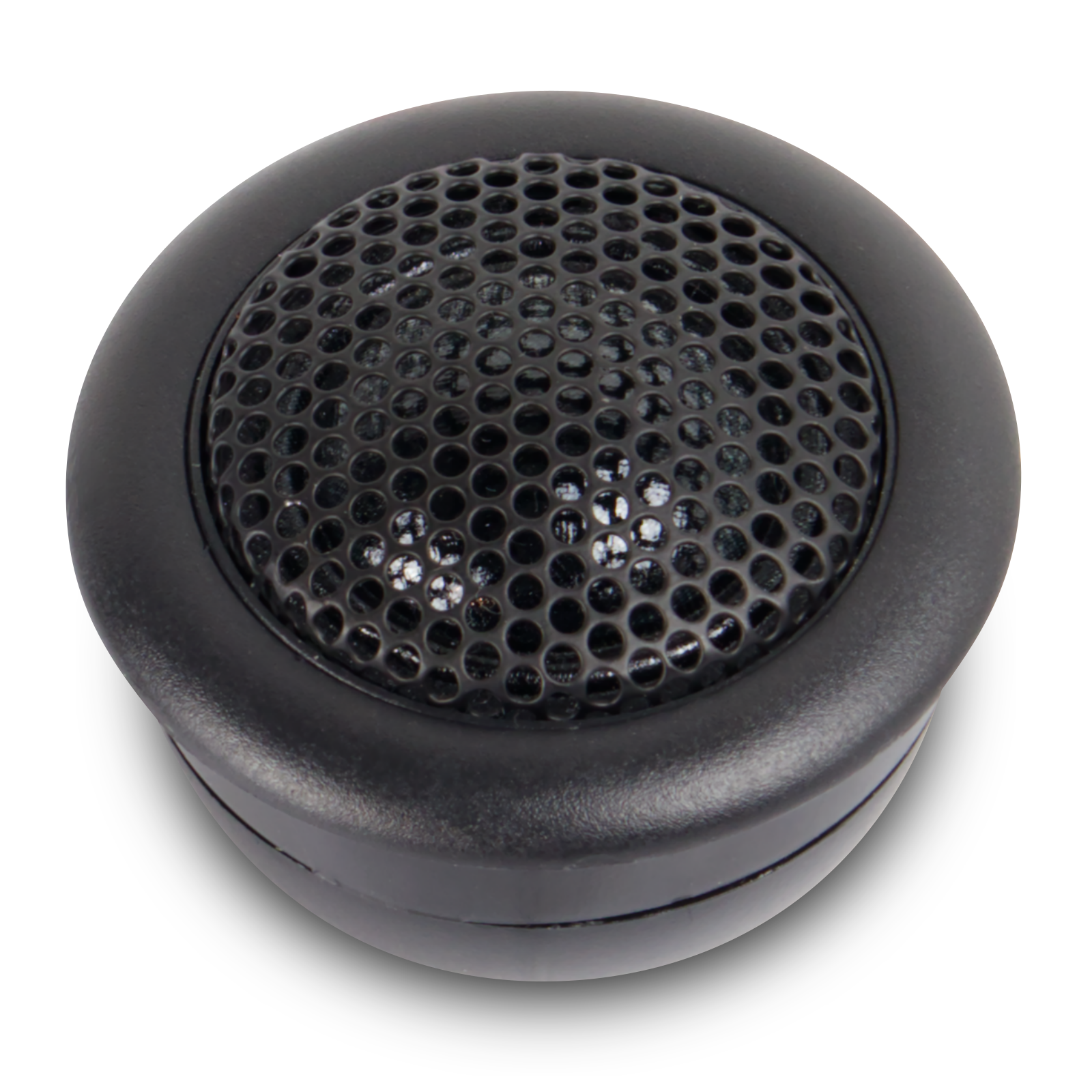

- 1" (25.4 mm) High-end transparent silk dome tweeter

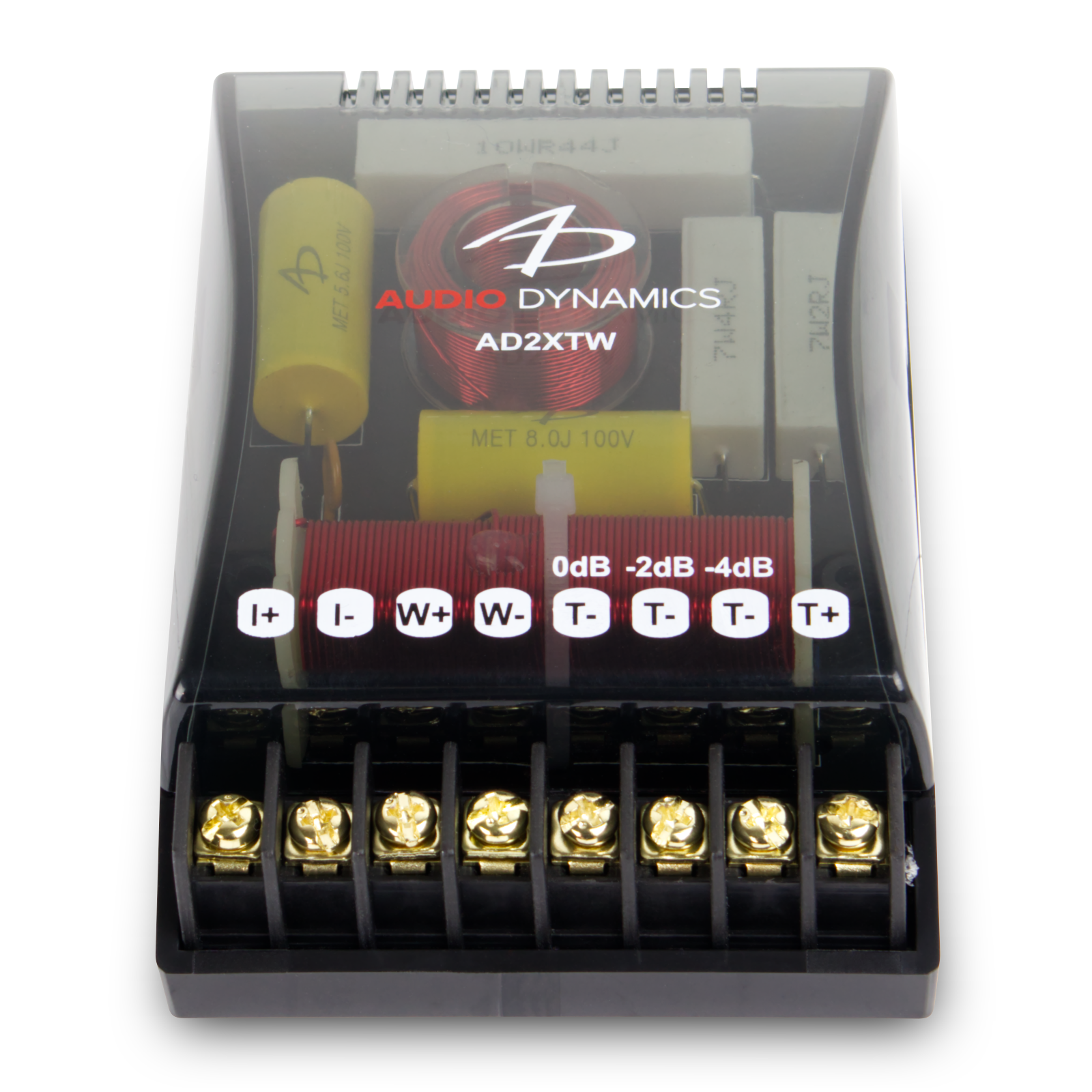

- Polypropylene capacitor and air core inductor in tweeter crossover circuit
- -4, -2, 0 dB direct wire tweeter attenuation
- 125 Watts RMS power handling*
All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 60 Hz at 24 dB/Octave, 80 Hz at 18 dB/Octave, or 100 Hz at 12 dB/Octave.
Description
Description
Audio Dynamics speakers were designed to reproduce music with ultimate accuracy.
The 4th generation 3000 series 6.5" uses our new Basalt paper cone and then we added an acoustically-transparent chemical to help the soft parts resist moisture. We've gone to similar lengths in developing our tweeter components which use a high grade of transparent silk dome and a powerful Neodymium motor to produce clear and effortless highs.
Our speakers will pull you into the musical performance and breath new life into your music collection.
Mid Woofer: Fs 63.730 Hz Qms 3.122 Vas 9.762 l Cms 0.385 mm/N Mms 16.010 g Rms 2.075 kg/s Dia 130.400 mm Sd 133.550 cm² Qes 0.963 Re 3.268 ohm Le 0.113 mH Z 3.921 ohm Bl 4.662 Tm Bl²/Re 6.651 N²/W Qts 0.736 no 0.252 % SPL 86.174 dB Frame Outer Diameter 6 9/16" (166mm) Grille Outer Diameter 7 3/16" (182mm) Motor Outer Diameter 3 1/2" (90mm) Grille Protrusion 3/4" (23mm) Mounting Hole Diameter 5 5/8" (142mm) Mounting Depth 2 3/8" (59mm)
Tweeter: Fs 1811.000 Hz Qms 2.220 Qes 2.610 Re 3.582 ohm Le 0.03308 mH Z 4.298 ohm Qts 1.200
Flush Mount Hole Diameter 1 7/8" (47mm) Flush Mount Depth 13/16" (21mm) Flush Mount Diameter 2 1/8" (53mm) Flush Mount Protrusion 3/8" (10mm)
