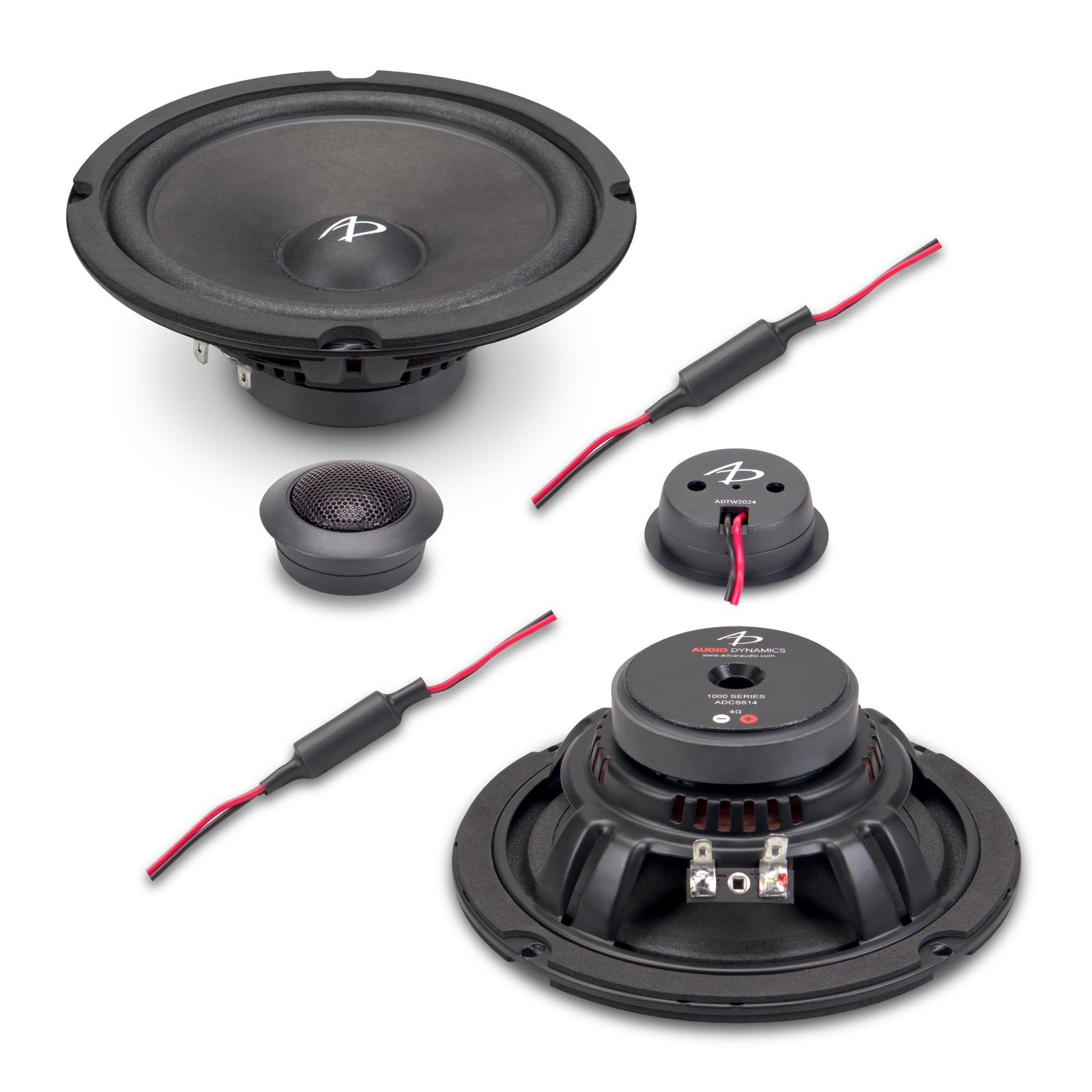

1000 Series 6.5" Set - CS614

Highlights

• Coated paper cone mid/woofer for realistic tonal accuracy
• 6 ½" (166 mm) Steel frame mid/woofer
• Lightweight foam surround
• 1" (25 mm) voice coil mid/woofer
• 3/4" (20 mm) High-end transparent silk dome tweeter

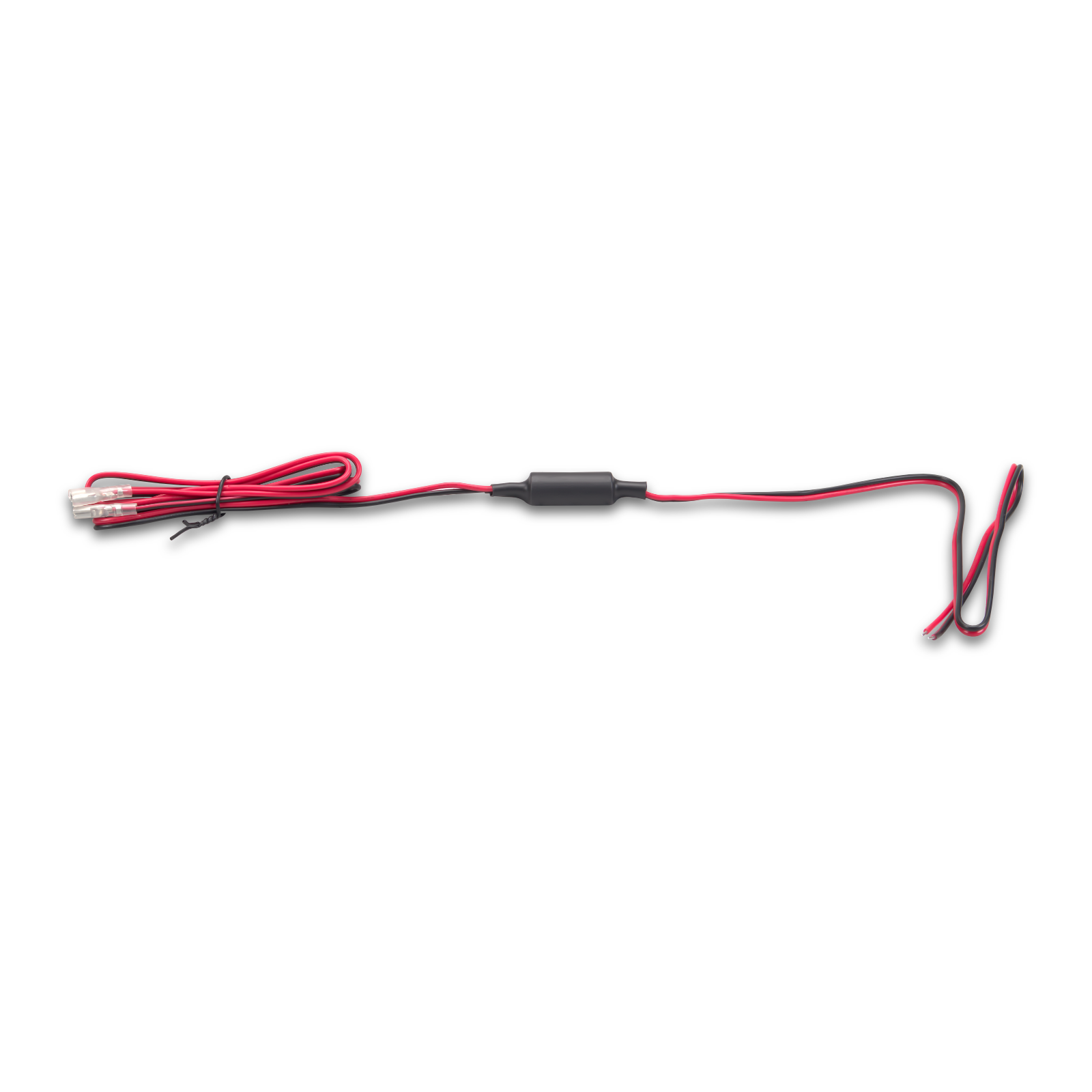

• Polypropylene capacitor inline tweeter crossover
• 75 Watts RMS power handling*

All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 80 Hz at 24 dB/Octave, 90 Hz at 18 dB/Octave, or 100 Hz at 12 dB/Octave.

Description

Description

Audio Dynamics speakers were designed to reproduce music with ultimate accuracy.
We've spent countless listening hours examining the tonal qualities of many different cone materials; from glass fiber, to Kevlar, to carbon fiber and more. Ultimately, we chose paper for its ability to deliver astonishing realism and detailed timbre across the harmonics. We then coated it to help it resist moisture.
Our speakers will pull you into the musical performance and breath new life into your music collection.

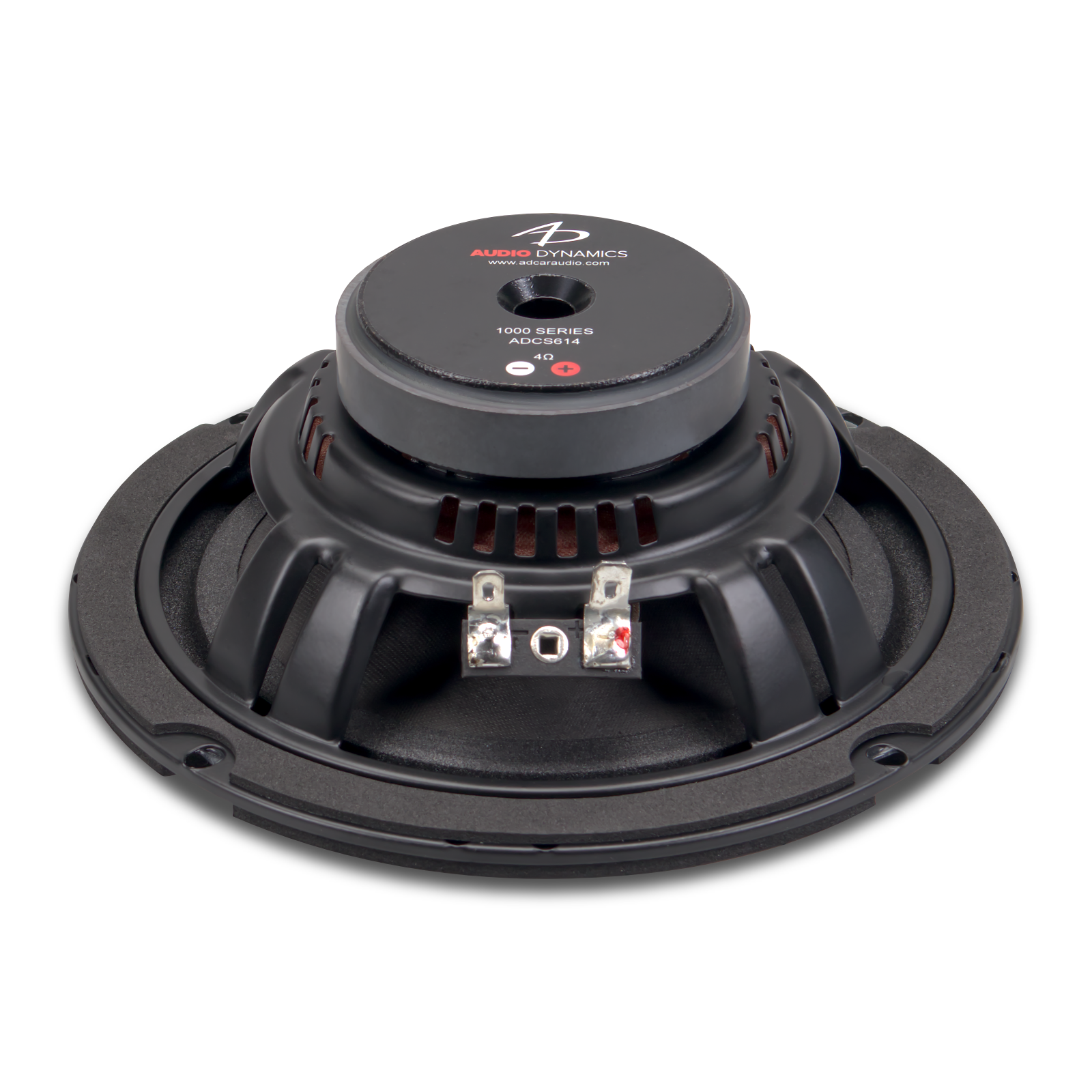

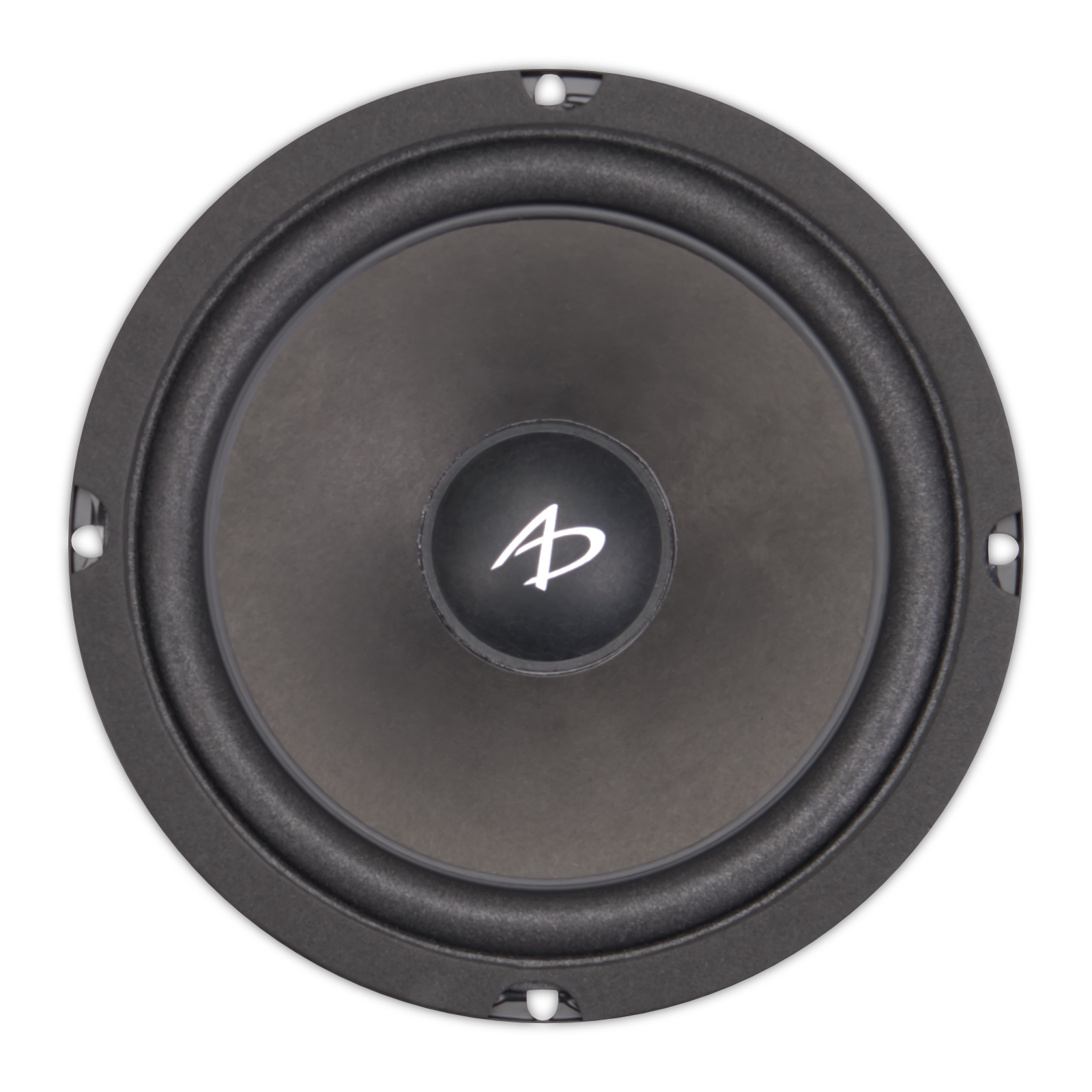

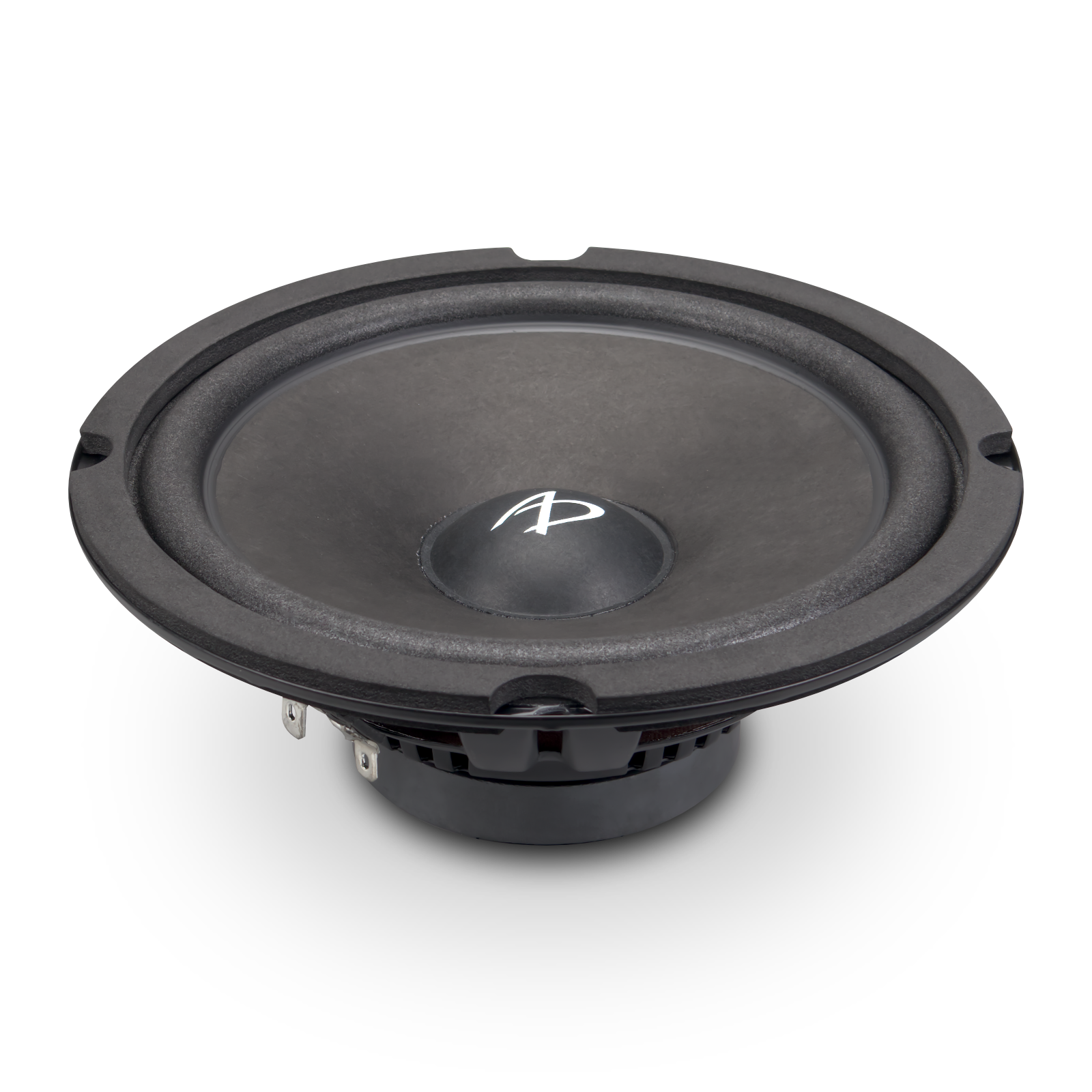

Mid Woofer:
Fs	97.47 Hz
Qms	6.974
Vas	7.512 l
Cms	0.287 mm/N
Mms	9.178 g
Rms	0.81400 kg/s
Dia	131.400 mm
Sd	135.606 cm²

Qes	1.763
Re	3.265  ohm
Le	0.196 mH
Z	3.918  ohm
Bl	3.226 Tm
Bl²/Re	3.188 N²/W

Qts	1.407
no	0.380 %
SPL	87.949 dB

Frame Outer Diameter	6 9/16" (166mm)
Grille Outer Diameter	7 3/16" (182mm)
Motor Outer Diameter	2 3/4"  (70mm)
Grille Protrusion	  3/4"  (23mm)
Mounting Hole Diameter	5 5/8"  (142mm)
Mounting Depth		2 1/4"  (56mm)

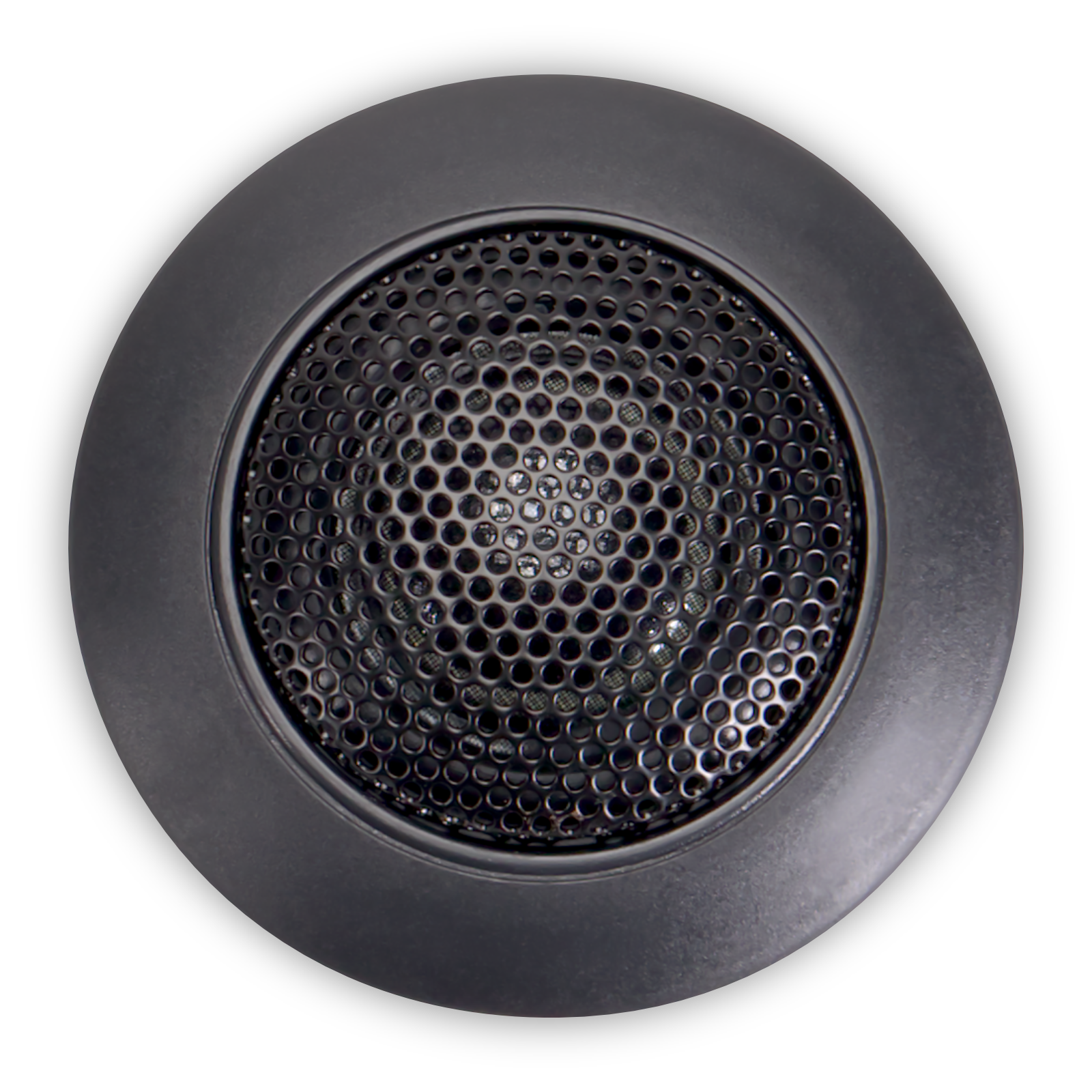

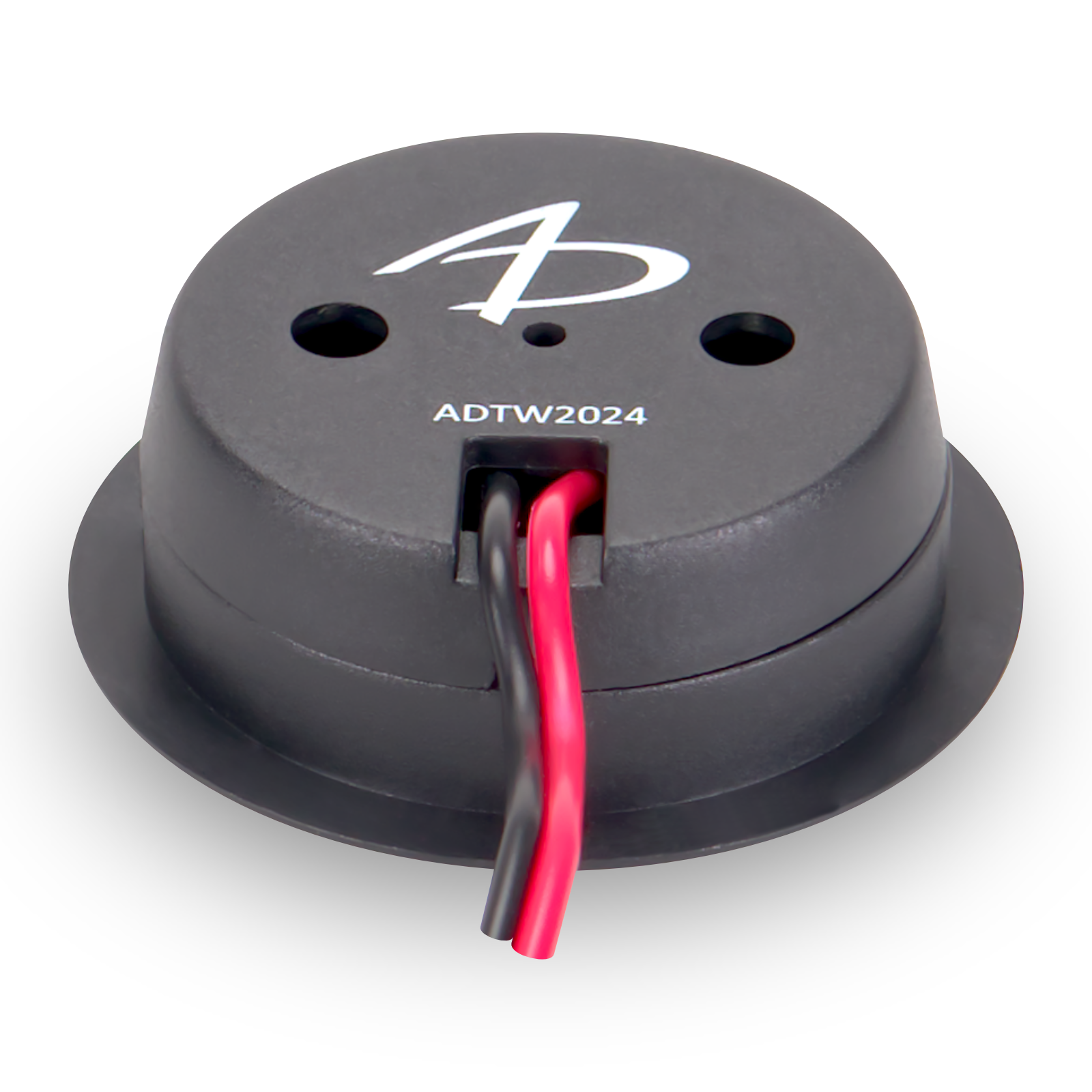

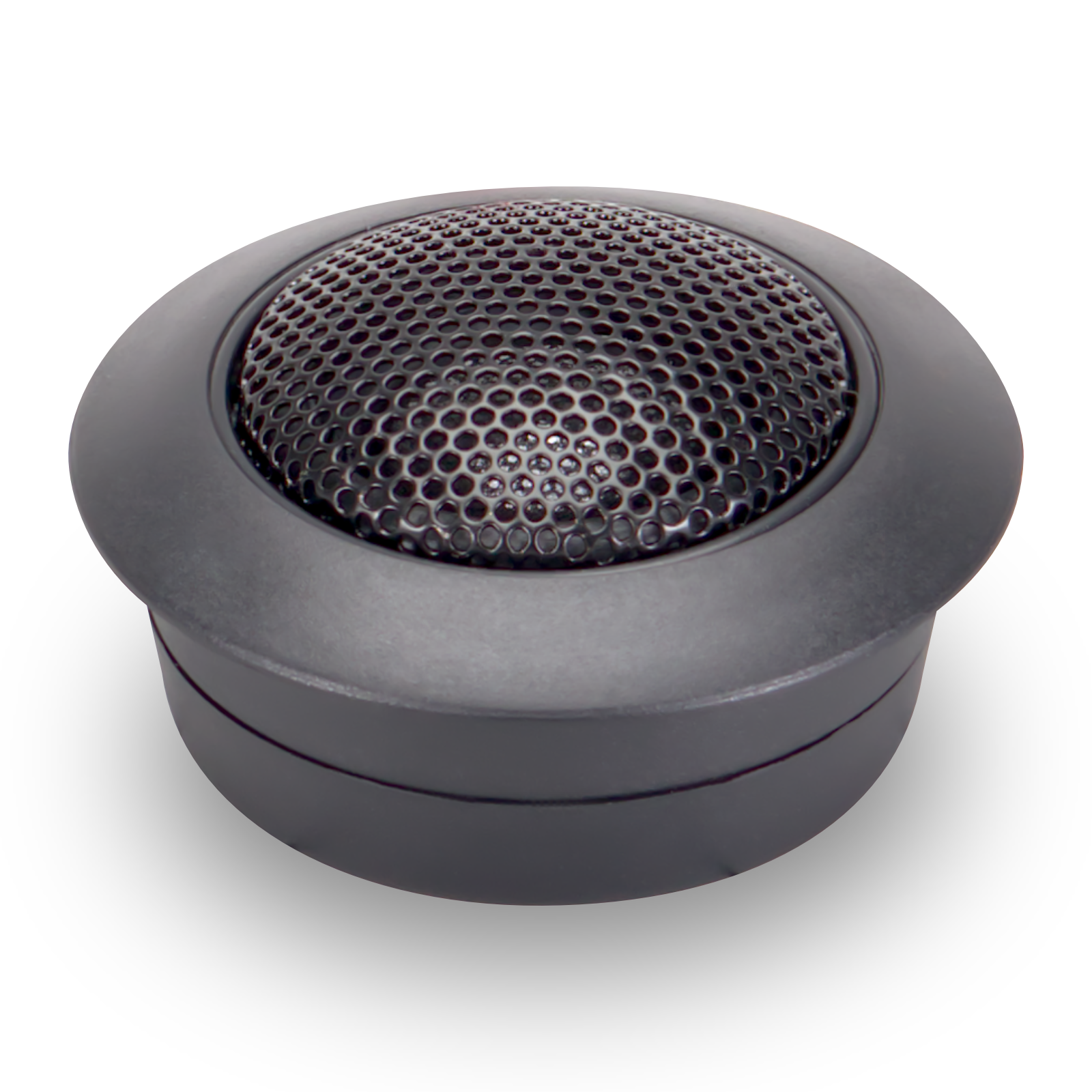

Tweeter:
Fs	0000.000 Hz
Qms	0.000
Qes	0.000
Re	0.000  ohm
Le	0.00000 mH
Z	0.000  ohm
Qts	0.000

Flush Mount Hole Diameter	1 3/4"   (45mm)
Flush Mount Depth	          11/16" (17mm)
Flush Mount Diameter		2 1/8"   (53mm)
Flush Mount Protrusion		  3/8"   (10mm)
