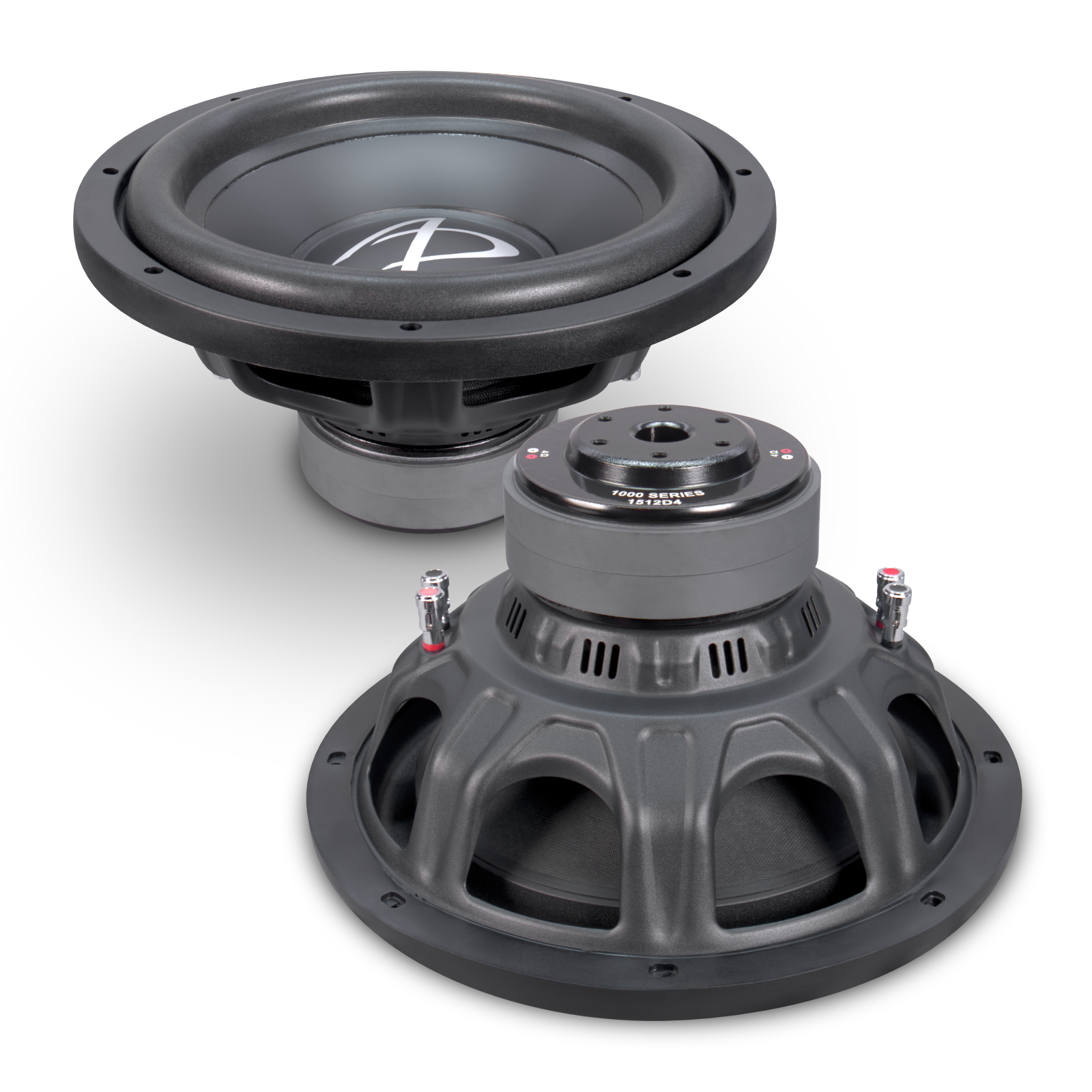

1512D4 - 1000 Series 12" Subwoofer
In Store Pick Up OnlyHighlights 75W - 300W optimal power range Designed for use in moderate size...
- $169.00
- $169.00
- Unit price
- per
Subtotal:
$169.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 75W - 300W optimal power range
- Designed for use in moderate size sealed and vented enclosures and infinite baffle
- Engineered in the USA.
Description
Description
The 1000 series 12 is optimized for linear performance and versatility in medium size sealed and vented enclosures and infinite baffle alignments.
Fs 36.54 Hz Qms 6.926 Vas 59.22 l Cms 0.173 mm/N Mms 109.7 g Rms 7.324 kg/s Dia 250.7 mm Sd 490.9 cm² Qes 0.8505 Re 7.324 ohm Le 4.29 mH Z 66.96 ohm Bl 14.73 Tm Qts 0.7575 no 0.3239 % SPL 87.2 dB EBP 42.96 Nominal Diameter 12in Overall Diameter 12.99in / 330mm Mounting Hole Diameter 11.1in / 282mm Motor Outer DiameterMounting Depth 6.06in / 154mm Required Pole Vent Clearance 0.24in / 6mm Driver Displacement 0.07 cu ft / 1.98l Minimum Sealed Volume 1.50 cu ft / 42l net Minimum Vented Volume 3.00 cu ft / 85l net* Infinite Baffle Approved * Tune for desired response
