XL 6.5" Neodymium Mid-Range Loudspeaker With Bullet 325 Watts Rms 4-Ohm
XL 6.5" Neodymium Mid-Range Loudspeaker With Bullet 325 Watts Rms 4-Ohm
XL 6.5" Neodymium Mid-Range Loudspeaker With Bullet 325 Watts Rms 4-Ohm
Product Overview
XL 6.5" Neodymium Mid-Range Loudspeaker With Bullet 325 Watts Rms 4-Ohm is part of the DS18 car audio : loudspeakers lineup. Review the listed specifications, options, and compatibility information before ordering.
Key Features
- 6.5" Mid-Range w/Bullet
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 97dB
Specifications
| SKU | 6XL650NB-4 |
|---|---|
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 Ohm / 8 Ohm |
| RMS Power Handling | 325 watts |
| MAX Power Handling | 650 watts |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 80Hz-12.5KHz |
| Recommended HI Pass Crossover | 100Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non-pressed Paper |
| Dust Cap Material | N/A |
| Bullet Material | Aluminum |
| Bullet Color/Finish | Black |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Satin Black |
| Magnet Material | Neodymium Rings |
| Magnet Weight | 11.4 Oz |
| Displacement Volume | 0.34L / 0.012ft3 |
| Equivalent Volume | 5.07L / 0.17ft3 |
| Excursion (one way) | 3.7mm |
| Free Air Resonance | 120Hz |
| Mechanical Factor | 5.16 |
| Electrical Factor | 0.28 |
| Total Factor | 0.26 |
| Mechanical Mass | 9.11g |
| Mechanical Compliance | 0.19mm/N |
| BL Factor | 9.41 |
| Voice Coil Inductance | 0.05mH |
| Cone Area | 136.85cm2 |
| DC Resistance | 3.5 ohm |
| Mechanical Mass w/o air | 8.2g |

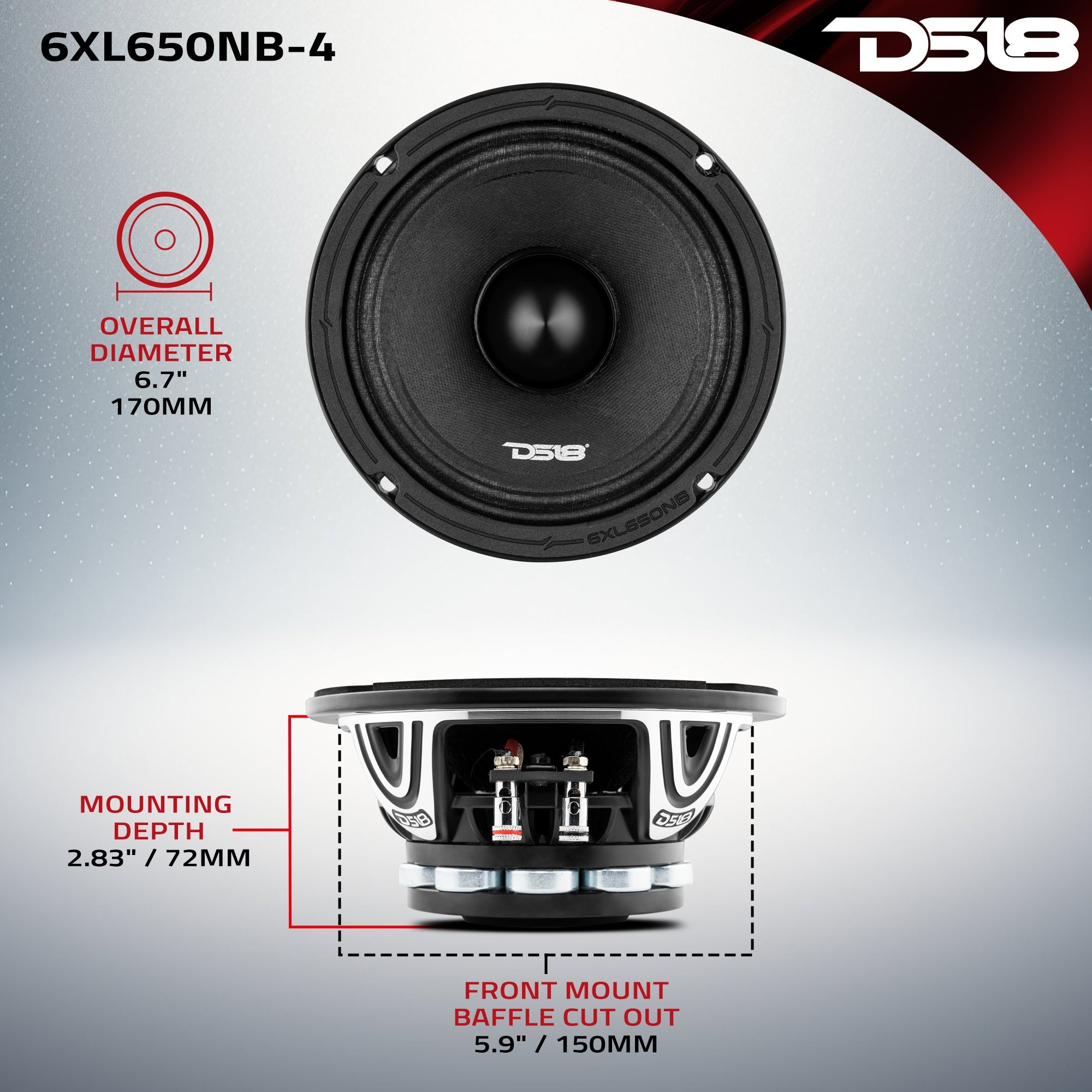

| Overall Diameter | 6.7" / 170mm |
| Overall Depth | 3.19" / 81mm |
| Front Mount Baffle Cutout | 5.9" / 150mm |
| Mounting Depth | 2.83" / 72mm |
| Motor Diameter | 4.13" / 105mm |
