Product Overview

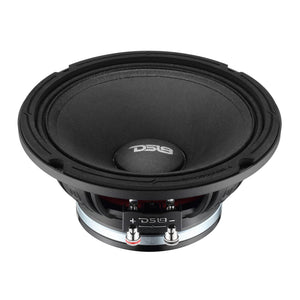

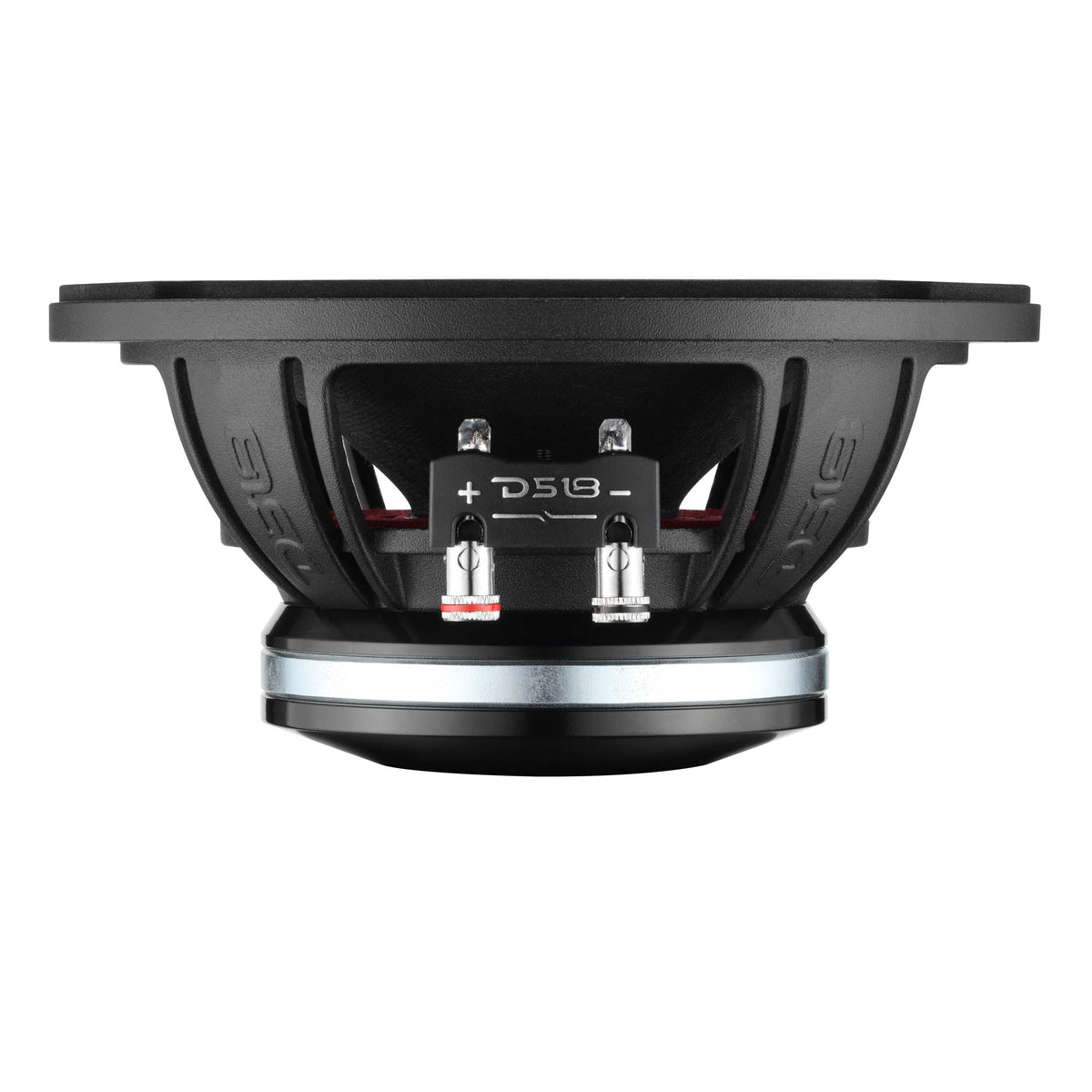

6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet
Mid-Range Authority
The 6PRO600NMR-4 is a 6.5” high-sensitivity professional mid-range engineered for serious output. With 300W RMS and 600W MAX power handling at 4 ohms, this speaker delivers aggressive, commanding mids that stay clear at extreme volume.
Power and Precision
Featuring a neodymium motor structure, the 6PRO600NMR-4 achieves 102 dB sensitivity and a 140 Hz–14 kHz frequency response. Vocals and instruments project forward with intensity while maintaining tonal accuracy.
Competition Ready
An aluminum basket provides structural rigidity while keeping weight down. The cloth surround ensures durability, and its 2.9” mounting depth allows for versatile installation across a wide range of applications.
Built for Loud Systems
A 1.75” Kapton voice coil with CCAW winding improves thermal handling and efficiency. The integrated copper demodulating ring reduces distortion, keeping your mids clean and controlled even under heavy load.
Engineered for Extreme Output
Designed for high-output applications, the 6PRO600NMR-4 is built for enthusiasts who demand projection, efficiency, and reliability. Available in 6”, 8”, and 6x9” options to match your system’s needs.
Key Features
- 6.5” High-Sensitivity Midrange Speaker (102 dB Output)
- 300W RMS / 600W Peak Power Handling
- Neodymium Magnet for Lightweight, High Efficiency
- 140 Hz–14 kHz Frequency Range for Clear Vocals
- Aluminum Basket with High-Performance Voice Coil
Specifications
| Nominal Diameter | 6.5" / 165mm |
|---|---|
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 300W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 102dB |
| Frequency Response | 140Hz-14kHz |
| Recommended High-Pass Crossover | 160Hz |
| Sold in Pair or Single | Single |
| Demodulating Rings | Copper Ring |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push 16ga |
| Voice Coil Diameter | 1.75" / 44.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Leads Connection Type | Spider Crossed |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Neodymium |
| Magnet Weight | 12.8 Oz |
| Equivalent Volume | 5.27L / 0.186ft3 |
| Excursion (one way) | 0.75mm |
| Free Air Resonance | 140Hz |
| Mechanical Factor | 1.51 |
| Electrical Factor | 0.40 |
| Total Factor | 0.32 |
| Mechanical Mass | 7.13g |
| Mechanical Compliance | 0.17mm/N |
| BL Factor | 10.580 |
| Voice Coil Inductance | 0.53mH |
| Cone Area | 147.41 Cm2 |
| DC Resistance | 3.8 Ohms |

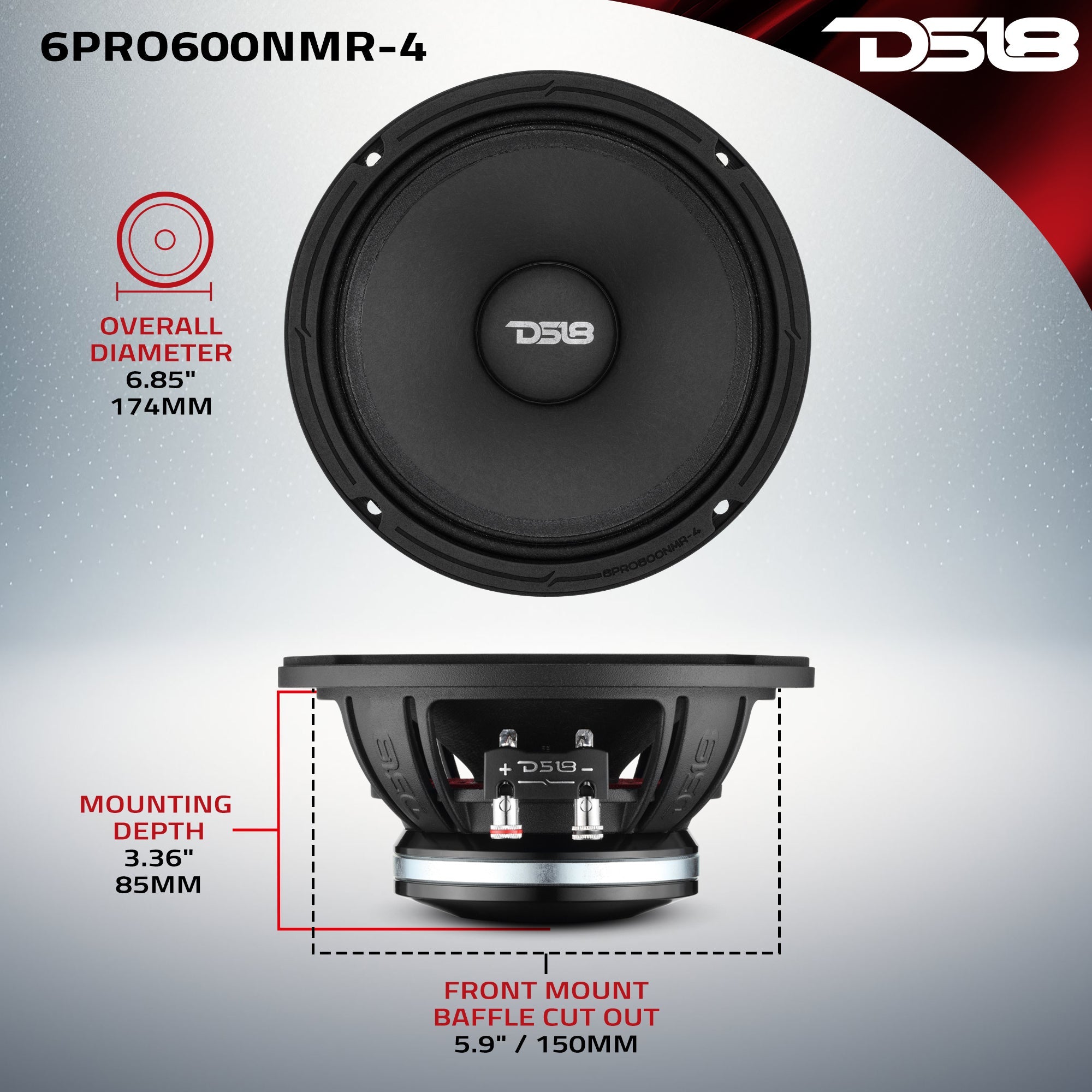

| Overall Diameter | 6.85" / 174mm |
| Overall Depth | 3.3" / 85mm |
| Front Mount Baffle Cutout | 5.9" / 150mm |
| Mounting Depth | 2.9" / 74.5mm |
| Motor Diameter | 3.94" / 100mm |
