6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 200W RMS 4-Ohm
6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 200W RMS 4-Ohm
Product Overview
6.5” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet
Powerful Projection
The 6PRO400NMR-4 is a 6.5” high-sensitivity professional mid-range built for aggressive output. With 200W RMS and 400W MAX power handling at 4 ohms, this speaker delivers strong, forward mids that cut through loud, high-output systems.
High Sensitivity
Powered by a neodymium motor, the 6PRO400NMR-4 achieves 100 dB sensitivity with a 120Hz–17kHz frequency response. Its paper cone increases surface coverage, giving vocals and instruments more presence and projection.
Durable Construction
The steel basket provides solid structural support for daily or high-output builds. The cloth surround ensures durability under heavy demand. With a 2.6” mounting depth, this speaker offers versatile installation across a wide range of applications.
Built for Clean Output
A 1.5” Kapton voice coil with CCAW winding improves efficiency and heat management. The integrated copper demodulating ring reduces distortion, keeping your mids tight, controlled, and competition-ready.
Designed to Be Heard
Engineered for serious sound enthusiasts, the 6PRO400NMR-4 delivers projection, efficiency, and reliability. Available in 6”, 8”, and 6x9” options to match your system’s needs.
Key Features
- 6.5” High-Sensitivity Midrange Speaker (100 dB Output)
- 200W RMS / 400W Peak Power Handling
- Neodymium Magnet for Lightweight, High Efficiency
- 120 Hz–17 kHz Frequency Range for Clear Vocals
- Aluminum Basket with High-Performance Voice Coil
Specifications
| Nominal Diameter | 6.5" / 165mm |
|---|---|
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 100dB |
| Frequency Response | 120Hz-17kHz |
| Recommended High-Pass Crossover | 140Hz |
| Sold in Pair or Single | Single |
| Demodulating Rings | Copper Ring |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push 16ga |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Leads Connection Type | Spider Crossed |
| Basket Material | Steel |
| Basket Color/Finish | Black |
| Magnet Material | Neodymium |
| Magnet Weight | 8 Oz |
| Equivalent Volume | 4.97L / 0.175ft3 |
| Excursion (one way) | 1.65mm |
| Free Air Resonance | 145Hz |
| Mechanical Factor | 1.88 |
| Electrical Factor | 0.32 |
| Total Factor | 0.28 |
| Mechanical Mass | 8.04g |
| Mechanical Compliance | 0.14mm/N |
| BL Factor | 5.08 |
| Voice Coil Inductance | 0.35mH |
| Cone Area | 156.15 Cm2 |
| DC Resistance | 3.5 Ohms |

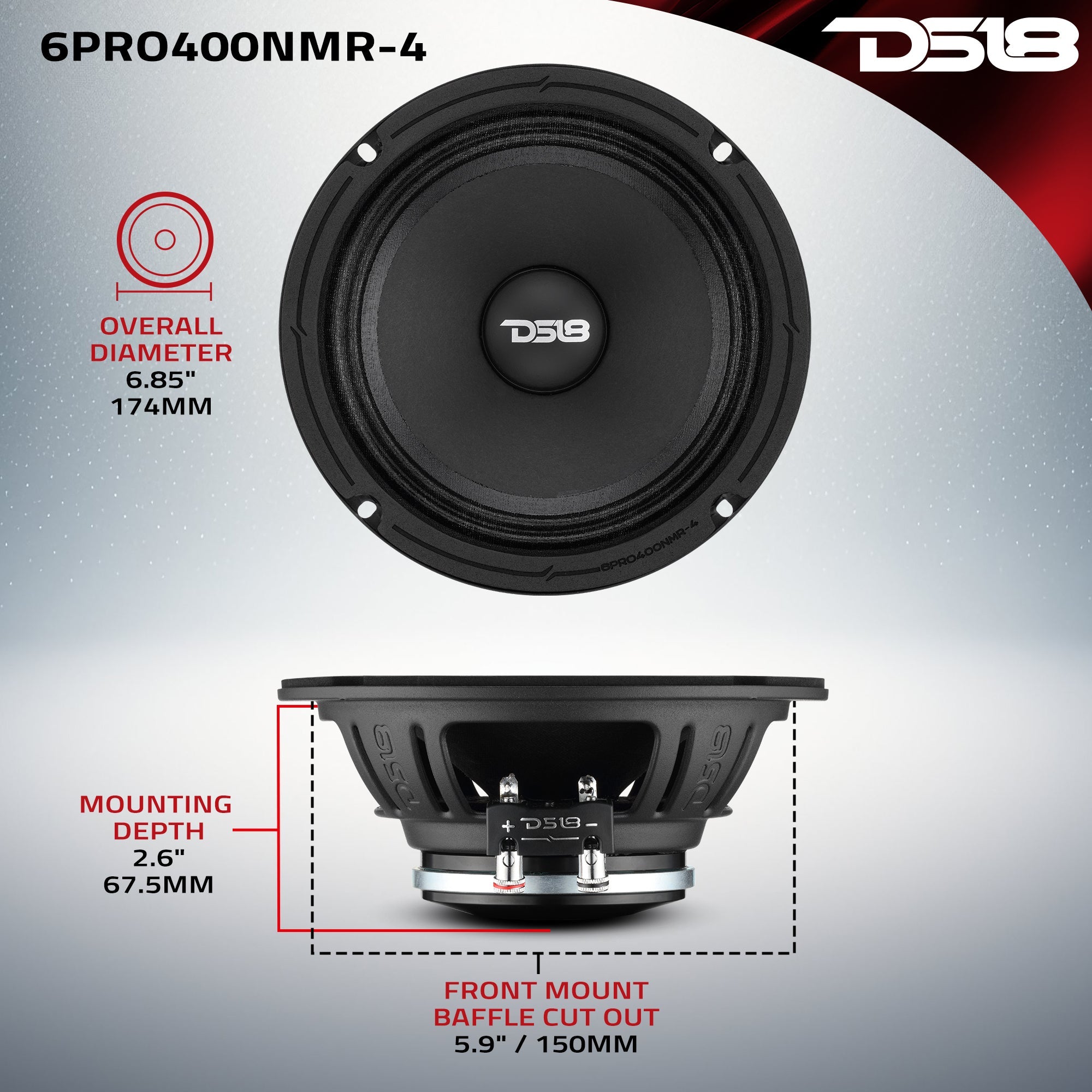

| Overall Diameter | 6.85" / 174mm |
| Overall Depth | 2.9" / 74.6mm |
| Front Mount Baffle Cutout | 5.9" / 150mm |
| Mounting Depth | 2.6" / 67.5mm |
| Motor Diameter | 3.5" / 90mm |
