PRO 6.5” Slim Professional Mid-Range Speaker With Neodymium Magnet 180 Watts Rms 8-Ohm - Recommended for Dome and Diffuser Horn (LA)
PRO 6.5” Slim Professional Mid-Range Speaker With Neodymium Magnet 180 Watts Rms 8-Ohm - Recommended for Dome and Diffuser Horn (LA)
Product Overview

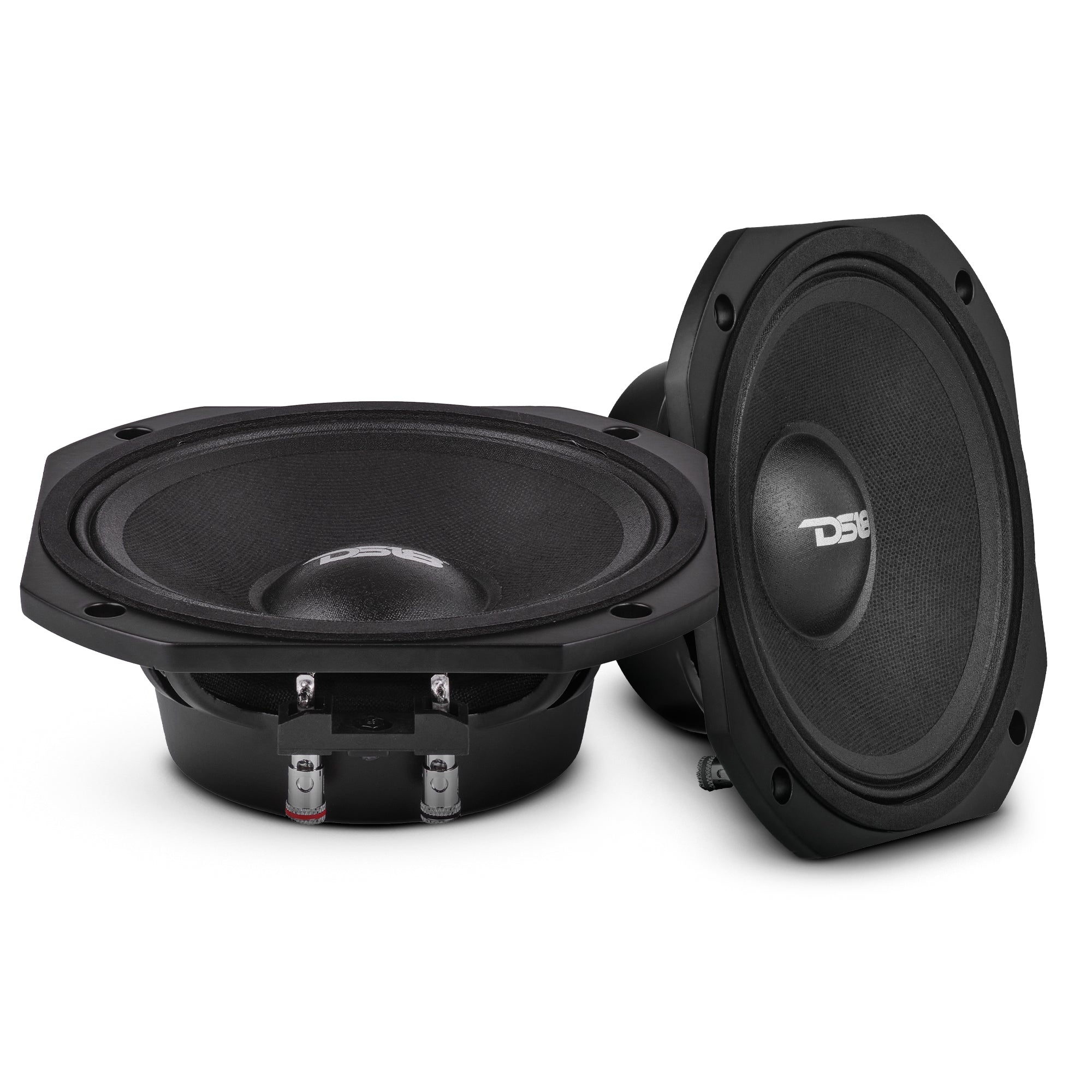

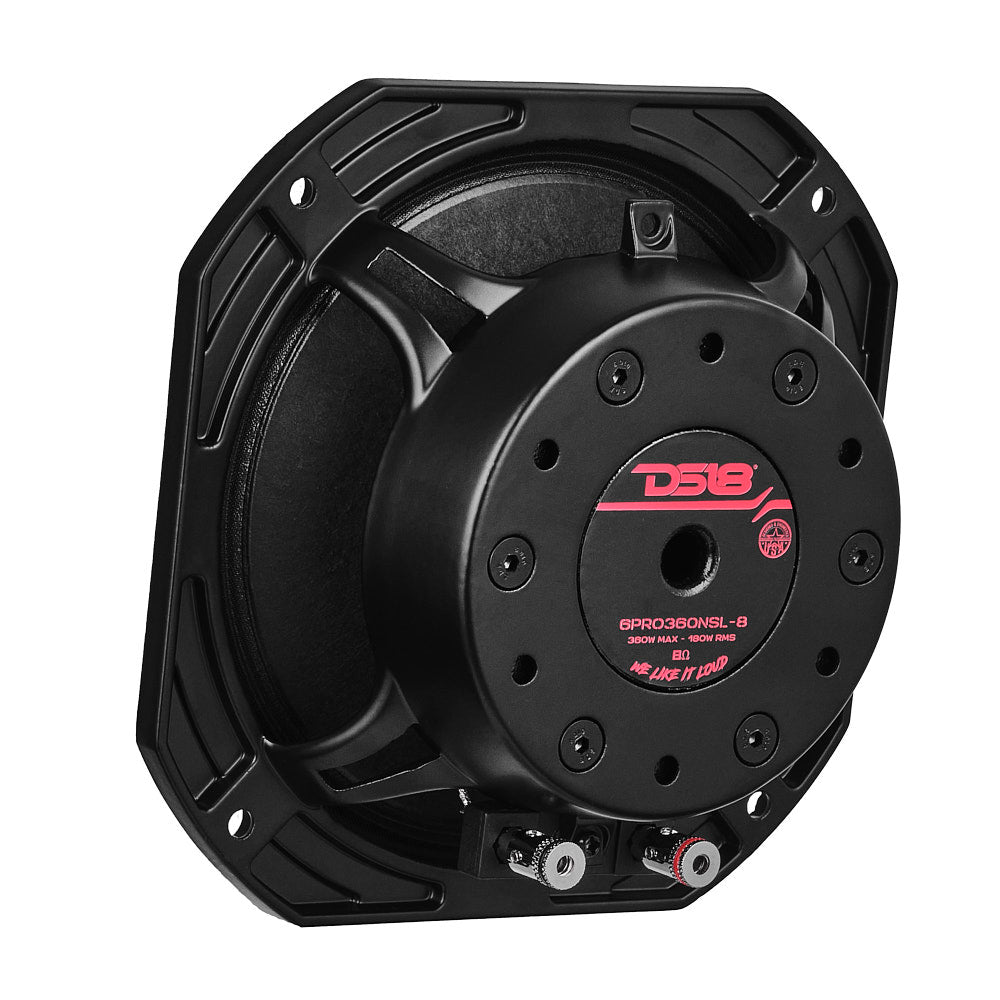

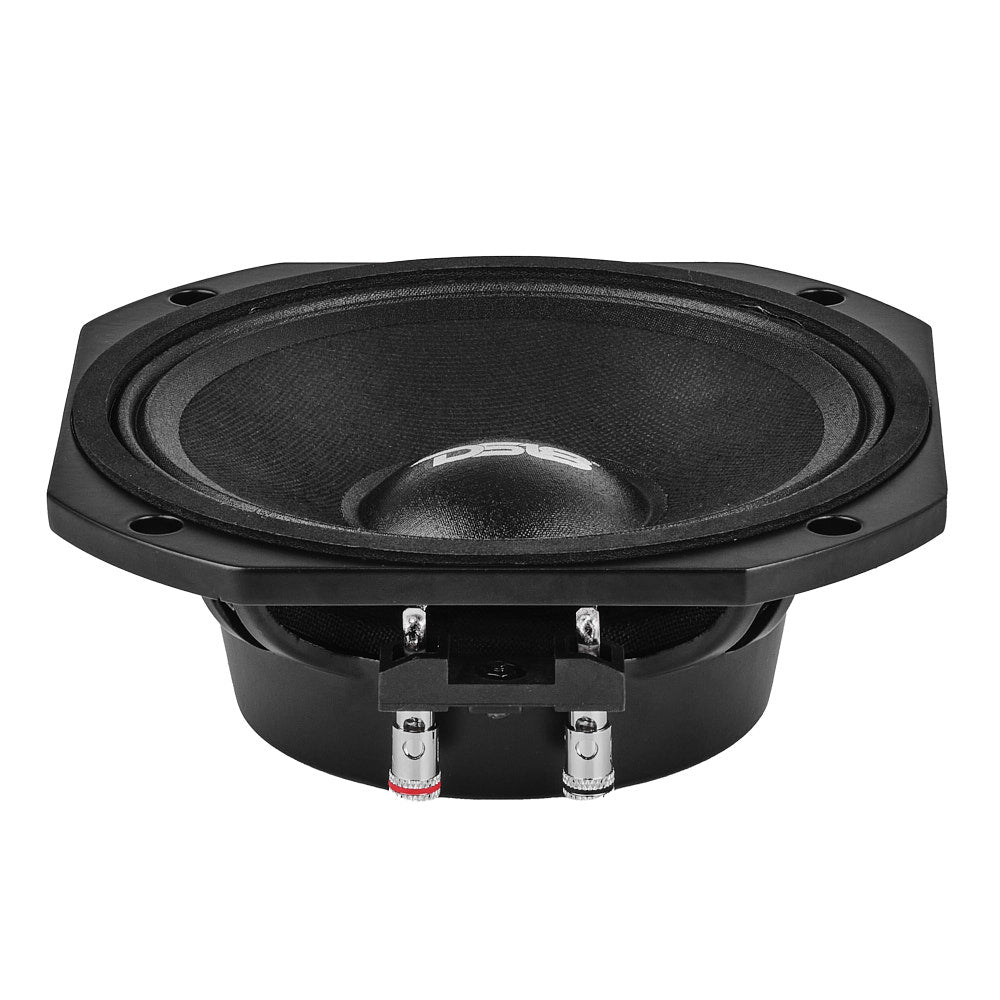

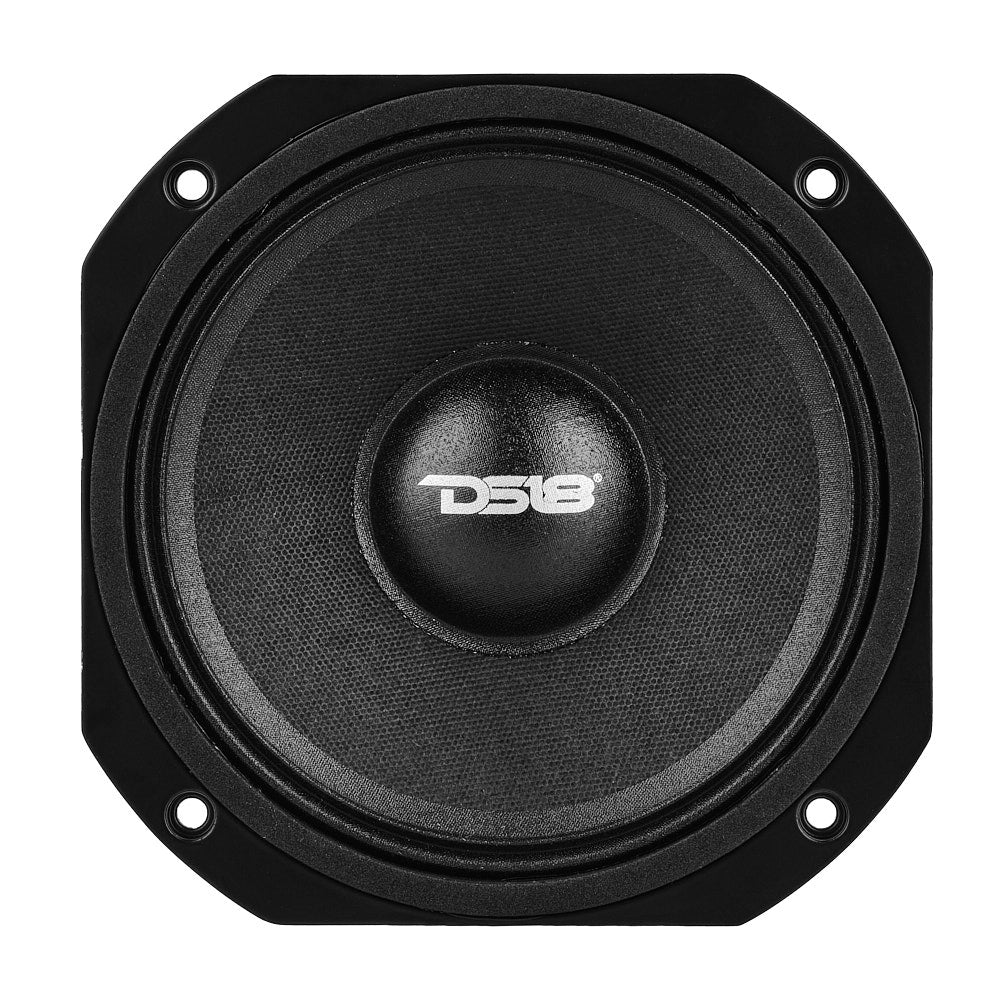

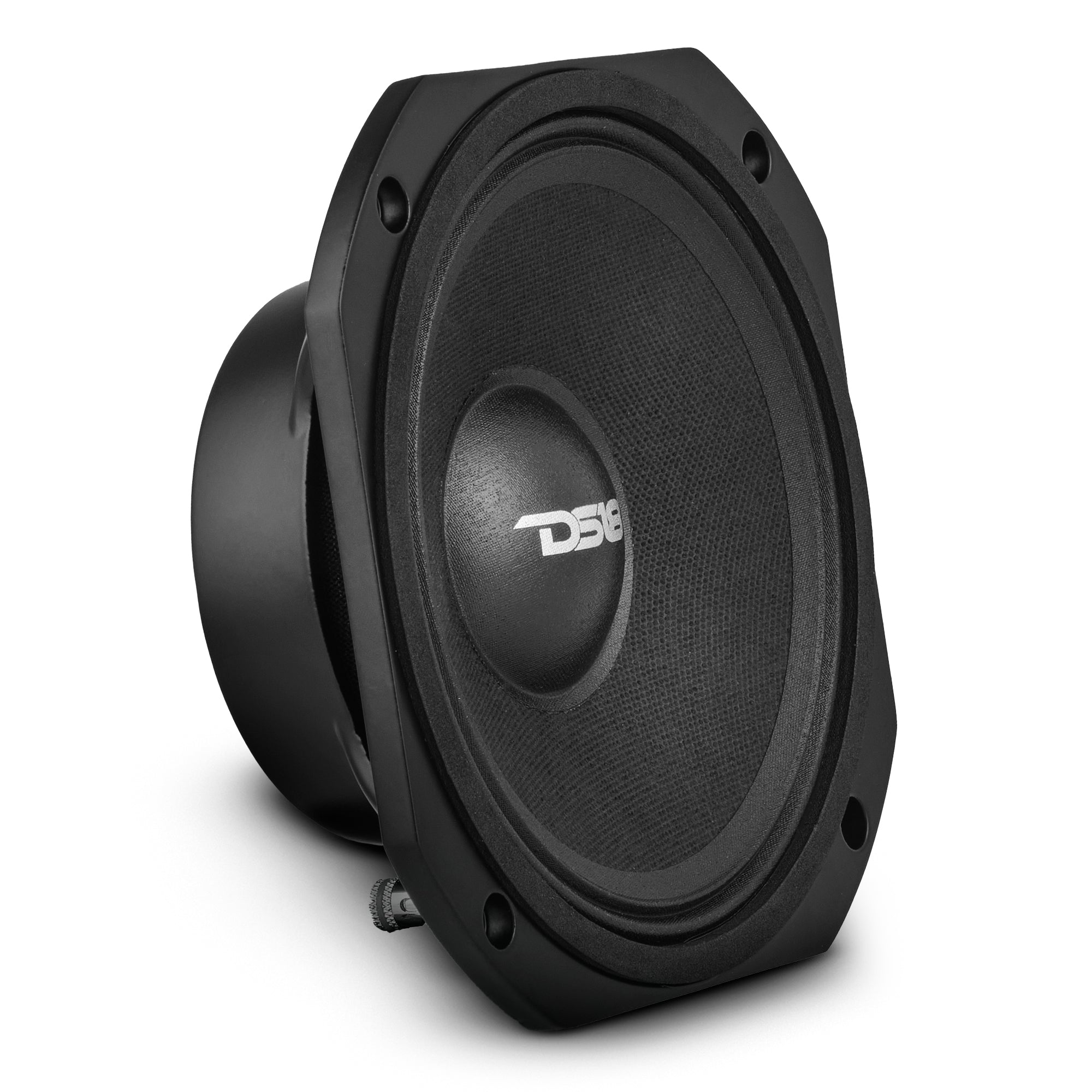

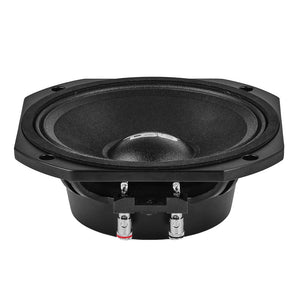

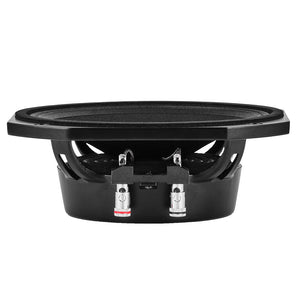

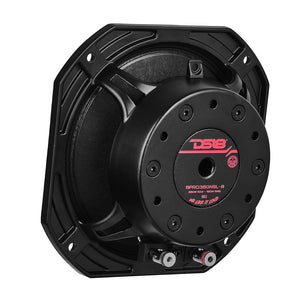

DS18 6PRO360NSL-8 PRO
6.5” Slim Professional Midrange Speaker With Neodymium Magnet For Dome
DS18’s 6PRO360NSL-8 is a powerhouse of sound designed to make building your system easier than ever before.
With a sleek black die-cast aluminum basket with outer support rings for organization, this midrange speaker was designed for show quality performance. The push speaker terminals (12ga) make installation a breeze, ensuring a secure and seamless connection.
Featuring a nominal impedance of 8 OHMS and a robust RMS power handling of 180W (MAX power handling of 360W), DS18’s 6PRO360NSL-8 guarantees every note, beat, and vocal is reproduced accurately. The103 dB sensitivity guarantees crystal-clear sound at high volumes so you never have to stop getting LOUD!
Equipped with an Interleaved Sandwich Voice Coil (ISV) and improved heat dissipation, this speaker can handle the most demanding audio setups. The curvilinear cone shape plays a big factor in this speaker's exceptional sound reproduction capabilities.
Crafted with premium materials, the DS18 6PRO360NSL-8 is built to last. Its fiberglass voice coil with a diameter of 1.78", winding material made of aluminum, and neodymium magnet, weighing in at 11.7 Oz, all work together seamlessly to produce the most vibrant audio experience possible.
Unlock the true potential of your audio system with DS18’s 6PRO360NSL-8!
Key Features
- 6.5" Square Slim Mid-Range
- MAX Power: 360 Watts
- RMS Power: 180 Watts
- Impedance: 8 Ohm
- Neodymium Magnet
- 103dB
Specifications
| SKU | 6PRO360NSL-8 |
|---|---|
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 180W |
| MAX Power Handling | 360W |
| Sensitivity (1w/1m) | 103dB |
| Frequency Response | 100Hz-10KHz |
| Recommended HI Pass Crossover | 120Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Interleaved Sandwich Voice coil (ISV) | Yes |
| Demodulating Rings | No |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |

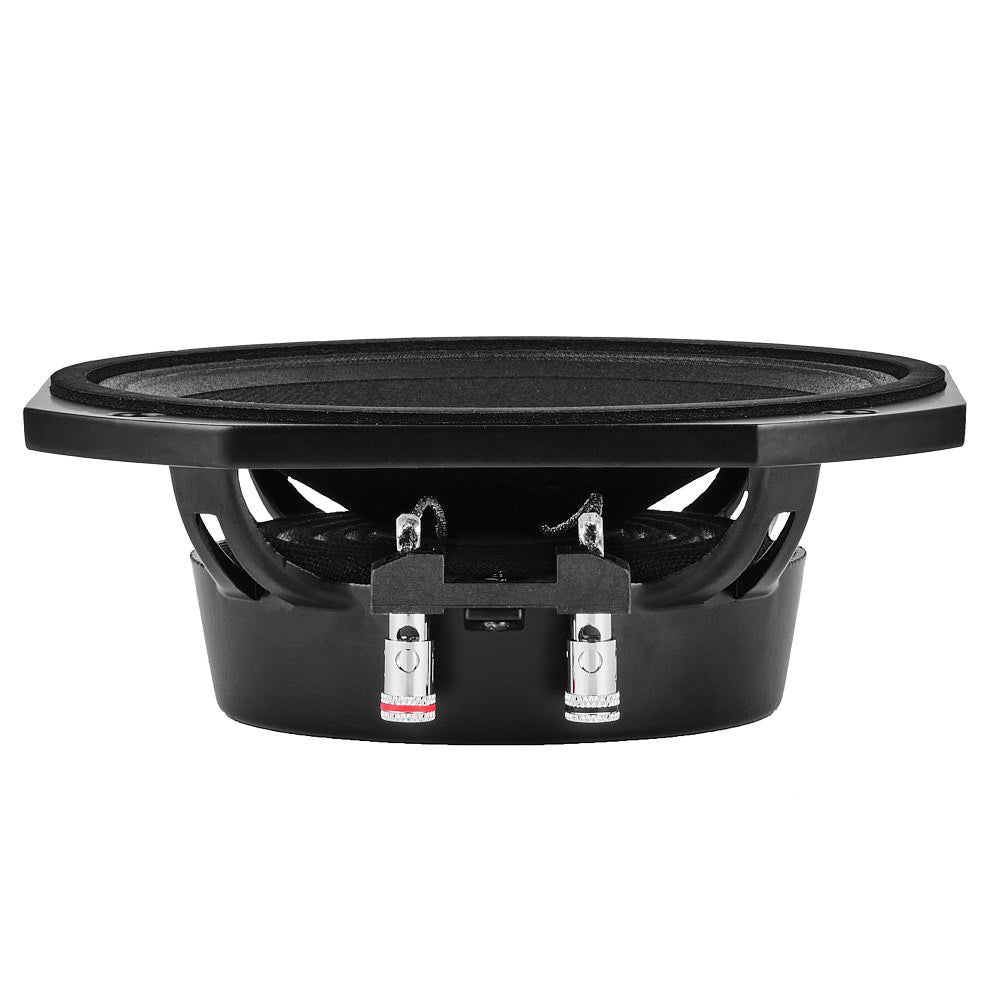

| Speaker Terminals | Push (12ga) |
| Voice Coil Diameter | 1.78" / 45mm |
| Voice Coil Former Material | Fiberglass |
| Winding Material | Aluminum |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Cloth |
| Bullet Material | N/A |
| Bullet Color/Finish | N/A |
| Surround Material | Cloth |
| Basket Material | Die-Cast Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Neodymium |
| Magnet Weight | 11.7 Oz |
| Displacement Volume | - |
| Equivalent Volume Vas | 11.54L / 0.4ft3 |
| Excursion (one way) Xmax | 2.5mm |
| Free Air Resonance Fs | 125Hz |
| Mechanical Factor Qms | 8.76 |
| Electrical Factor Qes | 0.53 |
| Total Factor Qts | 0.5 |
| Mechanical Mass Mms | 4.68g |
| Mechanical Compliance Cms | 0.34 mm/N |
| BL Factor BL | 6.53 |
| Voice Coil Inductance Le | 0.68mH |
| Cone Area Sd | 153.94 Cm2 |
| DC Resistance Re | 5.9 Ohms |
| Mechanical Mass w/o air Mmd | - |

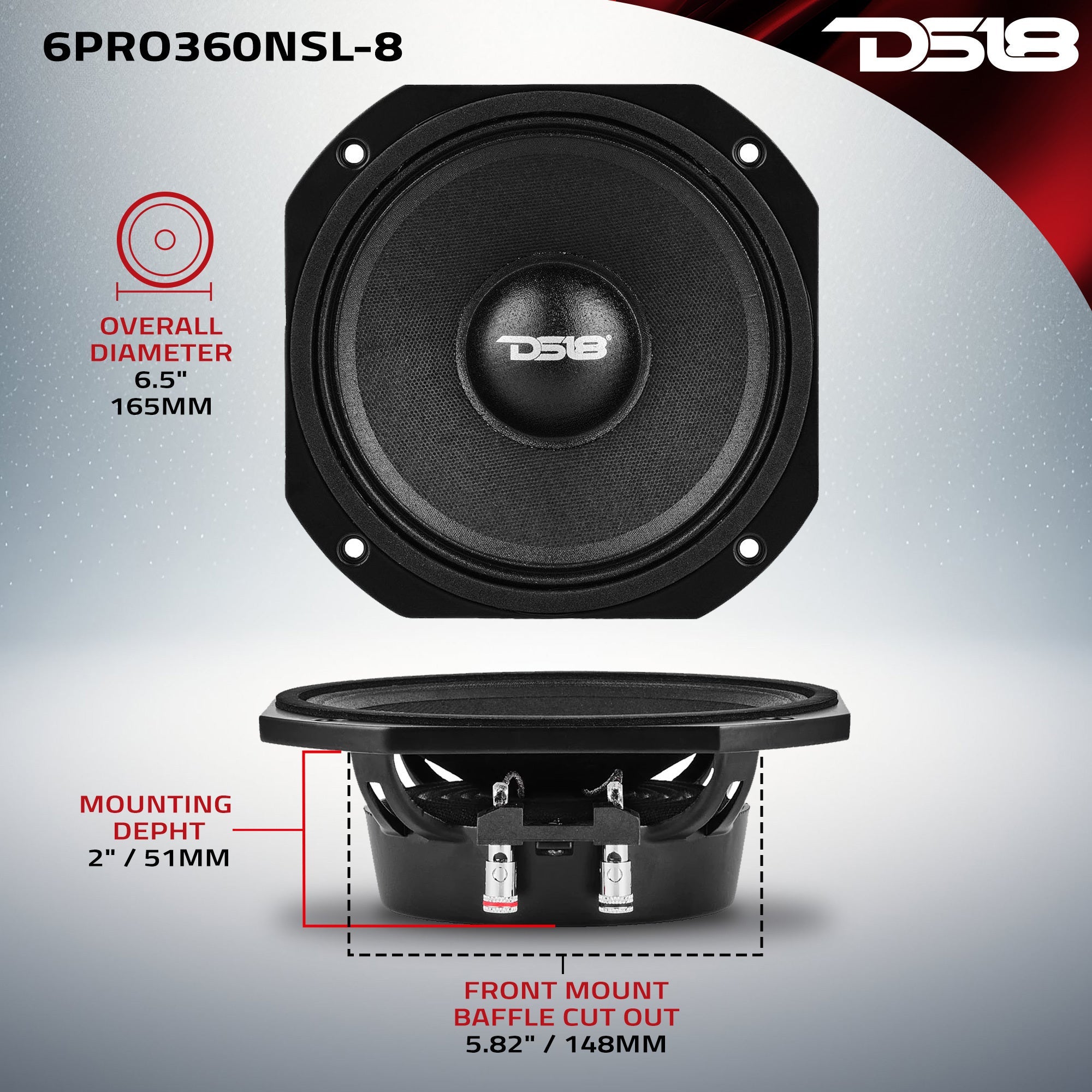

| Overall Diameter | 6.38" / 162mm |

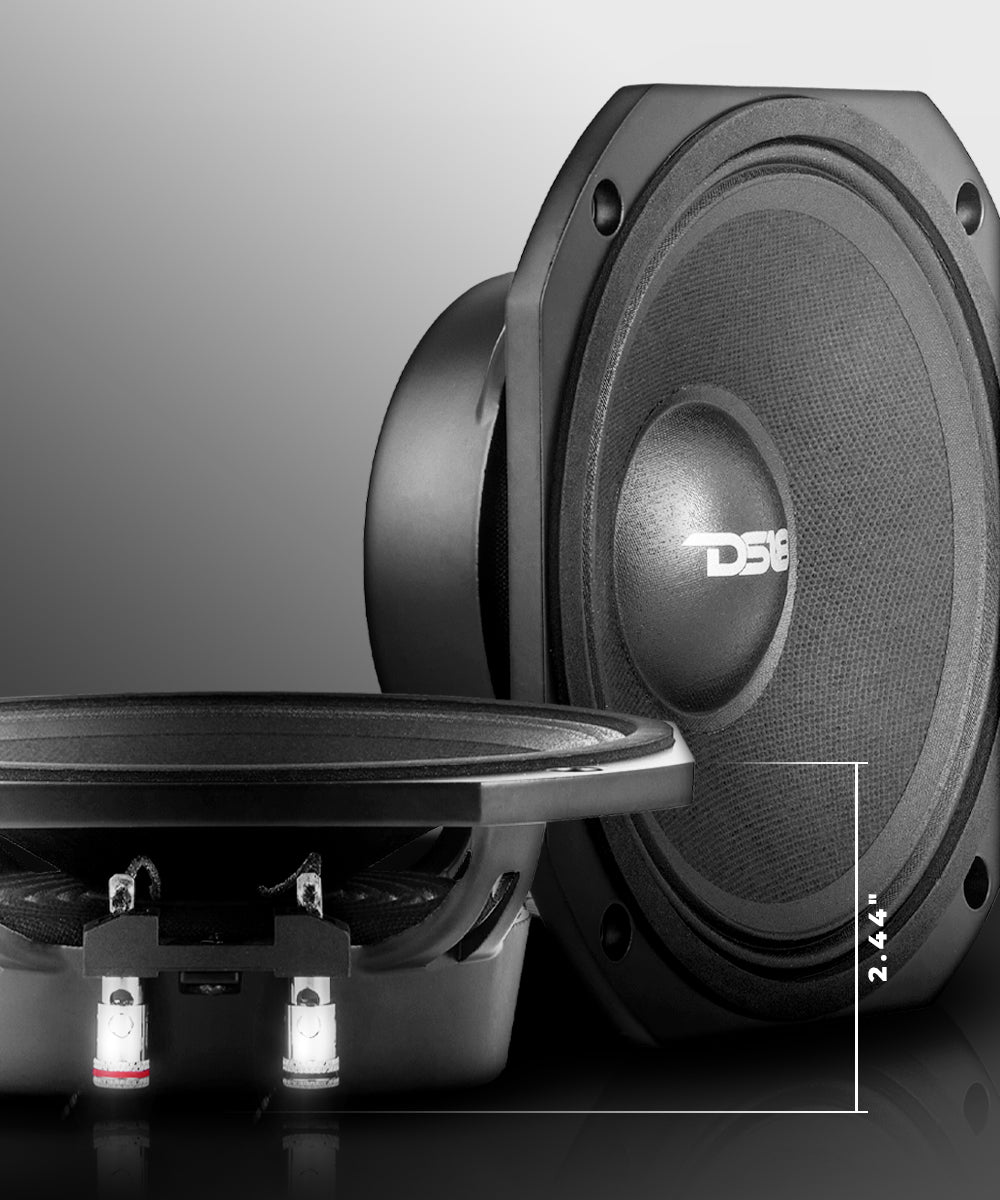

| Overall Depth | 2.44" / 62mm |
| Front Mount Baffle Cutout | 5.82" / 148mm |
| Mounting Depth | 2" / 51mm |
| Motor Diameter | 3.74" / 95mm |
