Product Overview

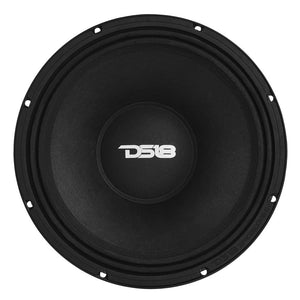

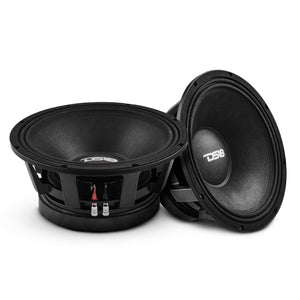

DS18 12PRO2500MB-8 PRO 12" Mid-Bass Loudspeaker 1250 Watts Rms 8-Ohm
DS18’s 12PRO2500MB-8 is the ultimate choice for those seeking an unparalleled sound experience.
With a powerful 1250W RMS power handling and a MAX of 2500W, this mid-bass loudspeaker delivers a truly mind-blowing performance. The 8-ohm nominal impedance ensures compatibility with a wide range of amplifiers, allowing you to unleash its full potential.
Featuring an impressive sensitivity of 99dB (1w/1m), this speaker ensures crystal-clear sound reproduction even at high volumes. The frequency response of 40Hz-5KHz guarantees a wide range of sound, capturing every detail of your music.
One of the standout features of the DS18 12PRO2500MB-8 is its Interleaved Sandwich Voice Coil (ISV). This innovative design enhances heat dissipation, allowing for prolonged use without compromising on performance. The 4" voice coil diameter, made from high-quality fiberglass material, ensures optimal power handling and minimal distortion.
This speaker has a curvilinear cone shape, delivering precise and accurate sound reproduction. The non-pressed paper cone material, combined with a cloth surround, provides durability and excellent transient response.

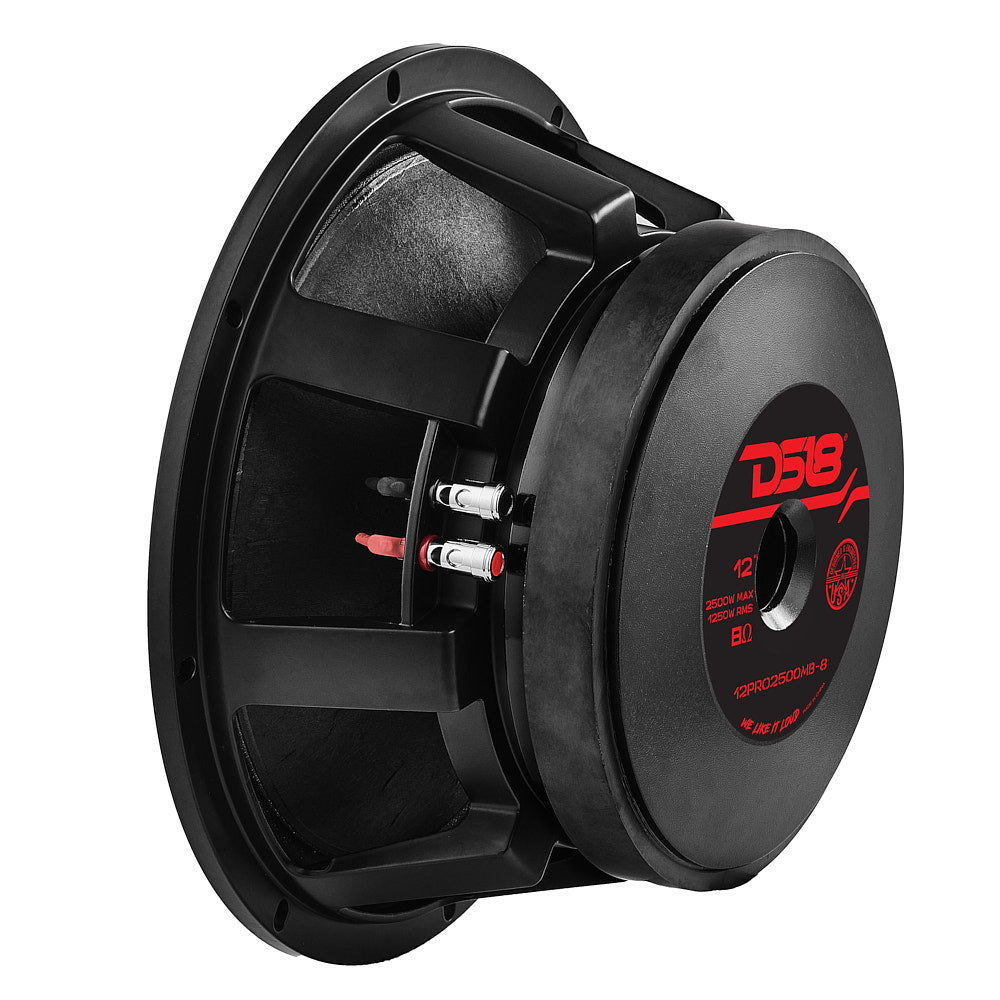

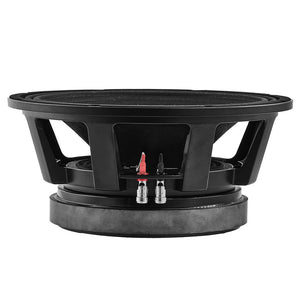

With push terminals featuring spring-loaded connections, installation is a breeze. The aluminum basket not only adds to the speaker's ruggedness but also improves overall sound dispersion.
DS18’s 12PRO2500MB-8 is a must-have for any professional audio system!
Key Features
- 12" Mid-Bass
- MAX Power: 2500 Watts
- RMS Power: 1250 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99dB
Specifications
| SKU | 12PRO2500MB-8 |
|---|---|
| Nominal Diameter | 12" / 300mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 1250W |
| MAX Power Handling | 2500W |
| Sensitivity (1w/1m) | 99dB |
| Frequency Response | 40Hz-5KHz |
| Recommended HI Pass Crossover | 80Hz |
| Sold in Pair or Single | single |
| Grill Included | No |
| Interleaved Sandwich Voice coil (ISV) | Yes |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push Spring Loaded (8ga) |
| Voice Coil Diameter | 4" / 101.6mm |
| Voice Coil Former Material | Fiberglass |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 126 oz |
| Displacement Volume | 1.9L / 0.067ft3 |
| Equivalent Volume Vas | 32.9L / 1.16ft3 |
| Excursion (one way) Xmax | 2 mm |
| Free Air Resonance Fs | 68Hz |
| Mechanical Factor Qms | 7.61 |
| Electrical Factor Qes | 0.45 |
| Total Factor Qts | 0.42 |
| Mechanical Mass Mms | 68.86g |
| Mechanical Compliance Cms | 0.08 mm/N |
| BL Factor BL | 19.82 |
| Voice Coil Inductance Le | 0.41 mH |
| Cone Area Sd | 539.13 Cm2 |
| DC Resistance Re | 5.9 Ohm |
| Mechanical Mass w/o air Mmd | 57.63g |

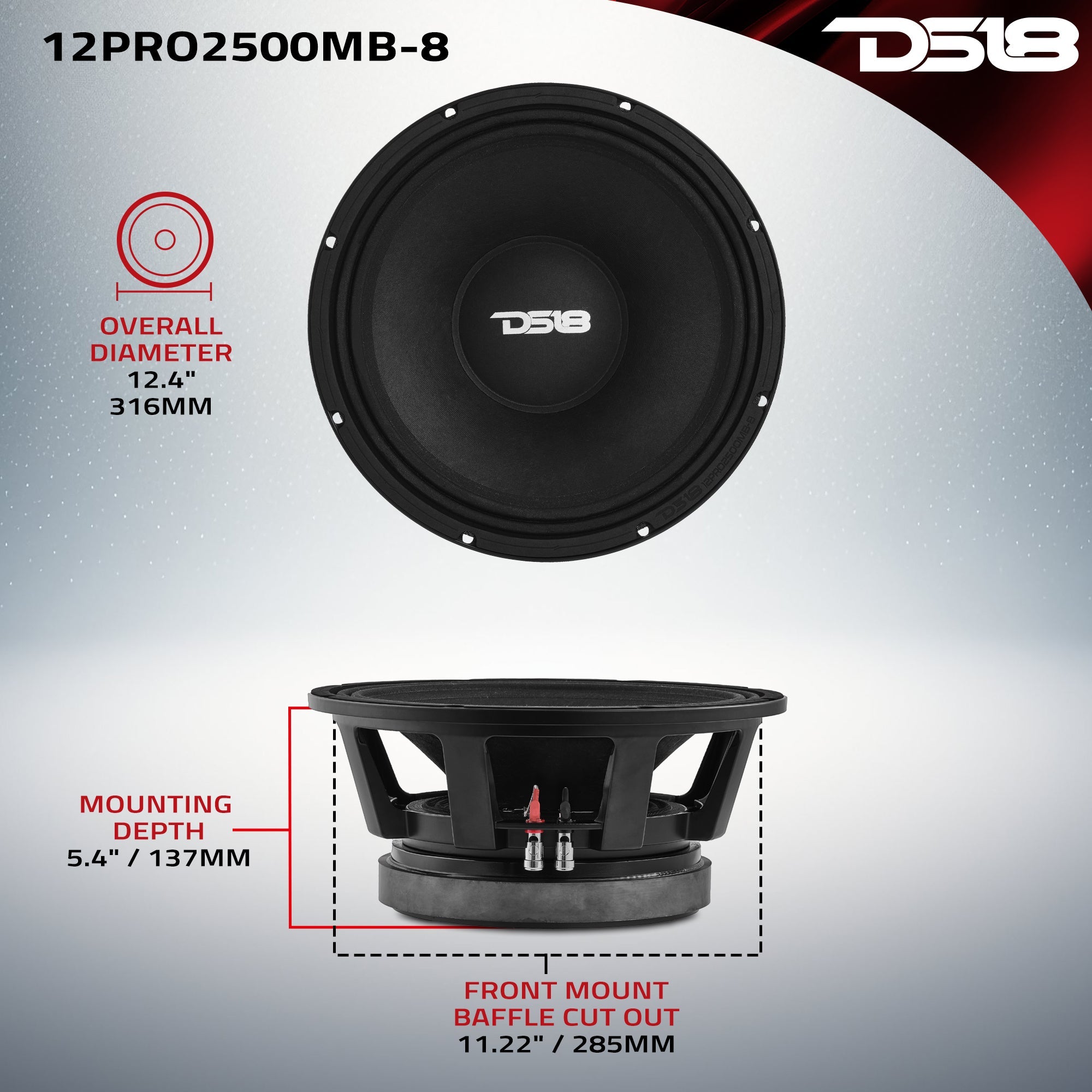

| Overall Diameter | 12.4" / 316mm |
| Overall Depth | 5.78" / 147mm |
| Front Mount Baffle Cutout | 11.22" / 285mm |
| Mounting Depth | 5.4" / 137mm |
| Motor Diameter | 8.6" / 220mm |
