3.6" High Compression Neodymium Hybrid Driver/Tweeter 200 Watts 1.5 " Pen 4-Ohm Vc
3.6" High Compression Neodymium Hybrid Driver/Tweeter 200 Watts 1.5 " Pen 4-Ohm Vc
Product Overview

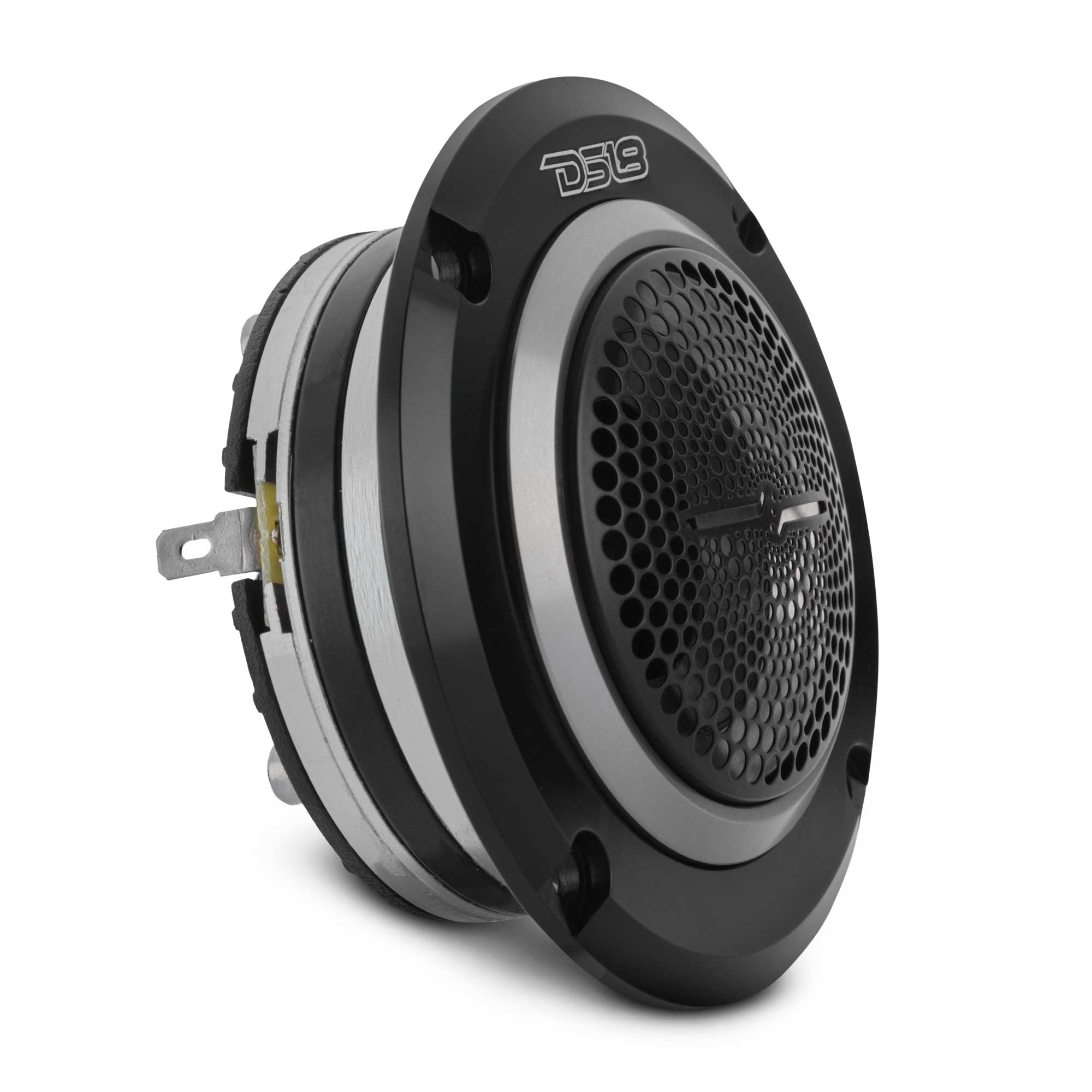

DS18 PRO-TWN5 3.6" High Compression Neodymium Hybrid Driver/Tweeter 400 Watts 1.5" Pen 4-Ohm Vc

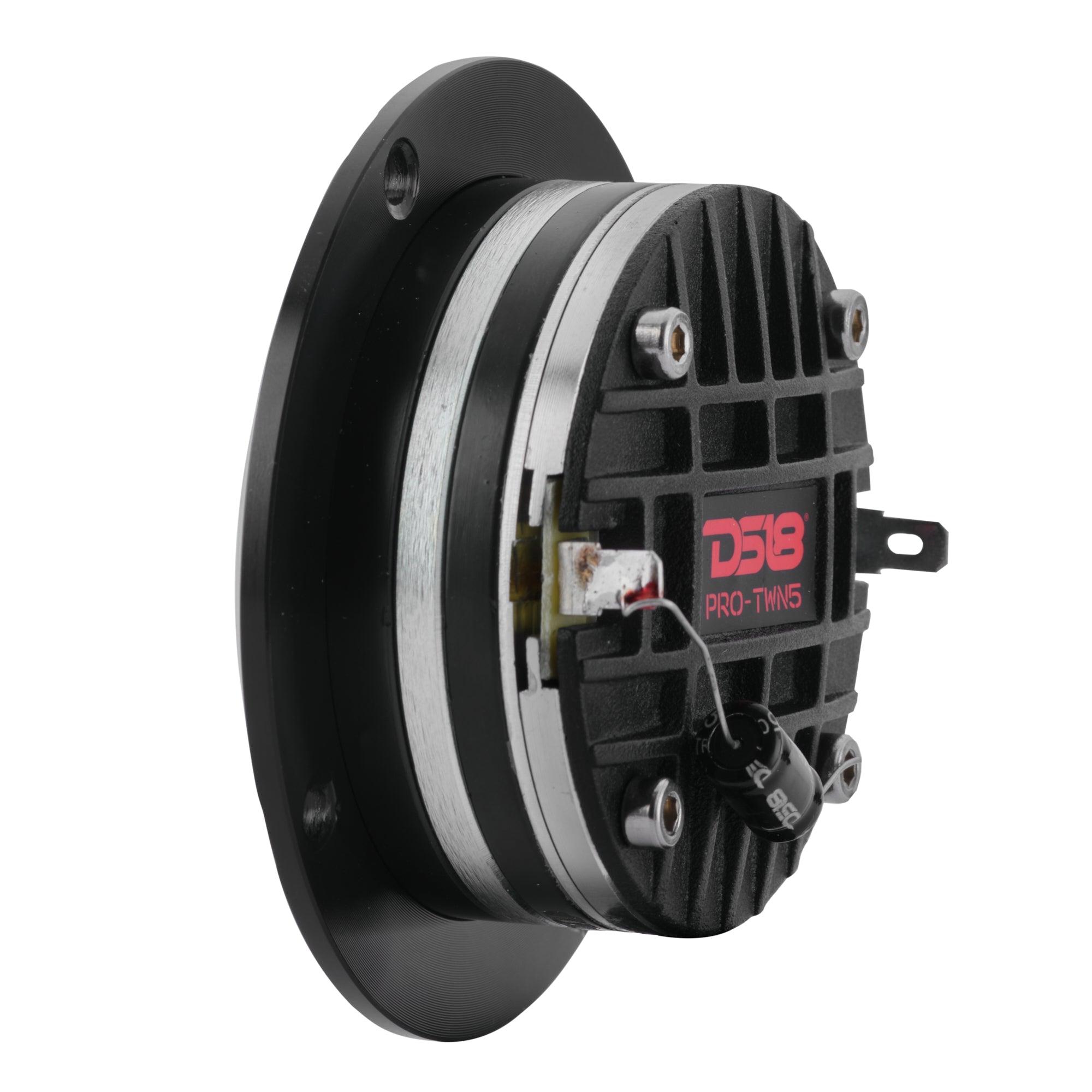

DS18 new PRO-TWN5 has all the looks of a driver but has been compactly sized to fit into super tweeter dimensions. This new super tweeter 1.5 inch voice coil can handle 200W RMS and 400W Peak. Comes with a neodymium magnet which increases the tweeters efficiency and lowers the weight dramatically. Each tweeter comes with an included bass blocker for extra protection against frequencies that would otherwise damage the tweeter so you can feel safe your equipment can play loud and long. These tweeters have a very high sensitivity of 107 dB so the do not require full power to get extremely loud. This opens you up to multiple amp choices for your tweeters and gives you the versatility everyone looks for in powering and using your new tweeters.
Highlights

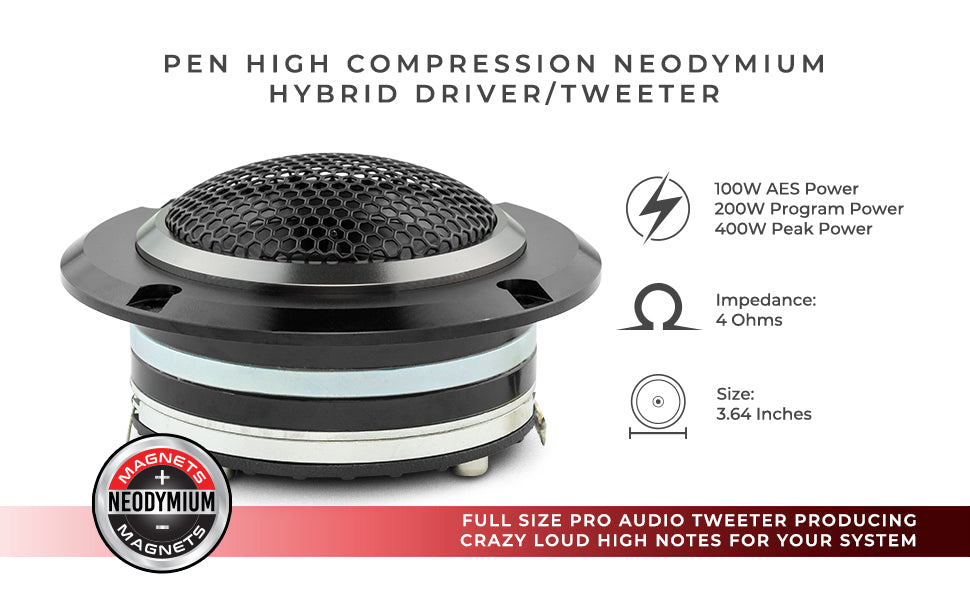

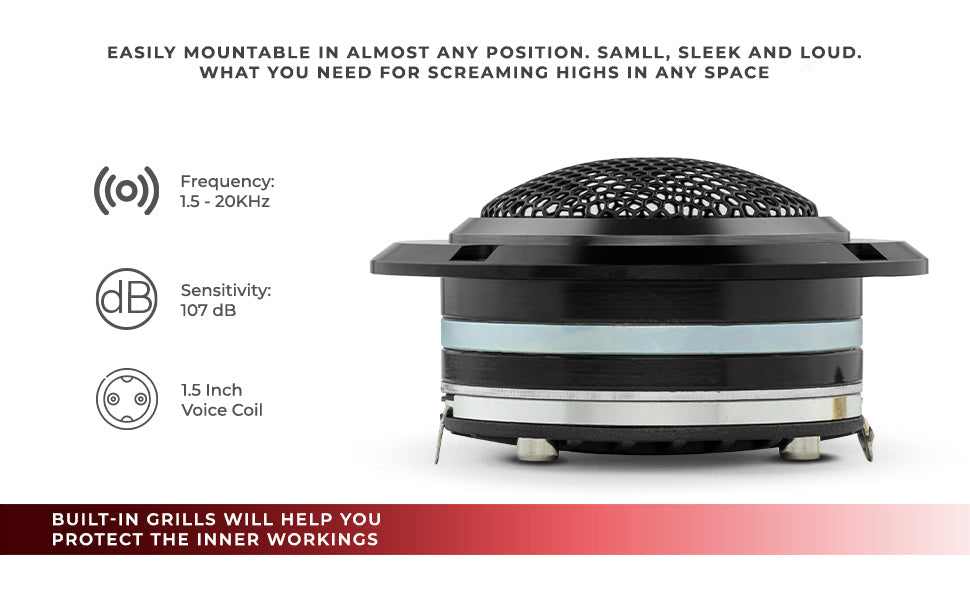

- Full size pro audio super tweeter producing crazy loud high range notes for your system.
- Designed to fit in most spaces with slight modification or fabrication.

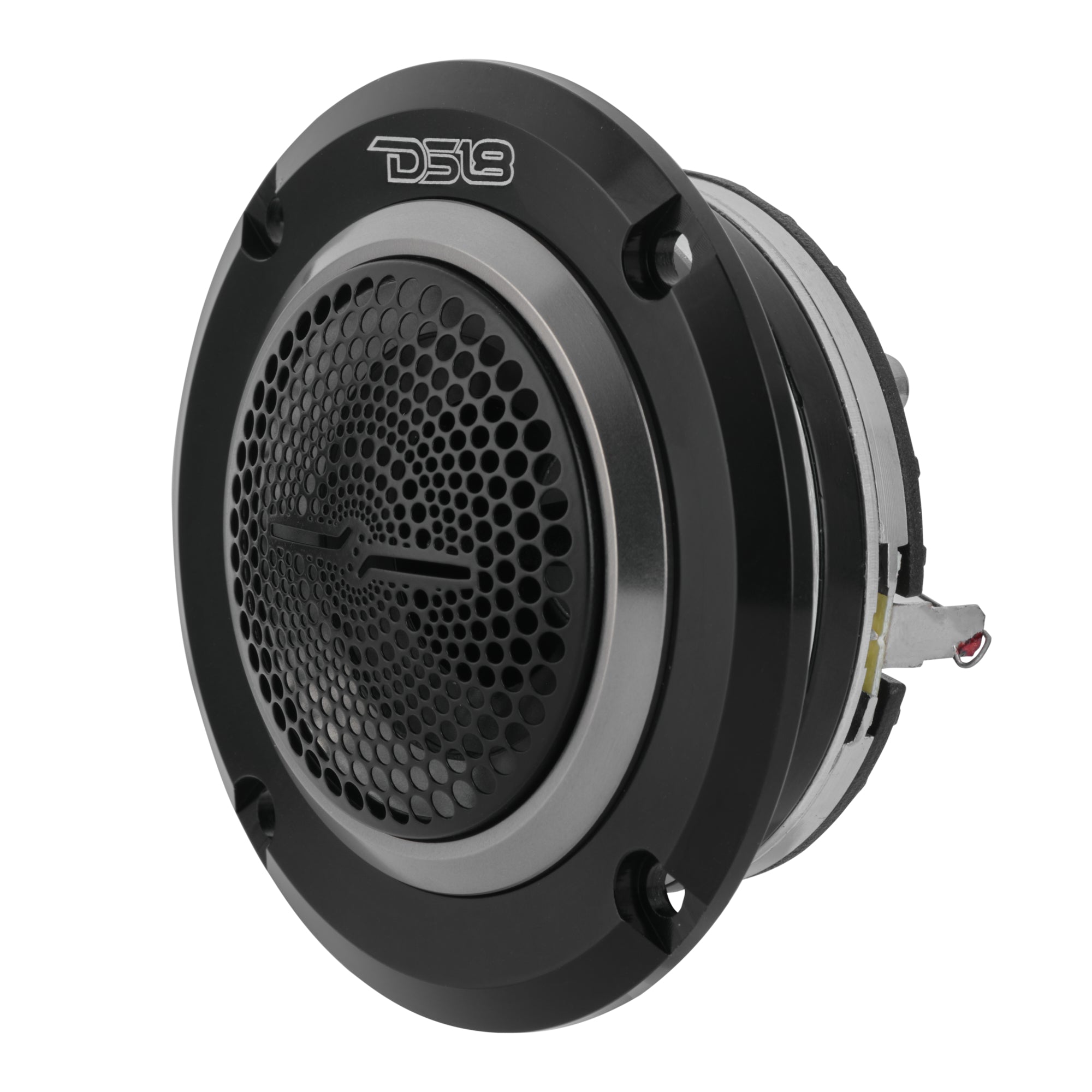

- Built in grills will help you protect the inner workings of your super tweeter.
- Easily repaired in minutes.
Technical Details
| Model: | PRO-TWN5 |
| Type: | Super Bullet Tweeter |
| Peak Power Handling | 400 Watts |
| Program Power Handling | 200 Watts |
| AES Power Handling | 100 Watts |
| Voice Coil Diameter: | 1.5" |
| Diaphragm Material: | PEN |
| Sensitivity: | 107 dB |
| Impedance: | 4 Ohms |

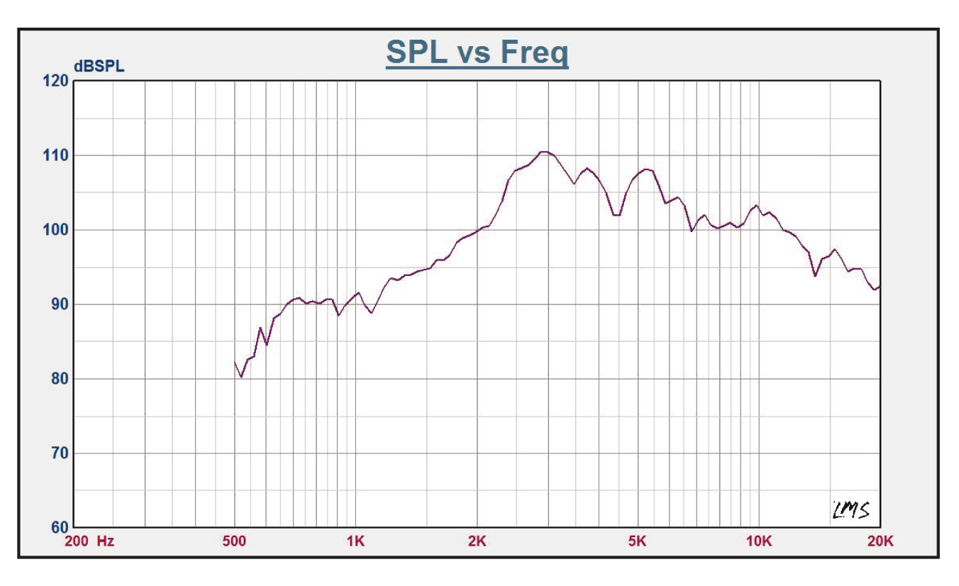

| Frequency Response: | 1.5KHz - 20KHz |
| Package Quantity: | 1 |
| Replacement Diaphragm: | PRO-TWN5VC |
| Magnet | Neodymium |

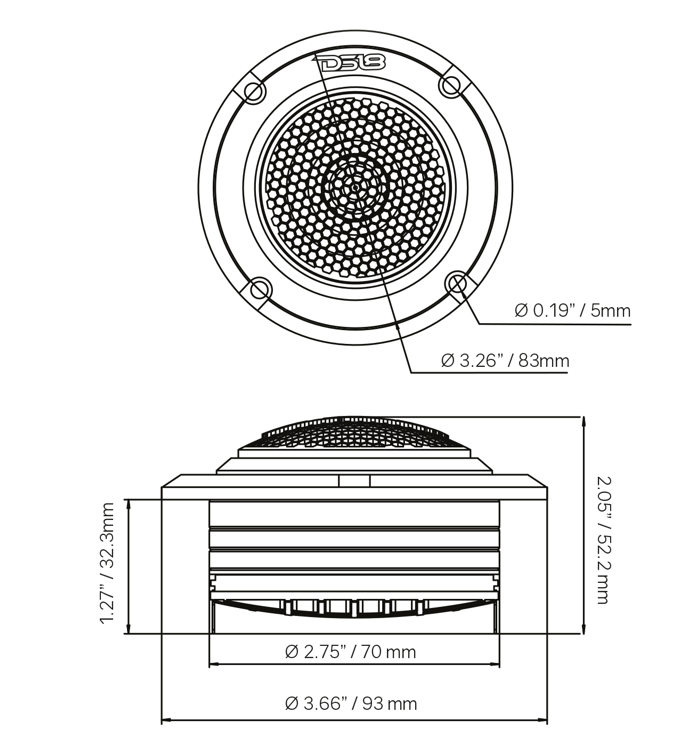

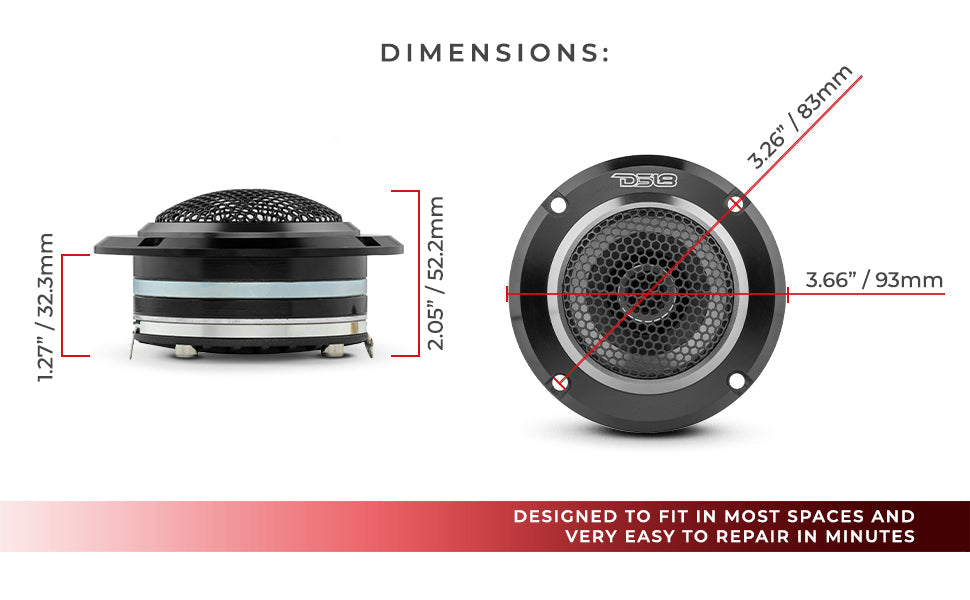

| Measurement | |

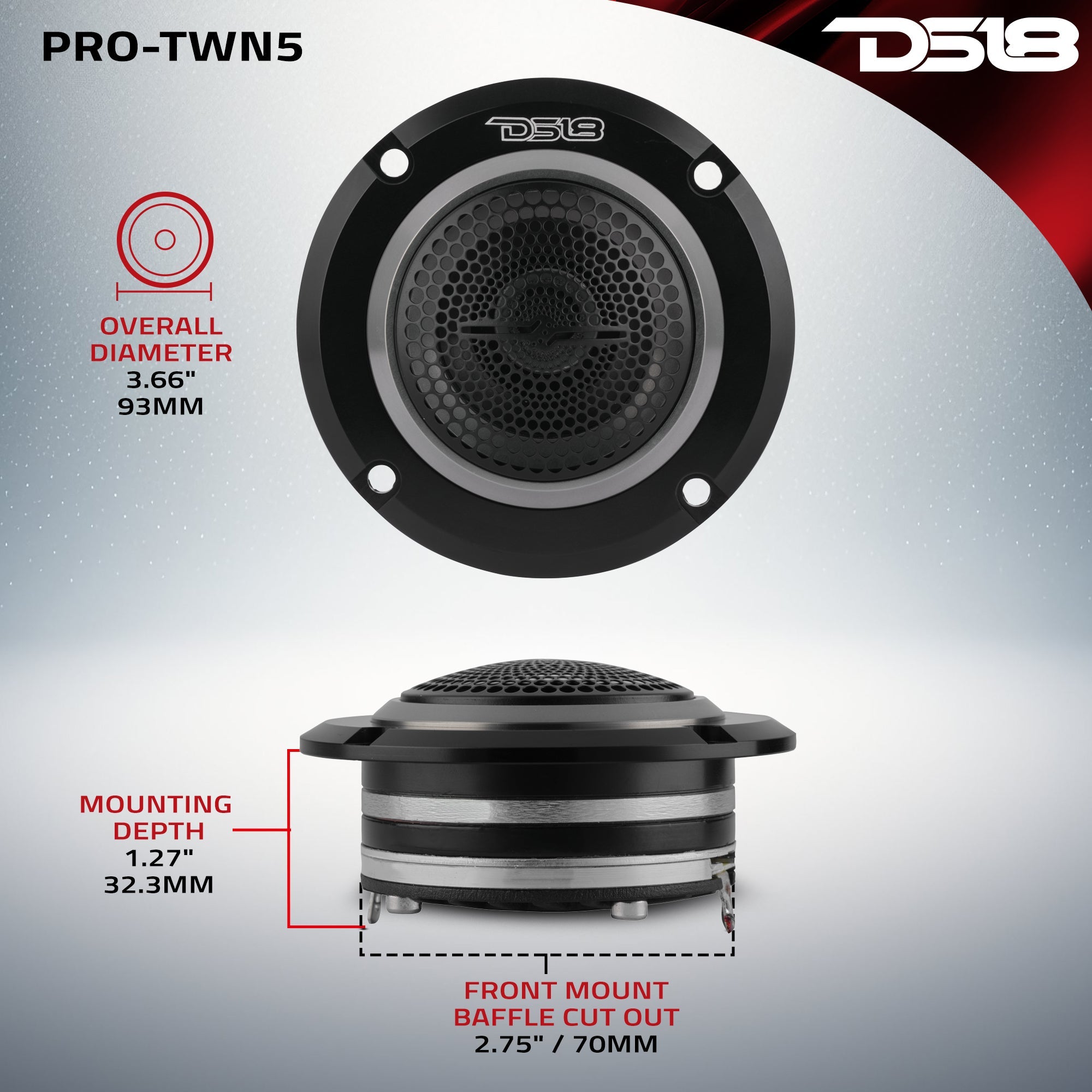

| Overall Diameter: | 3.66" |
| Overall Depth: | 2.05" |
| Front Mount Baffle Cutout: | 2.75" |
| Mounting Depth: | 1.27" |
Key Features
- 3.6" High Compression Hybrid Driver/Tweeter
- RMS Power: 200 Watts (400 Watts Peak)
- Impedance: 4 Ohm ~ 107dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN5VC
Specifications
| SKU | PRO-TWN5 |
|---|---|
| Nominal Diameter | 3.6" |
| Nominal Impedance | 4 Ohm |
| Peak Power Handling | 400W |
| Program Power Handling | 200W |
| AES Power Handling | 100W |
| Sensitivity (1w/1m) | 107dB |
| Frequency Response | 1.5KHz-20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Voice Coil Diameter | 1.5"/37.8mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAR |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium |
| Magnet Size | 2.75" x 0.2" |
| Body Material | Aluminum |
| Bullet Material | CNC Aluminum |
| Overall Diameter | 3.66" / 93mm |
| Overall Depth | 2" / 52.2mm |
| Front Mount Baffle Cutout | 2.75" / 70mm |
| Mounting Depth | 1.27" / 32.3mm |
| Gross Single Unit Weight (lb) | 1.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 4.5 x 4.0 x 2.4 |
| Quantity of Units in Master Carton | 20 |
| Gross Master Carton Weight (lb) | 31 |
| Master Carton Dimensions W x L x H (Inches) | 21.7 x 10.2 x 6.3 |
